MV ‘THOR COMMANDER’

MV ‘THOR COMMANDER’ (9,739 DWT, Multi-Purpose, Built 2011)

IDENTIFICATION: Launch Name was Sinus Aestuum. Call Sign V2FP5, IMO Number 9559872. Built at Jiangsu Changbo, Antigua & Barbuda Flagged, BV Classed, Ice Strengthened IA Class, Length Overall of 132.20 m., Length Between Perpendiculars of 124.56 m., Draught of 7.78 m., Beam of 15.87 m., Gross Tonnage of 6,351, Moulded Depth of 9.65 m., Tonnage of 3,617 International Net and 9,585 Dwt (long). ENGINE DETAILS: Engine Description 4 S.A. 8-cyl., Engine Model B32:40L8P Bergen Engine, Speed of 13.50 kts at 12.10 tonnes per day, Horsepower of 5,435B at 750, Bunker Capacity of 504 tonnes. 1 Variable pitch Propellor, 1 Bow Thruster(s) of 500.000, Shaft Generator 264 kW.

CARGO HANDLING: Maximum TEU of 206 in holds and 264 on deck, ratio of dwt per TEU is 20.72128. Grain Capacity of 12,822 cu.m., Bale Capacity of 12,800 cu.m., 2 Holds, 2 Hatches, Total Teu capacity of 470, Maximum Teu of 206 in the Holds and 264 on Deck, 2 Crane(s) with a safe working load of 60 tonnes, Heavy Lift.

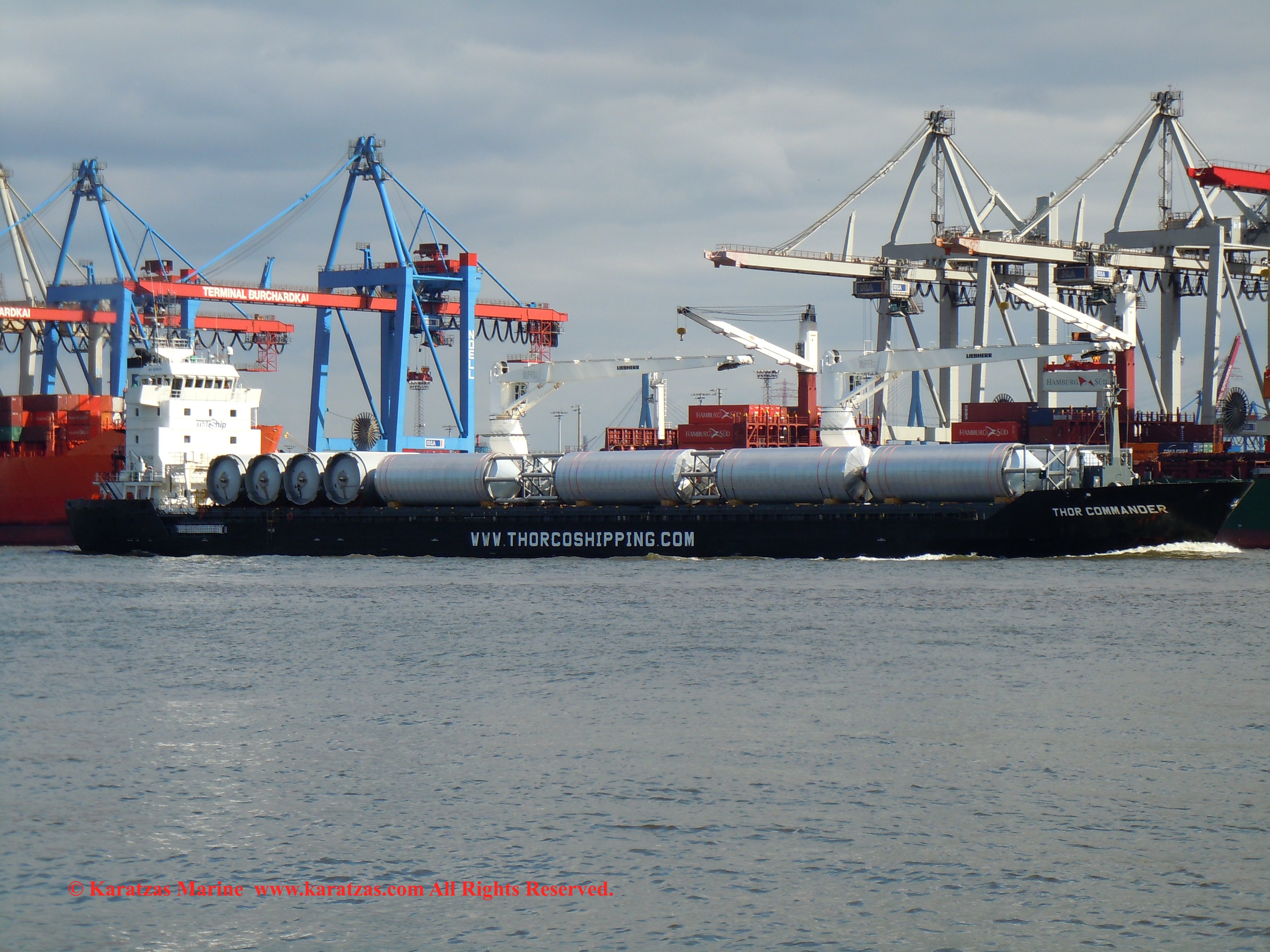

MV THOR COMMANDER 1

MV ‘THOR COMMANDER’ 9,800 DWT Multi-purpose vessel built in 2011

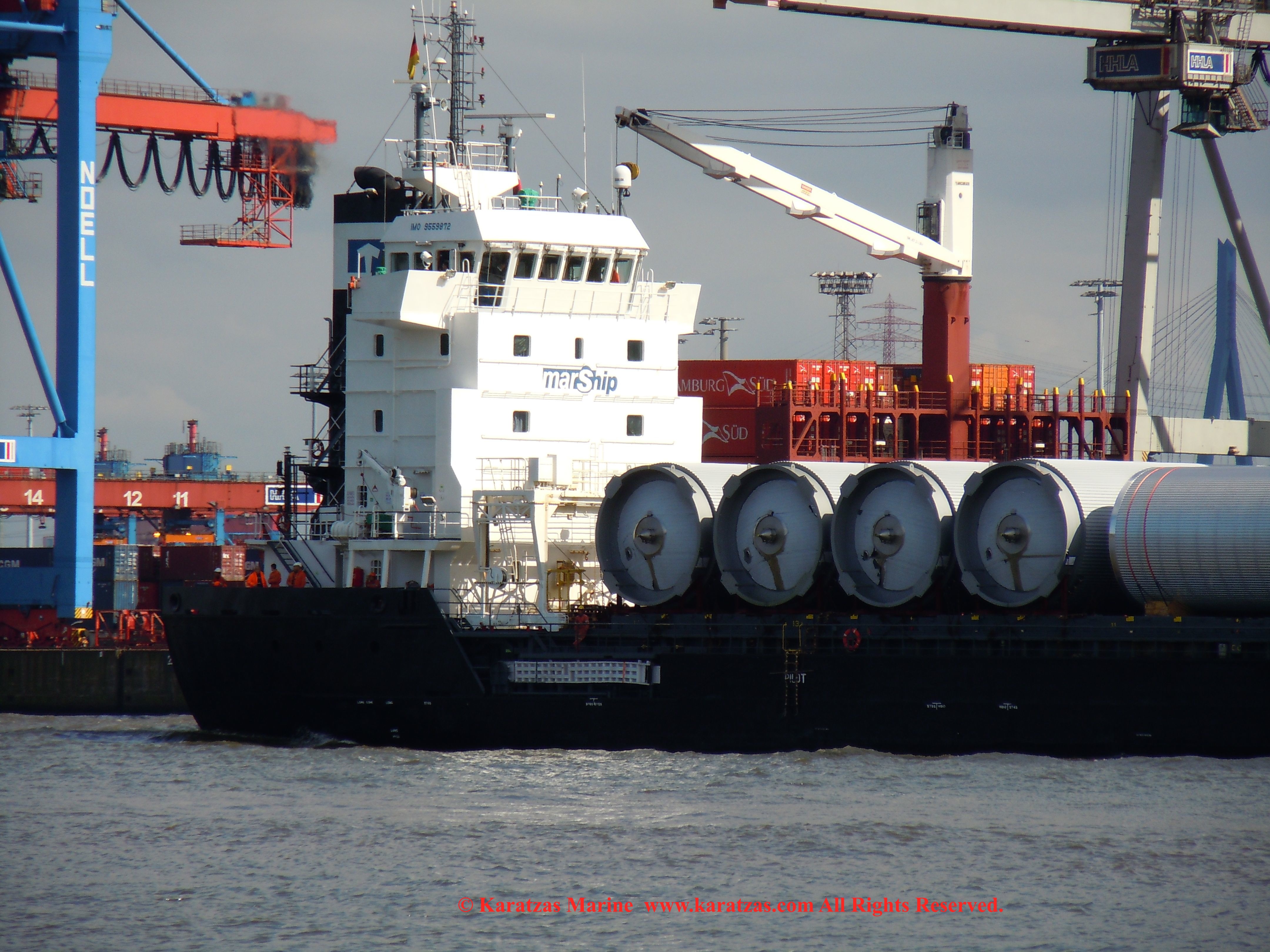

MV THOR COMMANDER 2

MV ‘THOR COMMANDER’ 9,800 DWT Multi-purpose vessel with 2x60T cranes, built in 2011

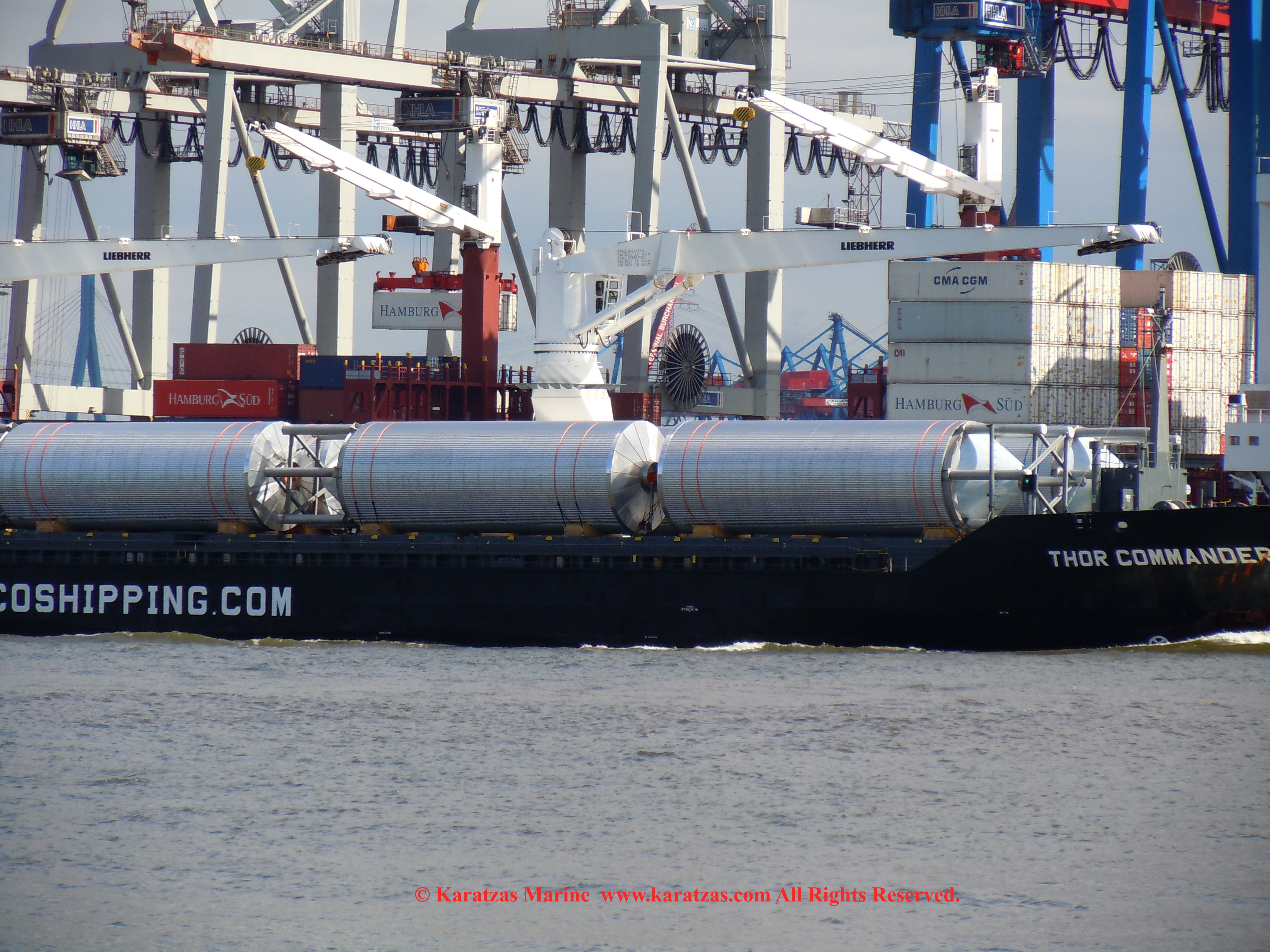

MV THOR COMMANDER 3

MV ‘THOR COMMANDER’ 9,800 DWT Multi-purpose vessel with 2x60T cranes, built in 2011

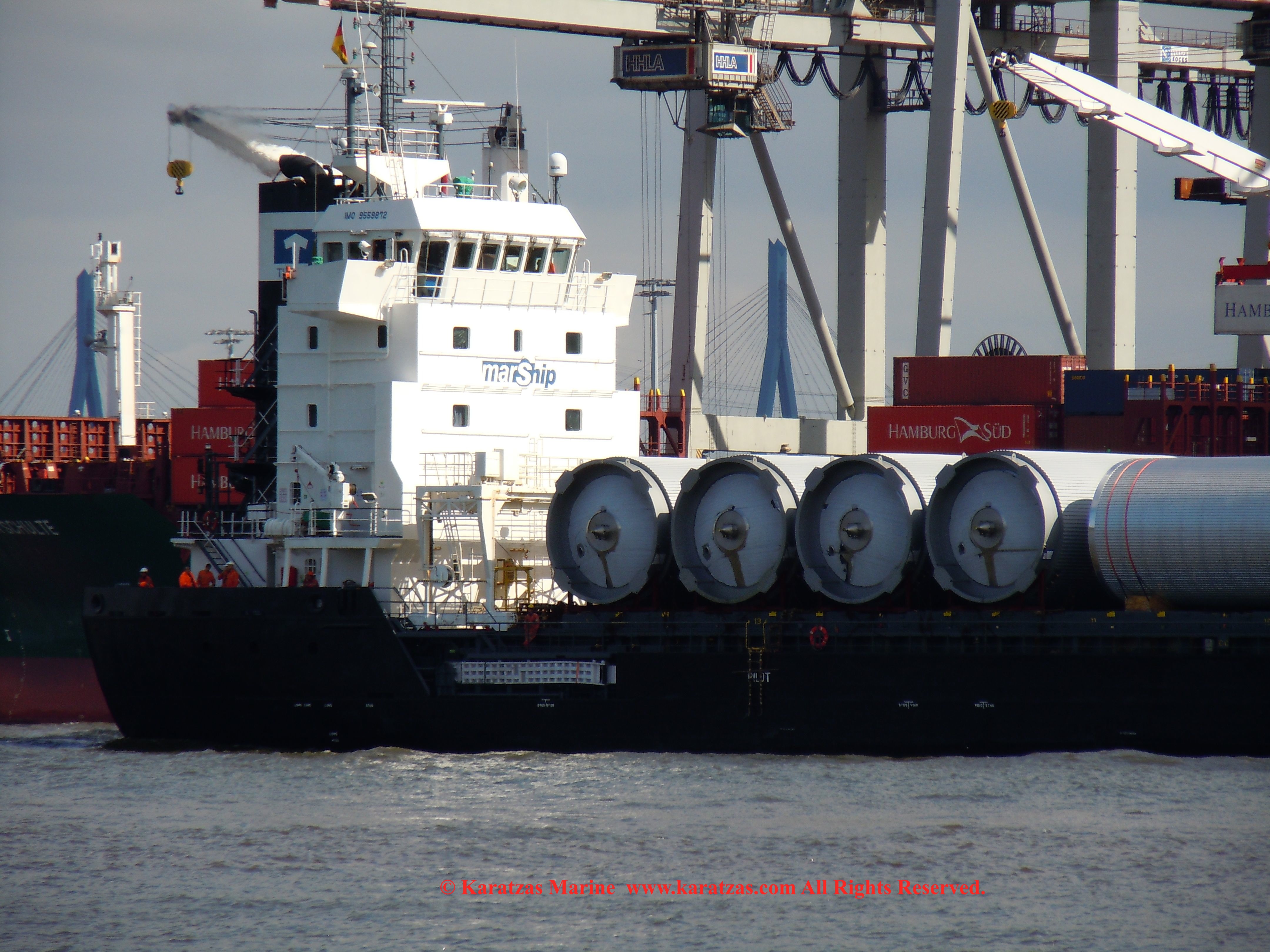

MV THOR COMMANDER 4

MV ‘THOR COMMANDER’ 9,800 DWT Multi-purpose vessel with 2x60T cranes, built in 2011

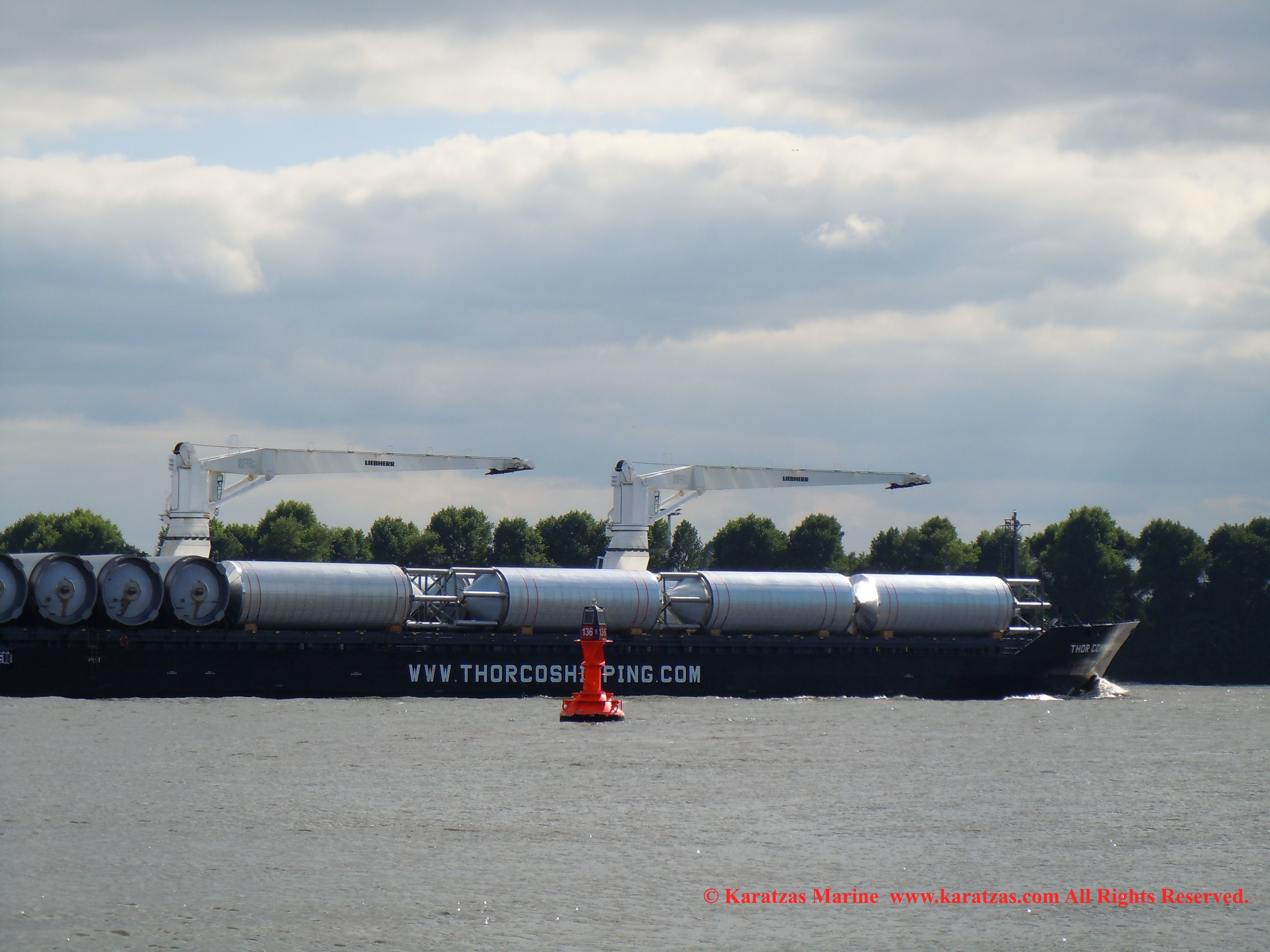

MV THOR COMMANDER 5

MV ‘THOR COMMANDER’ 9,800 DWT Multi-purpose vessel with 2x60T cranes, built in 2011

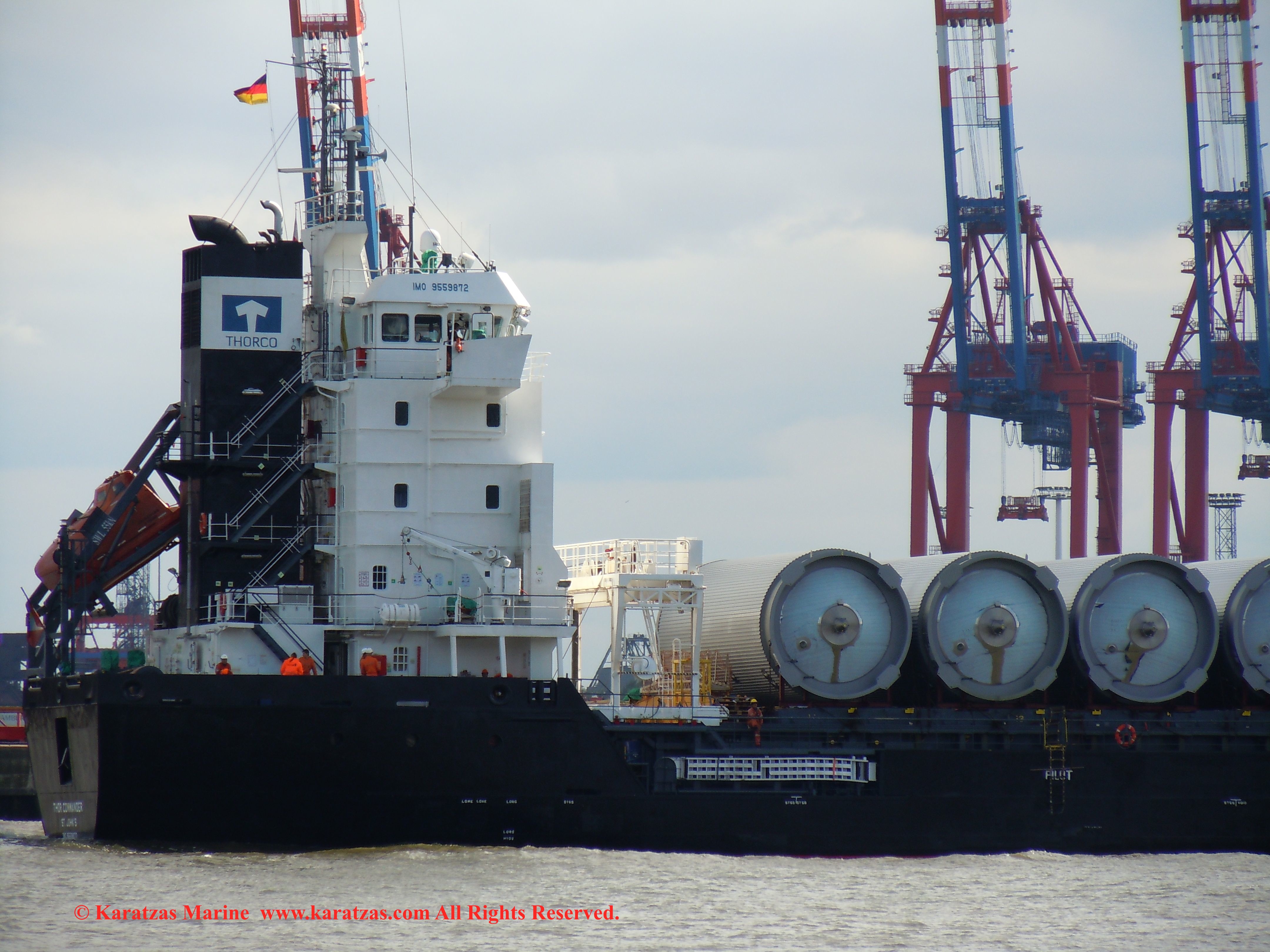

MV THOR COMMANDER 6

MV ‘THOR COMMANDER’ 9,800 DWT Multi-purpose vessel with 2x60T cranes, built in 2011

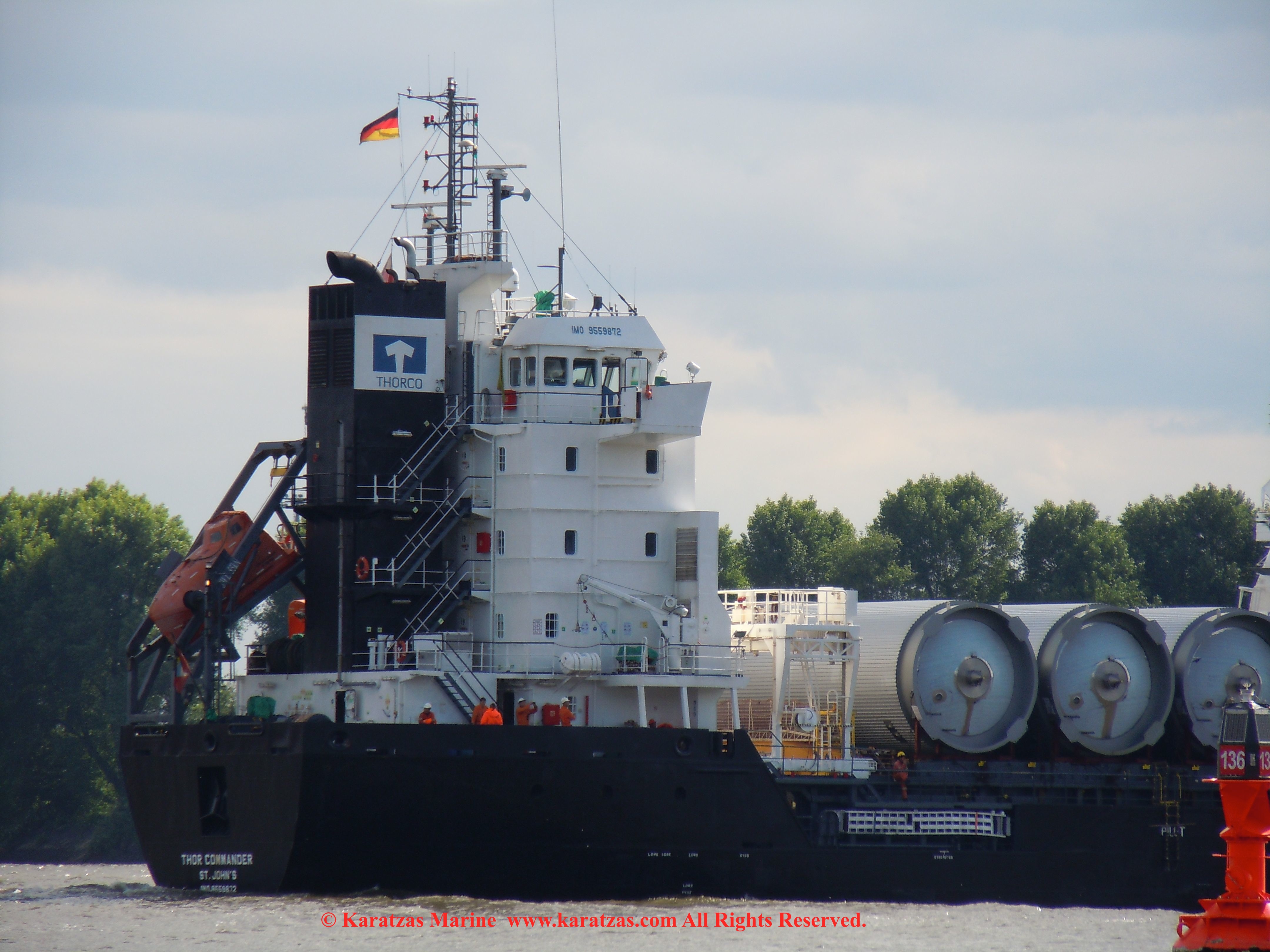

MV THOR COMMANDER 7

MV ‘THOR COMMANDER’ 9,800 DWT Multi-purpose vessel with 2x60T cranes, built in 2011

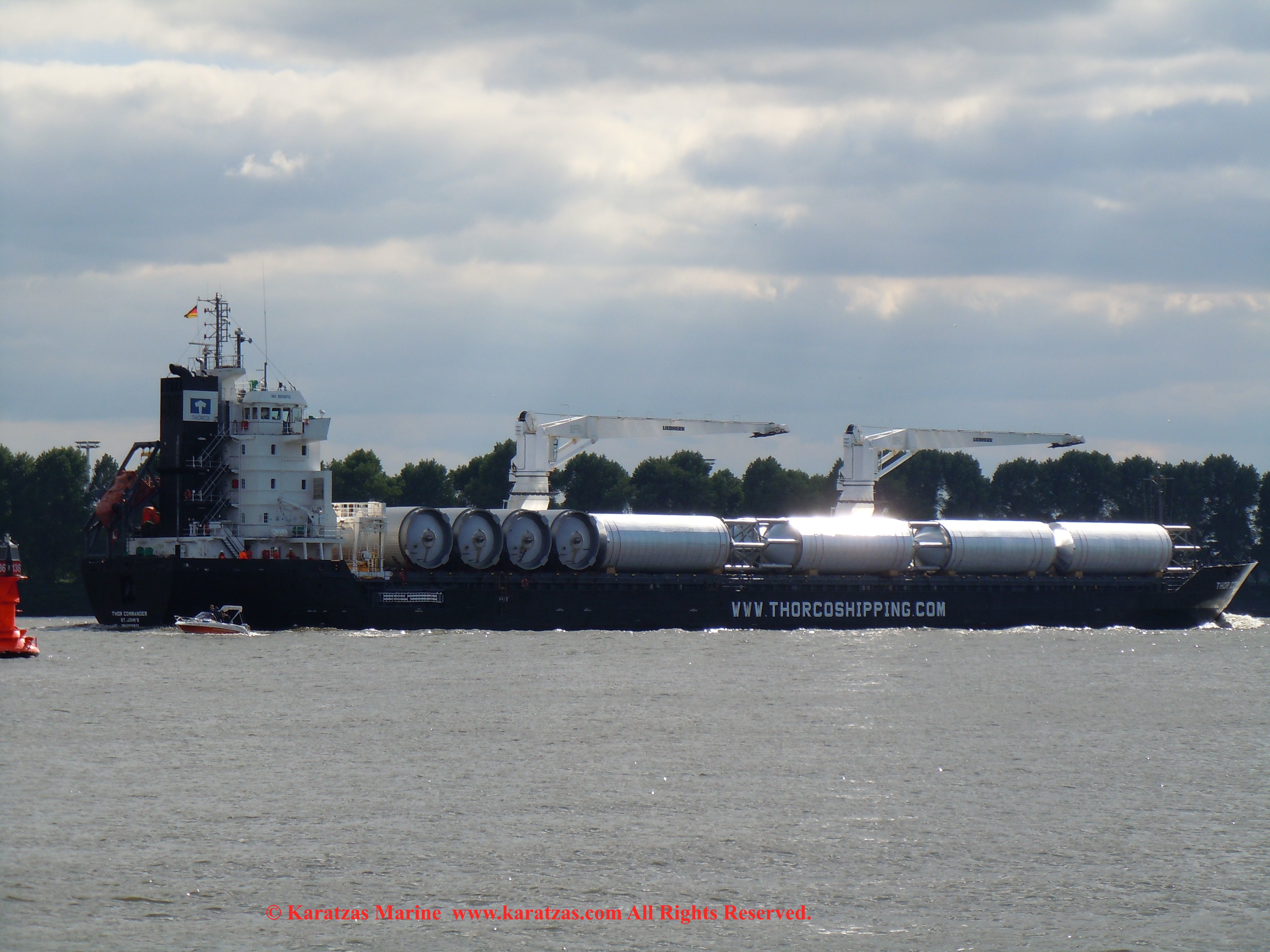

MV THOR COMMANDER 8

MV ‘THOR COMMANDER’ 9,800 DWT Multi-purpose vessel with 2x60T cranes, built in 2011

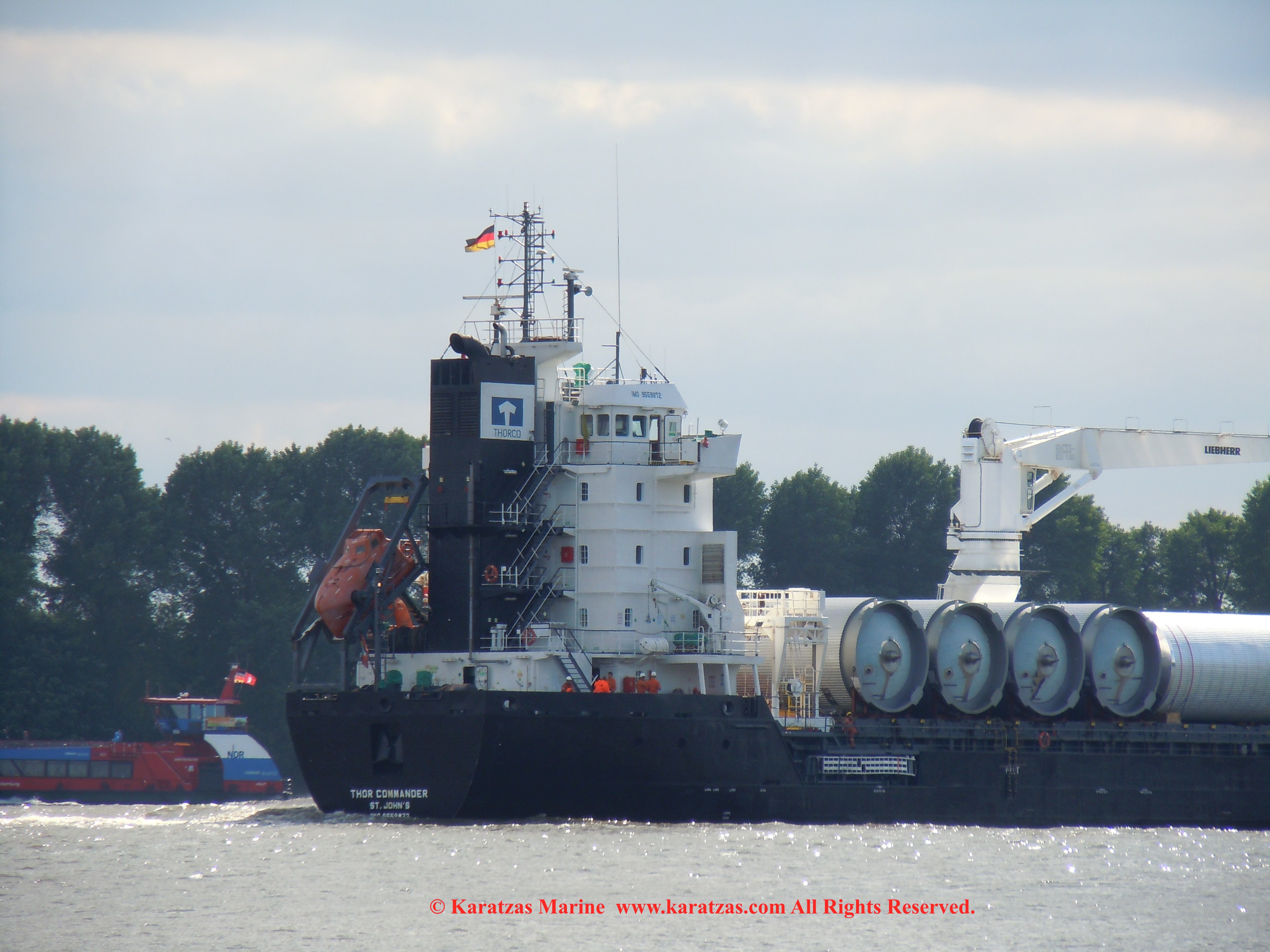

MV THOR COMMANDER 9

MV ‘THOR COMMANDER’ 9,800 DWT Multi-purpose vessel with 2x60T cranes, built in 2011

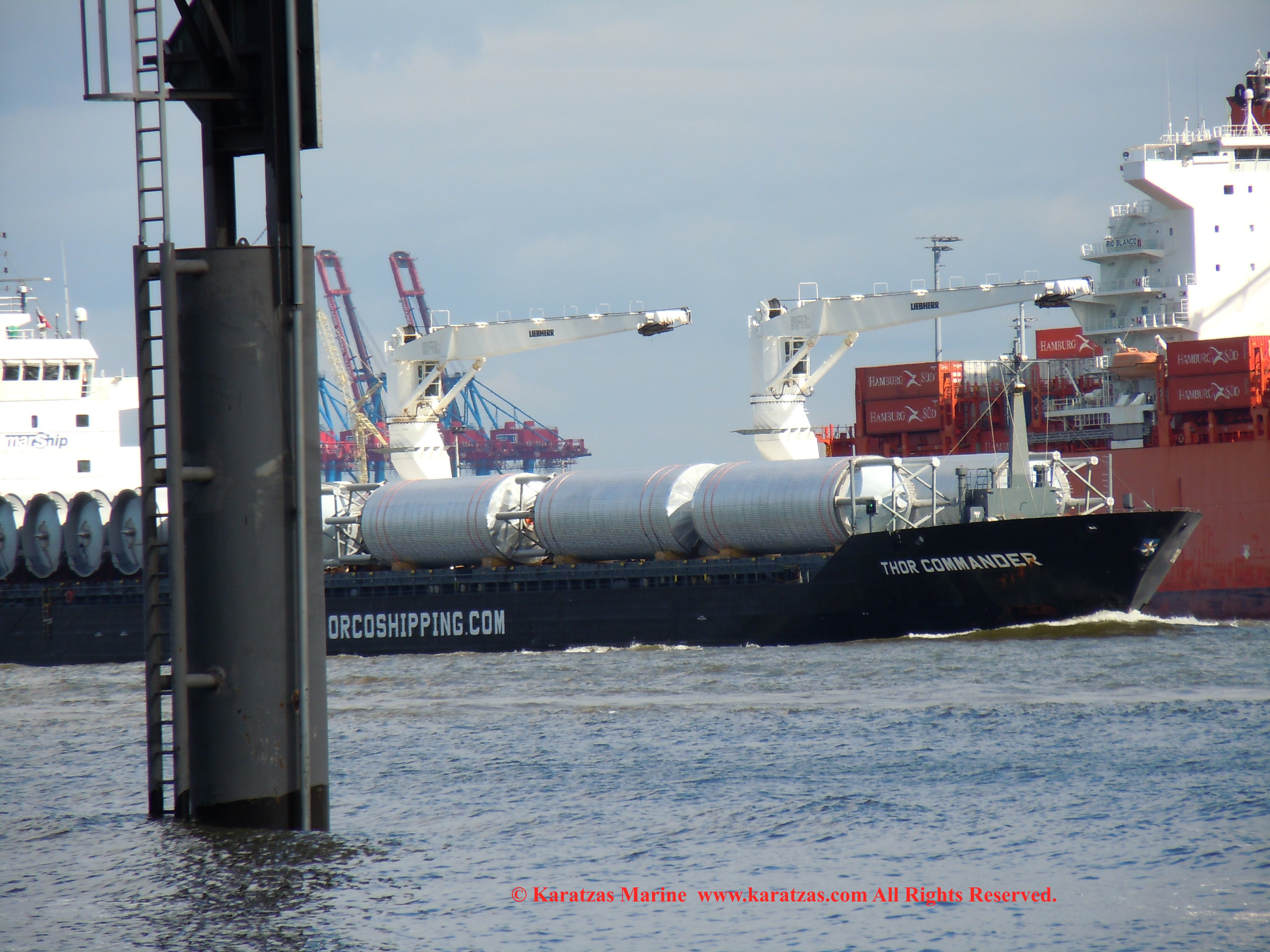

MV THOR COMMANDER 10

MV ‘THOR COMMANDER’ 9,800 DWT Multi-purpose vessel with 2x60T cranes, built in 2011

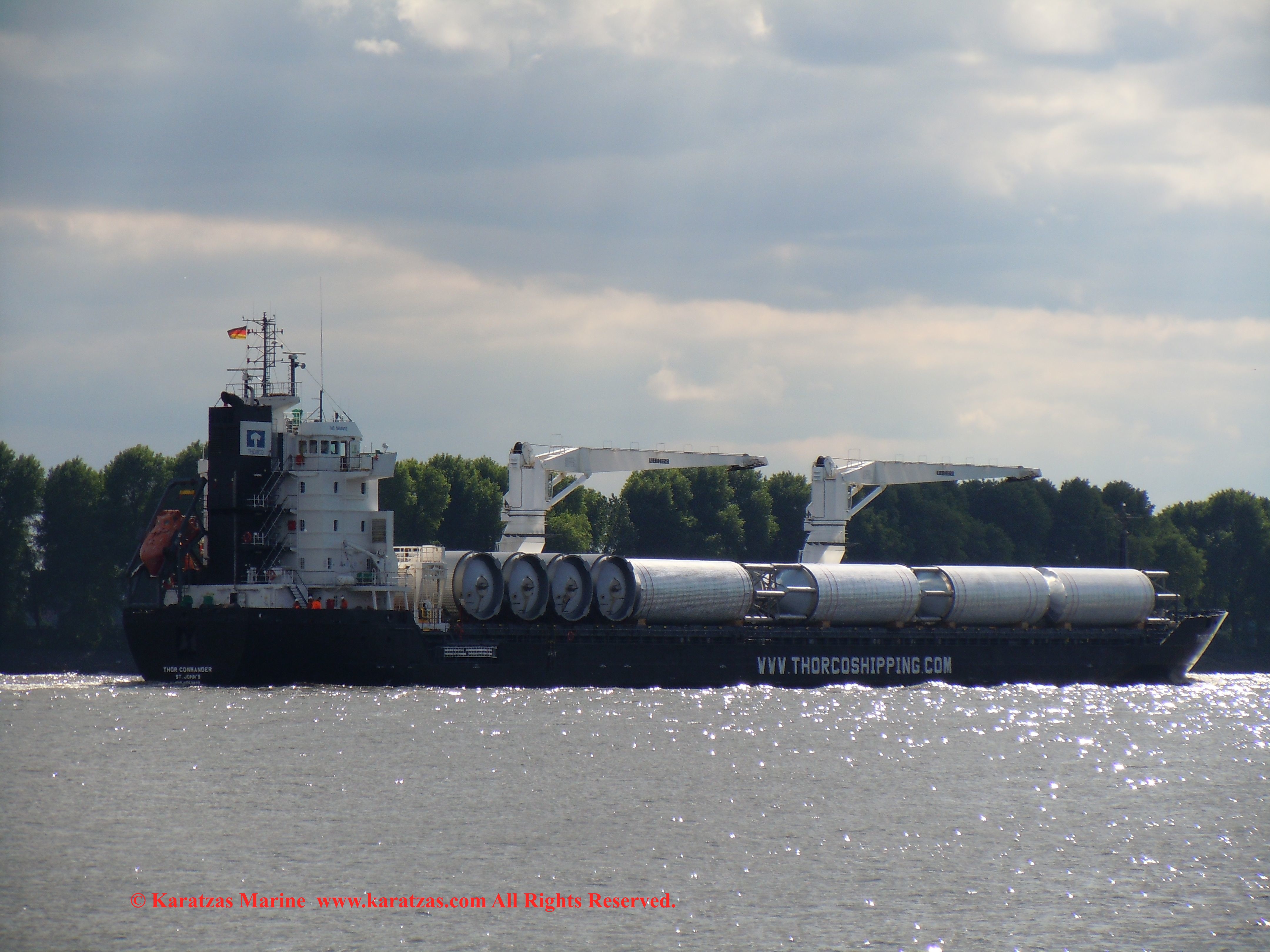

MV THOR COMMANDER 11

MV ‘THOR COMMANDER’ 9,800 DWT Multi-purpose vessel with 2x60T cranes, built in 2011

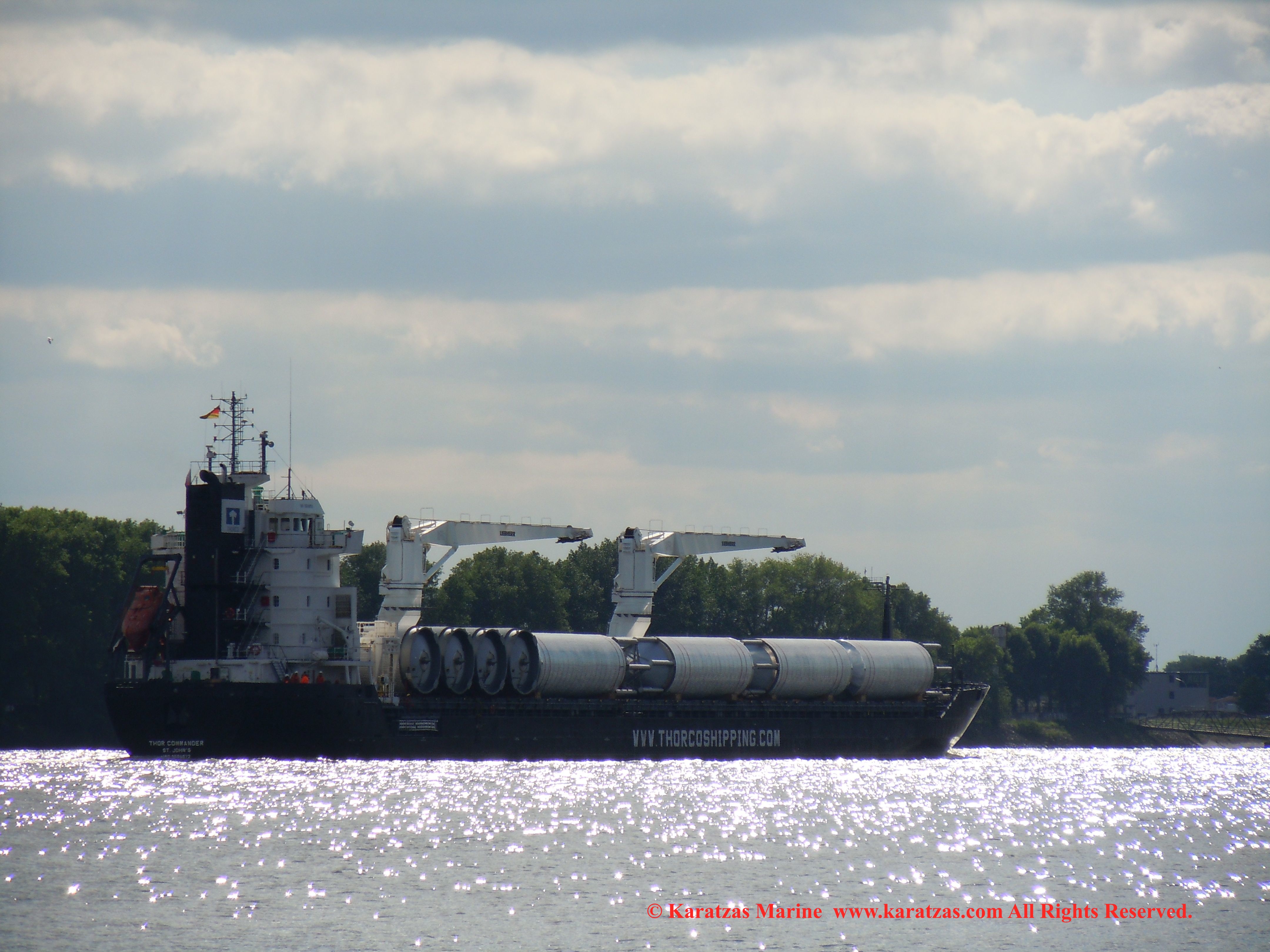

MV THOR COMMANDER 12

MV ‘THOR COMMANDER’ 9,800 DWT Multi-purpose vessel with 2x60T cranes, built in 2011
