MV ‘MARIA’

Images of Heavy-lift / Multi-purpose (MPP) Vessel MV ‘MARIA’                          (8,919 DWT, Multi-Purpose/Heavy Lift Cargo, Built 2004)

IDENTIFICATION: Launch Name was Maria. Call Sign V2ON1, IMO Number 9266566. Built at J. J. Sietas, Antigua & Barbuda Flagged, GL Classed, Length Overall of 151.67 m., Length Between Perpendiculars of 143.32 m., Draught of 7.84 m., Beam of 20.40 m., Gross Tonnage of 8,383, MAN Engine, Speed of 20.00 kts at 43.00 tonnes per day, Moulded Depth of 10.50 m., Tonnage of 7,624 Panama Canal Net, 6,935 Suez Canal Net, 4,196 International Net, 5,523 Light Displacement and 8,778 Dwt (long). ENGINE DETAILS: Engine Description 4 S.A. 9-cyl., Engine Model 9L48/60 Horsepower of 12,847B at 500, Bunker Capacity of 950 tonnes. 1 Variable Pitch Propellor, 1 Bow Thruster(s) of 900.00000, Shaft Generator 1625 kVA.

OWNER / MANAGER: SAL Heavy Lift GmbH, Germany, URL: http://www.sal-heavylift.com.

CARGO HANDLING: Grain Capacity of 13,178 cu.m., Maximum TEU of 272 in holds and 541 on deck, maximum hatch dimensions of 82.90 x 15.80 m., 2 deck(s), ratio of dwt per TEU is 10.97047. Bale Capacity of 12,780 cu.m., Teu Capacities of 813 Teu and 50 Reefer, Maximum Teu of 272 in the Holds and 541 on Deck, 2 Crane(s) with a safe working load of 350 tonnes, 1 Crane(s) with a safe working load of 250 tonnes, Heavy Lift.

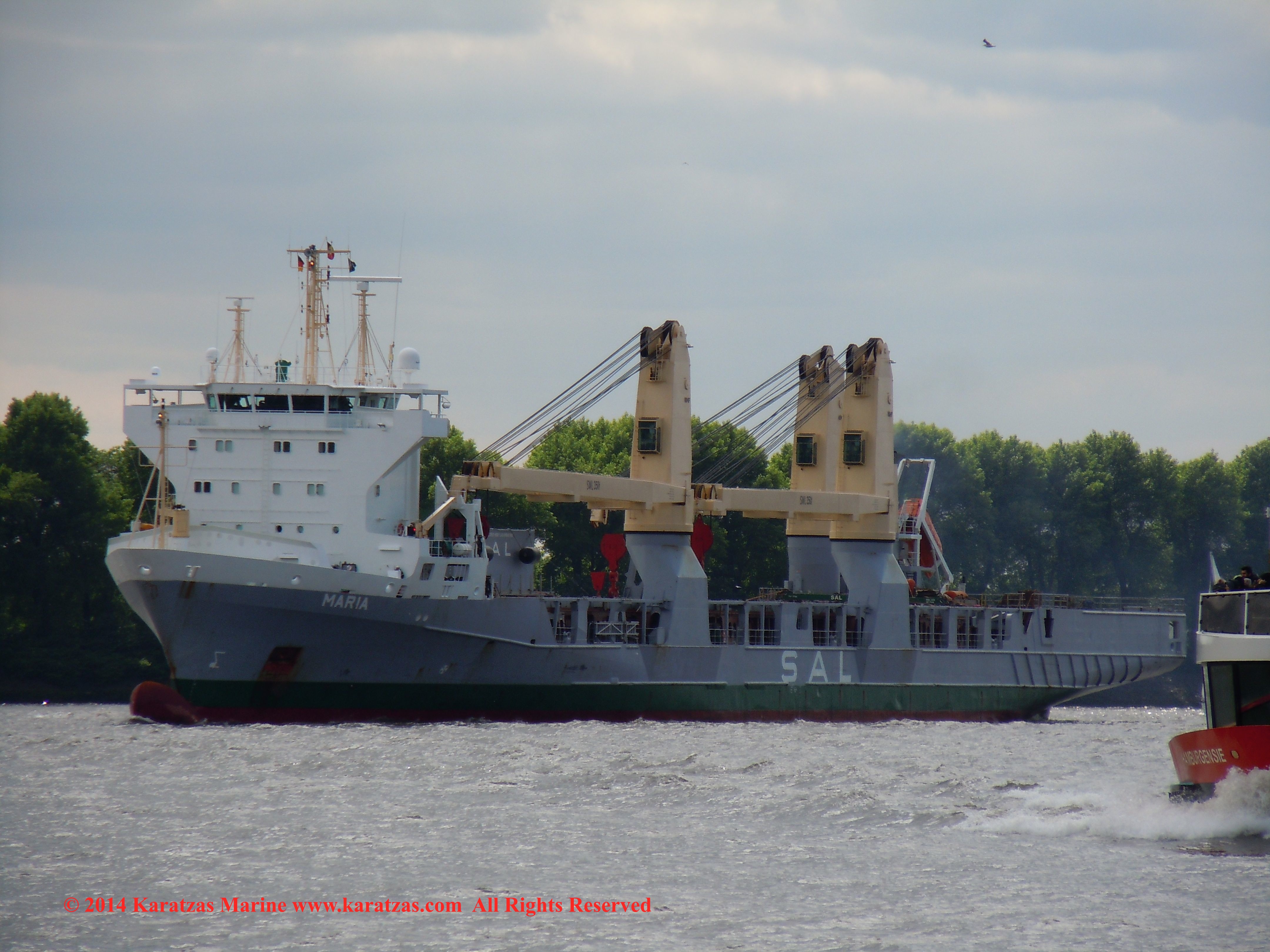

MV MARIA 1

MV ‘MARIA’ 9,000 DWT Multi-purpose / heavy-lift vessel built in 2004

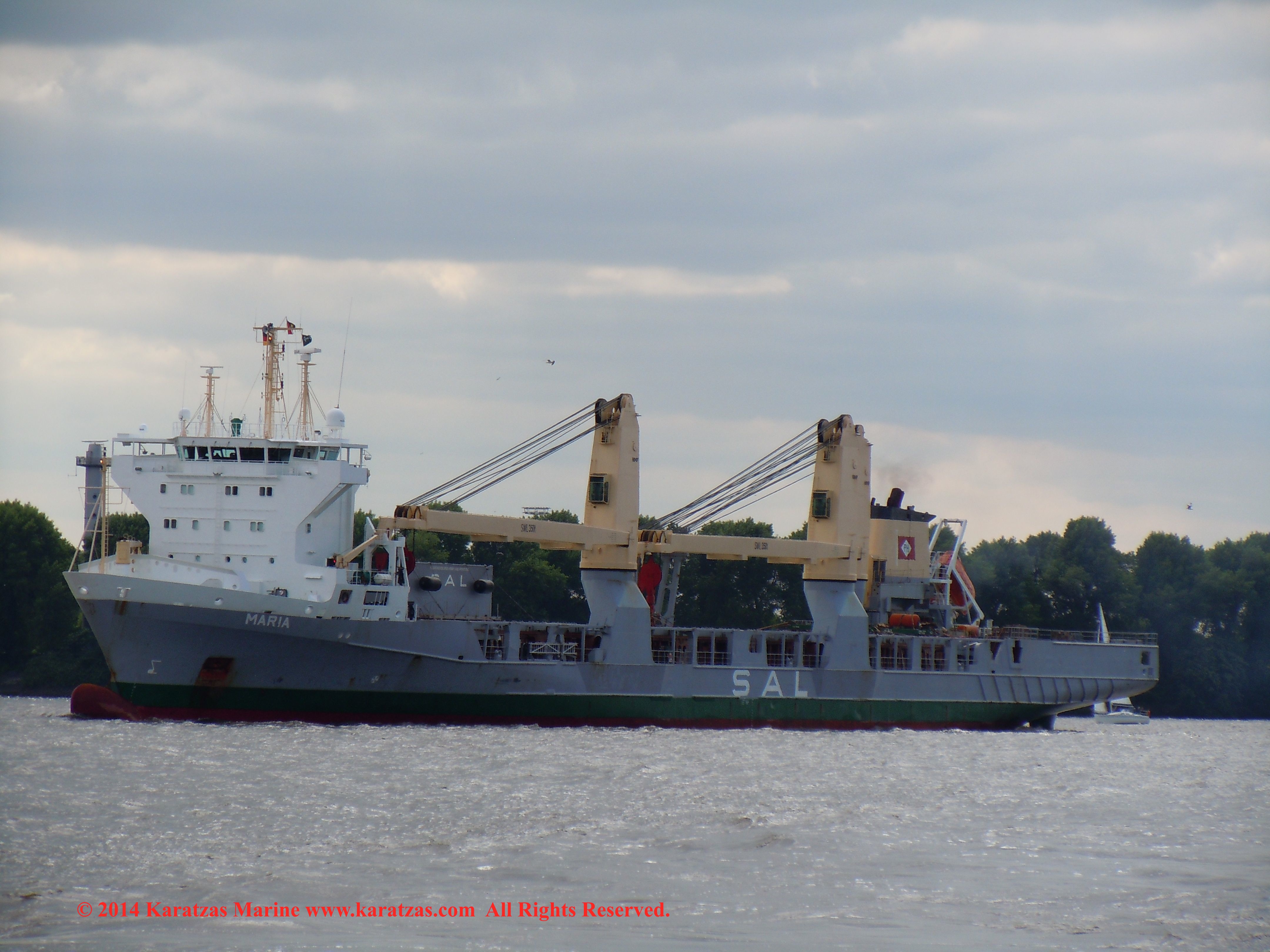

MV MARIA 2

MV ‘MARIA’ 9,000 DWT Multi-purpose / heavy-lift vessel built in 2004

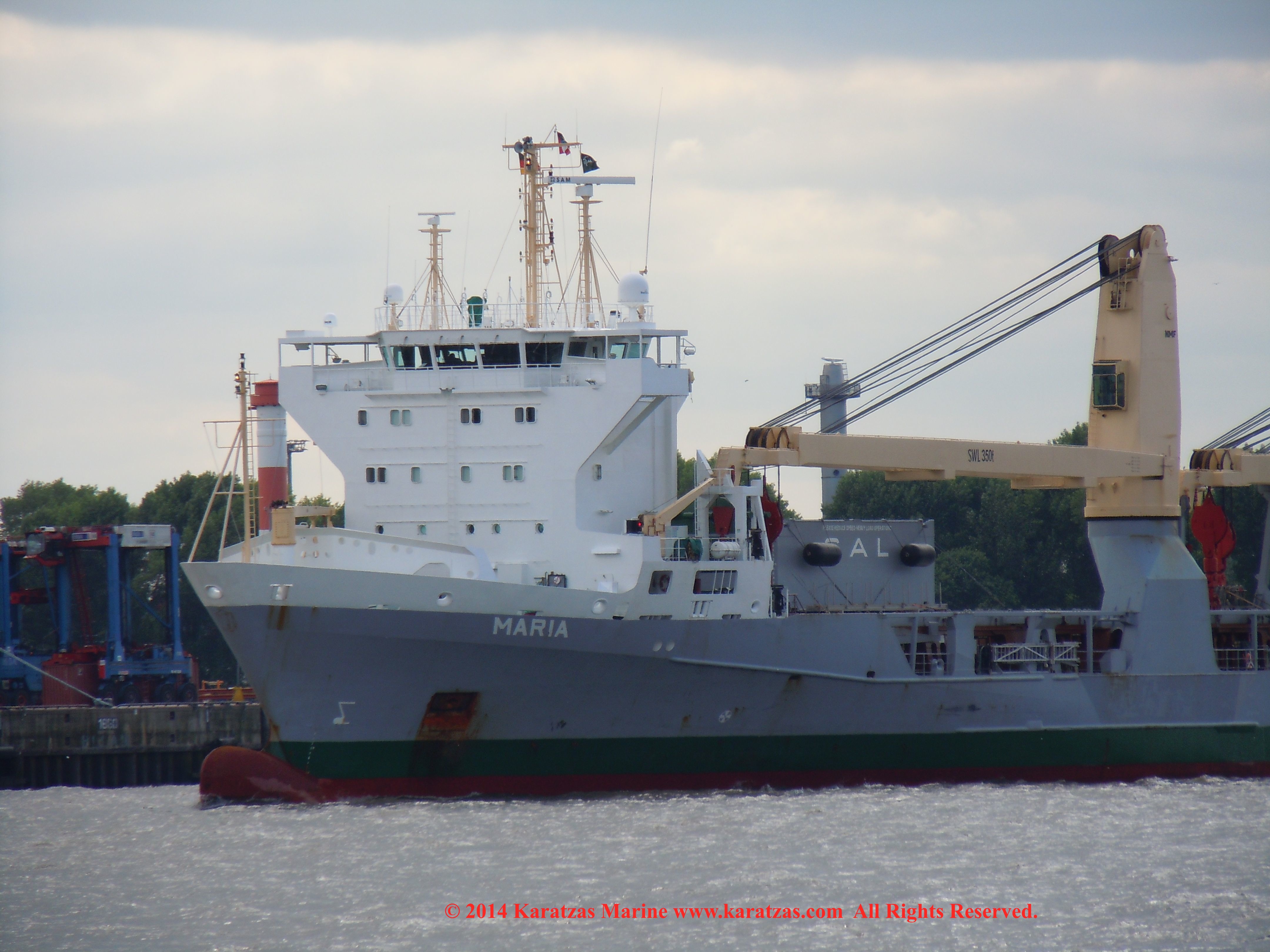

MV MARIA 3

MV ‘MARIA’ 9,000 DWT Multi-purpose / heavy-lift vessel built in 2004

MV MARIA 4

MV ‘MARIA’ 9,000 DWT Multi-purpose / heavy-lift vessel built in 2004

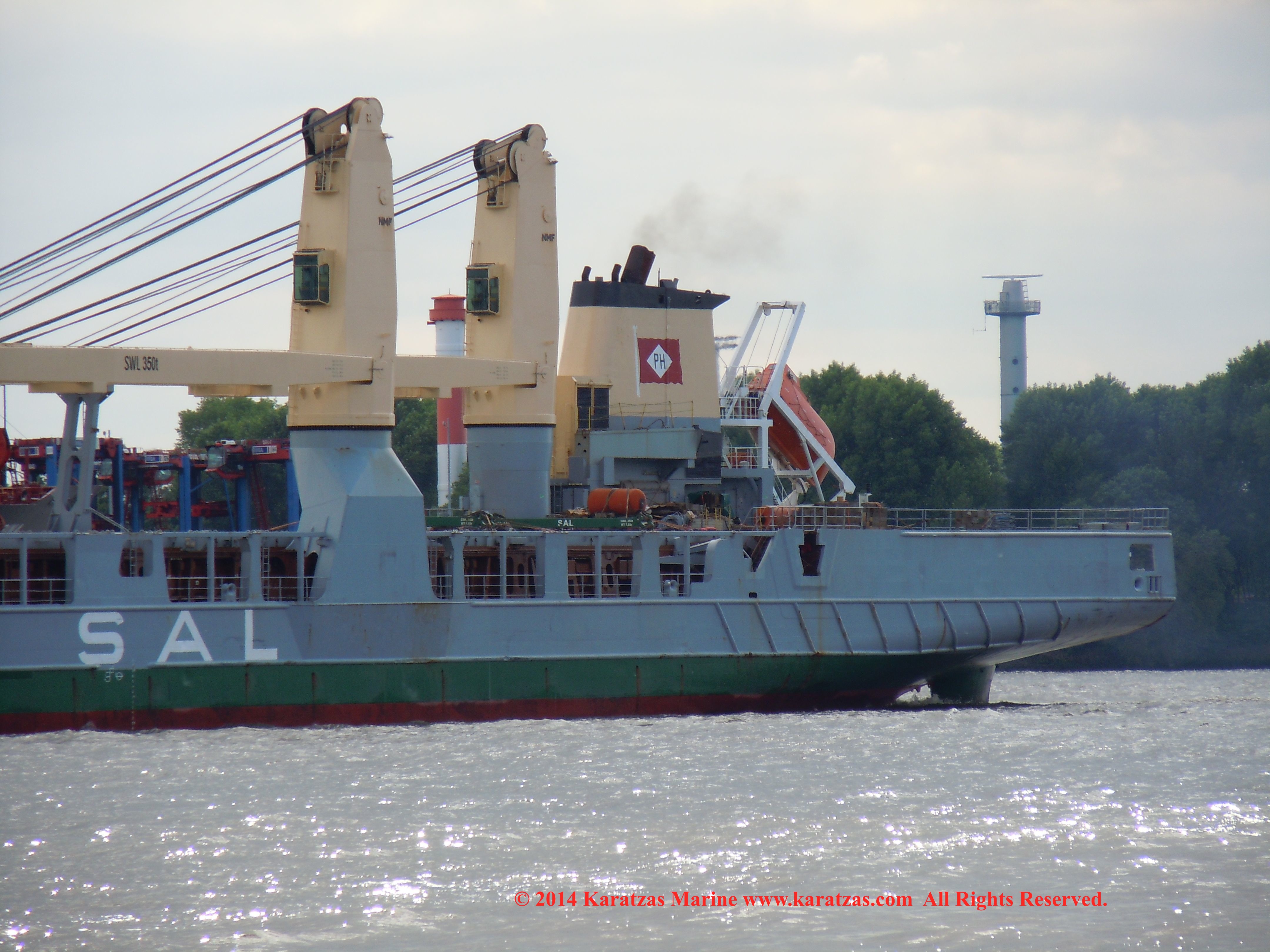

MV MARIA 5

MV ‘MARIA’ 9,000 DWT Multi-purpose / heavy-lift vessel built in 2004

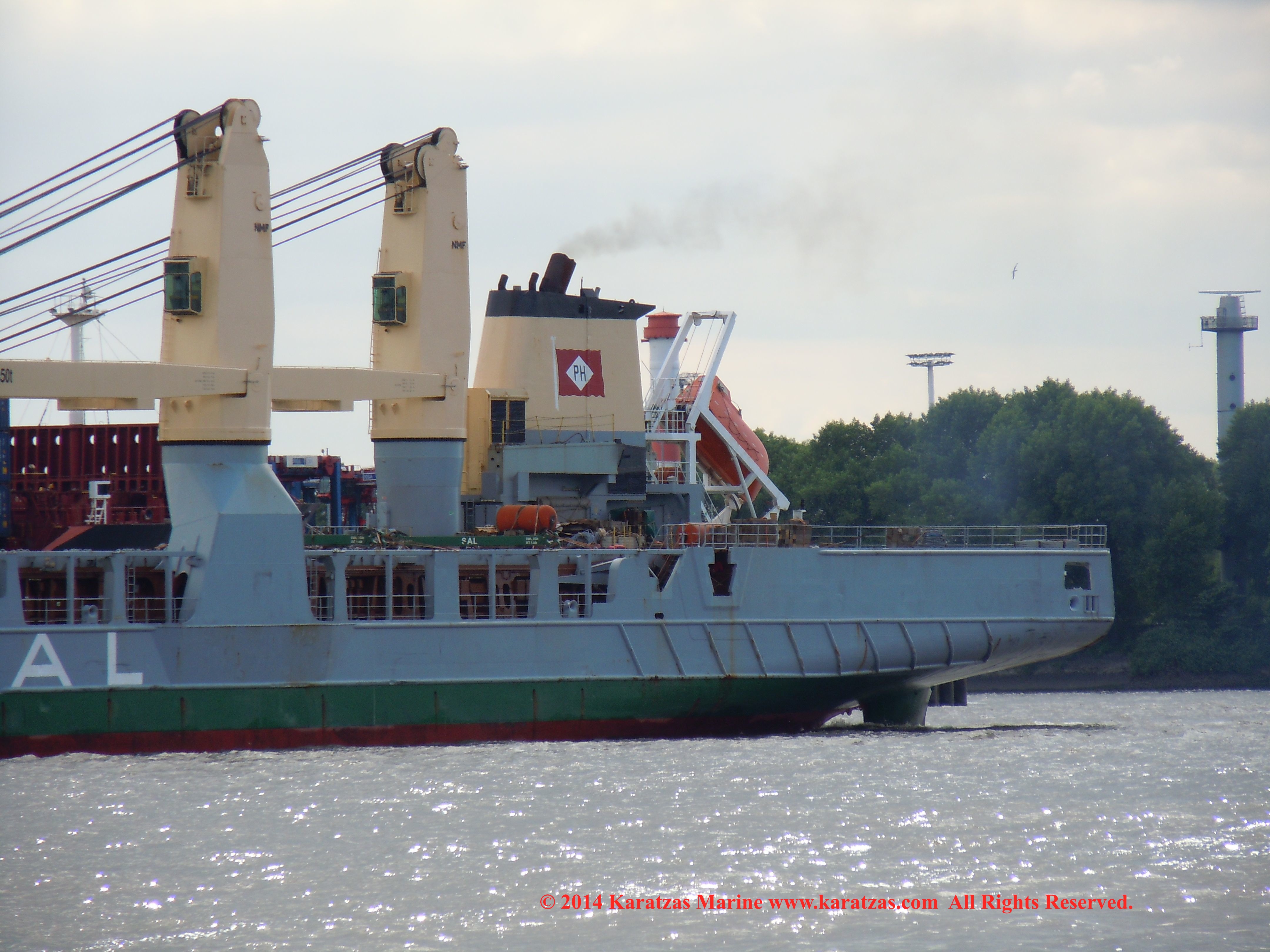

MV MARIA 6

MV ‘MARIA’ 9,000 DWT Multi-purpose / heavy-lift vessel built in 2004

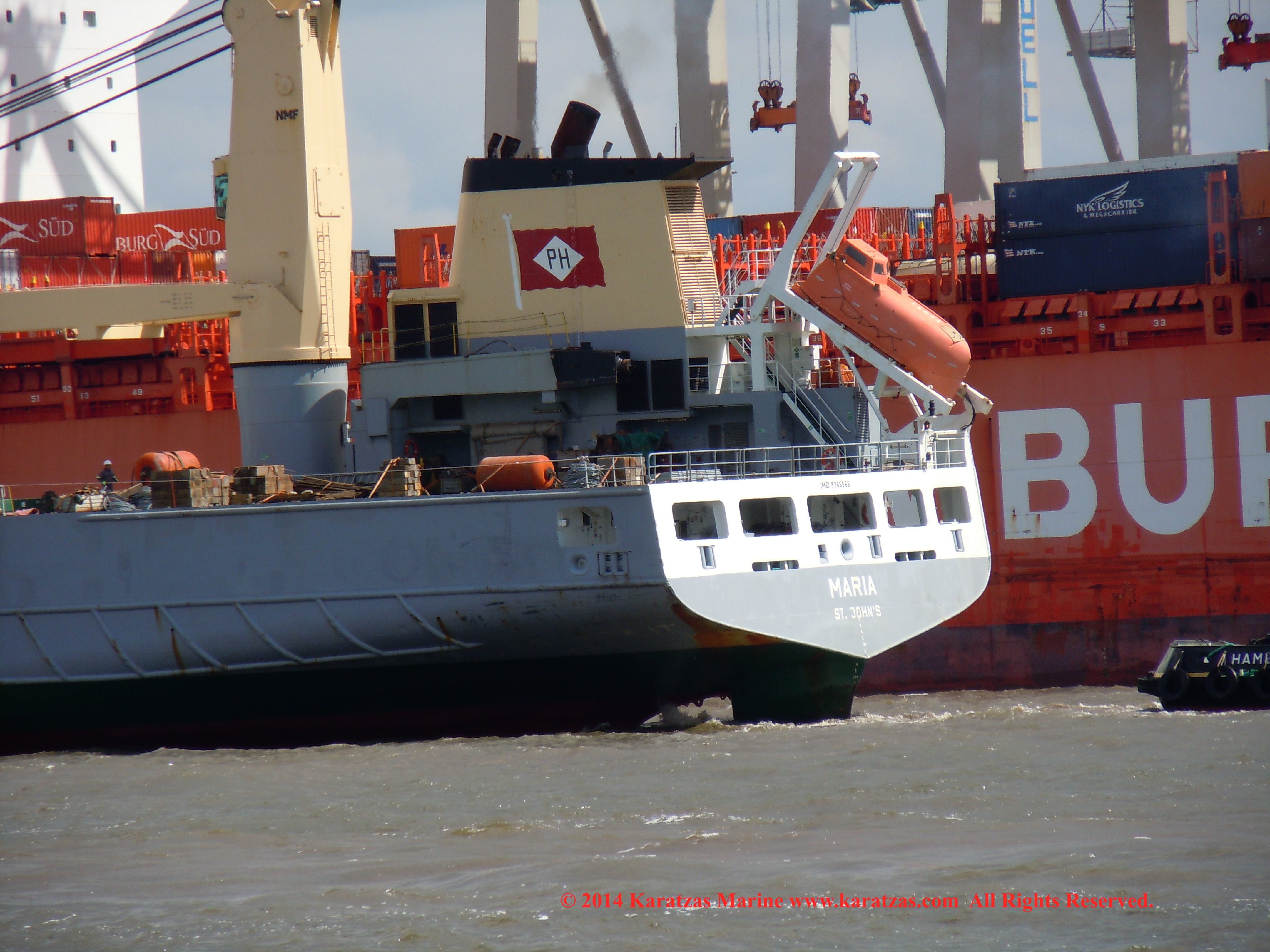

MV MARIA 7

MV ‘MARIA’ 9,000 DWT Multi-purpose / heavy-lift vessel built in 2004

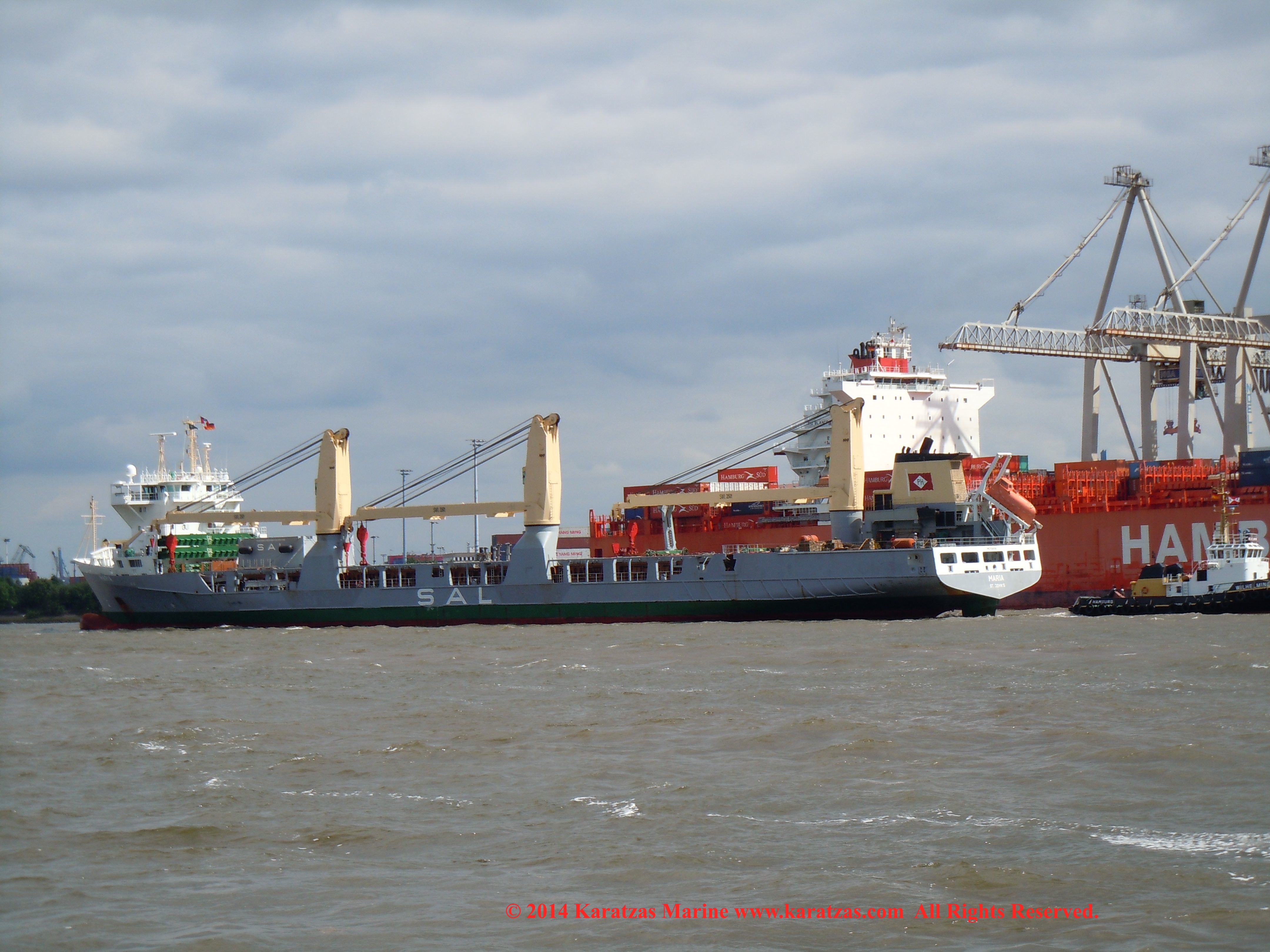

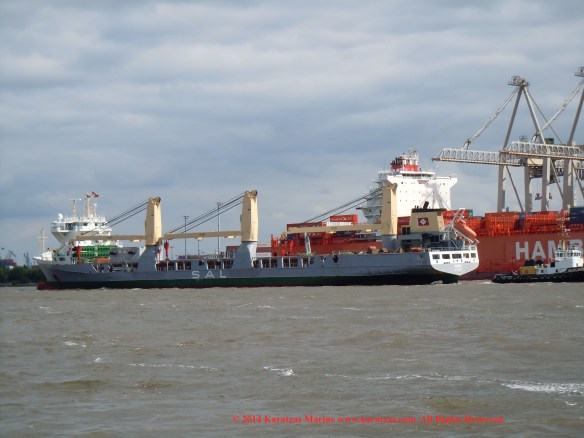

MV MARIA 8

MV ‘MARIA’ 9,000 DWT Multi-purpose / heavy-lift vessel built in 2004

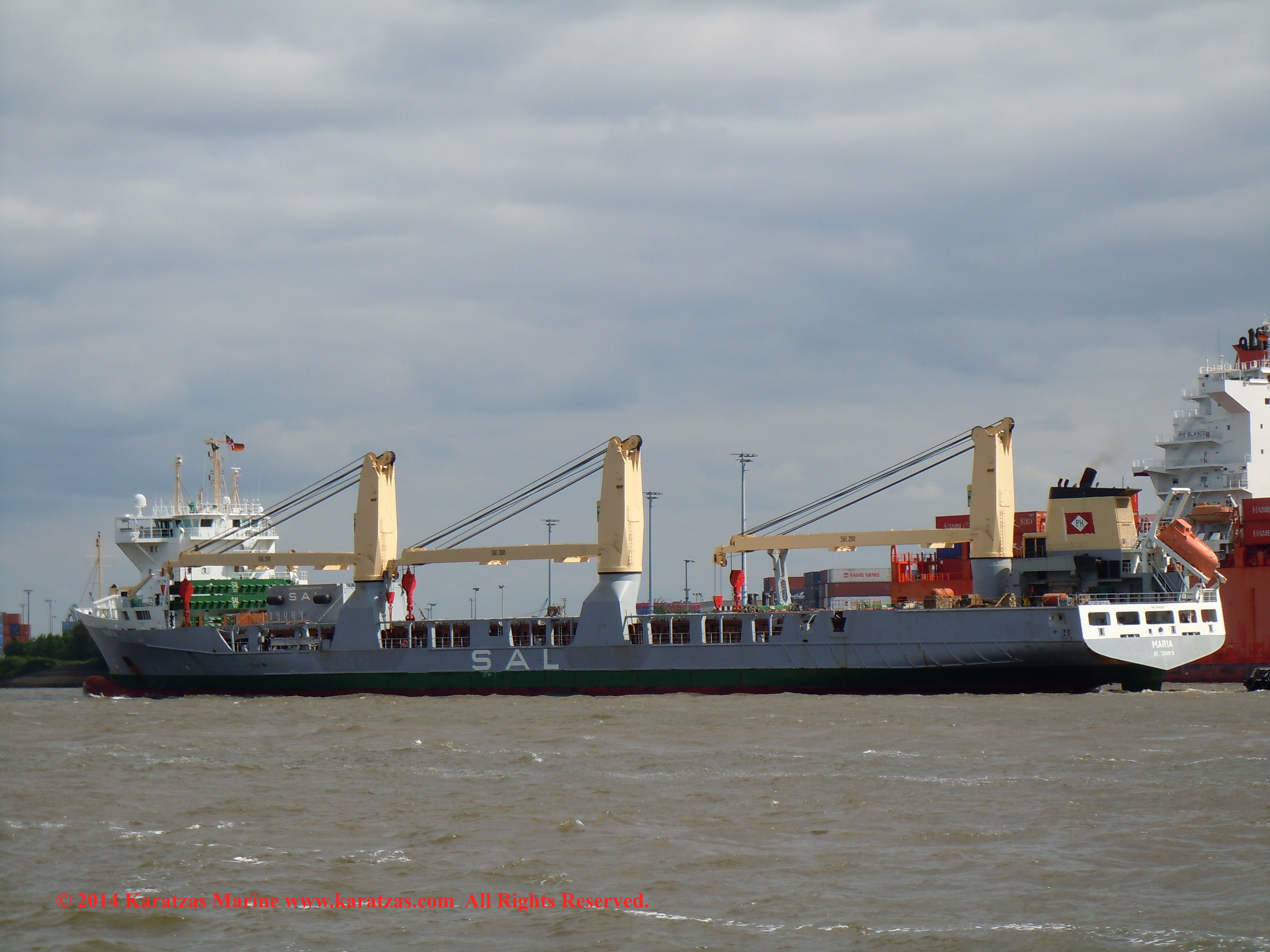

MV MARIA 9

MV ‘MARIA’ 9,000 DWT Multi-purpose / heavy-lift vessel built in 2004

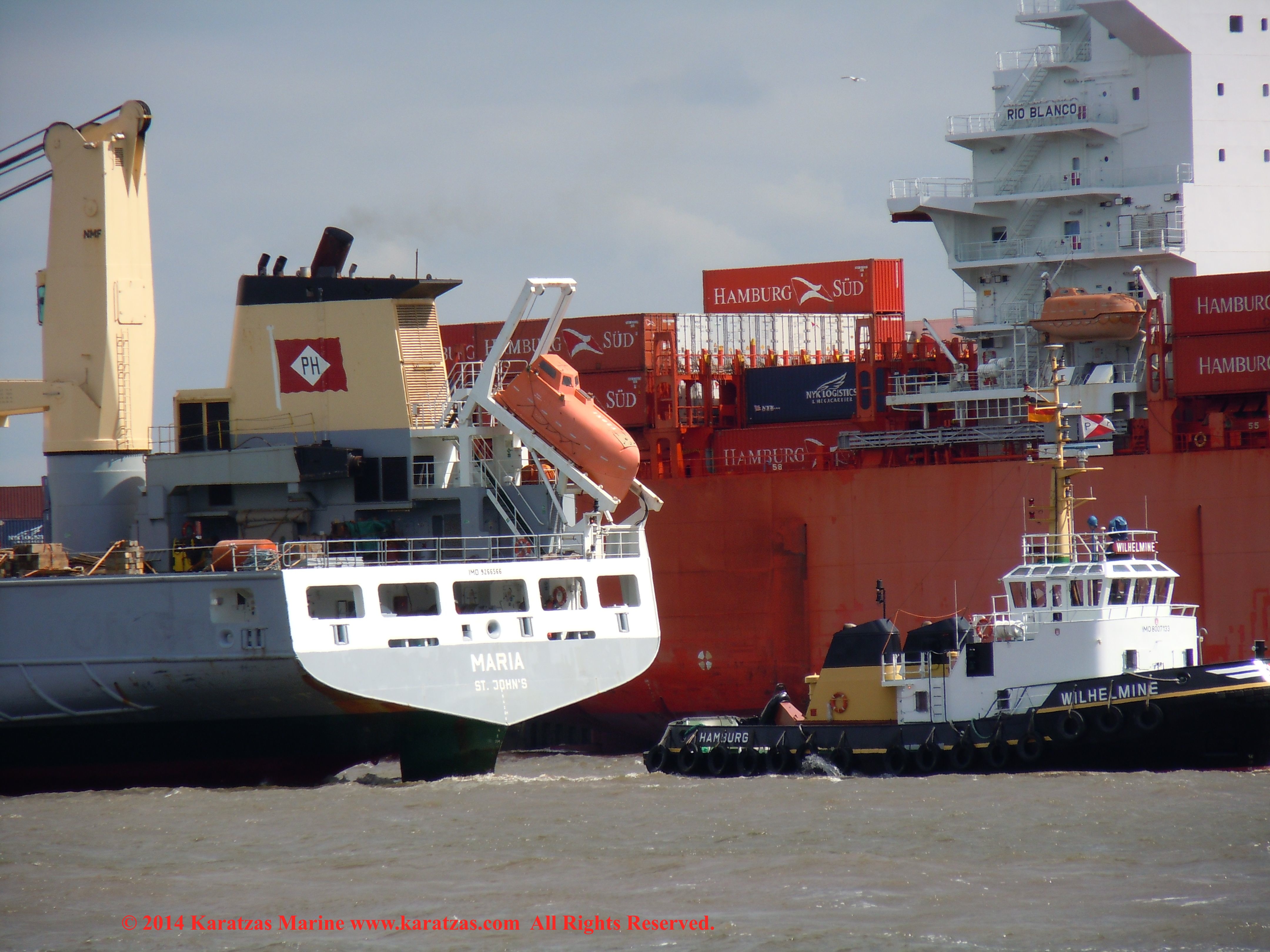

MV MARIA 10

MV ‘MARIA’ 9,000 DWT Multi-purpose / heavy-lift vessel built in 2004

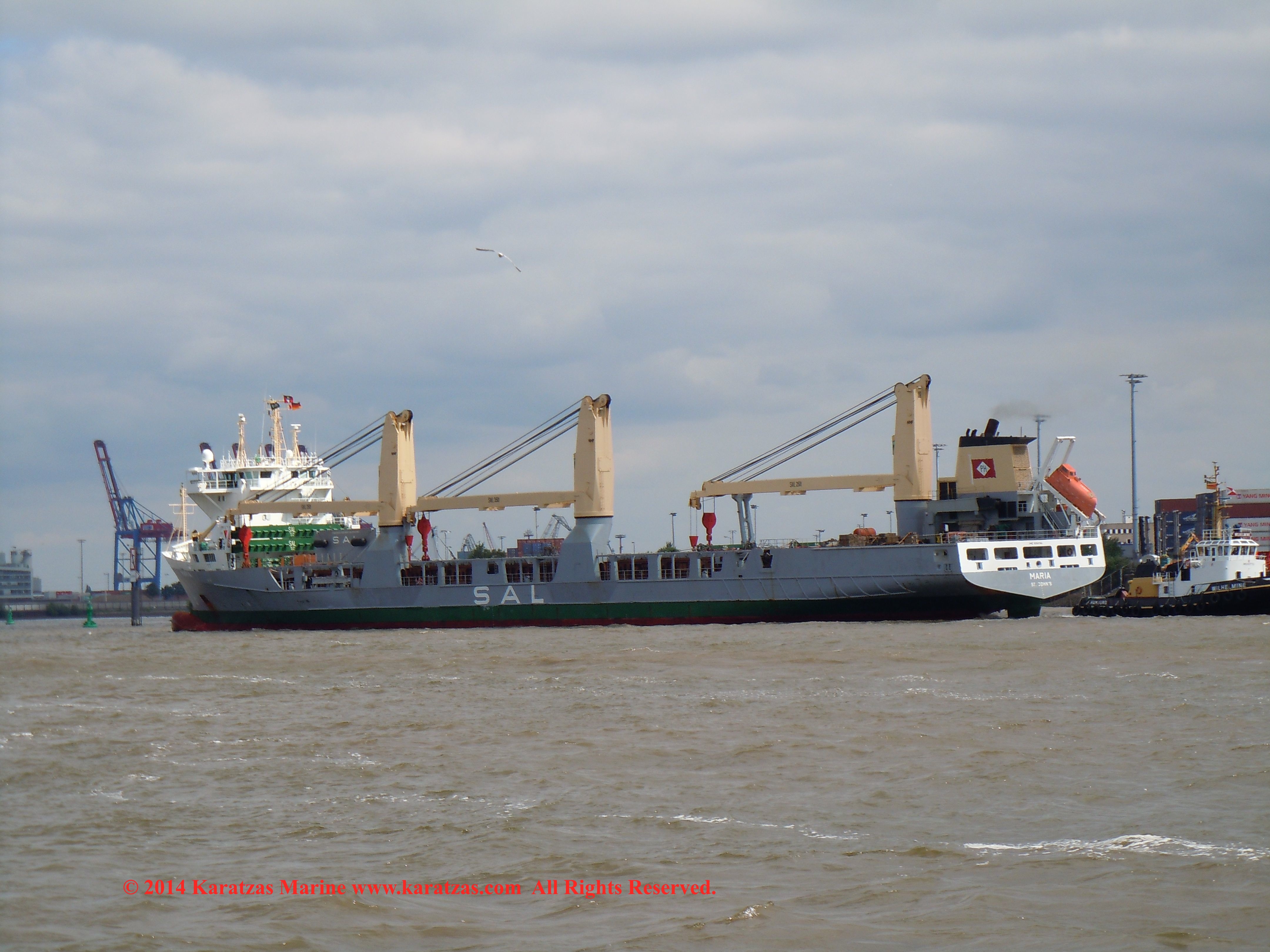

MV MARIA 11

MV ‘MARIA’ 9,000 DWT Multi-purpose / heavy-lift vessel built in 2004

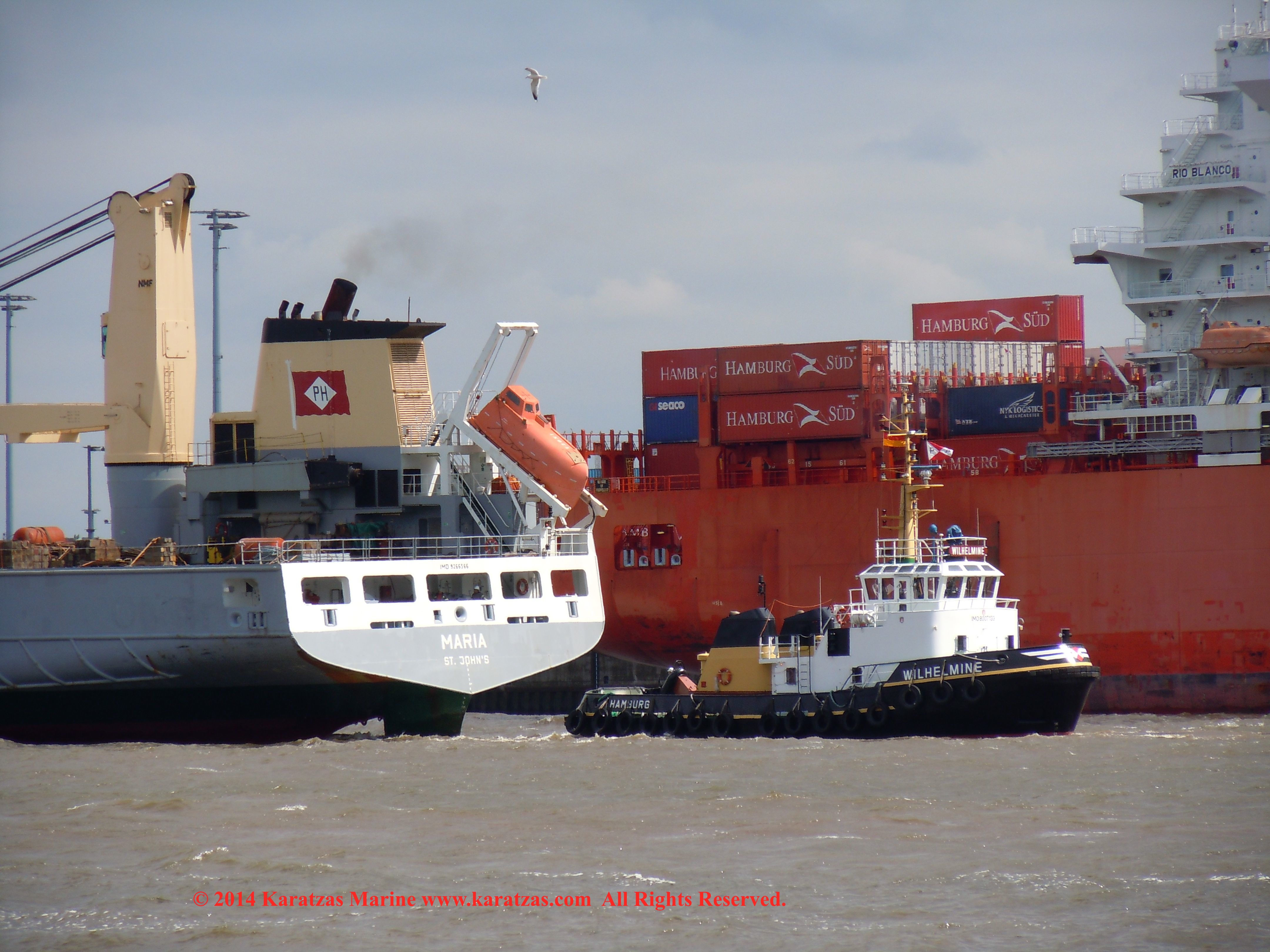

MV MARIA 12

MV ‘MARIA’ 9,000 DWT Multi-purpose / heavy-lift vessel built in 2004
