MT ‘TORM REPUBLICAN’

MT ‘TORM REPUBLICAN’ (Ex: Republican – 46,920 DWT, Chemical & Petroleum Products Tanker, Built 2006)

Ex-name is Republican. Launch Name was Republican. Handy Tanker, Call Sign OYNE2, IMO Number 9290658. Built at Hyundai Mipo, Double Hull, Danish Int’l Register Flagged, ABS Classed, Length Overall of 183.00 m., Length Between Perpendiculars of 174.00 m., Draught of 12.22 m., Beam of 32.47 m., 52.26 Tonnes per Centimetre Immersion, Gross Tonnage of 29,242, Moulded Depth of 18.80 m., Lightship air draft of 42.76 m., Keel to mast air draft of 49.62 m., Tonnage of 24,280 Panama Canal Net, 25,777 Suez Canal Net, 11,926 International Net, 9,352 Light Displacement and 46,179 Dwt (long). MAN B. & ENGINE DETAILS: Engine Description 2 S.A. 6-cyl., Engine Model 6S50MC6.1 W. Engine, Speed of 14.60 kts, Horsepower of 11,506B at 127, Bunker Capacity of 1,390 tonnes. 1 fixed pitch Propellor.

OWNER / MANAGER DETAILS: Torm, Dampskibsselskabet, A/S, URL: http://www.torm.dk.

SPECIALIZED DETAILS: Cargo Capacity of 51,593 cu.m., Segregated Ballast Tanks, 12 Tanks, 12 Pumps with a total Capacity of 7,200 cu.m., Epoxy Tank Coating, IMO Class 3, Heating Coils, Maximum heating capacity of 66 degrees celsius, 6 Cargo Separations, Marpol Certificate. 6 Cargo Separations, 12 Wing Tanks with a capacity of 51,593 cu.m., all of which are fitted with heating coils, 7 Cargo Manifolds, Stern Discharge, Closed Loading System, Cargo connections have diameters of 12 inches, Manifold height above deck of 2.10 m., Distance from bow to centre manifold is 91.47 m., 12 Centrifugal Pump(s), Maximum operating capacity of cargo pumps is 7,200 t/hr, S/Steel SUS316L cargo lines, Crude Oil Washing. SAFETY AND OTHER DETAILS: Ballast Capacity of 24,957 tonnes, Satellite Communications, Marpol Certificate, Solas Certificate, High Level Alarms, Automatic Ullaging, Stripping System, Inert Gas System, OPA 90 Design, OPA 90 Approved, Vapour Return Ashore, Centre Line Bulkhead.

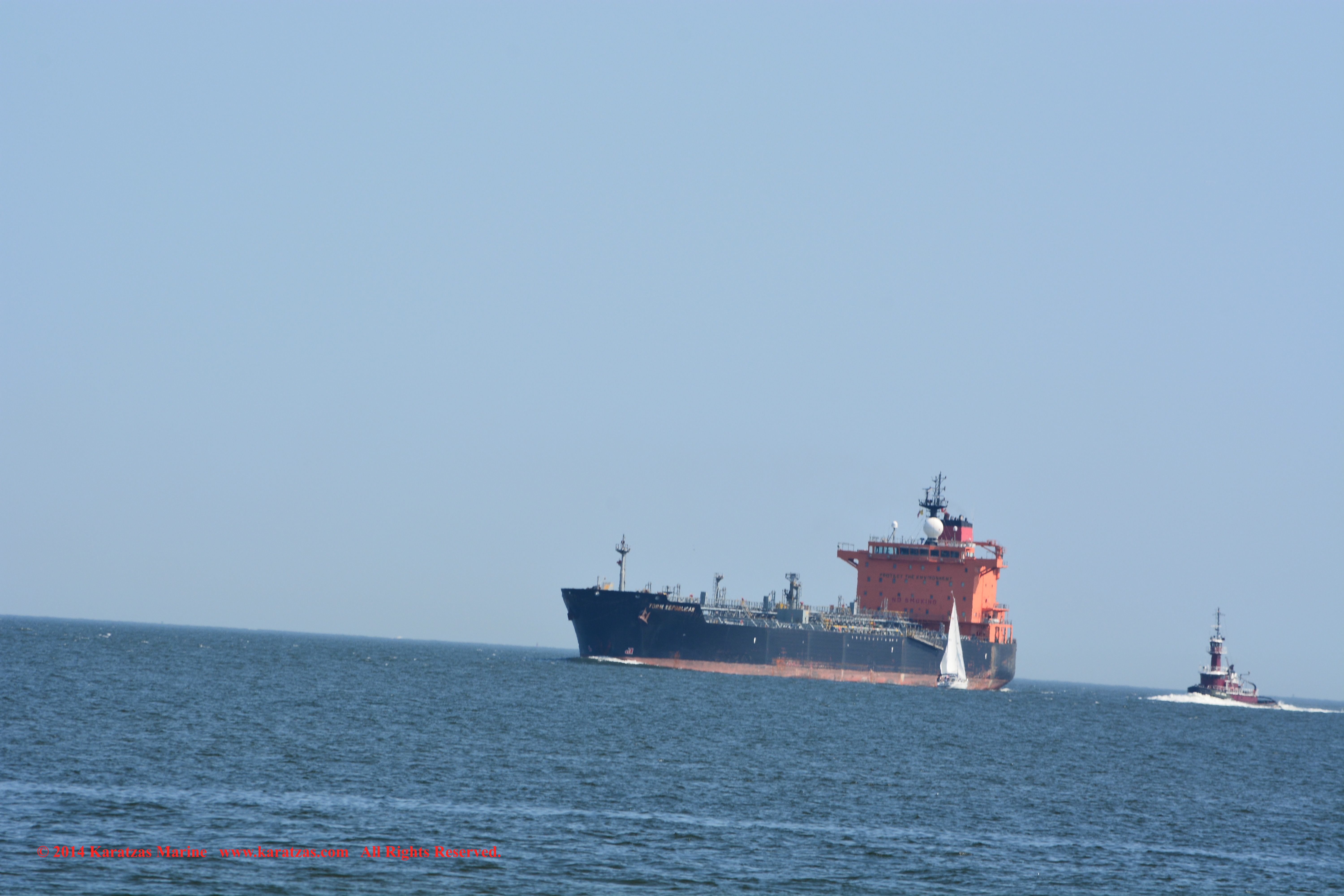

MT TORM REPUBLICAN 1

Chemical & Products Tanker MT ‘TORM REPUBLICAN’ (built at Hyundai Mipo in 2006, 47,000 DWT, IMO III)

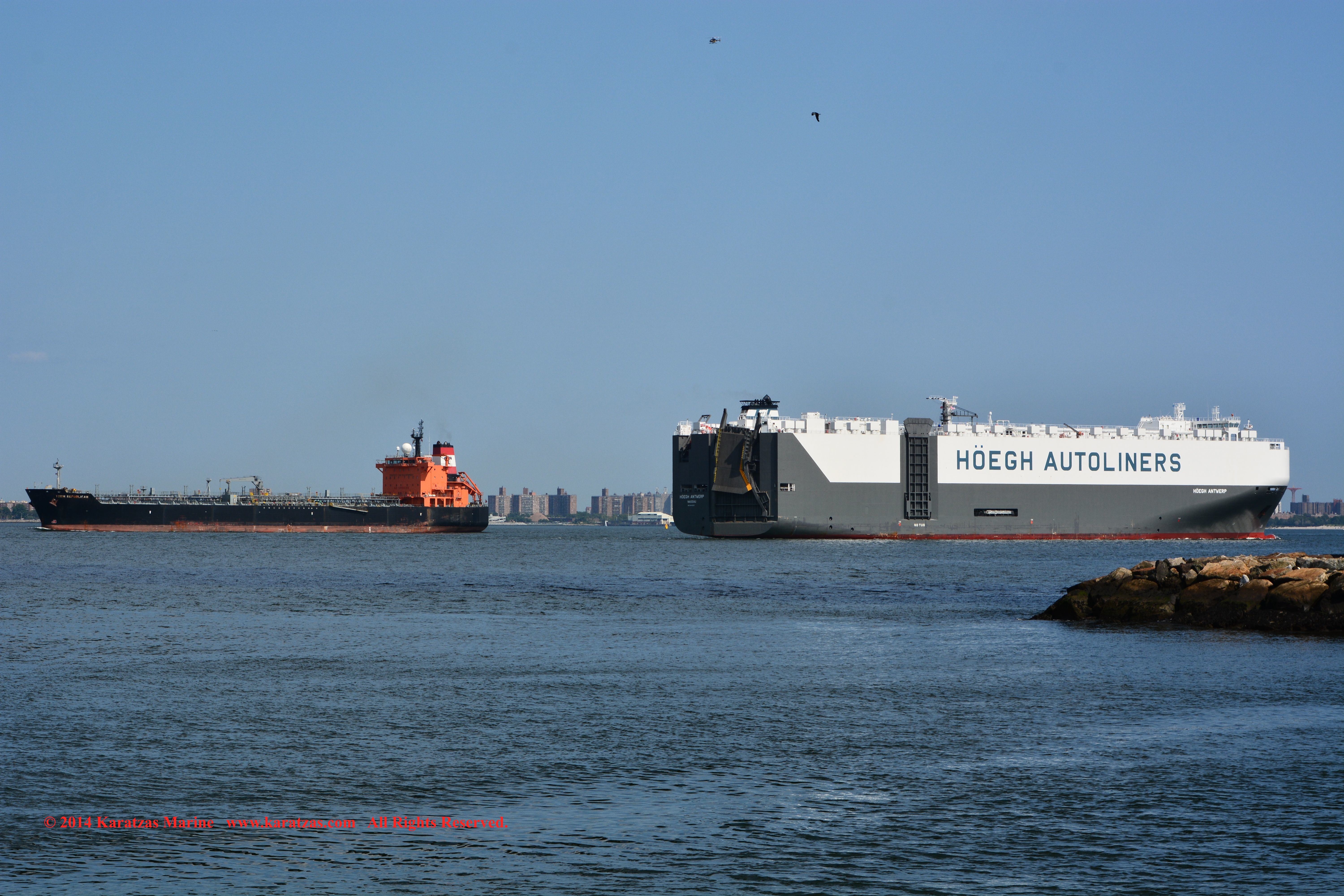

MT TORM REPUBLICAN 2

Chemical & Products Tanker MT ‘TORM REPUBLICAN’ (built at Hyundai Mipo in 2006, 47,000 DWT, IMO III); crossing paths with Car Carrier MV ‘HOEGH ANTWERP’ (outbound New York Harbor) karatzas.com

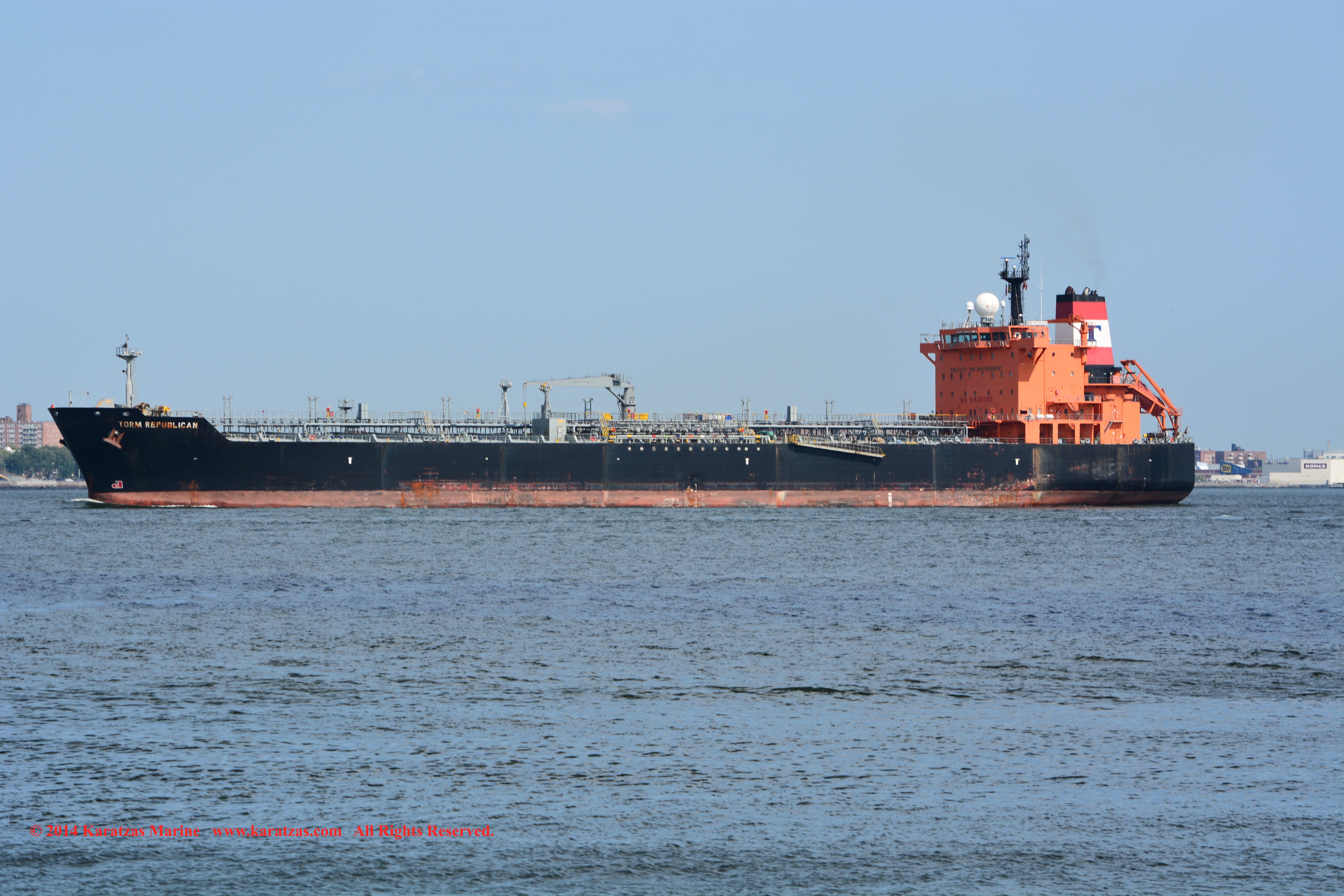

MT TORM REPUBLICAN 3

Chemical & Products Tanker MT ‘TORM REPUBLICAN’ (built at Hyundai Mipo in 2006, 47,000 DWT, IMO III); karatzas.com

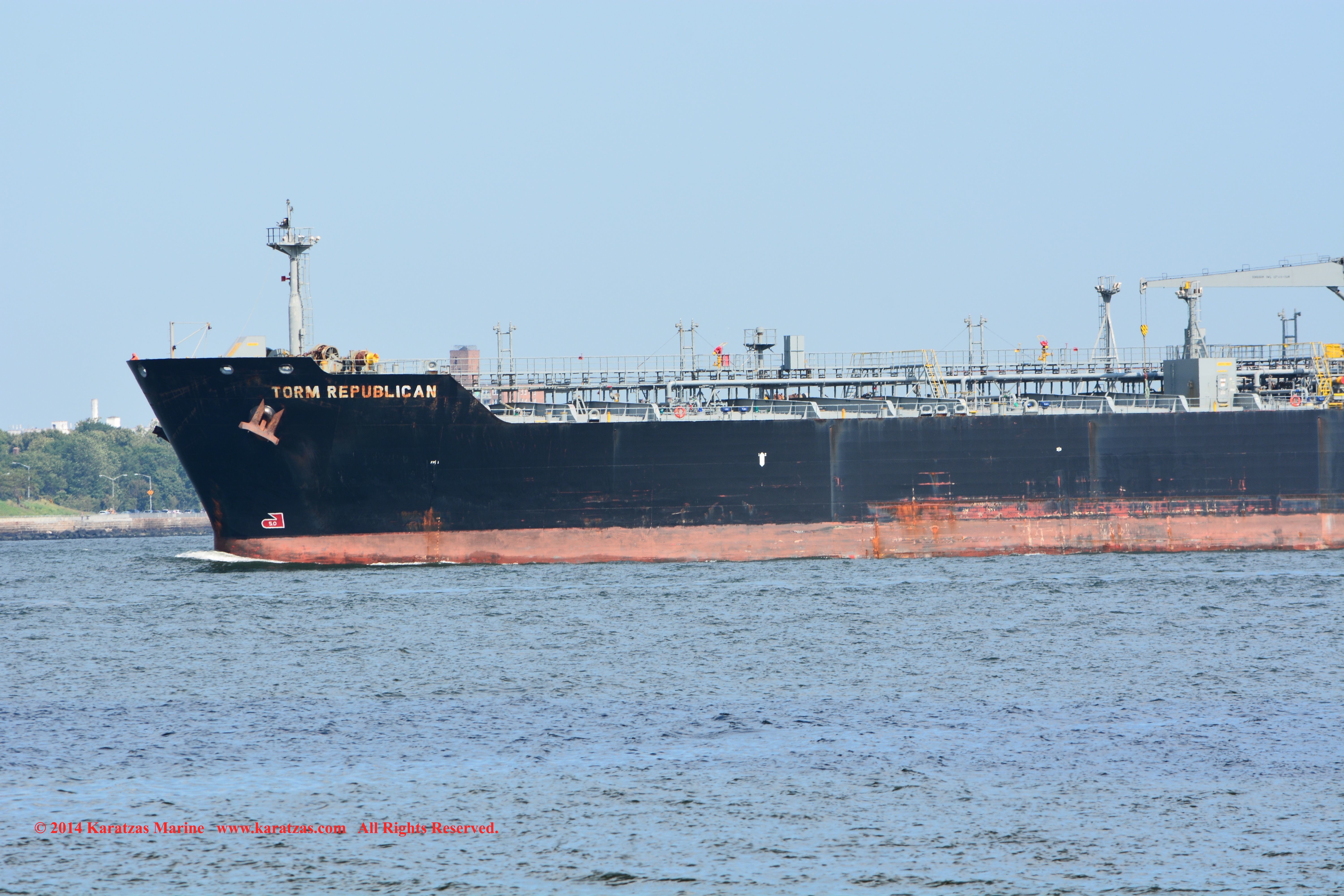

MT TORM REPUBLICAN 4

Chemical & Products Tanker MT ‘TORM REPUBLICAN’ (built at Hyundai Mipo in 2006, 47,000 DWT, IMO III); karatzas.com

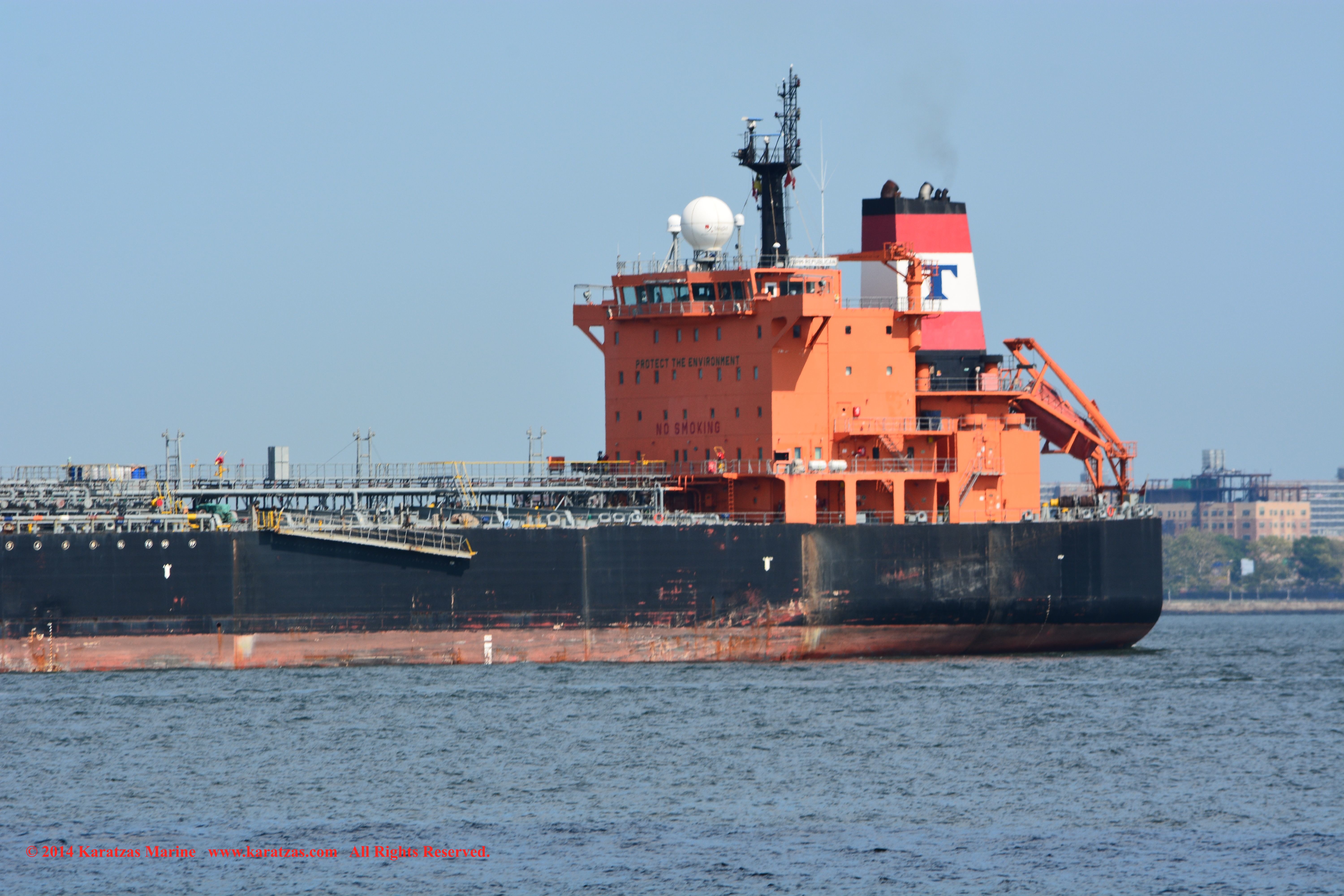

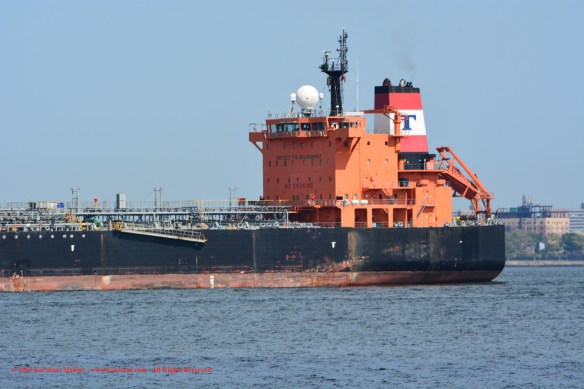

MT TORM REPUBLICAN 5

Chemical & Products Tanker MT ‘TORM REPUBLICAN’ (built at Hyundai Mipo in 2006, 47,000 DWT, IMO III); karatzas.com

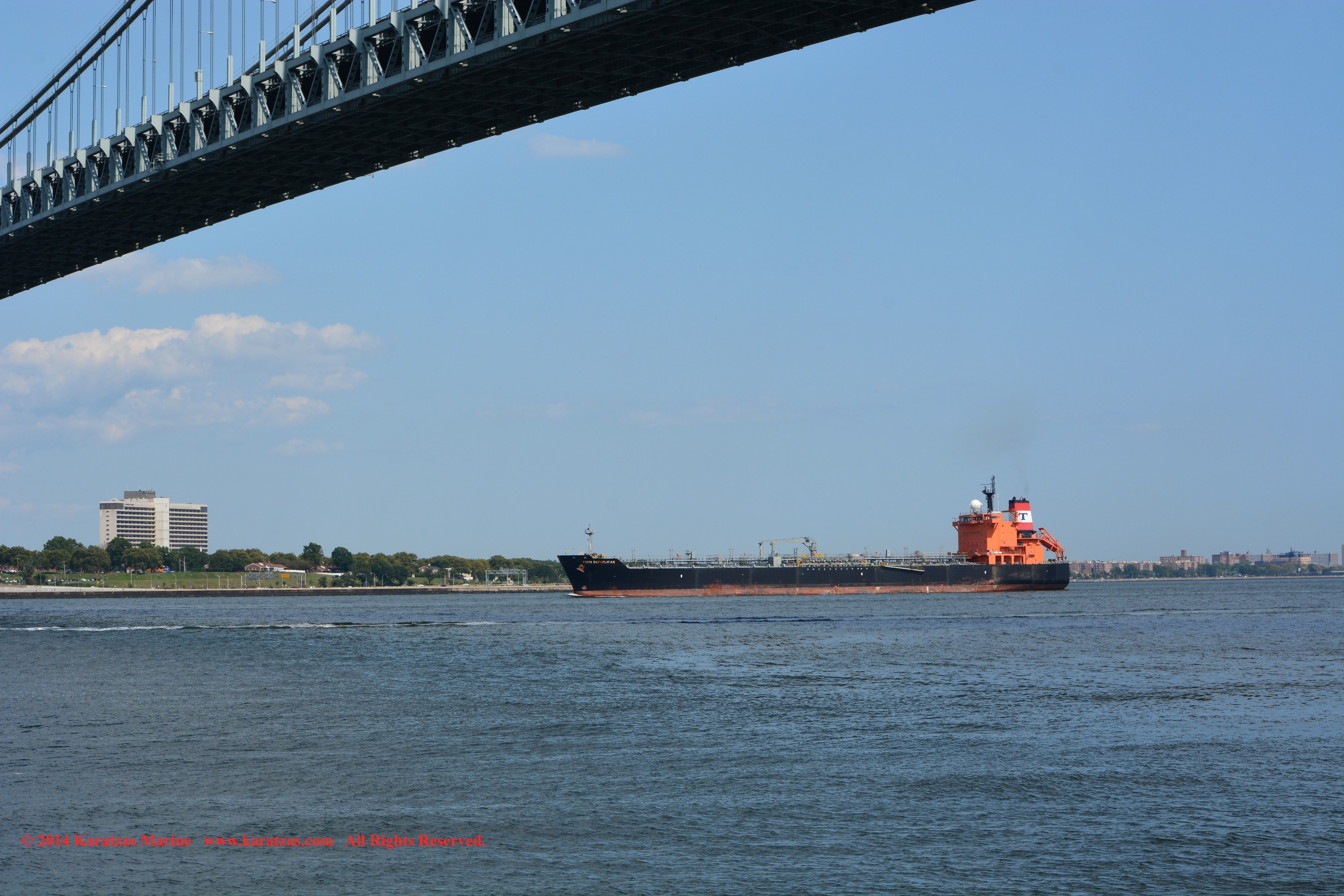

MT TORM REPUBLICAN 6

Chemical & Products Tanker MT ‘TORM REPUBLICAN’ (built at Hyundai Mipo in 2006, 47,000 DWT, IMO III); under Verrazano-Narrows Bridge; karatzas.com

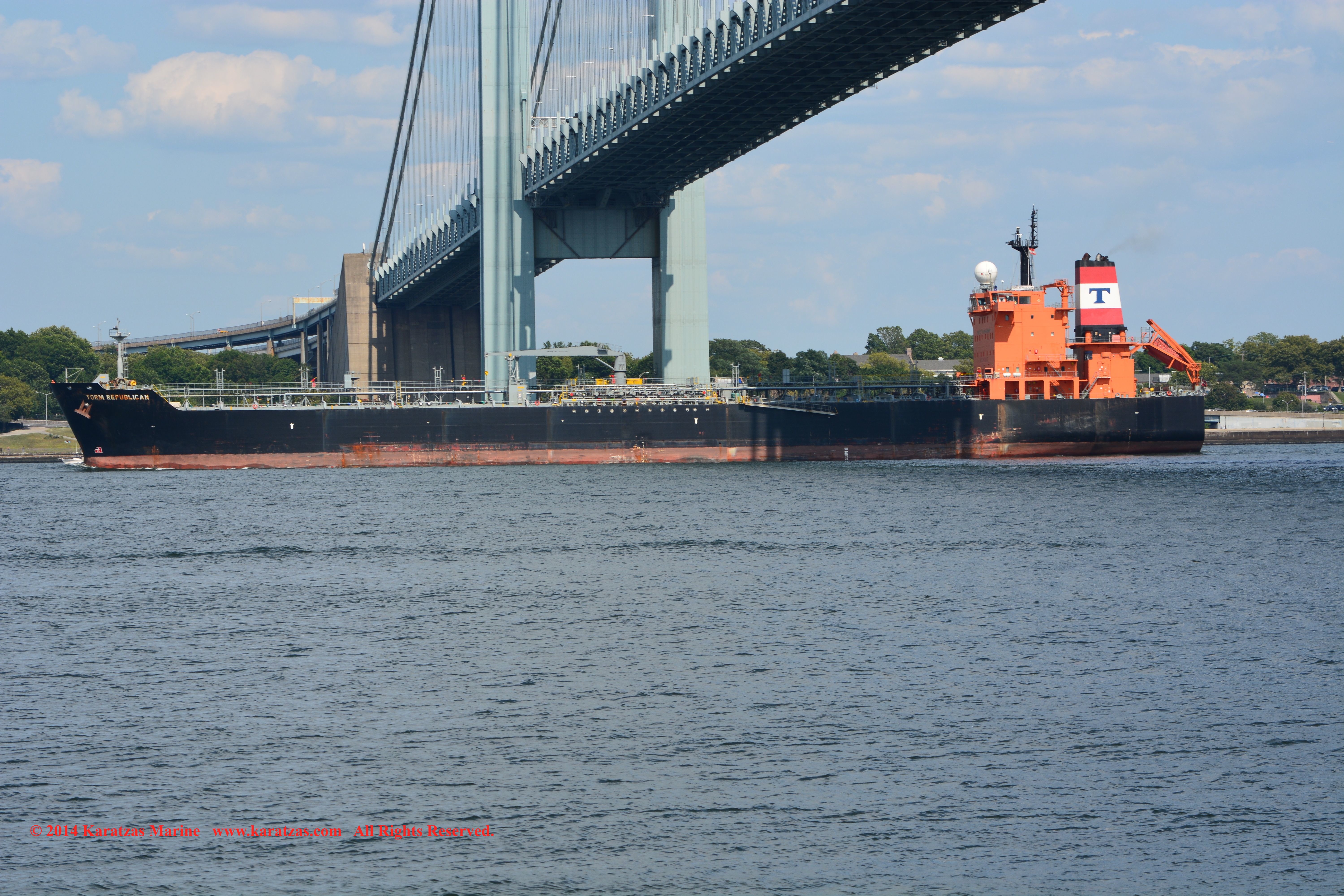

MT TORM REPUBLICAN 7

Chemical & Products Tanker MT ‘TORM REPUBLICAN’ (built at Hyundai Mipo in 2006, 47,000 DWT, IMO III); under Verrazano-Narrows Bridge; karatzas.com

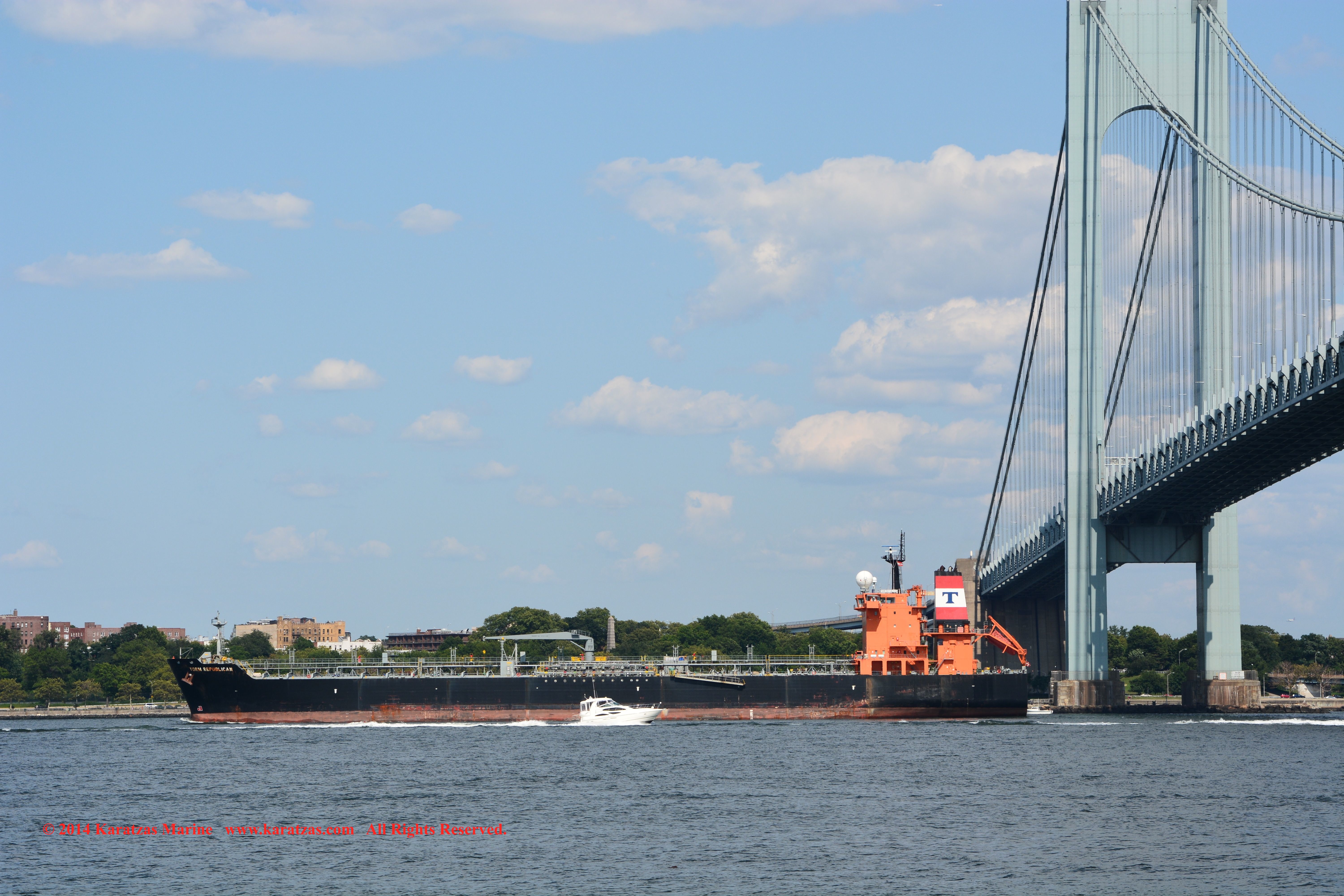

MT TORM REPUBLICAN 8

Chemical & Products Tanker MT ‘TORM REPUBLICAN’ (built at Hyundai Mipo in 2006, 47,000 DWT, IMO III); under Verrazano-Narrows Bridge; karatzas.com

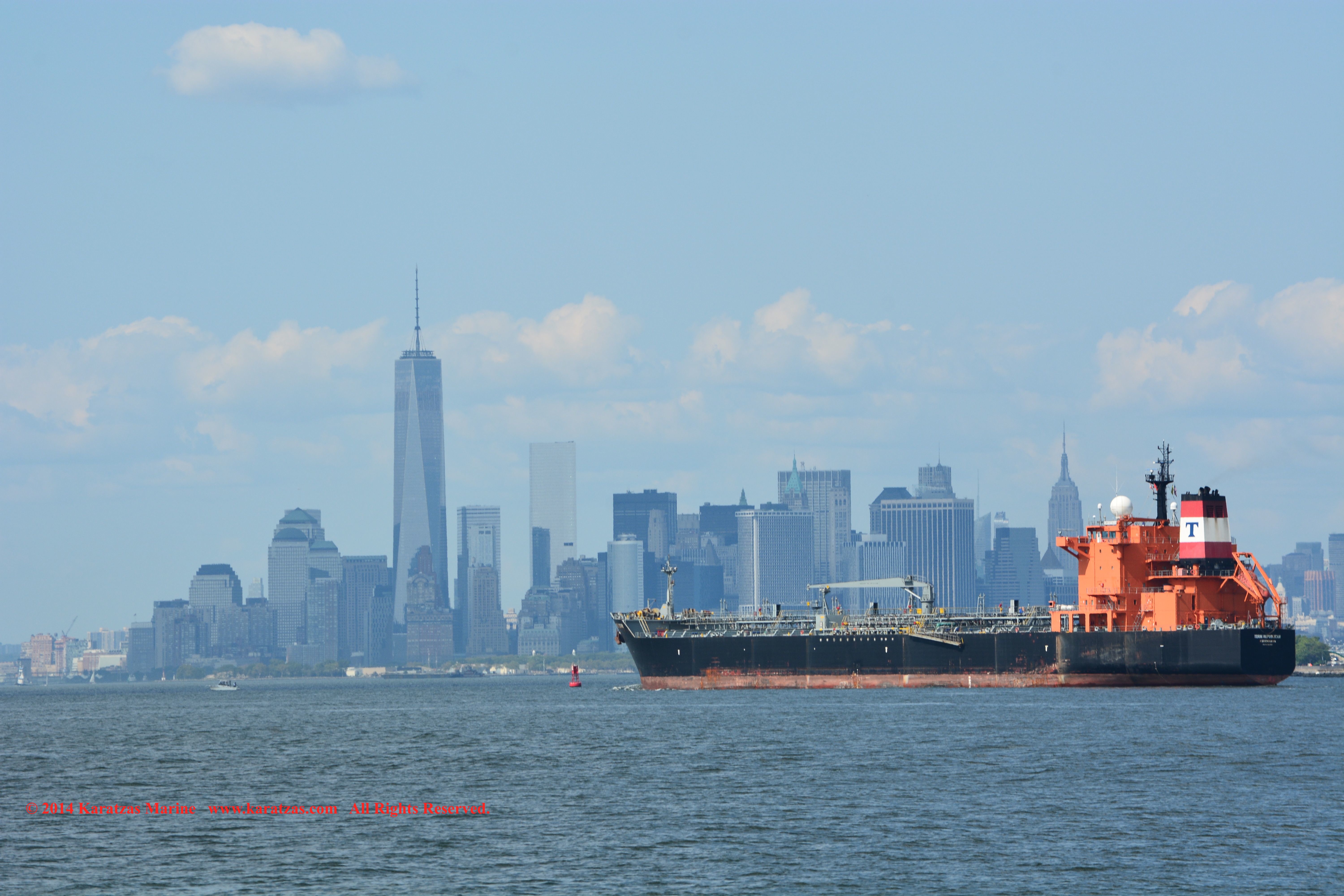

MT TORM REPUBLICAN 9

Chemical & Products Tanker MT ‘TORM REPUBLICAN’ (built at Hyundai Mipo in 2006, 47,000 DWT, IMO III); Downtown Manhattan skyline with World Trade Center and Empire State Building (projected over vessel’s accommodation) karatzas.com

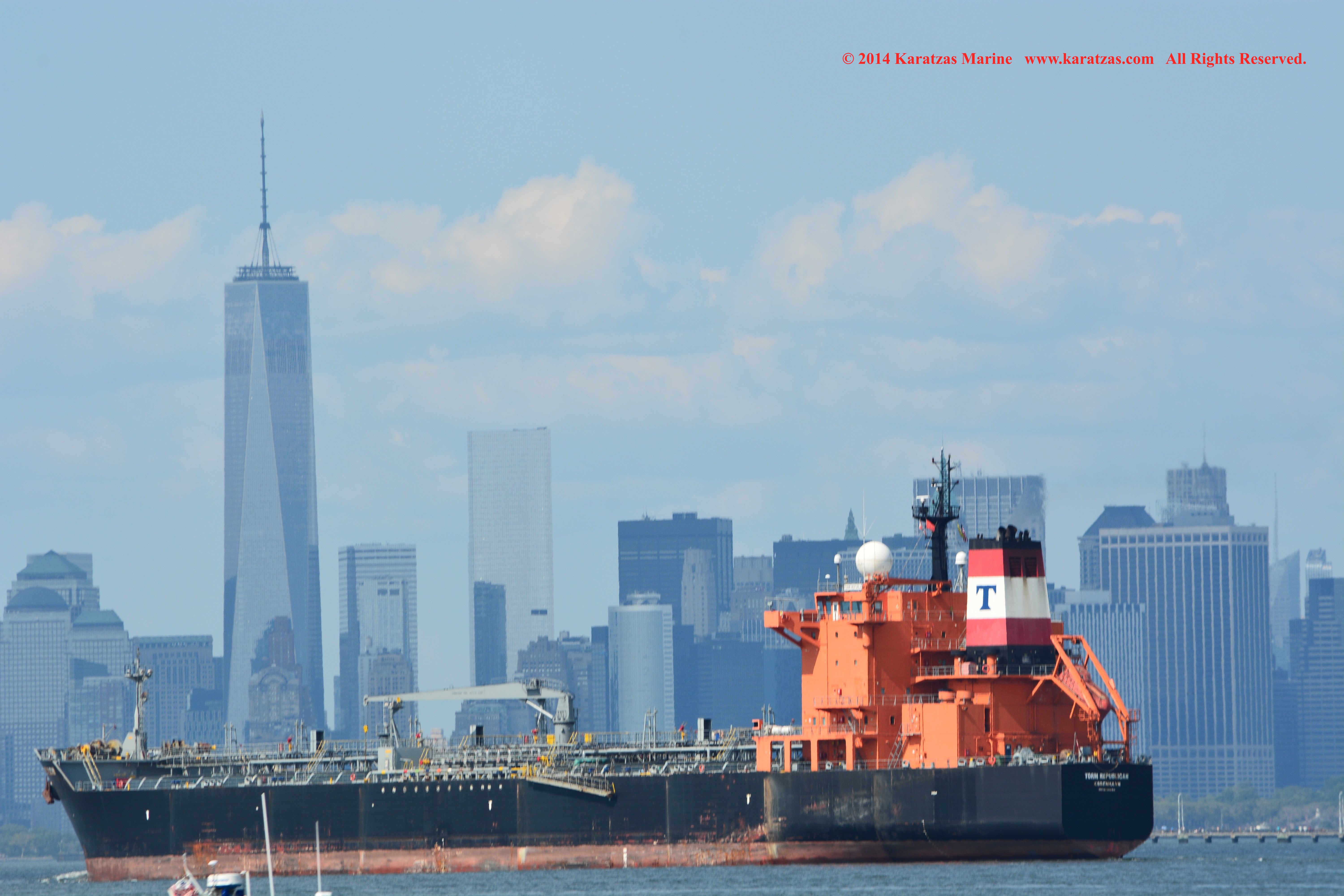

MT TORM REPUBLICAN 10

Chemical & Products Tanker MT ‘TORM REPUBLICAN’ (built at Hyundai Mipo in 2006, 47,000 DWT, IMO III); Downtown Manhattan skyline with World Trade Center karatzas.com

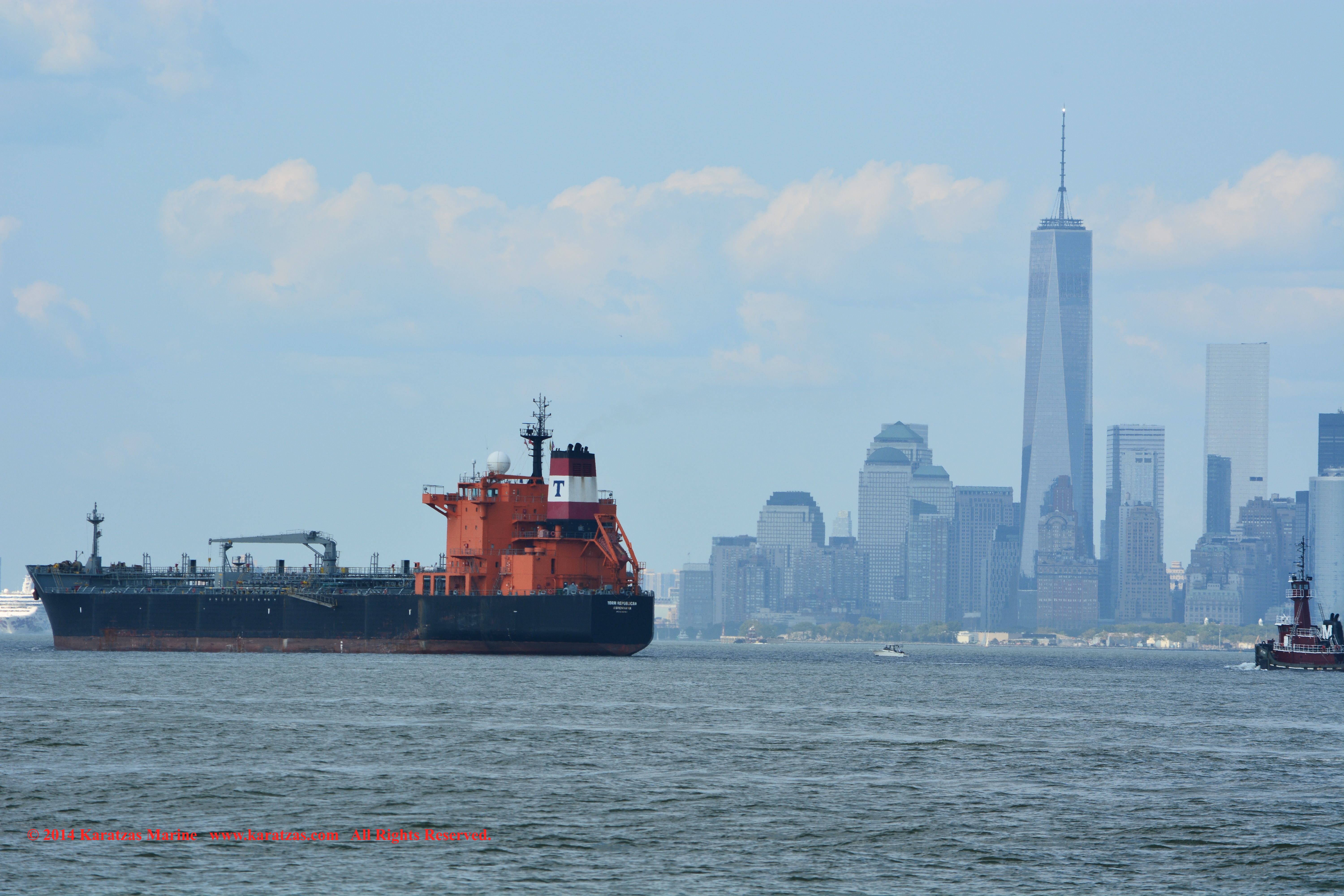

MT TORM REPUBLICAN 11

Chemical & Products Tanker MT ‘TORM REPUBLICAN’ (built at Hyundai Mipo in 2006, 47,000 DWT, IMO III); Downtown Manhattan skyline with World Trade Center karatzas.com

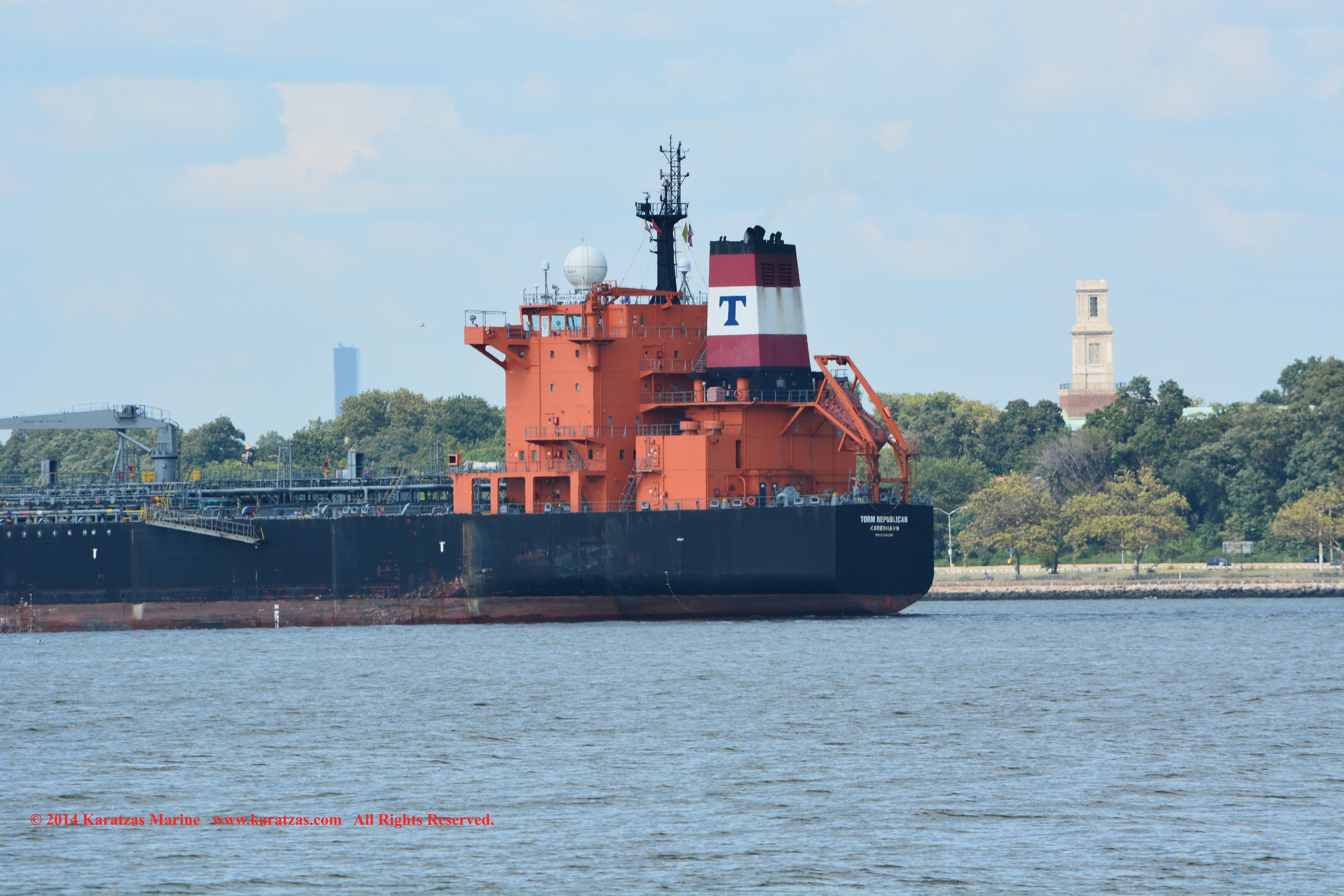

MT TORM REPUBLICAN 12

Chemical & Products Tanker MT ‘TORM REPUBLICAN’ (built at Hyundai Mipo in 2006, 47,000 DWT, IMO III); karatzas.com
