Images of MT ‘Bow Elm’ Sailing Downstream in the Houston Ship Channel
Chemicals / Products Tanker 46,000 DWT, built in 2011

VESSEL IDENTIFICATION & DESCRIPTION: Launch Name was Bow Elm. Handy Tanker, Call Sign 9V9233, IMO Number 9388302. Built at SLS Shipbuilding, Double Hull, Singapore Flagged, IMO II, DNV GL Classed, Length Overall of 182.90 m., Length Between Perpendiculars of 175.60 m., Draught of 12.00 m., Moulded Depth of 16.05 m., Beam of 32.20 m., 52.20 Tonnes per Centimeter Immersion, Gross Tonnage of 26,300, Tonnage of 13,087 Suez Canal Net, 14,416 International Net, 11,223 Light Displacement and 45,370 Dwt (long).

VESSEL’S OWNERS & MANAGERS: Odfjell ASA, Bergen, Norway. Technical Manager: Odfjell Ship Management Bergen, Bergen, Norway. Registered Owner: Odfjell Asia II Pte. Ltd. Detailed description from the Owner’s website can be accessed by clicking here!

CARGO HANDLING DETAILS: Cargo Capacity of 47,500 cu.m., Segregated Ballast Tanks, 29 Tanks, 29 Cargo Separations, 29 Cargo Manifolds, Stern Discharge, 29 Centrifugal Pumps with a total Capacity of 8,340 cu.m., S/Steel cargo lines., Cargo connections have diameters of 8, 6 and 4 inches, Manifold height above deck of 2.30 m., Distance from bow to centre manifold is 90.70 m., Epoxy Tank Coating, Zinc Tank Coating, IMO Class 2, Heating Coils, 29 Cargo Separations.

POWER GENERATION & PROPULSION:
MAIN ENGINE: 1 x Diesel – MAN B. & W. 5S60MC-C7.2 – 2-stroke 5-cyl. 600mm x2400mm bore/stroke 11,300mkW total at 105rpm. peed of 15.00 kts, Heavy Fuel Oil, Horsepower of 15,400.

AUXILIARIES: 3 x Aux. Diesel Gen – Yanmar 8N21AL-EV – 4-stroke 8-cyl. 210mm x 290mm bore/stroke 3,900mkW total at 1,000rpm driving 3 x AC generator(s) at 50Hz, 1 x Emergency Diesel Gen. – Cummins Inc NTA855-D(M) – 4-stroke 6-cyl. 140mm x 152mm bore/stroke 287mkW total at 1,800rpm driving 1 x AC generator(s) at 60Hz.

PROPULSOR: 1 x FP Propeller (Aft Centre) (mechanical), Silla Metal, 105rpm.

POS, PROPULSOR: 1 x Pos, Tunnel Thruster (Fwd.) (electric), KaMeWa TT1850 DP, 290rpm, Ø1.75m at 800ekW total AC.

Distinctively painted and named, IMO II, Zinc coated Chemicals Tanker MT ‘Bow Elm’ sailing downstream the Houston Ship Channel. Image credit: Karatzas Images

Distinctively painted and named, IMO II, Zinc coated Chemicals Tanker MT ‘Bow Elm’ sailing downstream the Houston Ship Channel. Image credit: Karatzas Images

Distinctively painted and named, IMO II, Zinc coated Chemicals Tanker MT ‘Bow Elm’ sailing downstream the Houston Ship Channel. Image credit: Karatzas Images

Distinctively painted and named, IMO II, Zinc coated Chemicals Tanker MT ‘Bow Elm’ sailing downstream the Houston Ship Channel. Image credit: Karatzas Images

Distinctively painted and named, IMO II, Zinc coated Chemicals Tanker MT ‘Bow Elm’ sailing downstream the Houston Ship Channel. Image credit: Karatzas Images

Distinctively painted and named, IMO II, Zinc coated Chemicals Tanker MT ‘Bow Elm’ sailing downstream the Houston Ship Channel. Image credit: Karatzas Images

Distinctively painted and named, IMO II, Zinc coated Chemicals Tanker MT ‘Bow Elm’ sailing downstream the Houston Ship Channel. Image credit: Karatzas Images

Starboard bow detail. Distinctively painted and named, IMO II, Zinc coated Chemicals Tanker MT ‘Bow Elm’ sailing downstream the Houston Ship Channel. Image credit: Karatzas Images

Amidships detail with manifold for 29 tanks/ segregations / pumps dominating the deck. Distinctively painted and named, IMO II, Zinc coated Chemicals Tanker MT ‘Bow Elm’ sailing downstream the Houston Ship Channel. Image credit: Karatzas Images

Starboard bow detail. Distinctively painted and named, IMO II, Zinc coated Chemicals Tanker MT ‘Bow Elm’ sailing downstream the Houston Ship Channel. Image credit: Karatzas Images

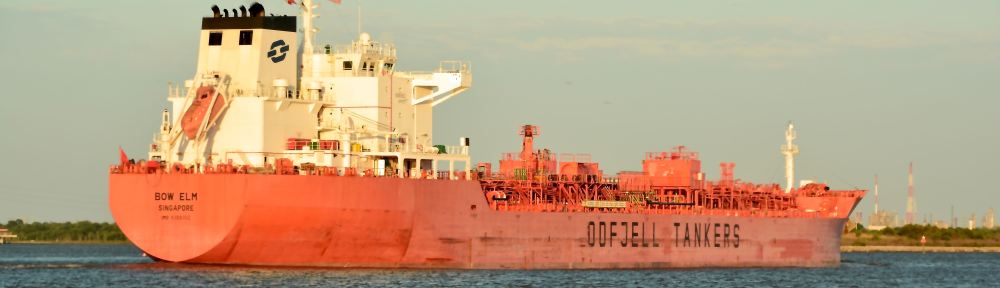

Starboard stern and accommodation detail. Distinctively painted and named, IMO II, Zinc coated Chemicals Tanker MT ‘Bow Elm’ sailing downstream the Houston Ship Channel. Image credit: Karatzas Images

Starboard stern and accommodation detail. Distinctively painted and named, IMO II, Zinc coated Chemicals Tanker MT ‘Bow Elm’ sailing downstream the Houston Ship Channel. Image credit: Karatzas Images

Distinctively painted and named, IMO II, Zinc coated Chemicals Tanker MT ‘Bow Elm’ sailing downstream the Houston Ship Channel. Image credit: Karatzas Images
