Panamax Vessel MV ‘Sun Excelsior’ Sailing Upstream in the Mississippi River

Images of MV ‘Sun Excelsior’ in the Mississippi River
Panamax Drybulk 77,000 DWT, Built in 2014 at Imabari SB

VESSEL IDENTIFICATION / DESCRIPTION: Launch Name was Sun Excelsior. Panamax Bulker, Call Sign 3EUF9, IMO Number 9691515, Hull Number 1665. Built at Imabari SB Marugame delivered in Jun 2014, Panama Flagged, NKK Classed, P&I insurance with Japan P&I, Length Overall of 224.98 m., Length Between Perpendiculars of 218.00 m., Draught of 14.45 m., Moulded Depth of 19.90 m., Beam of 32.24 m., 67.60 Tonnes per Centimetre Immersion, Gross Tonnage of 40,944, Tonnage of 25,984 International Net and 75,941 Dwt (long)., Design IS 77K by Imabari Shipbuilding, MAN B. & W. Engine, Speed of 16.70 kts, Heavy Fuel Oil (IFO 380), Horsepower of 13,270, Bunker Capacity of 3,512 IFO 380, Power Type: Diesel 2-Stroke, BWTS (Fitted).

VESSEL’S OWNERS / MANAGERS: Misuga Kaiun Co Ltd, Japan. Technical Manager: Misuga Kaiun Co Ltd, Japan. Operator: Misuga Kaiun Co Ltd, Japan. Registered Owner: South Devon Maritime SA.

CARGO HANDLING DETAILS: Grain Capacity of 91,140 cu.m., 7 Holds, 7 Hatches, Strengthened for Heavy Cargo.

PROPULSION & POWER:
MAIN ENGINE: 1 x Diesel – MAN B. & W. 6S60MC-C7.1 – 2-stroke 6-cyl. 600mm x2400mm bore/stroke 9,760mkW total at 88rpm.
AUXILIARY: 3 x Aux. Diesel Gen. – Yanmar 6EY18ALW – 4-stroke 6-cyl. 180mm x 280mm bore/stroke 2,400mkW total at 900rpm driving 3 x AC generator(s) at 60Hz.
PROPULSOR: 1 x FP Propeller (Aft Centre) (mechanical), 88rpm.
OTHER ENGINE EQUIPMENT: 1 x Screw Shaft, at Ø550.00mm.
ENVIRONMENTAL EQUIPMENT 1 x BWTS – Ballast Water Treatment System – TechCross ECS-1000 – Electro-Cleen™ at 1000cu.m/hr. 1 x BWTS – Ballast Water Treatment System – TechCross ECS-450 – Electro-Cleen™ at 450cu.m/hr.
EMERGENCY 1 x Emergency Diesel Gen. – Doosan Infracore AD086TIS – 4-stroke 6-cyl. 111mm x 139mm bore/stroke 186mkW total at 1,800rpm driving 1 x AC generator(s) at 60Hz. 1 x Emergency Diesel Gen. – Doosan Infracore AD136TIS – 4-stroke 6-cyl. 111mm x 139mm bore/stroke 138mkW total at 1,800rpm driving 1 x AC generator(s) at 60Hz.

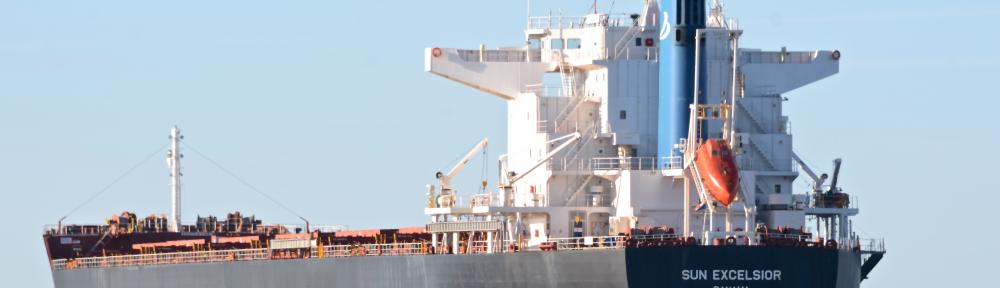

Built in 2014 at Imabari SB, panamax drybulk vessel MV ‘Sun Excelsior’ pictured sailing upstream in the Mississippi River at Port Sulphur in early December 2019. Image credit: Karatzas Images

Built in 2014 at Imabari SB, panamax drybulk vessel MV ‘Sun Excelsior’ pictured sailing upstream in the Mississippi River at Port Sulphur in early December 2019. Image credit: Karatzas Images

Built in 2014 at Imabari SB, panamax drybulk vessel MV ‘Sun Excelsior’ pictured sailing upstream in the Mississippi River at Port Sulphur in early December 2019. Image credit: Karatzas Images

Built in 2014 at Imabari SB, panamax drybulk vessel MV ‘Sun Excelsior’ pictured sailing upstream in the Mississippi River at Port Sulphur in early December 2019. Image credit: Karatzas Images

Built in 2014 at Imabari SB, panamax drybulk vessel MV ‘Sun Excelsior’ pictured sailing upstream in the Mississippi River at Port Sulphur in early December 2019. Image credit: Karatzas Images

Built in 2014 at Imabari SB, panamax drybulk vessel MV ‘Sun Excelsior’ pictured sailing upstream in the Mississippi River at Port Sulphur in early December 2019. Image credit: Karatzas Images

Built in 2014 at Imabari SB, panamax drybulk vessel MV ‘Sun Excelsior’ pictured sailing upstream in the Mississippi River at Port Sulphur in early December 2019. Image credit: Karatzas Images

Built in 2014 at Imabari SB, panamax drybulk vessel MV ‘Sun Excelsior’ pictured sailing upstream in the Mississippi River at Port Sulphur in early December 2019. Image credit: Karatzas Images

Built in 2014 at Imabari SB, panamax drybulk vessel MV ‘Sun Excelsior’ pictured sailing upstream in the Mississippi River at Port Sulphur in early December 2019. Image credit: Karatzas Images

Built in 2014 at Imabari SB, panamax drybulk vessel MV ‘Sun Excelsior’ pictured sailing upstream in the Mississippi River at Port Sulphur in early December 2019. Image credit: Karatzas Images

Built in 2014 at Imabari SB, panamax drybulk vessel MV ‘Sun Excelsior’ pictured sailing upstream in the Mississippi River at Port Sulphur in early December 2019. Image credit: Karatzas Images

Built in 2014 at Imabari SB, panamax drybulk vessel MV ‘Sun Excelsior’ pictured sailing upstream in the Mississippi River at Port Sulphur in early December 2019. Image credit: Karatzas Images
