Images of Chemicals Tanker MT ‘Eken’ in Hamburg

Images of Handy Tanker MT ‘Eken’ Sailing Downstream in the Elbe River Chemicals / Products Tanker 13,700 DWT, built in 2004 at Jiangnan Shipyard

VESSEL IDENTIFICATION & DESCRIPTION: Launch Name was Eken. Handy Tanker, Call Sign LAYM5, IMO Number 9286827. Built at Jiangnan Shipyard, Double Hull, Norwegian International (NIS) Register Flagged, DNV Classed, Ice Strengthened 1A Class, Length Overall of 134.70 m., Length Between Perpendiculars of 127.00 m., Draught of 8.60 m., Moulded Depth of 11.00 m., Beam of 20.80 m., 24.00 Tonnes per Centimeter Immersion, Gross Tonnage of 8,830, Tonnage of 4,175 International Net and 13,485 Dwt (long) MAN B. & W. Engine, Speed of 13.50 kts at 18.70 tonnes per day, Heavy Fuel Oil, Horsepower of 8,808.

VESSEL’S OWNERS / MANAGERS: Ektank AB, Sweden. Technical Manager: OSM Ship Management AS, Arendal, Norway. Official description of the Vessel from Owner’s website, please click here!

CARGO HANDLING DETAILS: Cargo Capacity of 14,260 cu.m., Segregated Ballast Tanks, 12 Tanks, 12 Pumps with a total Capacity of 3,960 cu.m., Epoxy Tank Coating, IMO Class 2, Heating Coils, Maximum heating capacity of 66 degrees Celsius, 8 Cargo Separations.

MAIN ENGINE: 1 x Diesel – MAN B. & W. 6S42MC6.1 – 2-stroke 6-cyl. 420mm x1764mm bore/stroke 6,480mkW total at 136rpm.

AUXILIARY: 4 x Aux. Diesel Gen – MAN Diesel & Turbo4-stroke driving 4 x AC generator(s), 1 x Emergency Gen – Volvo Penta TAMD74A – 4-stroke 6-cyl. 107mm x 135mm bore/stroke 258mkW total at 1,800rpm driving 1 x AC generator(s).

PROPULSION & POSITIONING: 1 x FP Propeller (Aft Centre) (mechanical), MAN Diesel & Turbo, 136rpm. 1 x Pos, Tunnel Thruster (Fwd.).

OTHER ENGINE EQUIPMENT: 2 x Boiler, Oil/Gas fired , 1 x Boiler, Exhaust Heated, 1 x Screw Shaft, 1 x Steering Gear.

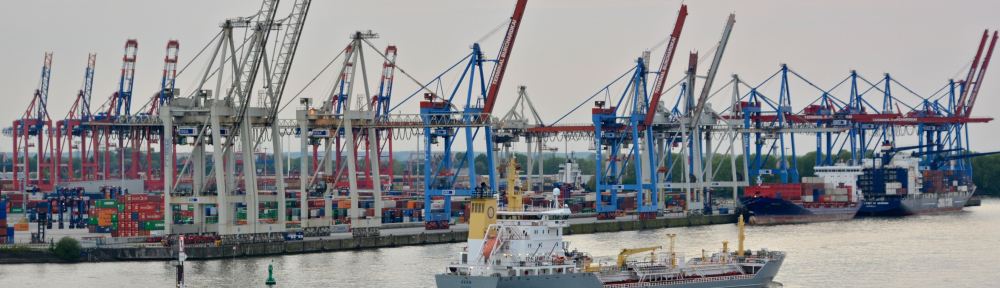

Handysize Chemicals Tanker MT ‘Eken’ (NIS Register, homeported in Arendal, Norway) sailing downstream the Elbe River in the Port of Hamburg. Image credit: Karatzas Images

Handysize Chemicals Tanker MT ‘Eken’ (NIS Register, homeported in Arendal, Norway) sailing downstream the Elbe River in the Port of Hamburg. Image credit: Karatzas Images

Handysize Chemicals Tanker MT ‘Eken’ (NIS Register, homeported in Arendal, Norway) sailing downstream the Elbe River in the Port of Hamburg. Image credit: Karatzas Images

Handysize Chemicals Tanker MT ‘Eken’ (NIS Register, homeported in Arendal, Norway) sailing downstream the Elbe River in the Port of Hamburg. Image credit: Karatzas Images

Handysize Chemicals Tanker MT ‘Eken’ (NIS Register, homeported in Arendal, Norway) sailing downstream the Elbe River in the Port of Hamburg. Image credit: Karatzas Images

Handysize Chemicals Tanker MT ‘Eken’ (NIS Register, homeported in Arendal, Norway) sailing downstream the Elbe River in the Port of Hamburg. Bow detail. Image credit: Karatzas Images

Handysize Chemicals Tanker MT ‘Eken’ (NIS Register, homeported in Arendal, Norway) sailing downstream the Elbe River in the Port of Hamburg. Stern and accommodation detail. Image credit: Karatzas Images

Handysize Chemicals Tanker MT ‘Eken’ (NIS Register, homeported in Arendal, Norway) sailing downstream the Elbe River in the Port of Hamburg. Image credit: Karatzas Images

Handysize Chemicals Tanker MT ‘Eken’ (NIS Register, homeported in Arendal, Norway) sailing downstream the Elbe River in the Port of Hamburg. Image credit: Karatzas Images

Handysize Chemicals Tanker MT ‘Eken’ (NIS Register, homeported in Arendal, Norway) sailing downstream the Elbe River in the Port of Hamburg. Image credit: Karatzas Images

Handysize Chemicals Tanker MT ‘Eken’ (NIS Register, homeported in Arendal, Norway) sailing downstream the Elbe River in the Port of Hamburg. Image credit: Karatzas Images

Handysize Chemicals Tanker MT ‘Eken’ (NIS Register, homeported in Arendal, Norway) sailing downstream the Elbe River in the Port of Hamburg. Image credit: Karatzas Images

Handysize Chemicals Tanker MT ‘Eken’ (NIS Register, homeported in Arendal, Norway) sailing downstream the Elbe River in the Port of Hamburg. Image credit: Karatzas Images
