Images of MT ‘Hafnia Lise’ at George Washington Bridge and Manhattan, NY

Images of MT ‘Hafnia Lise’ Sailing under the George Washington Bridge
Products & Chemicals IMO II/III Tanker of 50,000 dwt built in 2016

VESSEL IDENTIFICATION & DESCRIPTION: Launch Name was Hafnia Lise. Call Sign 9HA4202, IMO Number 9726621. Built at GSI Liwan in 2016, Malta Flagged, Length Overall of 183.20 m., Length Between Perpendiculars of 178.50 m., Draught of 12.85 m., Moulded Depth of 18.20 m., Beam of 32.25 m., 55.00 Tonnes per Centimeter Immersion, Gross Tonnage of 29,715, Tonnage of 30,060 Panama Canal Net, 26,140 Suez Canal Net, 14,550 International Net, 10,920 Light Displacement and 49,210 Dwt (long).

VESSEL’S OWNERS / MANAGERS: Hafnia Management AS (Hafnia Tankers), Denmark.  Technical Manager: Thome Ship Management Pte Ltd, Singapore. Registered Owner: Hafnia Tankers Shipholding Malta Ltd.

CARGO HANDLING DETAILS: Cargo Capacity of 46,390 cu.m., Segregated Ballast Tanks, 10 Tanks, Epoxy Tank Coating, IMO Class 2, IMO Class 3, Heat Exchangers, Maximum heating capacity of 60 degrees Celsius, 6 Cargo Separations, 6 Cargo Manifolds, Closed Loading System, 12 Deepwell Pump(s), Carbon Steel cargo lines, Crude Oil Washing.                                                                                                                                                                                                                                                        MAIN ENGINE & PROPULSION:

MAIN ENGINE: 1 x Diesel – MAN B. & W. 6S50ME-B9.3 – 2-stroke 6-cyl. 500mm x2214mm bore/stroke 10,680mkW total at 117rpm.

AUXILIARY: 3 x Aux. Diesel Gen – Daihatsu 6DK-20e – 4-stroke 6-cyl. 200mm x 300mm bore/stroke 3,120mkW total at 900rpm driving 3 x AC generator(s) at 2,880ekW total, (3,600kVA total) at 60Hz, 1 x Emergency Diesel Gen. – Cummins Inc 6CT8.3-D(M) – 4-stroke 6-cyl. 114mm x 135mm bore/stroke 140mkW total at 1,800rpm driving 1 x AC generator(s) at 60Hz. 1 x Boiler, Oil/Gas fired – Alfa Laval – Aalborg™ OL, 1 x Boiler, Composite – Alfa Laval Aalborg™ OC, 1 x Screw Shaft.

PROPULSION: 1 x FP Propeller (Aft Centre) (mechanical), 117rpm.

ENVIRONMENTAL EQUIPMENT: 2 x BWTS – Ballast Water Treatment System – Qingdao Headway HMT-800, 1 x BWTS – Ballast Water Treatment System – Qingdao Headway HMT-200.

LIFTING EQUIPMENT: 1 x Crane SWL 10 tons, No Cargo Gear.

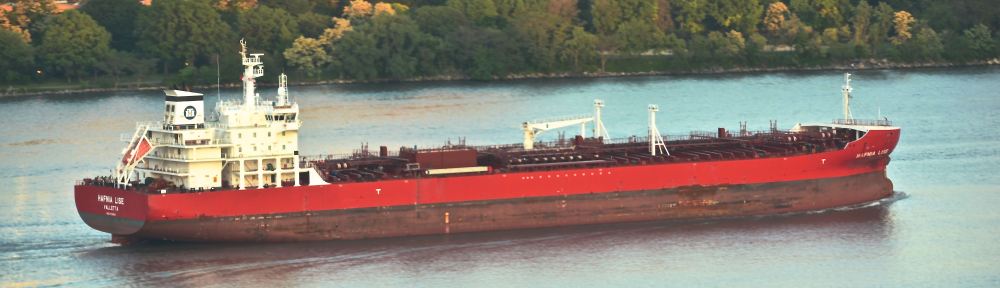

Built in 2016 at GSI, IMO II/III tanker MT ‘Hafnia Lise’ sailing downstream Hudson River. Seen here at George Washington Bridge (connecting NJ to Manhattan/NY). Image credit: Karatzas Images.

Built in 2016 at GSI, IMO II/III tanker MT ‘Hafnia Lise’ sailing downstream Hudson River. Seen here at George Washington Bridge (connecting NJ to Manhattan/NY). Image credit: Karatzas Images.

Built in 2016 at GSI, IMO II/III tanker MT ‘Hafnia Lise’ sailing downstream Hudson River. Seen here at George Washington Bridge (connecting NJ to Manhattan/NY). Image credit: Karatzas Images.

Built in 2016 at GSI, IMO II/III tanker MT ‘Hafnia Lise’ sailing downstream Hudson River. Seen here at George Washington Bridge (connecting NJ to Manhattan/NY). Image credit: Karatzas Images.

Built in 2016 at GSI, IMO II/III tanker MT ‘Hafnia Lise’ sailing downstream Hudson River. Seen here at George Washington Bridge (connecting NJ to Manhattan/NY). Image credit: Karatzas Images.

Built in 2016 at GSI, IMO II/III tanker MT ‘Hafnia Lise’ sailing downstream Hudson River. Seen here at George Washington Bridge (connecting NJ to Manhattan/NY). Image credit: Karatzas Images.

Built in 2016 at GSI, IMO II/III tanker MT ‘Hafnia Lise’ sailing downstream Hudson River. Seen here at George Washington Bridge (connecting NJ to Manhattan/NY). Image credit: Karatzas Images.

Built in 2016 at GSI, IMO II/III tanker MT ‘Hafnia Lise’ sailing downstream Hudson River. Image credit: Karatzas Images.

Built in 2016 at GSI, IMO II/III tanker MT ‘Hafnia Lise’ sailing downstream Hudson River. Starboard bow detail. Image credit: Karatzas Images.

Built in 2016 at GSI, IMO II/III tanker MT ‘Hafnia Lise’ sailing downstream Hudson River. Starboard stern detail. Image credit: Karatzas Images.

Built in 2016 at GSI, IMO II/III tanker MT ‘Hafnia Lise’ sailing downstream Hudson River. Image credit: Karatzas Images.

Built in 2016 at GSI, IMO II/III tanker MT ‘Hafnia Lise’ sailing downstream Hudson River. Image credit: Karatzas Images.

Built in 2016 at GSI, IMO II/III tanker MT ‘Hafnia Lise’ sailing downstream Hudson River. Image credit: Karatzas Images.

Built in 2016 at GSI, IMO II/III tanker MT ‘Hafnia Lise’ sailing downstream Hudson River. Image credit: Karatzas Images.

Built in 2016 at GSI, IMO II/III tanker MT ‘Hafnia Lise’ sailing downstream Hudson River. Image credit: Karatzas Images.

Built in 2016 at GSI, IMO II/III tanker MT ‘Hafnia Lise’ sailing downstream Hudson River. Manhattan skyline in the background. Image credit: Karatzas Images.

Built in 2016 at GSI, IMO II/III tanker MT ‘Hafnia Lise’ sailing downstream Hudson River. Manhattan skyline in the background. Image credit: Karatzas Images.

Built in 2016 at GSI, IMO II/III tanker MT ‘Hafnia Lise’ sailing downstream Hudson River. Manhattan skyline in the background. Image credit: Karatzas Images.

Built in 2016 at GSI, IMO II/III tanker MT ‘Hafnia Lise’ sailing downstream Hudson River. Manhattan skyline in the background. Image credit: Karatzas Images.

Built in 2016 at GSI, IMO II/III tanker MT ‘Hafnia Lise’ sailing downstream Hudson River. Manhattan skyline in the background. Image credit: Karatzas Images.
