Images of Jones Act Tanker MT ‘American Pride’ in the Mississippi River

Jones Act Products & Chemical Tanker MT ‘American Pride’
Built 2017 at AKER Philly Shipyard, 49,800 DWT

VESSEL IDENTIFICATION & DESCRIPTION: Launch Name was American Pride. Handy Tanker, Call Sign KAPD, IMO Number 9763863, Hull Number 28. Built at Philly Shipyard delivered in Nov 2017, Double Hull, United States Flagged, ABS Classed, P&I insurance with Steamship Mutual P&I, Length Overall of 183.33 m., Length Between Perpendiculars of 174.00 m., Draught of 13.01 m., Moulded Depth of 19.10 m., Beam of 32.20 m., Lightship air draft of 41.80 m., Keel to mast air draft of 48.30 m., 52.50 Tonnes per Centimeter Immersion, Gross Tonnage of 29,708, Tonnage of 24,737 Panama Canal Net, 27,469 Suez Canal Net, 14,103 International Net, 10,551 Light Displacement and 49,041 Dwt (long)., MAN B. & W. Engine, Speed of 14.50 kts,

VESSEL’S MANGERS / OWNERS: American Petroleum Tankers LLC. American Petroleum Tankers LLC is a group company of Kinder Morgan. Operator: American Petroleum Tankers LLC. Registered Owner: AMERICAN PETROLEUM TANKERS XI, LLC.

CARGO HANDLING DETAILS: Cargo Capacity of 52,910 cu.m., Segregated Ballast Tanks, 12 Tanks, 12 Pumps, Epoxy Tank Coating, IMO Class 2, 6 Cargo Separations. Closed Loading System, Manifold height above deck of 2.10 m., Distance from bow to centre manifold is 91.10 m., 12 Centrifugal Pump(s), Mild Steel cargo lines, Crude Oil Washing. High Level Alarms, Automatic Ullaging, Inert Gas System, Vapor Return Ashore, Centre Line Bulkhead.

POWER & PROPULSION:
MAIN ENGINE: This equipment is designed to be LNG ready. 1 x Diesel – MAN B. & W. 6S50ME-B9.3 – 2-stroke 6-cyl. 500mm x2000mm bore/stroke 8,058mkW total at 99rpm.
AUXILIARIES: 3 x Aux. Diesel Gen. – MaK4-stroke driving 3 x Marelli ac generator(s) at 2,400ekW total, (3,000kVA total).
PROPULSOR: 1 x FP Propeller (Aft Centre) (mechanical) (Bronze), HHI-EMD (HiMSEN), 99rpm.
OTHER ENGINE EQUIPMENT: 1 x Screw Shaft.
ENVIRONMENTAL EQUIPMENT: 2 x BWTS – Ballast Water Treatment System – PANASIA Glo-En™ P750. 1 x BWTS – Ballast Water Treatment System – PANASIA Glo-En™ P350.
LIFTING EQUIPMENT: 1 x Crane, Hose – Dongnam DMC SWL 10 tons, 1 x Gantry, Engine Room – Dongnam DMC SWL 4 tons, 2 x Crane, Provision – Dongnam DMC.
BOILER EQUIPMENT: 1 x Boiler, Oil/Gas fired – Aalborg – Mission™ OL at 9 bar. 1 x Boiler, Exhaust Heated – Aalborg Mission™ OC at 9 bar.

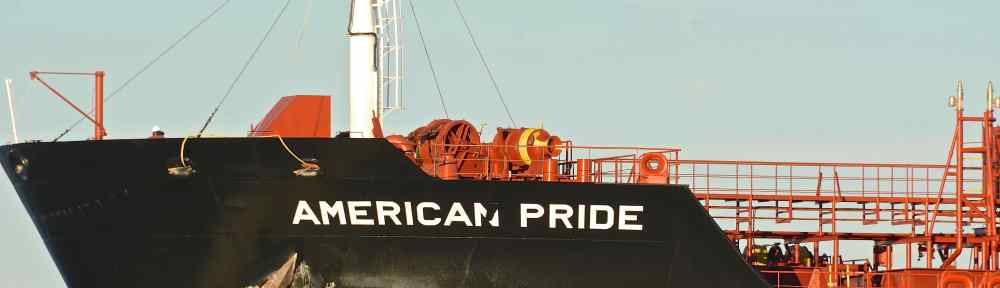

Evocatively named Jones Act Products / Chemical Tanker MT ‘American Pride’ is seen sailing upstream in the Mississippi River in Port Sulphur; built in 2017 at Aker Philadelphia, is beneficially owned by Kinder Morgan and operated Crowley Maritime; per Karatzas Marine Advisors’ estimate, present FMV at $130 mil. Image credit: Karatzas Images

Evocatively named Jones Act Products / Chemical Tanker MT ‘American Pride’ is seen sailing upstream in the Mississippi River in Port Sulphur; built in 2017 at Aker Philadelphia, is beneficially owned by Kinder Morgan and operated Crowley Maritime; per Karatzas Marine Advisors’ estimate, present FMV at $130 mil. Image credit: Karatzas Images

Evocatively named Jones Act Products / Chemical Tanker MT ‘American Pride’ is seen sailing upstream in the Mississippi River in Port Sulphur; built in 2017 at Aker Philadelphia, is beneficially owned by Kinder Morgan and operated Crowley Maritime; per Karatzas Marine Advisors’ estimate, present FMV at $130 mil. Image credit: Karatzas Images

Evocatively named Jones Act Products / Chemical Tanker MT ‘American Pride’ is seen sailing upstream in the Mississippi River in Port Sulphur; built in 2017 at Aker Philadelphia, is beneficially owned by Kinder Morgan and operated Crowley Maritime; per Karatzas Marine Advisors’ estimate, present FMV at $130 mil. Image credit: Karatzas Images

Evocatively named Jones Act Products / Chemical Tanker MT ‘American Pride’ is seen sailing upstream in the Mississippi River in Port Sulphur; built in 2017 at Aker Philadelphia, is beneficially owned by Kinder Morgan and operated Crowley Maritime; per Karatzas Marine Advisors’ estimate, present FMV at $130 mil. Image credit: Karatzas Images

Evocatively named Jones Act Products / Chemical Tanker MT ‘American Pride’ is seen sailing upstream in the Mississippi River in Port Sulphur; built in 2017 at Aker Philadelphia, is beneficially owned by Kinder Morgan and operated Crowley Maritime; per Karatzas Marine Advisors’ estimate, present FMV at $130 mil. Image credit: Karatzas Images

Evocatively named Jones Act Products / Chemical Tanker MT ‘American Pride’ is seen sailing upstream in the Mississippi River in Port Sulphur; built in 2017 at Aker Philadelphia, is beneficially owned by Kinder Morgan and operated Crowley Maritime; per Karatzas Marine Advisors’ estimate, present FMV at $130 mil. Image credit: Karatzas Images

Evocatively named Jones Act Products / Chemical Tanker MT ‘American Pride’ is seen sailing upstream in the Mississippi River in Port Sulphur; built in 2017 at Aker Philadelphia, is beneficially owned by Kinder Morgan and operated Crowley Maritime; per Karatzas Marine Advisors’ estimate, present FMV at $130 mil. Image credit: Karatzas Images

Evocatively named Jones Act Products / Chemical Tanker MT ‘American Pride’ is seen sailing upstream in the Mississippi River in Port Sulphur; built in 2017 at Aker Philadelphia, is beneficially owned by Kinder Morgan and operated Crowley Maritime; per Karatzas Marine Advisors’ estimate, present FMV at $130 mil. Image credit: Karatzas Images

Evocatively named Jones Act Products / Chemical Tanker MT ‘American Pride’ is seen sailing upstream in the Mississippi River in Port Sulphur; built in 2017 at Aker Philadelphia, is beneficially owned by Kinder Morgan and operated Crowley Maritime; per Karatzas Marine Advisors’ estimate, present FMV at $130 mil. Image credit: Karatzas Images

Evocatively named Jones Act Products / Chemical Tanker MT ‘American Pride’ is seen sailing upstream in the Mississippi River in Port Sulphur; built in 2017 at Aker Philadelphia, is beneficially owned by Kinder Morgan and operated Crowley Maritime; per Karatzas Marine Advisors’ estimate, present FMV at $130 mil. Image credit: Karatzas Images

Evocatively named Jones Act Products / Chemical Tanker MT ‘American Pride’ is seen sailing upstream in the Mississippi River in Port Sulphur; built in 2017 at Aker Philadelphia, is beneficially owned by Kinder Morgan and operated Crowley Maritime; per Karatzas Marine Advisors’ estimate, present FMV at $130 mil. Image credit: Karatzas Images

Evocatively named Jones Act Products / Chemical Tanker MT ‘American Pride’ is seen sailing upstream in the Mississippi River in Port Sulphur; built in 2017 at Aker Philadelphia, is beneficially owned by Kinder Morgan and operated Crowley Maritime; per Karatzas Marine Advisors’ estimate, present FMV at $130 mil. Image credit: Karatzas Images

Evocatively named Jones Act Products / Chemical Tanker MT ‘American Pride’ is seen sailing upstream in the Mississippi River in Port Sulphur; built in 2017 at Aker Philadelphia, is beneficially owned by Kinder Morgan and operated Crowley Maritime; per Karatzas Marine Advisors’ estimate, present FMV at $130 mil. Image credit: Karatzas Images
