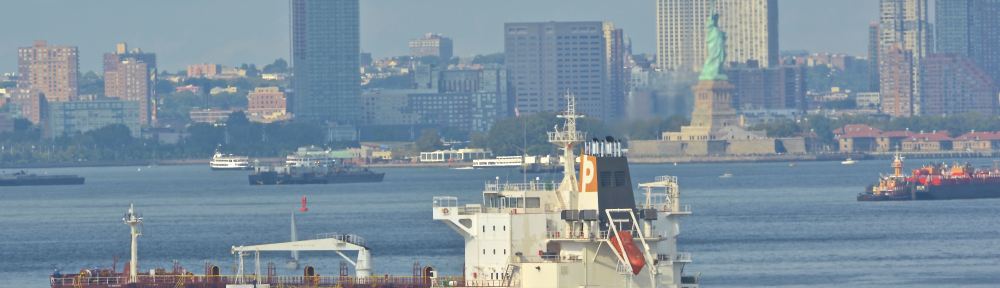

Images of Tanker MT ‘Pyxis Delta’ in the Port of New York
Products & Chemical Tanker 46,500 DWT, built in 2006
VESSEL IDENTIFICATION & DESCRIPTION: Ex-name is Gan-Venture. Launch Name was Gan Venture. Call Sign V7TP8, IMO Number 9314909. Built at Hyundai Mipo delivered in Oct 2006, Double Hull, Marshall Islands Flagged, DNV GL Classed, Length Overall of 183.21 m., Length Between Perpendiculars of 174.00 m., Draught of 12.20 m., Moulded Depth of 18.80 m.,Beam of 32.25 m., 52.25 Tonnes per Centimeter Immersion, Gross Tonnage of 29,438, Tonnage of 24,389 Panama Canal Net, 26,289 Suez Canal Net, 12,036 International Net, 9,579 Light Displacement and 45,880 Dwt (long).
VESSEL OWNERS / MANAGERS: Pyxis Tankers Inc, Greece. Publicly listed on the NASDAQ under ticker symbol PXS. Pyxis Tankers Inc is a group company of Pyxis Maritime Corp.
CARGO HANDLING DETAILS: Cargo Capacity of 51,500 cu.m., Segregated Ballast Tanks, 12 Tanks, 14 Deepwell Pumps Pumps with a total Capacity of 3,600 cu.m., Epoxy Tank Coating, IMO Class 2, Heat Exchangers, Maximum heating capacity of 60 degrees celsius, 7 Cargo Separations, 7 Cargo Manifolds, S/Steel SUS 316 cargo lines, Stern Discharge, Closed Loading System, Cargo connections have diameters of 10 inches, Manifold height above deck of 2.10 m., Distance from bow to centre manifold is 91.65 m.. Crude Oil Washing. Solas Certificate, High Level Alarms, Automatic Ullaging, Inert Gas System, Vapour Return Ashore, Centre Line Bulkhead.
ENGINES & PROPULSION
MAIN ENGINE: 1 x Diesel – MAN B. & W. 6S50MC-C7.1 – 2-stroke 6-cyl. 500mm x2000mm bore/stroke 9,480mkW total at 127rpm. Speed of 15.00 kts at 33.50 tonnes per day, Intermediate Fuel Oil (IFO 180), Horsepower of 12,890, Bunker Capacity of 1,316 IFO 380.
AUXILIARIES: 3 x Aux. Diesel Gen – B. & W. Alpha 6L23/30 – 4-stroke 6-cyl. 225mm x 300mm bore/stroke at 720rpm driving 3 x generator(s) at 2,364ekW total, (2,955kVA total).
PROPULSOR: 1 x CP Propeller (Aft Centre) (mechanical), 127rpm.
BOILER EQUIPMENT: 1 x Boiler, Oil/Gas fired – Kangrim – . 1 x Boiler, Composite – Kangrim.
EMERGENCY ENGINES: 1 x Emergency Diesel Gen. – Cummins Inc 6CT8.3-D(M) – 4-stroke 6-cyl. 114mm x 135mm bore/stroke 280mkW total at 1,800rpm driving 1 x generator(s).
SALE & PURCHASE HISTORY: Vessel acquired by clients of Konkar Shipping in January 2010 for US$ 25.5m, as per Karatzas Shipbrokers records.
