Images of LR2 Tanker MT ‘STI Lauren’ photographed in Upper New York Harbor
110,000 Deadweight Products Tanker built in 2015 at Daewoo
VESSEL IDENTIFICATION & DESCRIPTION: Launch Name was STI Lauren. Aframax Tanker, Call Sign V7EP9, IMO Number 9696711. Built at Daewoo (DSME) Marshall Islands Flagged, ABS Classed. Length Overall of 255.90 m., Length Between Perpendiculars of 247.20 m., Draught of 14.60 m., Beam of 43.00 m., Moulded Depth of 21.85 m., Lightship air draft of 39.92 m., Keel to mast air draft of 48.30 m., 98.40 Tonnes per Centimeter Immersion, Gross Tonnage of 64,670, Tonnage of 53,113 Panama Canal Net, 65,243 Suez Canal Net, 33,042 International Net, 19,746 Light Displacement and 108,262 Dwt (long).
VESSEL OWNERS / MANAGERS: Scorpio Tankers Inc, Publicly listed in US under ticker STNG. Scorpio Tankers Inc is a group company of Scorpio Group.
CARGO HANDLING DETAILS: Cargo Capacities of 129,950 cu.m. and 817,500 Barrels, 3 Cargo Separations, 12 Wing Tanks with a capacity of 129,935 cu.m., 3 Cargo Manifolds, Segregated Ballast Tanks, 12 Tanks, 12 Pumps, Epoxy Tank Coating, Heat Exchangers.
ENGINE & EQUIPMENT
MAIN ENGINE: 1 x Diesel – MAN B. & W. 6G60ME-C9.2 – 2-stroke 6-cyl. 600mm x2790mm bore/stroke 11,200mkW total at 77rpm.
AUXILIARIES: 3 x Aux. Diesel Gen – MAN Energy Solutions 5L21/31 50Hz – 4-stroke 5-cyl. 210mm x 320mm bore/stroke 3,300mkW total at 1,000rpm driving 3 x Hyundai Electric HFC7 506-8P – ac generator(s) at 2,700ekW total, (3,375kVA total). 1 x Aux. Diesel Gen – MAN Energy Solutions 7L21/31 50Hz – 4-stroke 7-cyl. 210mm x 310mm bore/stroke 1,540mkW total at 1,000rpm driving 1 x Hyundai Electric HFC7 568-8P – ac generator(s) at 1,450ekW total, (1,813kVA total).
PROPULSOR: 1 x FP Propeller (Aft Centre) (mechanical) (Ni-Al Bronze), Samwoo, 77rpm. 1 x Screw Shaft.
LIFTING EQUIPMENT: 1 x Crane, Provision SWL 2 tons. 1 x Crane, Provision SWL 4 tons. 2 x Crane, Hose SWL 15 tons. 1 x Gantry, Engine Room 4 tons SWL . No Cargo Gear.
BOILER EQUIPMENT: 1 x Boiler, Oil/Gas fired – Aalborg – Unex BH 1000 at 11 bar. 1 x Boiler, Composite – Aalborg Mission™ OC-TCi at 8 bar.
VALUATION: Vessel was ordered in 2013 as a newbuilding contract at a price of $53 million,

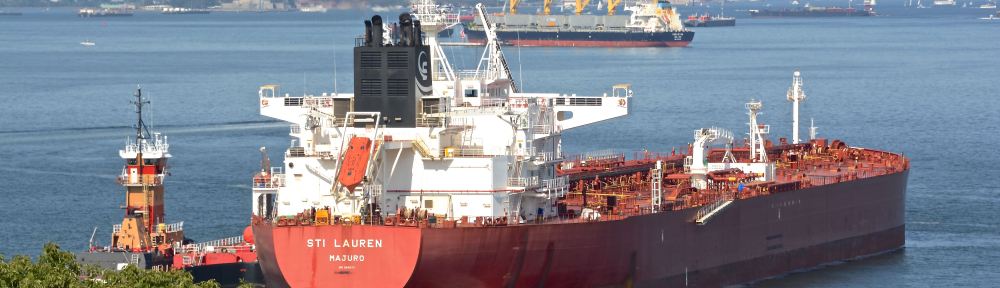

Images of MT ‘STI Lauren’ in New York Harbor
