MT ‘AEGEAN ACE’

MT ‘AEGEAN ACE’ (1,615 DWT, Bunkering Tanker, Built 1992)

IDENTIFICATION: Ex-names are Ace Hana, Sayuri Maru. Call Sign SVA2290, IMO Number 9038232. Built at Shitanoe Zosen, Double Hull, Greece Flagged, BV Classed, Length Overall of 74.25 m., Length Between Perpendiculars of 69.30 m., Draught of 4.51 m., Beam of 11.20 m., Moulded Depth of 5.30 m., Tonnage of 563 International Net and 1,589 Dwt (long). Gross Tonnage of 1,004. ENGINE DETAILS: Engine Description 4 S.A. 6-cyl., Engine Model MF33-ET, Yanmar Engine, Speed of 12.40 kts at 3.00 tonnes per day, Horsepower of 2,000B at 300. 1 Propellor.

OWNERS: Aegean Marine Petroleum URL: http://www.ampni.com

CARGO CAPACITIES: Cargo Capacity of 1,597 cu.m., Segregated Ballast Tanks, 10 Tanks, 2 Pumps with a total Capacity of 1,400 cu.m., Zinc Tank Coating, IMO Class 2, IMO Class 3, Heating Coils, Maximum heating capacity of 120 degrees celsius, 2 Cargo Separations.




MT AEGEAN ACE 1

MT ‘AEGEAN ACE’ (1992 built in Japan 1,600 dwt bunkering tankers) in the Port of Piraeus

MT AEGEAN ACE 2

MT ‘AEGEAN ACE’ (1992 built in Japan 1,600 dwt bunkering tankers) in the Port of Piraeus

MT AEGEAN ACE 3

MT ‘AEGEAN ACE’ (1992 built in Japan 1,600 dwt bunkering tankers) in the Port of Piraeus

MT AEGEAN ACE 4

MT ‘AEGEAN ACE’ (1992 built in Japan 1,600 dwt bunkering tankers) in the Port of Piraeus

MT AEGEAN ACE 5

MT ‘AEGEAN ACE’ (1992 built in Japan 1,600 dwt bunkering tankers) in the Port of Piraeus

MT AEGEAN ACE 6

MT ‘AEGEAN ACE’ (1992 built in Japan 1,600 dwt bunkering tankers) in the Port of Piraeus

MT AEGEAN ACE 7

MT ‘AEGEAN ACE’ (1992 built in Japan 1,600 dwt bunkering tankers) in the Port of Piraeus

MT AEGEAN ACE 7

MT ‘AEGEAN ACE’ (1992 built in Japan 1,600 dwt bunkering tankers) in the Port of Piraeus

MT AEGEAN ACE 8

MT ‘AEGEAN ACE’ (1992 built in Japan 1,600 dwt bunkering tankers) in the Port of Piraeus

MT AEGEAN ACE 9

MT ‘AEGEAN ACE’ (1992 built in Japan 1,600 dwt bunkering tankers) in the Port of Piraeus

MT AEGEAN ACE 10

MT ‘AEGEAN ACE’ (1992 built in Japan 1,600 dwt bunkering tankers) in the Port of Piraeus

MT AEGEAN ACE 11

MT ‘AEGEAN ACE’ (1992 built in Japan 1,600 dwt bunkering tankers) in the Port of Piraeus

MT AEGEAN ACE 12

MT ‘AEGEAN ACE’ (1992 built in Japan 1,600 dwt bunkering tankers) in the Port of Piraeus


Vessel description is provided in good faith and is believed to be correct and accurate but no assurances, warranties or representations are made herewith. Vessel description is provided for entertainment  purposes only. We have no responsibility whatsoever for any errors / omissions in vessel description.

© 2013-2014 Basil M Karatzas & Karatzas Marine Advisors & Co.  All Rights Reserved.

IMPORTANT DISCLAIMER:  Access to this blog signifies the reader’s irrevocable acceptance of this disclaimer. No part of this blog can be reproduced by any means and under any circumstances, whatsoever, in whole or in part, without proper attribution or the consent of the copyright and trademark holders of this website.Whilst every effort has been made to ensure that information herewithin has been received from sources believed to be reliable and such information is believed to be accurate at the time of publishing, no warranties or assurances whatsoever are made in reference to accuracy or completeness of said information, and no liability whatsoever will be accepted for taking or failing to take any action upon any information contained in any part of this website.  Thank you for the consideration.

MV ‘KNOSSOS PALACE’

MV ‘KNOSSOS PALACE’ (2,182 Passengers, Pass./Car Ferry, Built 2000)

IDENTIFICATION: Launch Name was Knossos Palace. Call Sign SYQO, IMO Number 9204063. Built at Fincantieri Sestri, Greece Flagged, RINA Classed, Length Overall of 210.00 m., Length Between Perpendiculars of 191.22 m., Draught of 7.30 m., Beam of 26.40 m., Gross Tonnage of 24,004, Moulded Depth of 15.67 m., Tonnage of 15,806 International Net, 2,711 Light Displacement and 5,413 Dwt (long). ENGINE DETAILS: Engine Description 4 S.A. 16-cyl., Engine Model 16V46C Wartsila Engine, Speed of 29.50 kts, Horsepower of 91,360B at 500, Bunker Capacity of 1,000 tonnes. 2 Propellors, 2 Bow Thruster(s).

OWNERS / MANAGERS: Minoan Lines Shipping S.A., Greece, URL: http://www.minoan.gr.

CARGO CAPACITIES: Vehicle Capacity of 600 Cars, 97 Trailers, Lane Length of 1,550.00 m., 1 Side(s) Door/Ramp(s) with a Length of 14.00 m. and a width of 3.20 m., 1 Stern(p) Ramp(s) with a Length of 15.00 m. and a width of 6.50 m., 1 Stern(s) Ramp(s) with a Length of 15.00 m. and a width of 6.50 m.. Total number of Passengers 2,182, 231 Passenger Cabins, 760 Passenger Berths. 2 Bow Thruster(s).




MV KNOSSOS PALACE 1

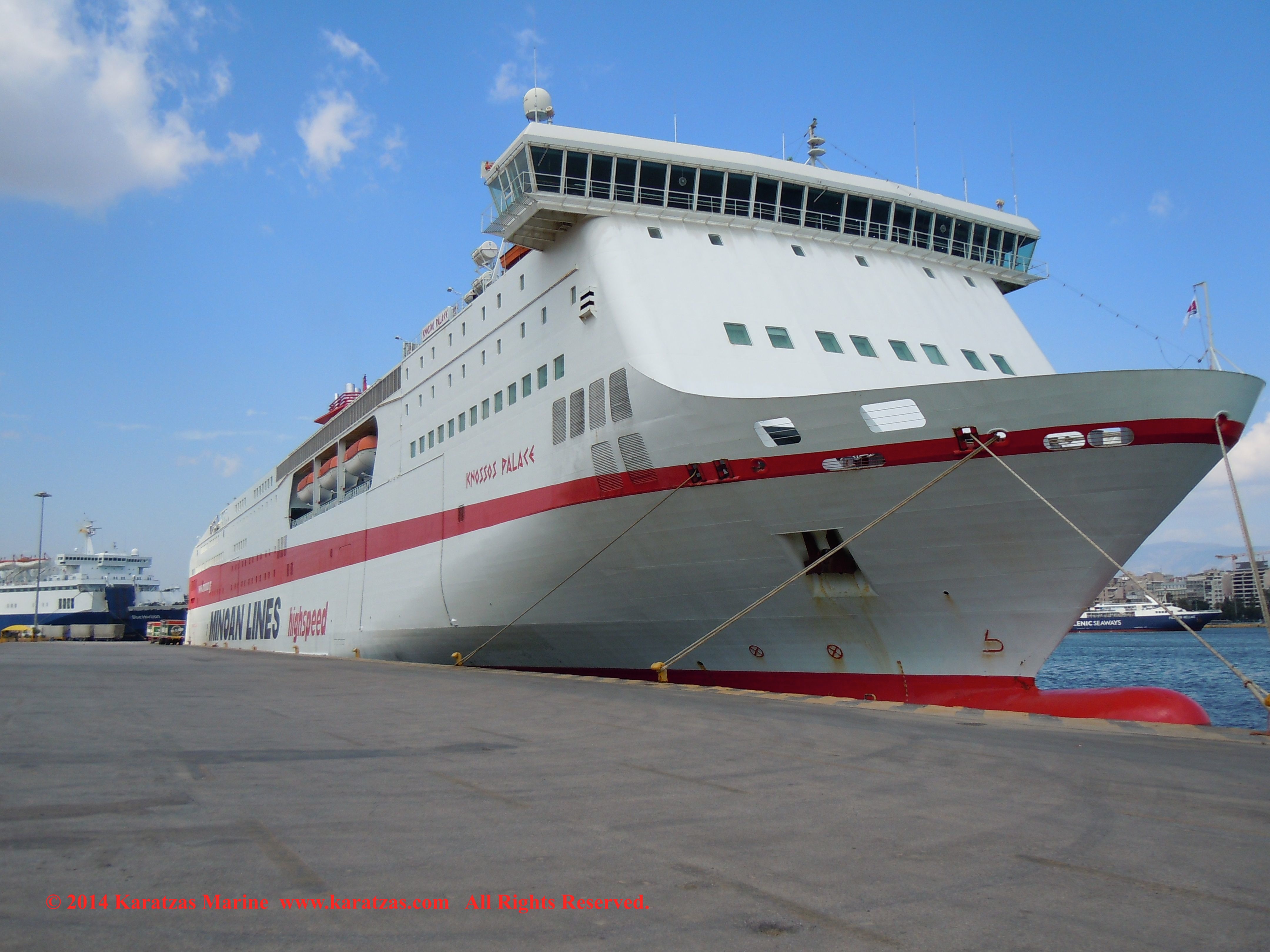

Ro-Pax/Ferry MV ‘KNOSSOS PALACE’ (2,182 Passengers, built in 2000 at Fincantieri Sestri) Piraeus, June 2014

MV KNOSSOS PALACE 2

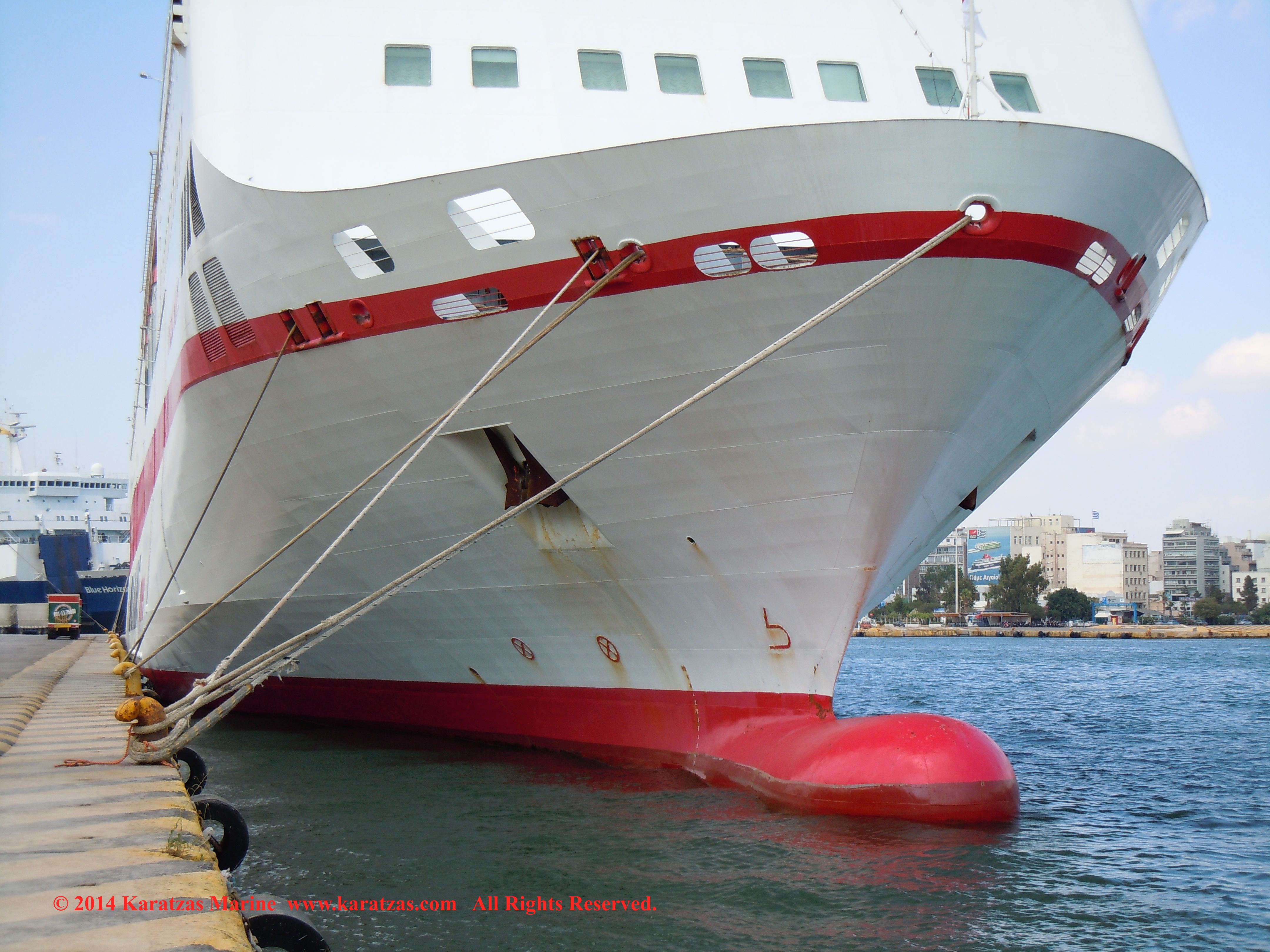

Ro-Pax/Ferry MV ‘KNOSSOS PALACE’ (2,182 Passengers, built in 2000 at Fincantieri Sestri) Piraeus, June 2014

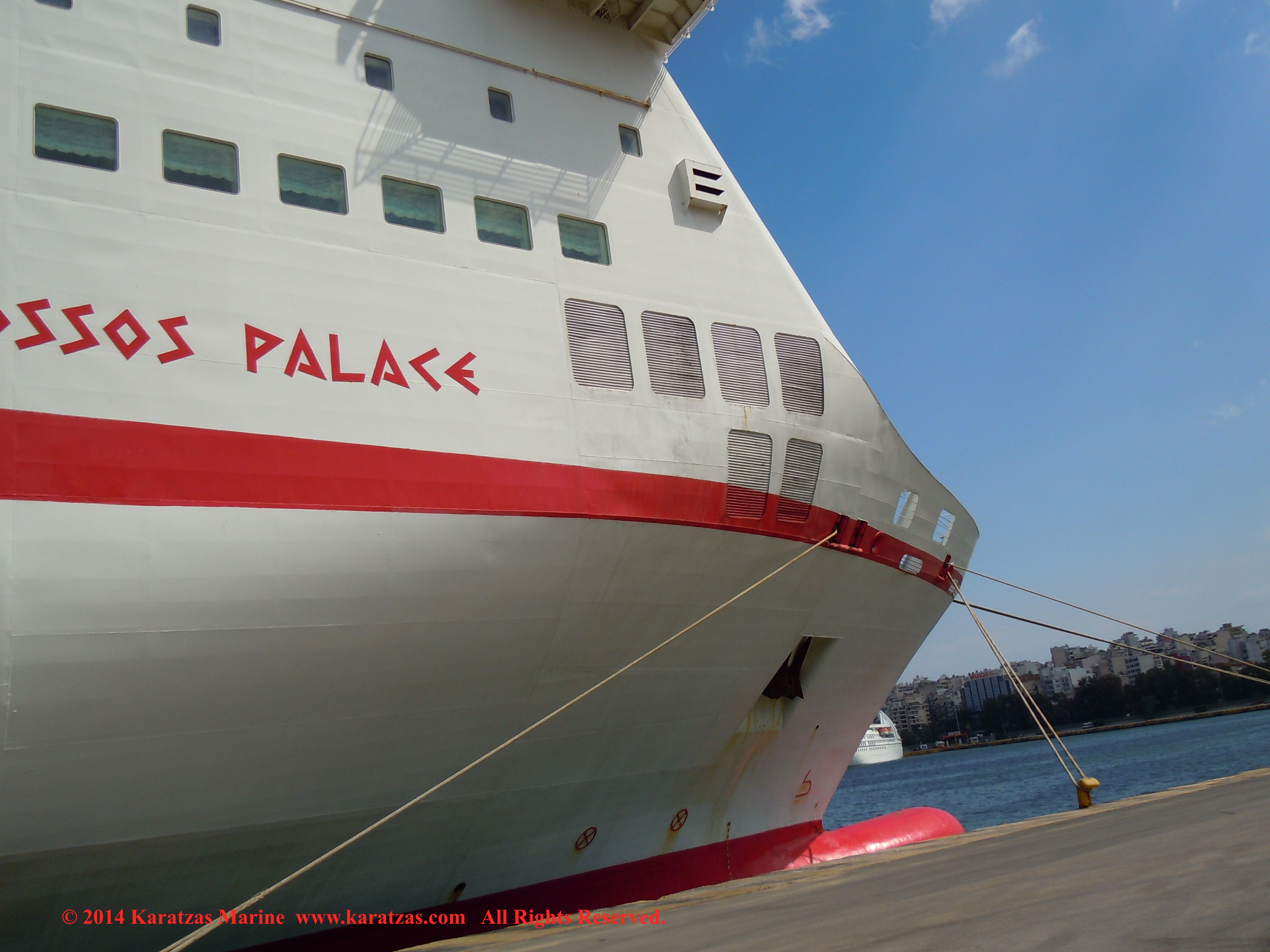

MV KNOSSOS PALACE 3

Ro-Pax/Ferry MV ‘KNOSSOS PALACE’ (2,182 Passengers, built in 2000 at Fincantieri Sestri) Piraeus, June 2014

MV KNOSSOS PALACE 4

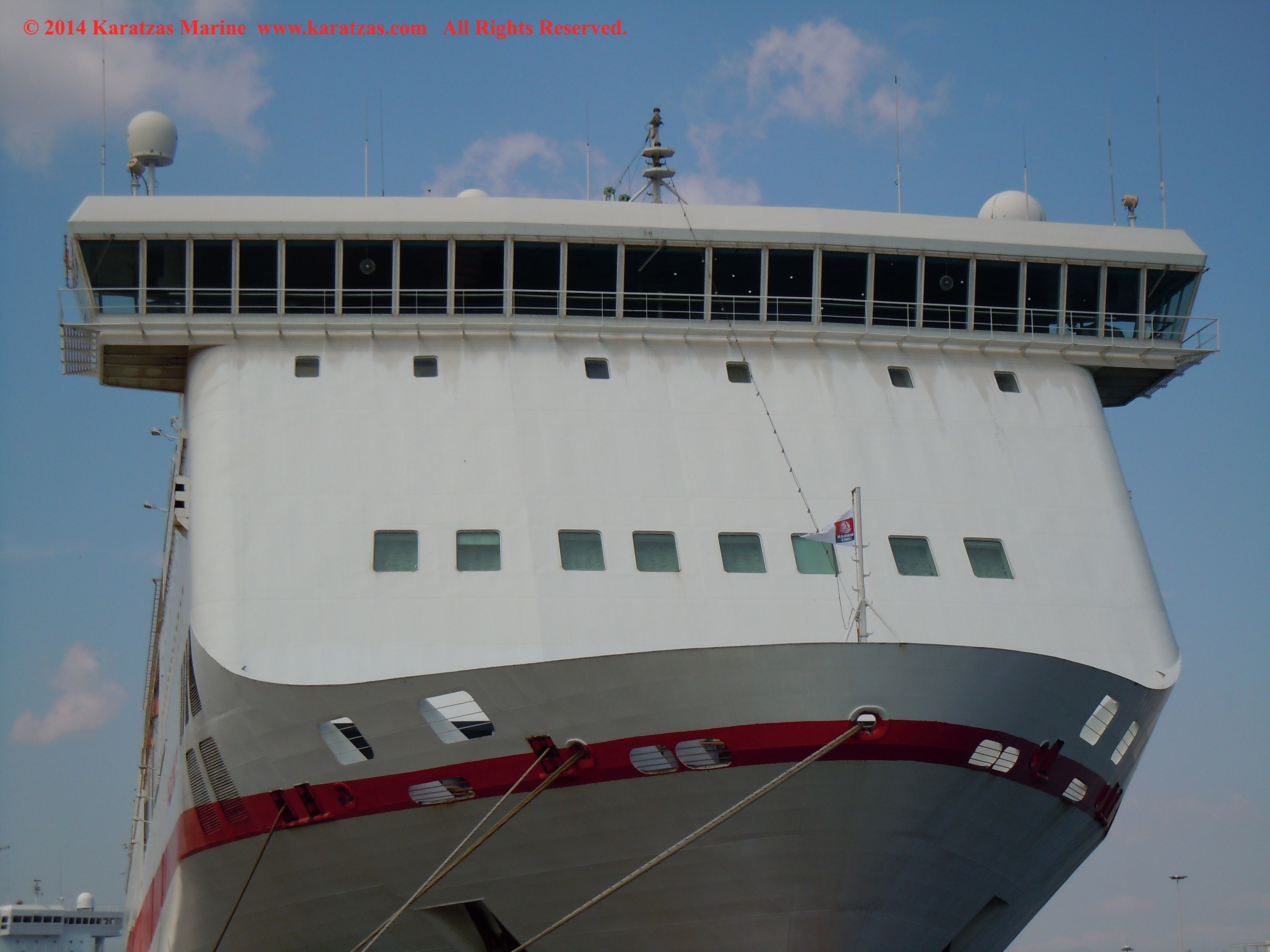

Ro-Pax/Ferry MV ‘KNOSSOS PALACE’ (2,182 Passengers, built in 2000 at Fincantieri Sestri) Piraeus, June 2014

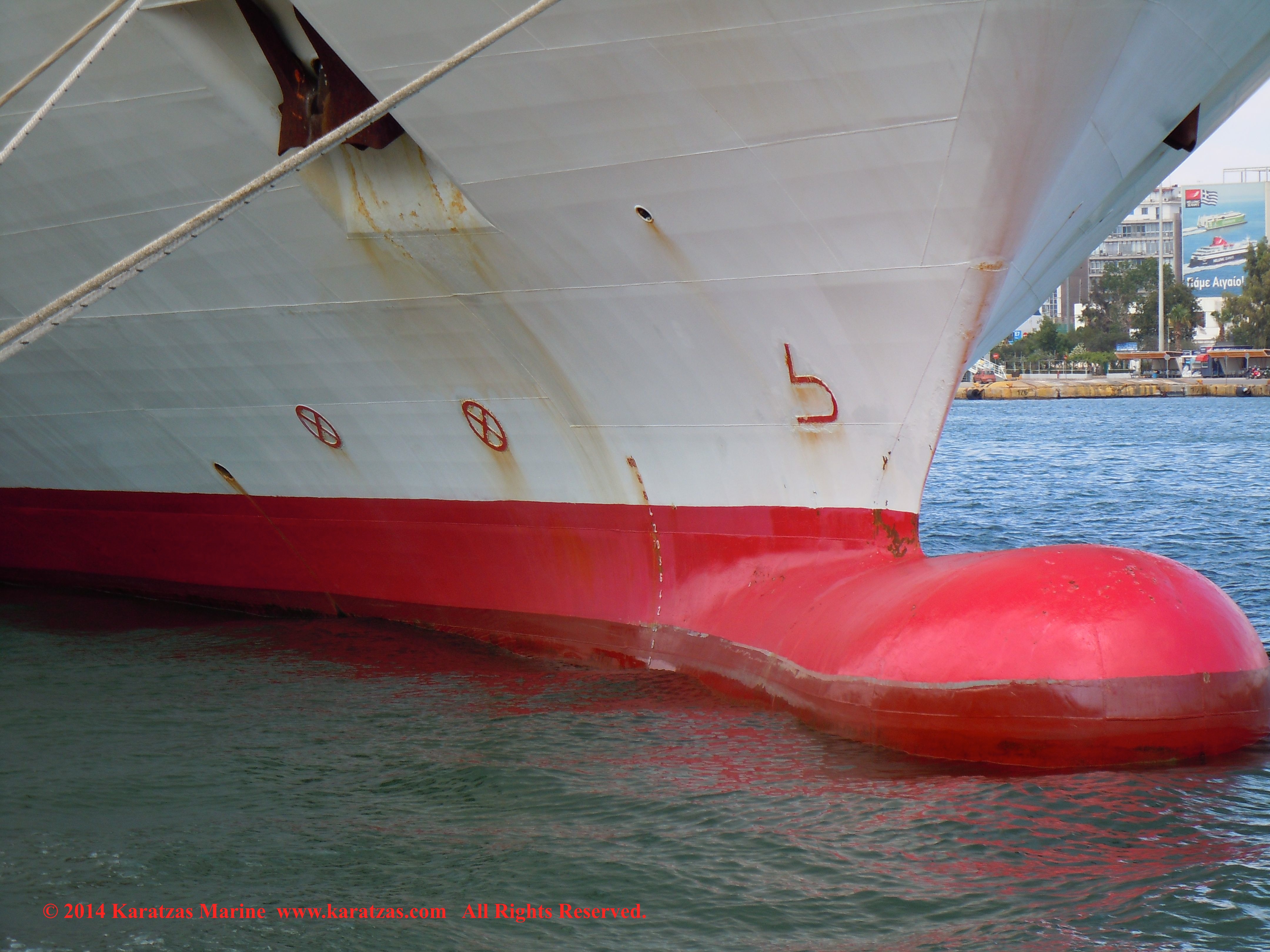

MV KNOSSOS PALACE 4a

Ro-Pax/Ferry MV ‘KNOSSOS PALACE’ (2,182 Passengers, built in 2000 at Fincantieri Sestri) Piraeus, June 2014

MV KNOSSOS PALACE 5

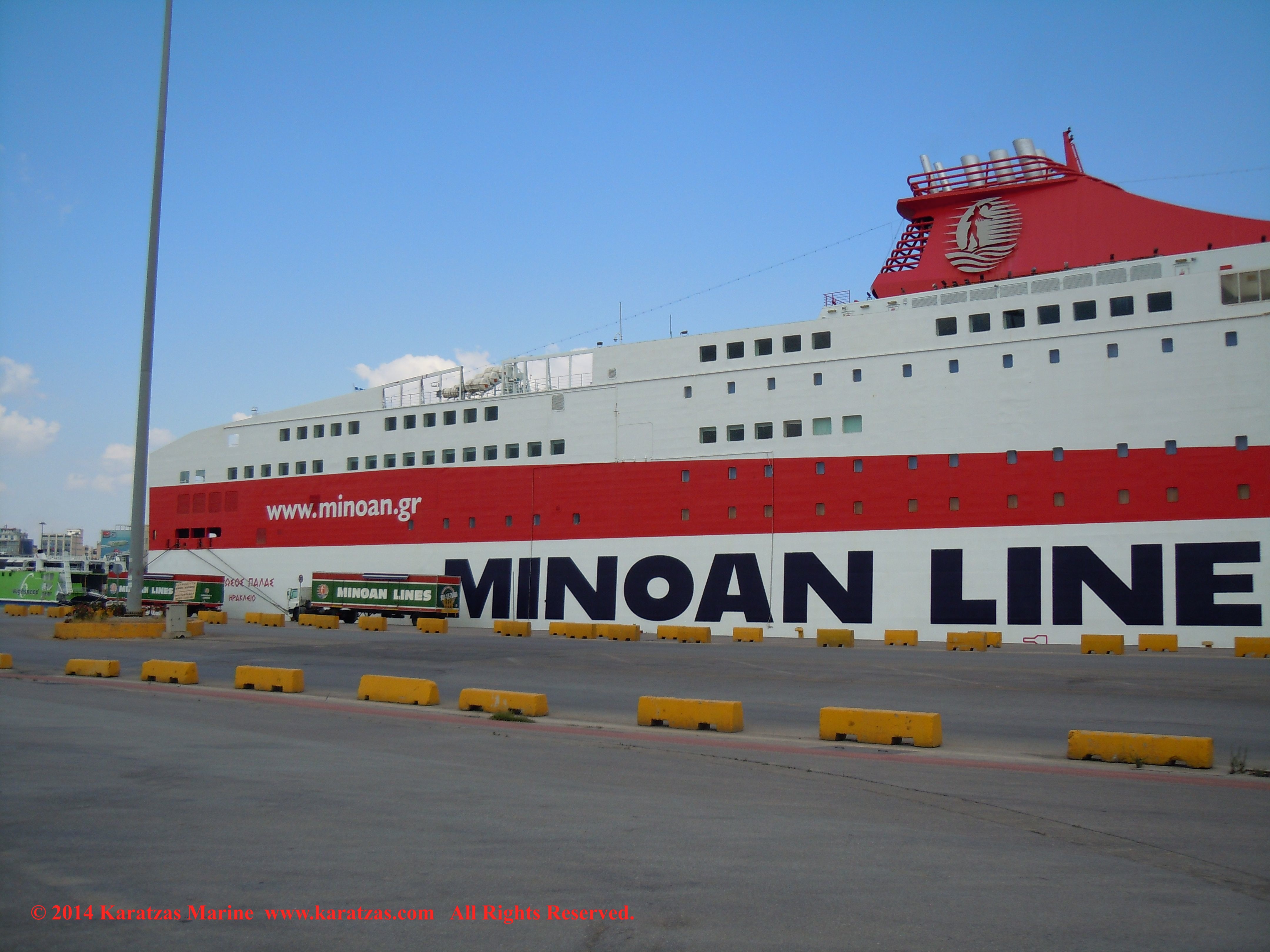

Ro-Pax/Ferry MV ‘KNOSSOS PALACE’ (2,182 Passengers, built in 2000 at Fincantieri Sestri) Piraeus, June 2014

MV KNOSSOS PALACE 6

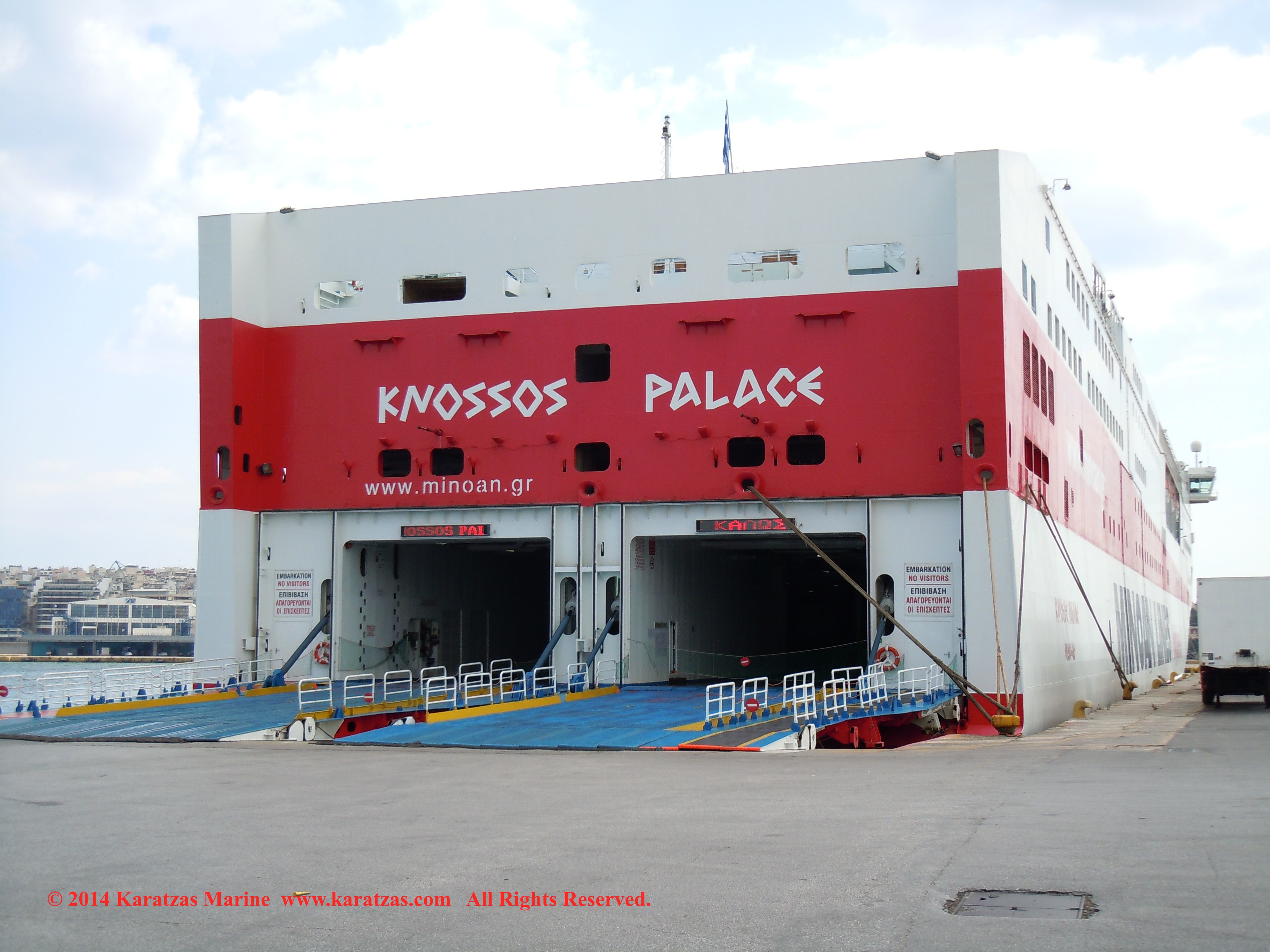

Ro-Pax/Ferry MV ‘KNOSSOS PALACE’ (2,182 Passengers, built in 2000 at Fincantieri Sestri) Piraeus, June 2014

MV KNOSSOS PALACE 7

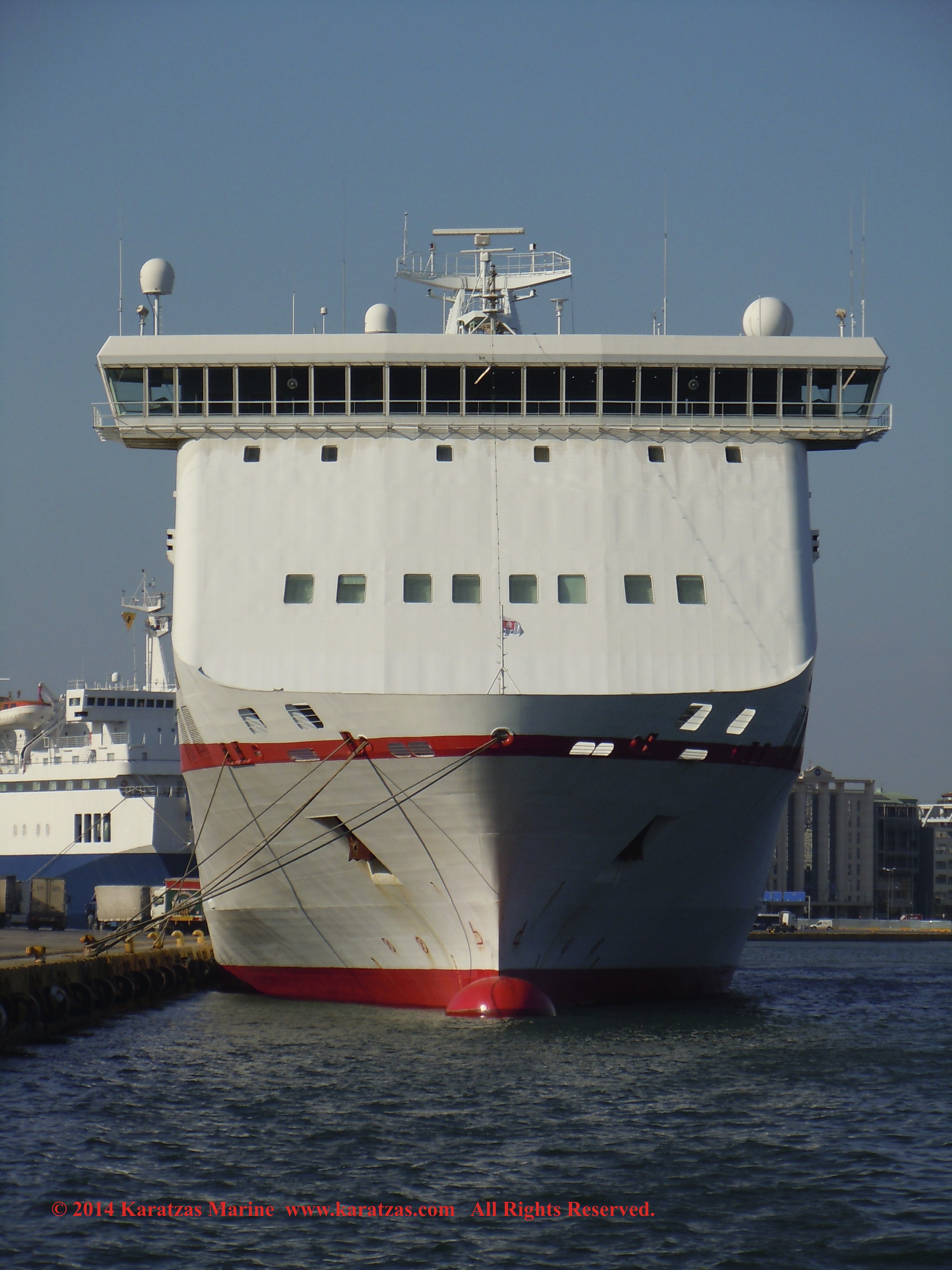

Ro-Pax/Ferry MV ‘KNOSSOS PALACE’ (2,182 Passengers, built in 2000 at Fincantieri Sestri) Piraeus, June 2014

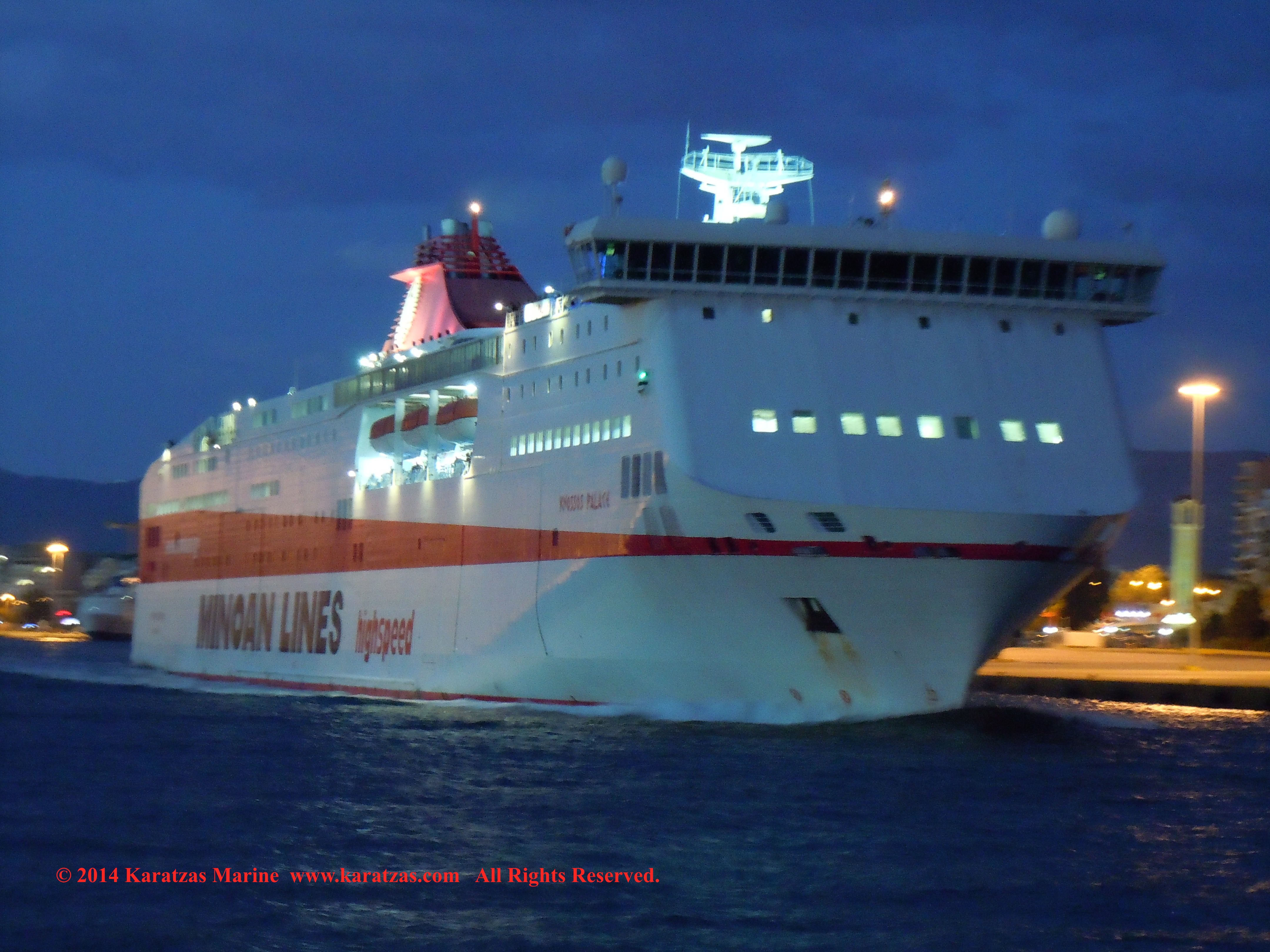

MV KNOSSOS PALACE 8

Ro-Pax/Ferry MV ‘KNOSSOS PALACE’ (2,182 Passengers, built in 2000 at Fincantieri Sestri) Piraeus, June 2014

MV KNOSSOS PALACE 8

Ro-Pax/Ferry MV ‘KNOSSOS PALACE’ (2,182 Passengers, built in 2000 at Fincantieri Sestri) Piraeus, June 2014

MV KNOSSOS PALACE 9

Ro-Pax/Ferry MV ‘KNOSSOS PALACE’ (2,182 Passengers, built in 2000 at Fincantieri Sestri) Piraeus, June 2014

MV KNOSSOS PALACE 9

Ro-Pax/Ferry MV ‘KNOSSOS PALACE’ (2,182 Passengers, built in 2000 at Fincantieri Sestri) Piraeus, June 2014

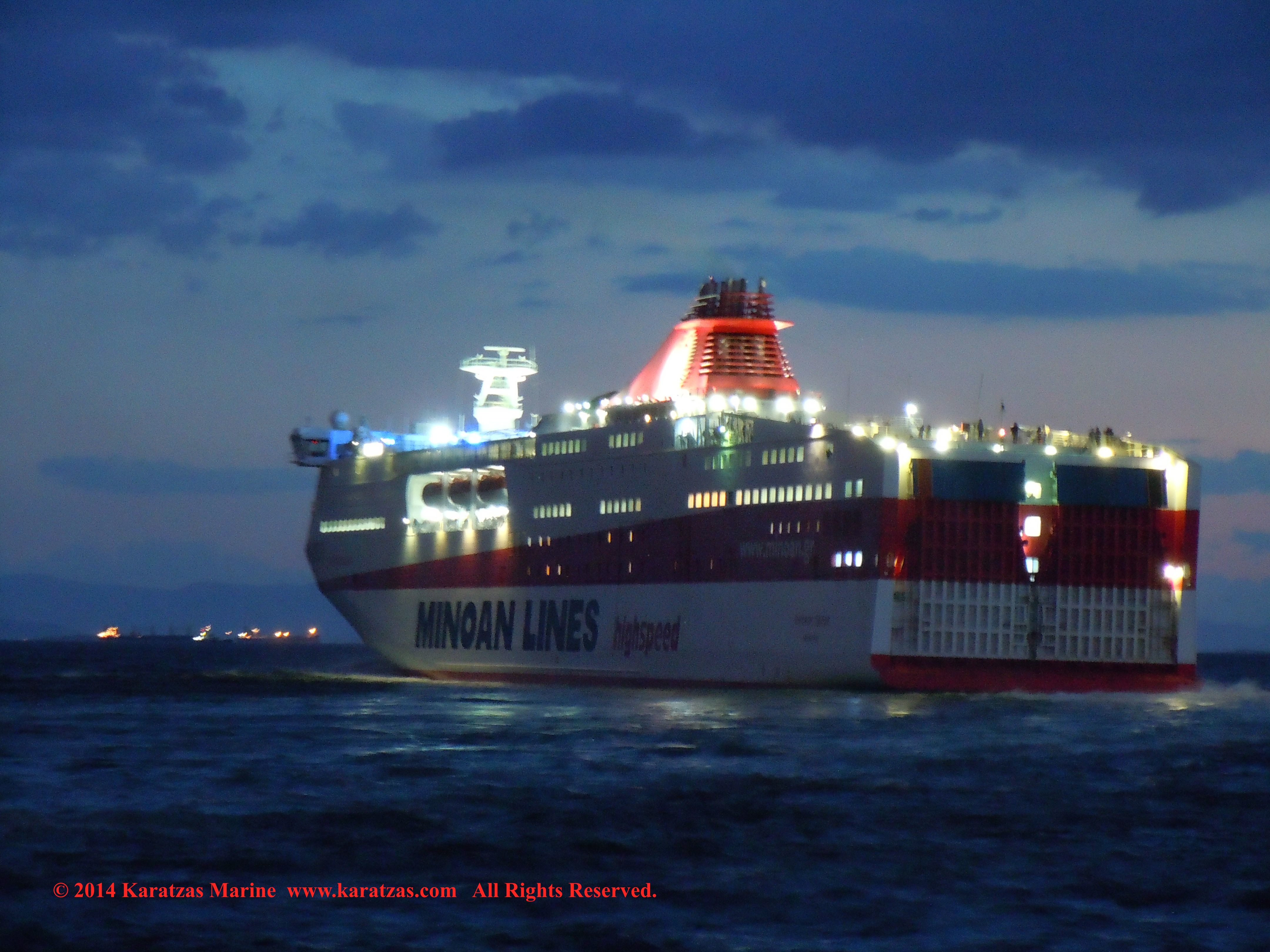

MV KNOSSOS PALACE 10

Ro-Pax/Ferry MV ‘KNOSSOS PALACE’ (2,182 Passengers, built in 2000 at Fincantieri Sestri) Piraeus, June 2014

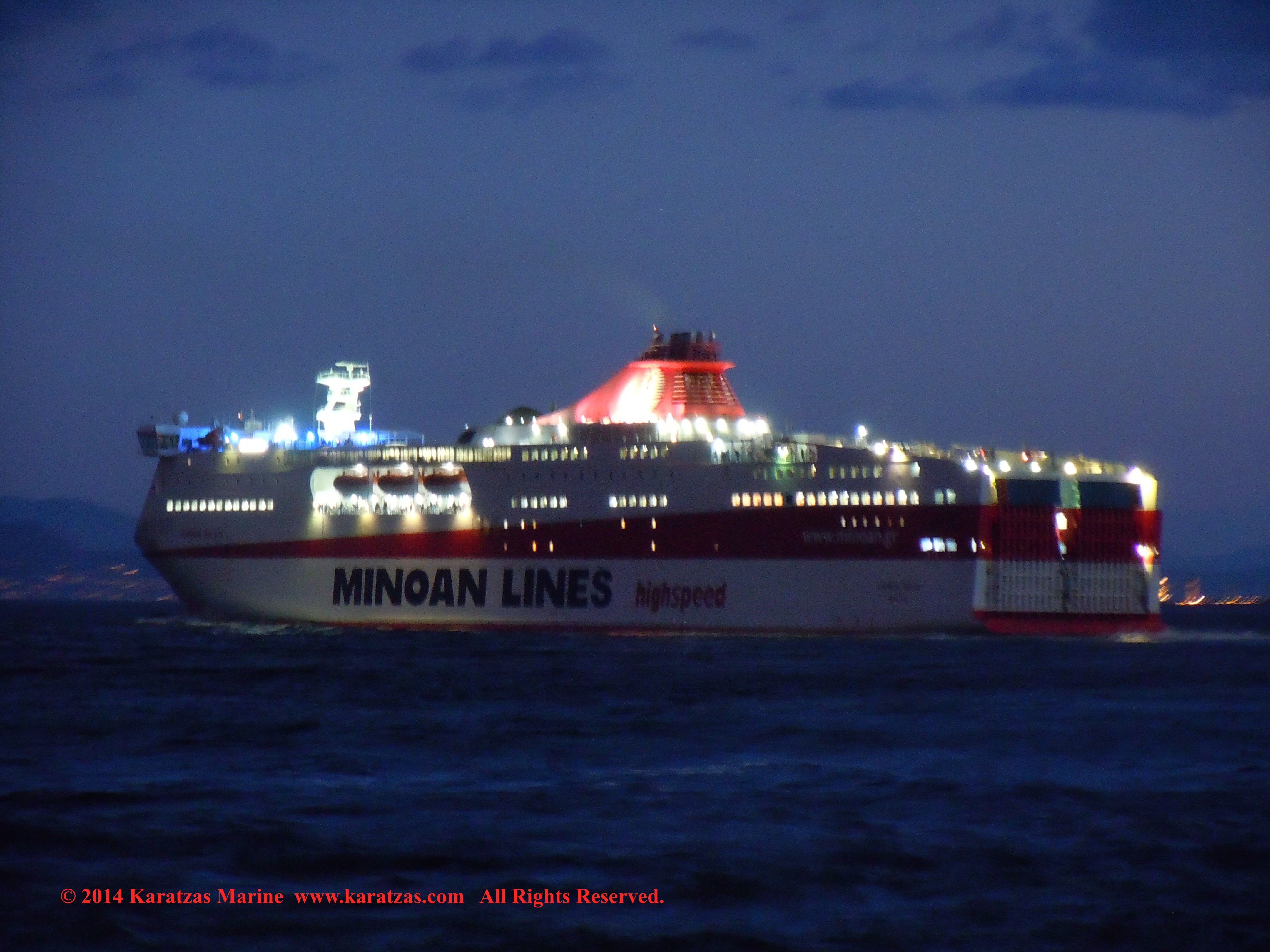

MV KNOSSOS PALACE 11

Ro-Pax/Ferry MV ‘KNOSSOS PALACE’ (2,182 Passengers, built in 2000 at Fincantieri Sestri) Piraeus, June 2014

MV KNOSSOS PALACE 12

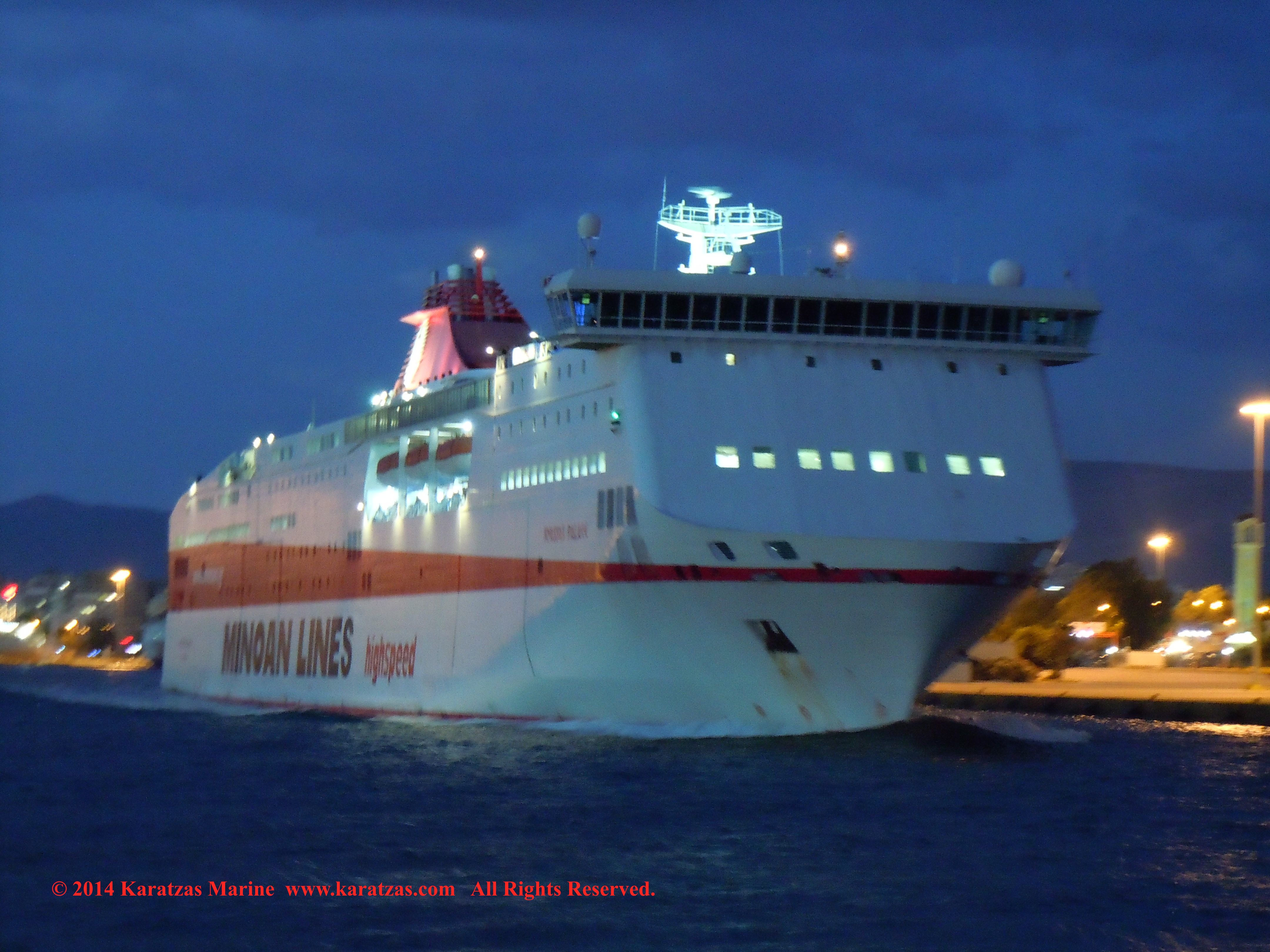

Ro-Pax/Ferry MV ‘KNOSSOS PALACE’ (2,182 Passengers, built in 2000 at Fincantieri Sestri) Piraeus, June 2014


Vessel description is provided in good faith and is believed to be correct and accurate but no assurances, warranties or representations are made herewith. Vessel description is provided for entertainment  purposes only. We have no responsibility whatsoever for any errors / omissions in vessel description.

© 2013-2014 Basil M Karatzas & Karatzas Marine Advisors & Co.  All Rights Reserved.

IMPORTANT DISCLAIMER:  Access to this blog signifies the reader’s irrevocable acceptance of this disclaimer. No part of this blog can be reproduced by any means and under any circumstances, whatsoever, in whole or in part, without proper attribution or the consent of the copyright and trademark holders of this website.Whilst every effort has been made to ensure that information herewithin has been received from sources believed to be reliable and such information is believed to be accurate at the time of publishing, no warranties or assurances whatsoever are made in reference to accuracy or completeness of said information, and no liability whatsoever will be accepted for taking or failing to take any action upon any information contained in any part of this website.  Thank you for the consideration.

MUSEUM SHIP SS ‘HELLAS LIBERTY’ (ex- SS ‘Arthur M. Huddell’)

SS HELLAS LIBERTY B_1

Museum Ship SS ‘Hellas Liberty’ – One of the last three remaining original ‘Liberty Ships’ built during the WWII effort in the USA

SS HELLAS LIBERTY B_2

Museum Ship SS ‘Hellas Liberty’ – One of the last three remaining original ‘Liberty Ships’ built during the WWII effort in the USA

SS HELLAS LIBERTY B_3

Museum Ship SS ‘Hellas Liberty’ – One of the last three remaining original ‘Liberty Ships’ built during the WWII effort in the USA

SS HELLAS LIBERTY B_4

Museum Ship SS ‘Hellas Liberty’ – One of the last three remaining original ‘Liberty Ships’ built during the WWII effort in the USA

SS HELLAS LIBERTY B_5

Museum Ship SS ‘Hellas Liberty’ – One of the last three remaining original ‘Liberty Ships’ built during the WWII effort in the USA

SS HELLAS LIBERTY B_6

Museum Ship SS ‘Hellas Liberty’ – One of the last three remaining original ‘Liberty Ships’ built during the WWII effort in the USA

SS HELLAS LIBERTY B_7

Museum Ship SS ‘Hellas Liberty’ – One of the last three remaining original ‘Liberty Ships’ built during the WWII effort in the USA

SS HELLAS LIBERTY B_9

Museum Ship SS ‘Hellas Liberty’ – One of the last three remaining original ‘Liberty Ships’ built during the WWII effort in the USA

SS HELLAS LIBERTY B_8

Museum Ship SS ‘Hellas Liberty’ – One of the last three remaining original ‘Liberty Ships’ built during the WWII effort in the USA

SS HELLAS LIBERTY B_10

Museum Ship SS ‘Hellas Liberty’ – One of the last three remaining original ‘Liberty Ships’ built during the WWII effort in the USA

SS HELLAS LIBERTY B_12

Museum Ship SS ‘Hellas Liberty’ – One of the last three remaining original ‘Liberty Ships’ built during the WWII effort in the USA

SS HELLAS LIBERTY B_11

Museum Ship SS ‘Hellas Liberty’ – One of the last three remaining original ‘Liberty Ships’ built during the WWII effort in the USA


© 2013-2014 Basil M Karatzas & Karatzas Marine Advisors & Co.  All Rights Reserved.

IMPORTANT DISCLAIMER:  Access to this blog signifies the reader’s irrevocable acceptance of this disclaimer. No part of this blog can be reproduced by any means and under any circumstances, whatsoever, in whole or in part, without proper attribution or the consent of the copyright and trademark holders of this website. Whilst every effort has been made to ensure that information here within has been received from sources believed to be reliable and such information is believed to be accurate at the time of publishing, no warranties or assurances whatsoever are made in reference to accuracy or completeness of said information, and no liability whatsoever will be accepted for taking or failing to take any action upon any information contained in any part of this website.  Thank you for the consideration.

M/Y ‘RADIANT’

Superyacht M/Y ‘Radiant’, 110 meters length, is one of the largest yachts in the world. Built by the renown Lürssen Shipyard in Bremen, she was launched in 2009. Her exterior design is by Tim Heywood and interior design by Glenn Pushelberg. Whilst the yacht was under construction, she was sold to her current owners, who previously owned an Amels, with the same name, now called M/Y ‘Lightning’. M/Y ‘Radiant’ is kept very private, no images or details about her Yabu Pushelberg styled interior have ever been released. She is a close sistership to M/Y ‘Pelorus’ and M/Y ‘Dilbar’.

It has been reported that the yacht was ordered at €140 million, placed in the market for sale with $350 million asking price and present owners acquired her at about $250 million.

SPECIFICATION

Overview

Name: Radiant
Type: Motor Yacht
Model: Custom
Sub Type:
Builder: Lurssen Yachts
Naval Architect: Lurssen Yachts
Exterior Designers: Tim Heywood Design
Interior Designer: Glen Pushelburg
Year: 2010
Flag: Cayman Islands
MCA:
Class:
Hull NB:
Hull Colour:

Dimensions

Length Overall: 110.00m  (360’10″ft)
Length at Waterline:
Beam: 16.30m  (53’5″ft)
Draft (min): 4.50m  (14’9″ft)
Draft (max):
Gross Tonnage:

Accommodations

Guests: 16
Cabins Total:
Cabins:
Crew: 44

Construction

Hull Configuration: Displacement
Hull Material: Steel
Superstructure: Aluminium
Deck Material: Teak
Decks NB:

Engine(s)

Total Power: – / –
Propulsion: Twin screw

Performance & Capabilities

Max Speed: 0.00 kts
Cruising Speed: 0.00 kts
Range:
Fuel Capacity:
Water Capacity:

Equipment

Generator:
Stabilizers:
Thrusters:
Amenities:

Motor yacht ‘Radiant’ was originally known by the moniker Darius when she was launched by Lurssen in early 2009 with few details leaked about her bound-to-be superlative amenities. Subtile style emanates from the grey hull and white superstructure of this distinctive vessel whose Tim Heywood design cuts an impressive figure on the water.

A sister to ‘Dilbar’, M/Y ‘Radiant’ was commissioned by the Russian media tycoon Boris Berezovsky, who wanted a rival to ‘Pelorus’, owned by his arch enemy Roman Abramovich. However, he subsequently sold her to Abdulla al-Futtaim, a billionaire car dealer from the United Arab Emirates, before she was completed.

As well as the standard features for a yacht of this size – helipad, gymnasium, cinema, spa – she has one of the highest security specifications ever conceived. Berezovsky ordered a personal “escape launch” – a speedboat with turbo-charged twin diesel engines capable of exceeding 75 knots. She is also equipped with an arsenal of sonic guns that fire low-frequency sound waves that can burst the eardrums of approaching assailants, and a military water cannon capable of sinking an approaching boat at more than 100 yards.

M/Y ‘Radiant’ is the second (after M/Y ‘Dilbar’) yacht in the world with particle filters on the main engine exhausts. She has a combined diesel-mechanic and diesel electric propulsion system with exhaust gas particle filters for all the generating sets and for the main engine exhaust at lower power.

This basic idea of the Lurssen green engine concept is to avoid a significant amount of emission for both generating set and main engine exhaust gases in combination with a propulsion system of high efficiency. One aim is to avoid as much exhaust gas particles as possible at anchor and while manoeuvring in harbours, anchorages, bays or at slow speed operation near the shore line.

This target is akin to the efforts to reduce diesel exhaust gas particles in cities and populated areas. All four generating sets are equipped with diesel exhaust particle filters, which take out more than 95 % in weight of the soot particles; These generating sets supply the power for the hotel load and for four azimuthing thrusters. With only the thrusters, the yacht is able to run at a comfortable speed and make the most of its quietness and its capability for dynamic positioning.

In addition to the cleaning of the exhaust gases of the generating sets the exhaust gases of the main engines can be treated up to a load of 1000 kW for each engine.
The combination of diesel electric propulsion (by the gensets and the thrusters) and conventional propulsion with CPP (Controllable Pitch Propellers) has the benefit of having the high efficiency of a diesel mechanic propulsion system for long distance trips.
Built to the rules of Germanischer Lloyd, Radiant reaches a top speed of 20 knots.




M:Y RADIANT 1

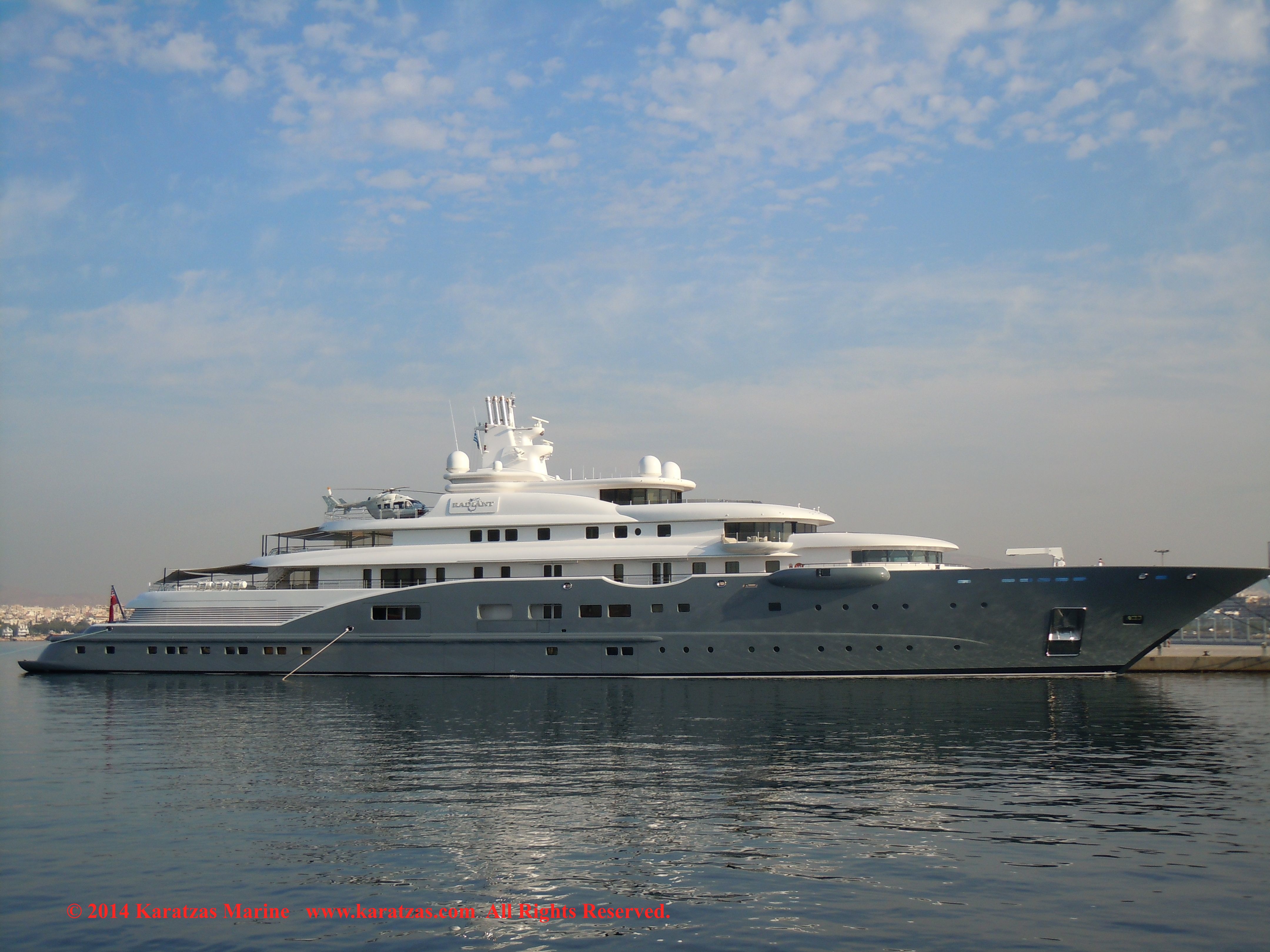

Superyacht M/Y ‘Radiant’ docked at Flisvos Marina, Athens, in June 2014

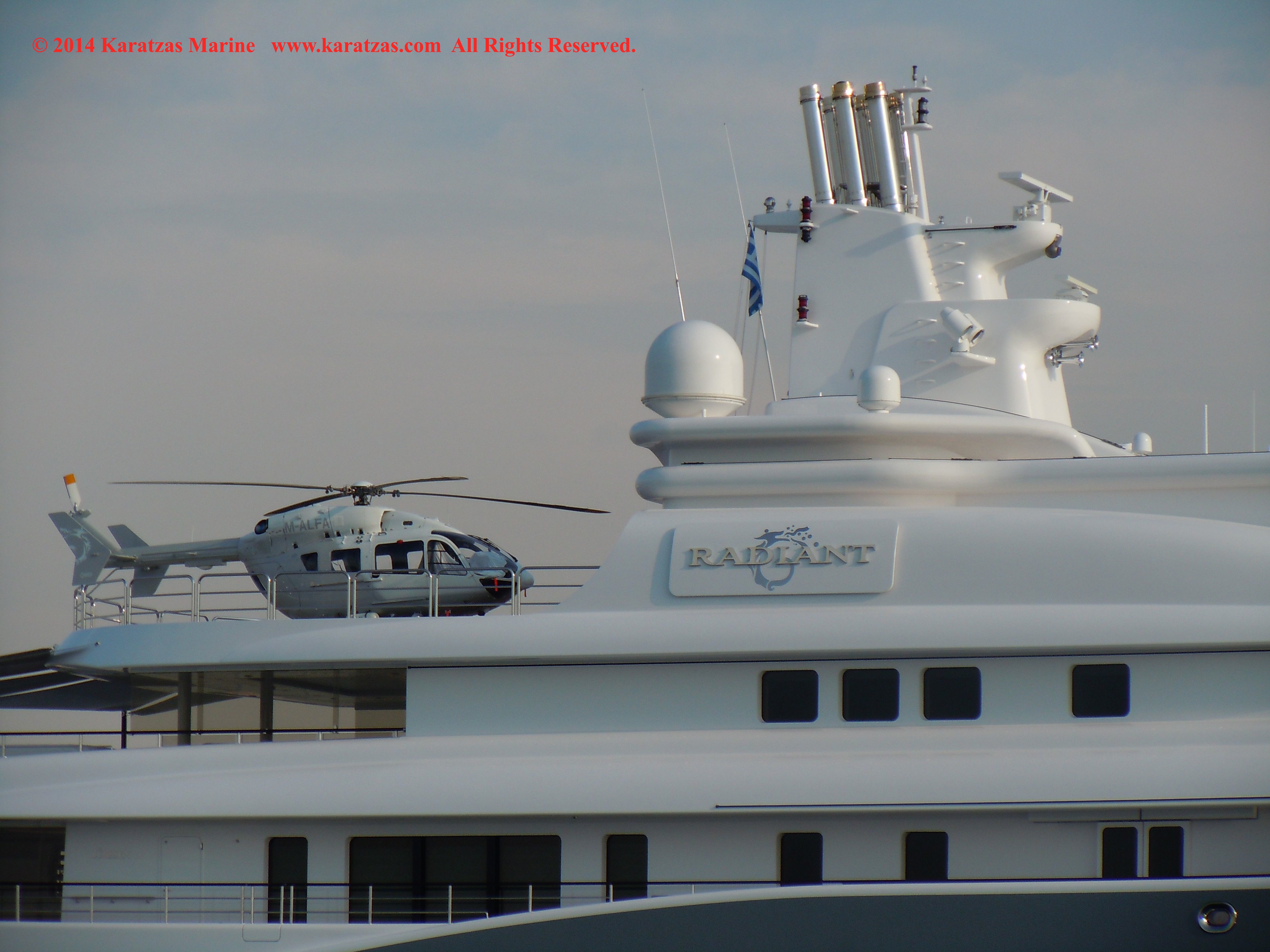

M:Y RADIANT 2

Superyacht M/Y ‘Radiant’ docked at Flisvos Marina, Athens, in June 2014

M:Y RADIANT 3

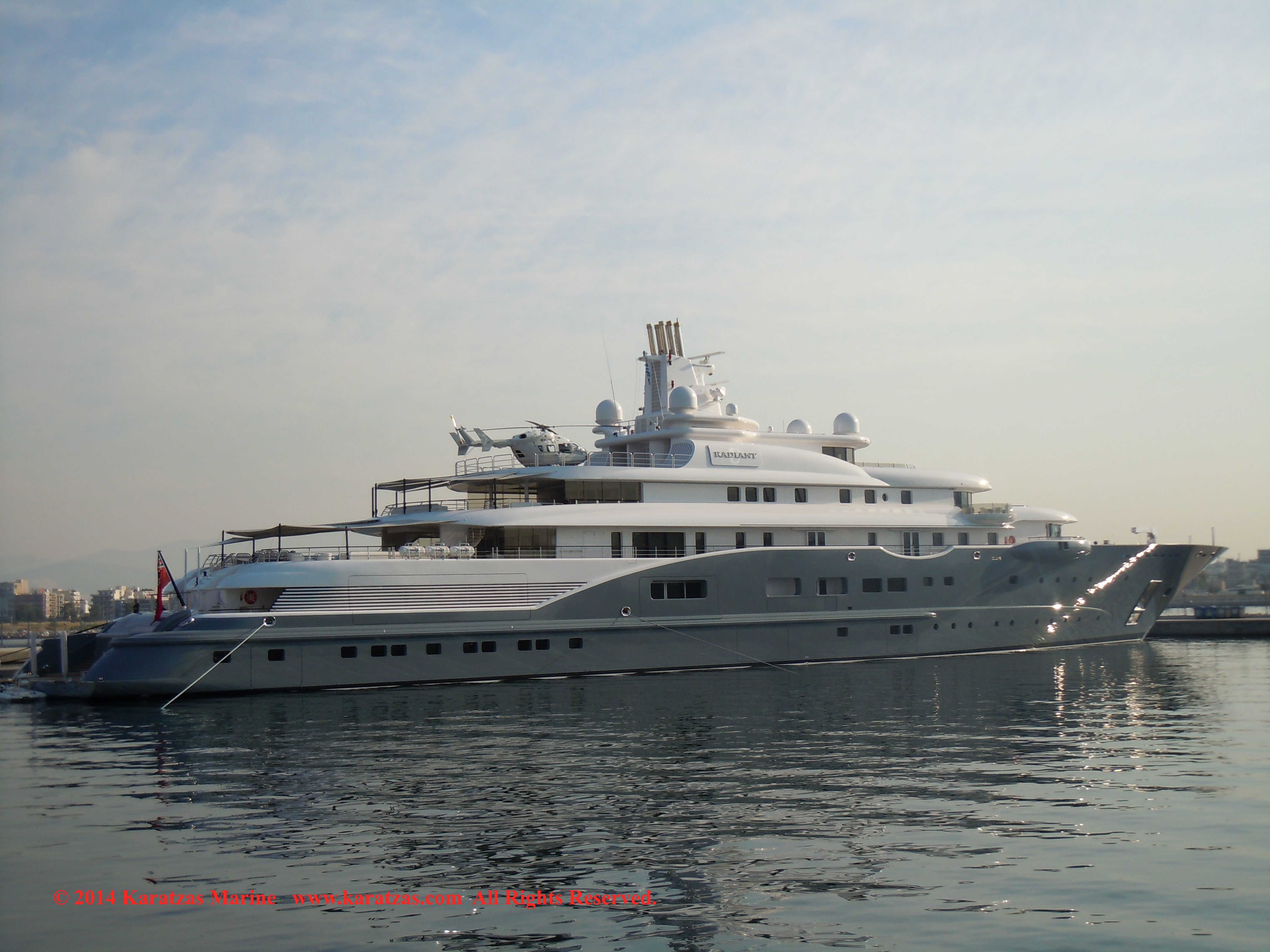

Superyacht M/Y ‘Radiant’ docked at Flisvos Marina, Athens, in June 2014

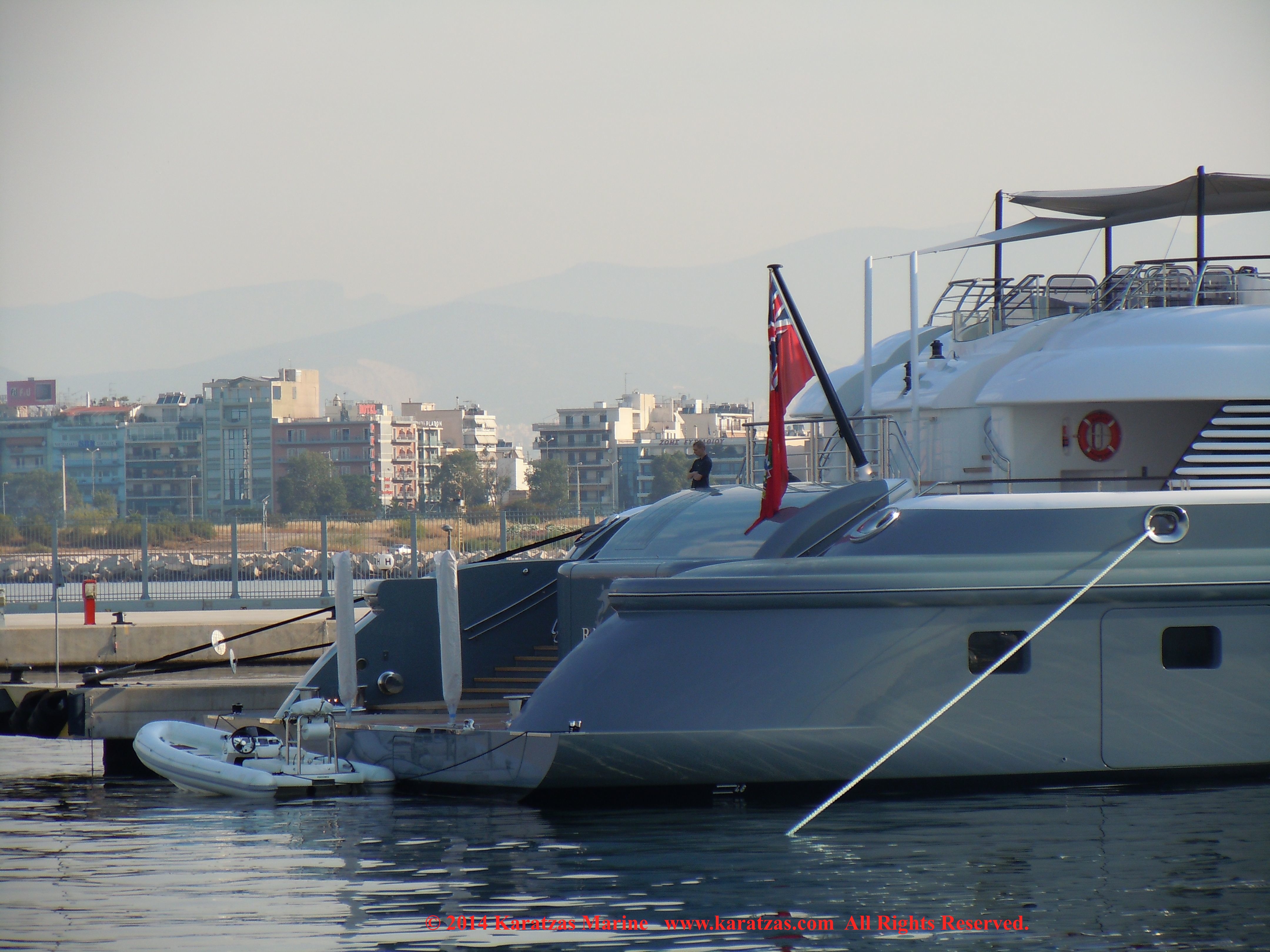

M:Y RADIANT 4

Superyacht M/Y ‘Radiant’ docked at Flisvos Marina, Athens, in June 2014

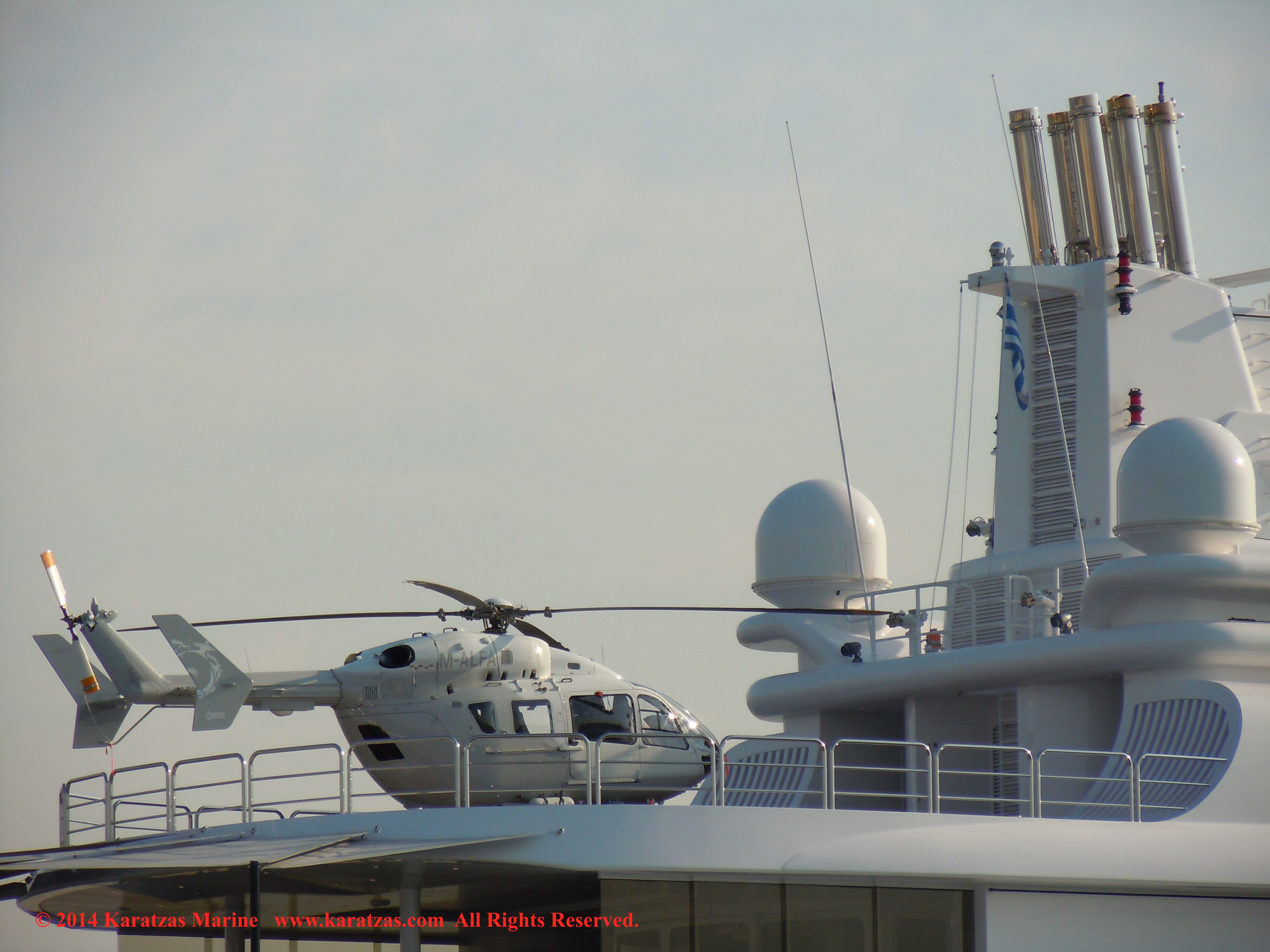

M:Y RADIANT 5

Superyacht M/Y ‘Radiant’ docked at Flisvos Marina, Athens, in June 2014

M:Y RADIANT 6

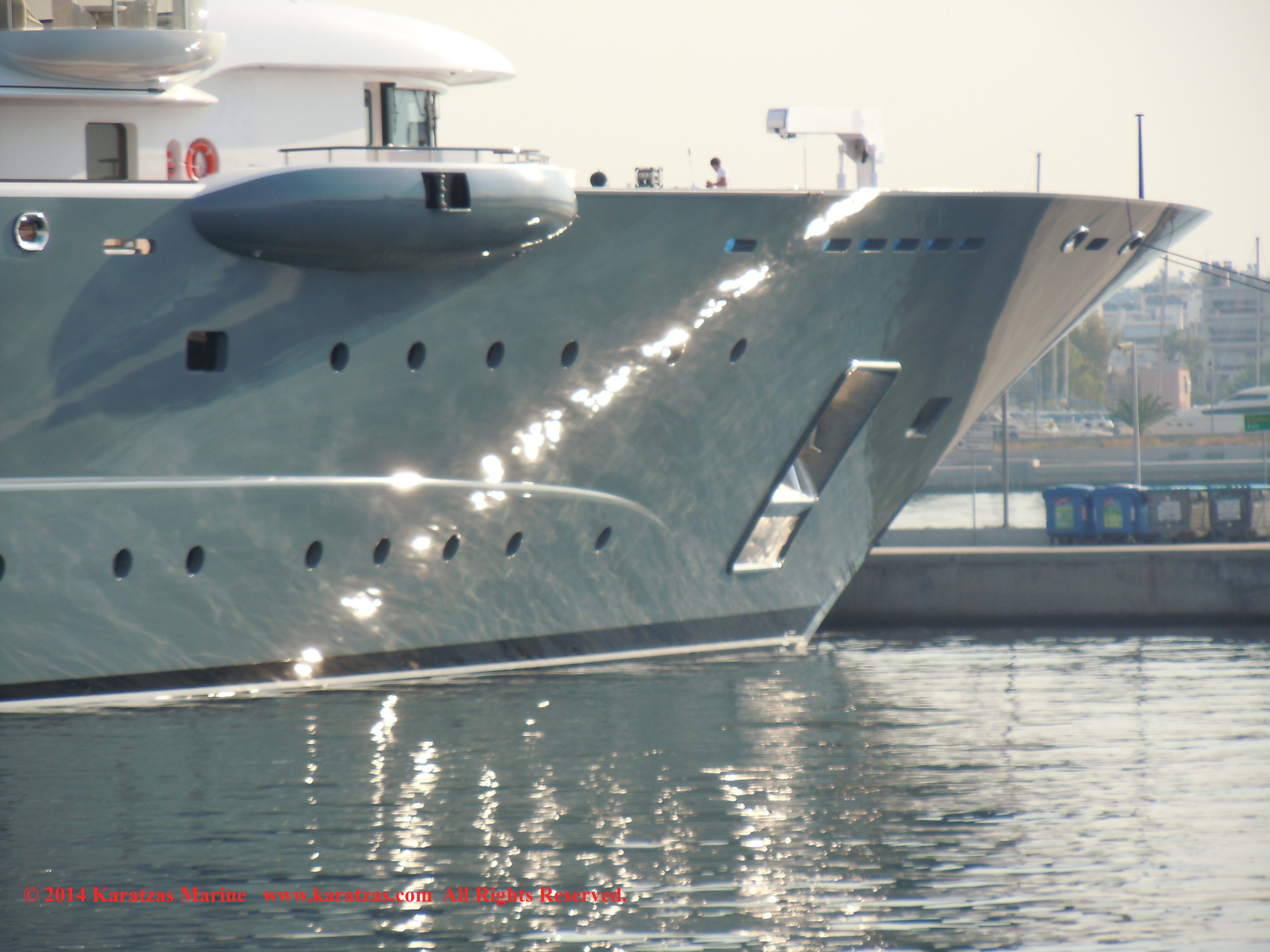

Superyacht M/Y ‘Radiant’ docked at Flisvos Marina, Athens, in June 2014

M:Y RADIANT 7

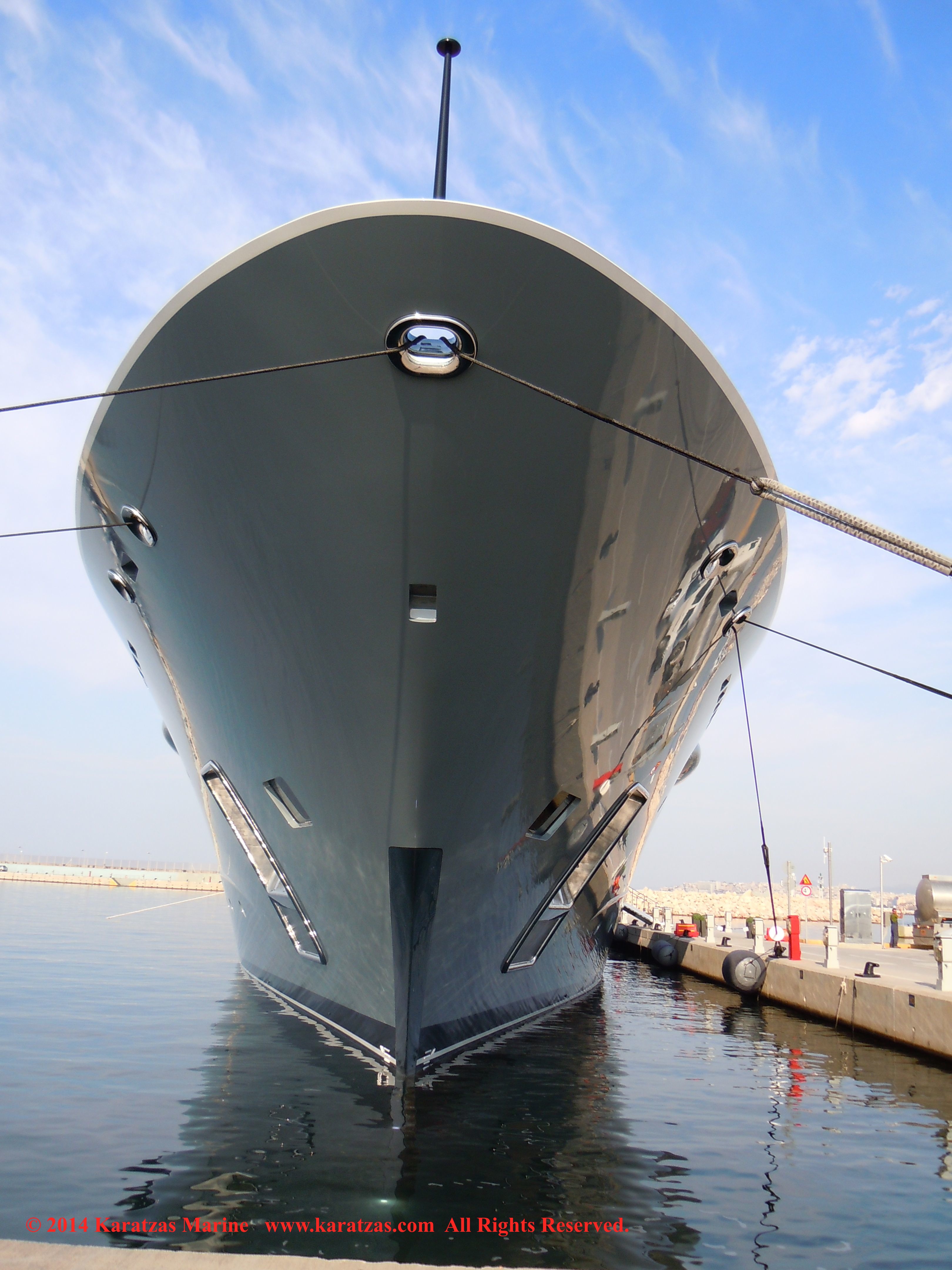

Superyacht M/Y ‘Radiant’ docked at Flisvos Marina, Athens, in June 2014

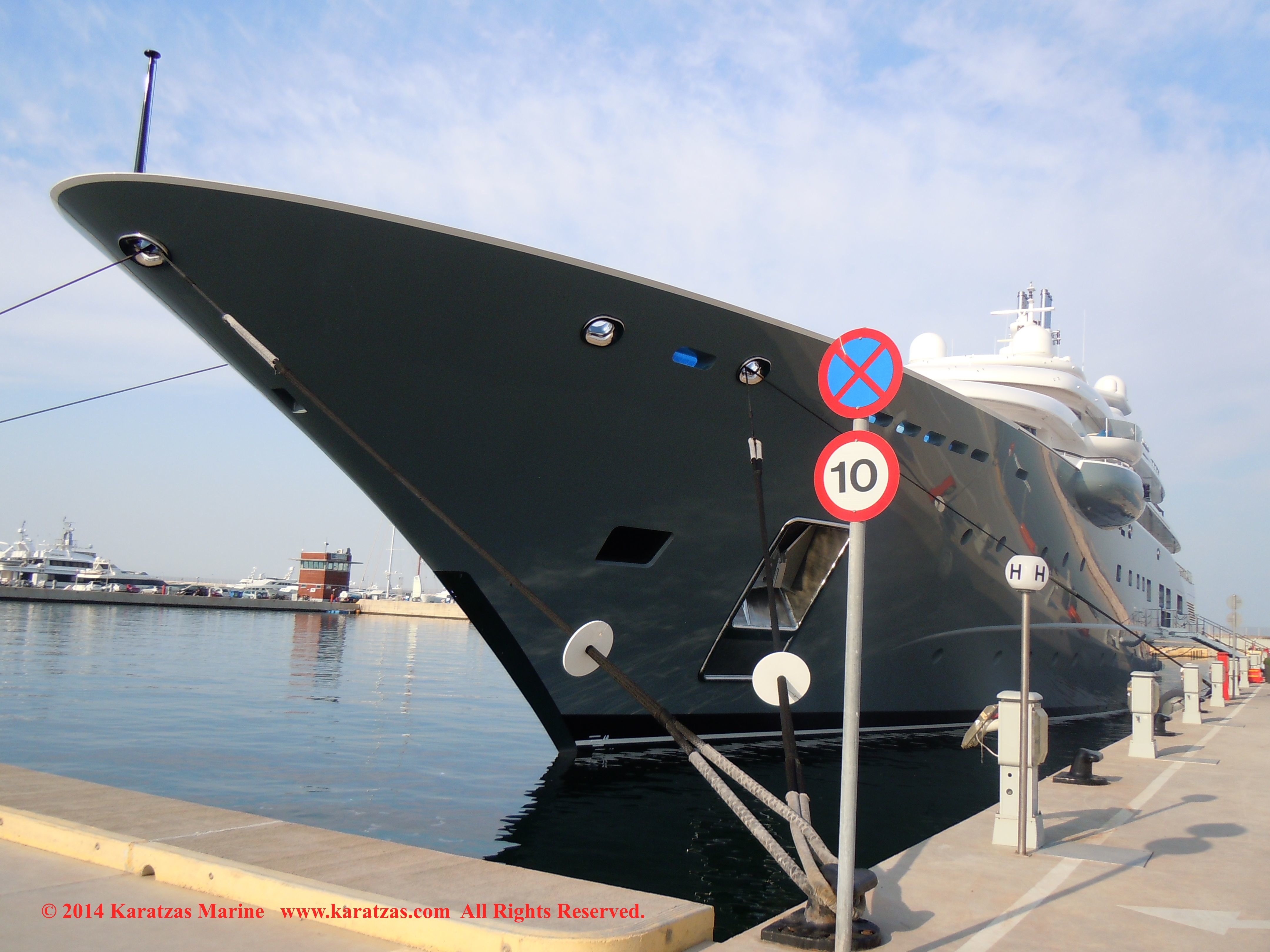

M:Y RADIANT 8

Superyacht M/Y ‘Radiant’ docked at Flisvos Marina, Athens, in June 2014

M:Y RADIANT 9

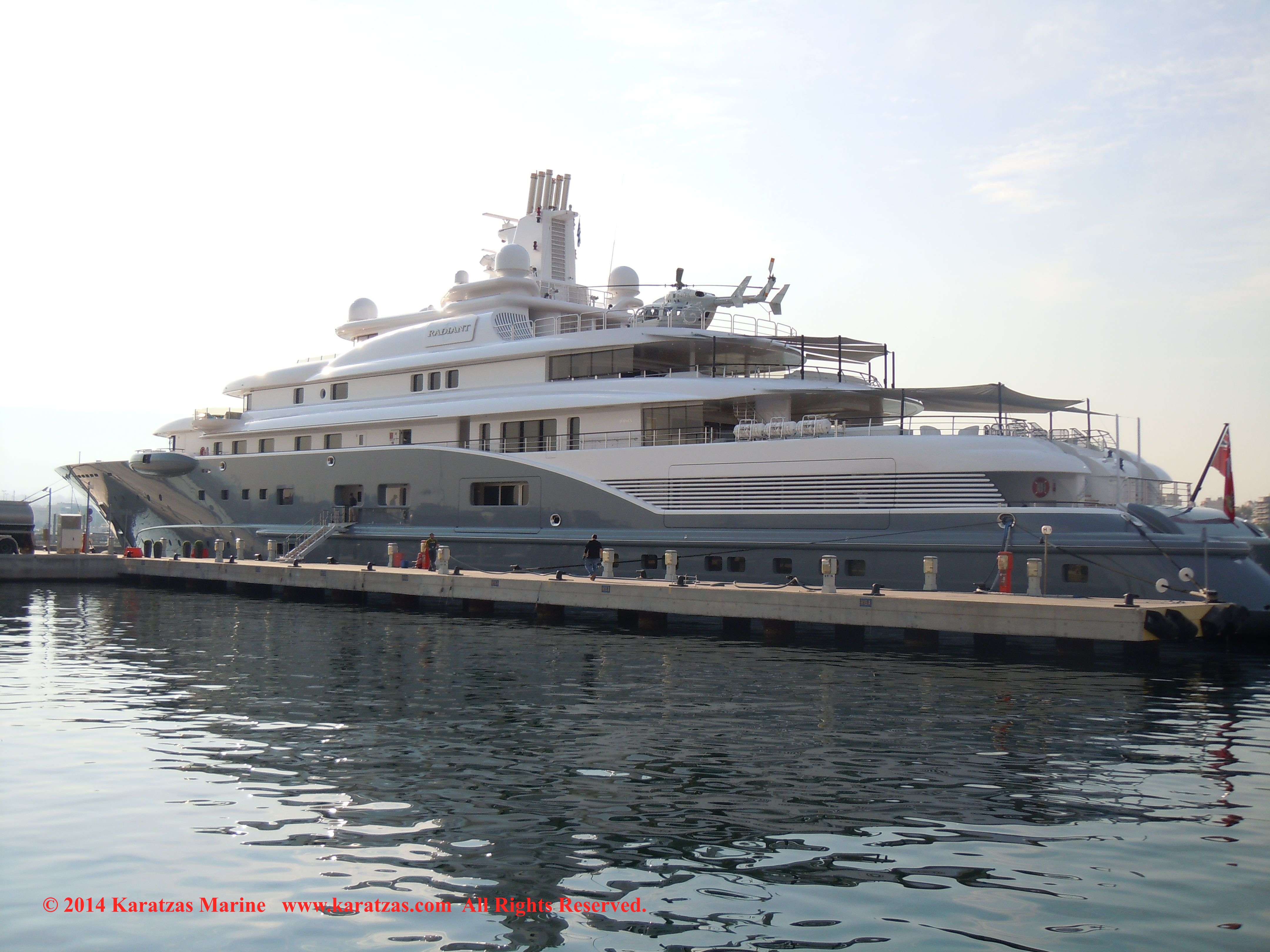

Superyacht M/Y ‘Radiant’ docked at Flisvos Marina, Athens, in June 2014

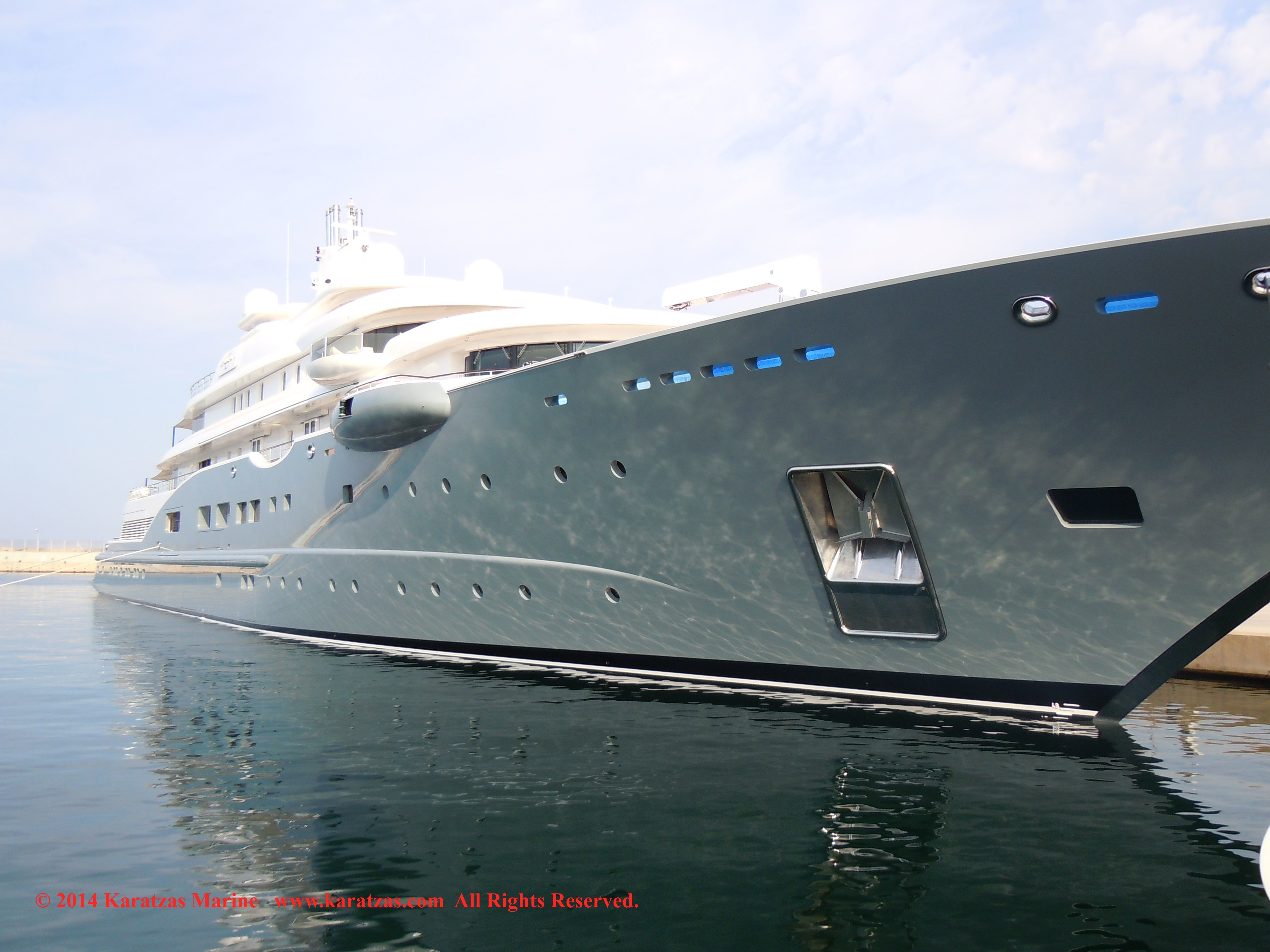

M:Y RADIANT 10

Superyacht M/Y ‘Radiant’ docked at Flisvos Marina, Athens, in June 2014

M:Y RADIANT 11

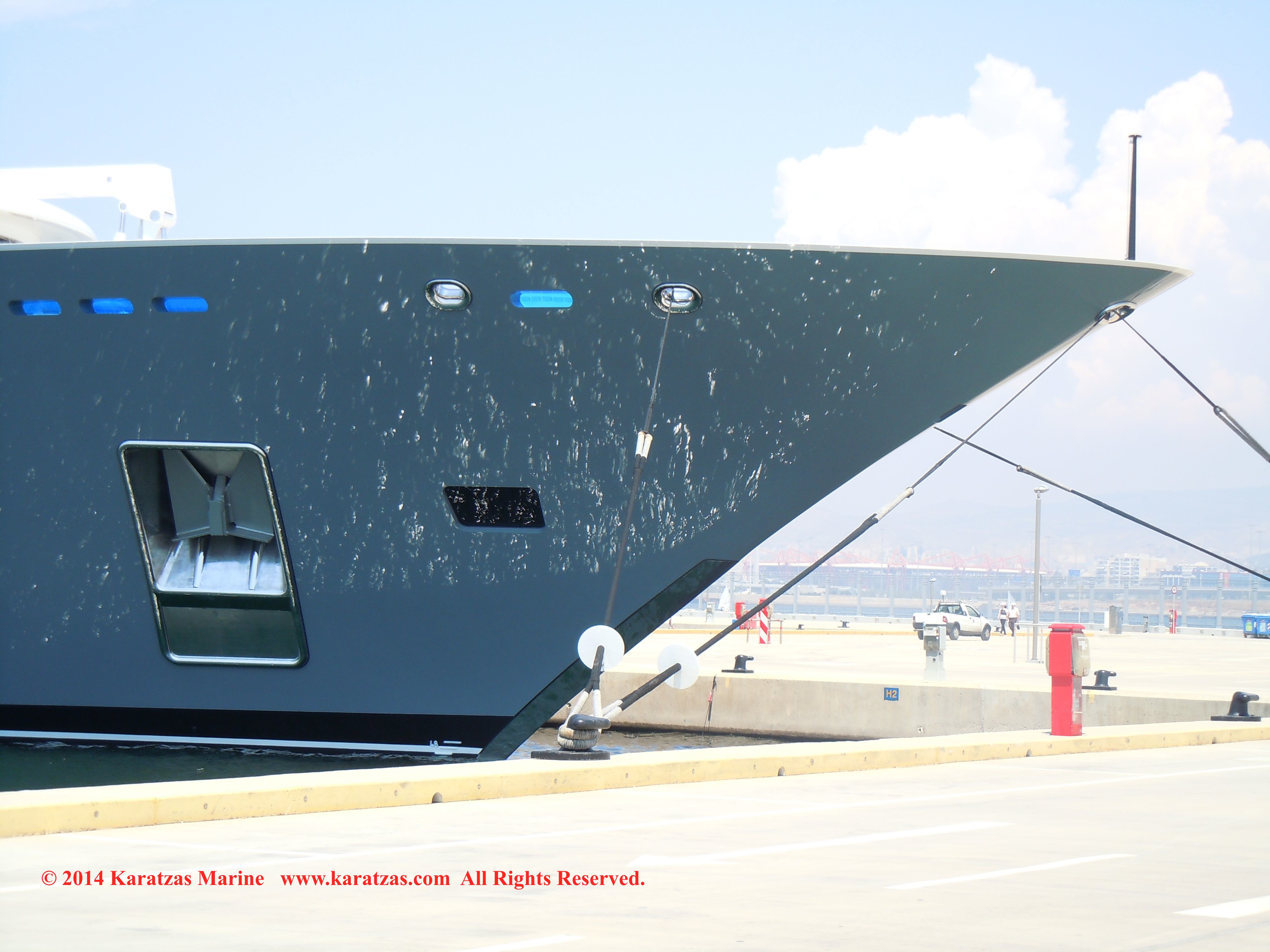

Superyacht M/Y ‘Radiant’ docked at Flisvos Marina, Athens, in June 2014

M:Y RADIANT 12

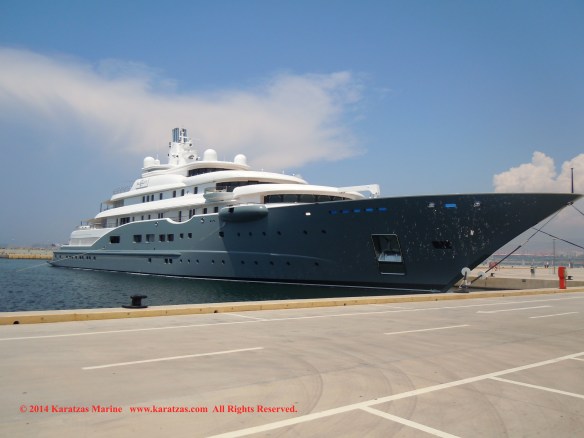

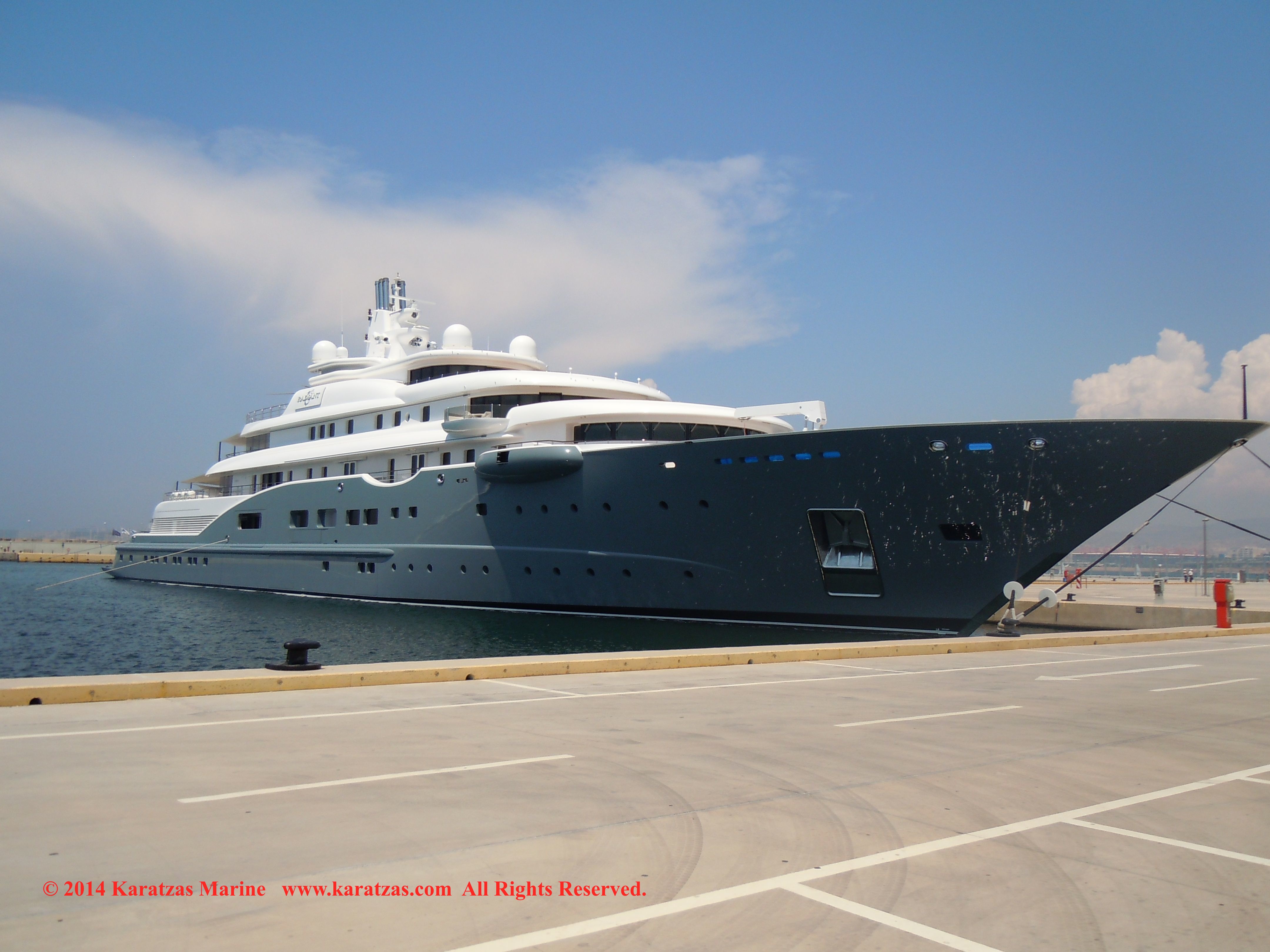

Superyacht M/Y ‘Radiant’ docked at Flisvos Marina, Athens, in June 2014


Vessel description is provided in good faith and is believed to be correct and accurate but no assurances, warranties or representations are made herewith. Vessel description is provided for entertainment  purposes only. We have no responsibility whatsoever for any errors / omissions in vessel description.
