Images of MT Stainless Steel ‘Vari Trader’ with Statue of Liberty

Posted on by
1

Images of Stainless Steel Tanker MT ‘Vari Trader’ in New York Harbor, photographed with Statue of Liberty, One World Trade Center and Verrazzano-Narrows Bridge
Stainless Steel Chemical Tanker, 19,900 DWT, built in 2018 at Usuki

VESSEL IDENTIFICATION / DESCRIPTION: Launch Name was Vari Trader. Handy Tanker, Call Sign H3XM, IMO Number 9800025, Hull Number 1765. Built at Usuki Zosensho delivered in Sep 2018, Double Hull, Panama Flagged, BV Classed, P&I insurance with Japan P&I, Length Overall of 145.53 m., Length Between Perpendiculars of 137.00 m., Draught of 9.72 m., Moulded Depth of 13.35 m., Beam of 23.70 m., 25.67 Tonnes per Centimeter Immersion, Gross Tonnage of 11,773, Tonnage of 9,904 Panama Canal Net, 11,176 Suez Canal Net, 6,073 International Net, 5,460 Light Displacement and 19,495 Dwt (long). Design Usuki 20K Chem.

VESSELS OWNERS / MANAGERS: Nisshin Shipping Co Ltd, Tokyo, Japan. Operator: Ultranav Naviera Ltda, Santiago, Chile.

CARGO HANDLING DETAILS: Cargo Capacity of 20,900 cu.m., Segregated Ballast Tanks, 16 Tanks, 16 Deepwell Pumps with a total Capacity of 4,000 cu.m., Stainless Steel Tank Coating, IMO Class 2, Heating Coils, Maximum heating capacity of 80 degrees Celsius, 16 Cargo Separations.

POWER PLANTS & PROPULSION:
MAIN ENGINE: 1 x Diesel – MAN B. & W. 6S40ME-B9.3 – 2-stroke 6-cyl. 400mm x1770mm bore/stroke 5,700mkW total at 124rpm.
AUXILIARIES: 3 x Aux. Diesel Gen. – Yanmar 6EY18ALW – 4-stroke 6-cyl. 180mm x 280mm bore/stroke 1,500mkW total at 900rpm driving 3 x AC generator(s) at 1,380ekW total, (1,725kVA total) at 60Hz.
PROPULSOR: 1 x FP Propeller (Aft Centre) (mechanical), Nakashima, 124rpm.
POS, PROPULSOR: 1 x Pos, Tunnel Thruster (Fwd.) (electric) ac.
OTHER ENGINE EQUIPMENT 2 x Pump, Ballast – at 300cu.m/hr each at 2.74 bar. 1 x Screw Shaft, at Ø470.00mm.
BOILER EQUIPMENT: 1 x Boiler, Oil/Gas fired – Miura – 184.20 m2 at 9 bar. 1 x Boiler, Exhaust Heated – Miura – 398.30m2 at 14 bar.
EMERGENCY: 1 x Emergency Diesel Gen. – Deutz F6L912 – 4-stroke 6-cyl. 100mm x 120mm bore/stroke 60mkW total at 1,800rpm driving 1 x AC generator(s) at 60Hz.

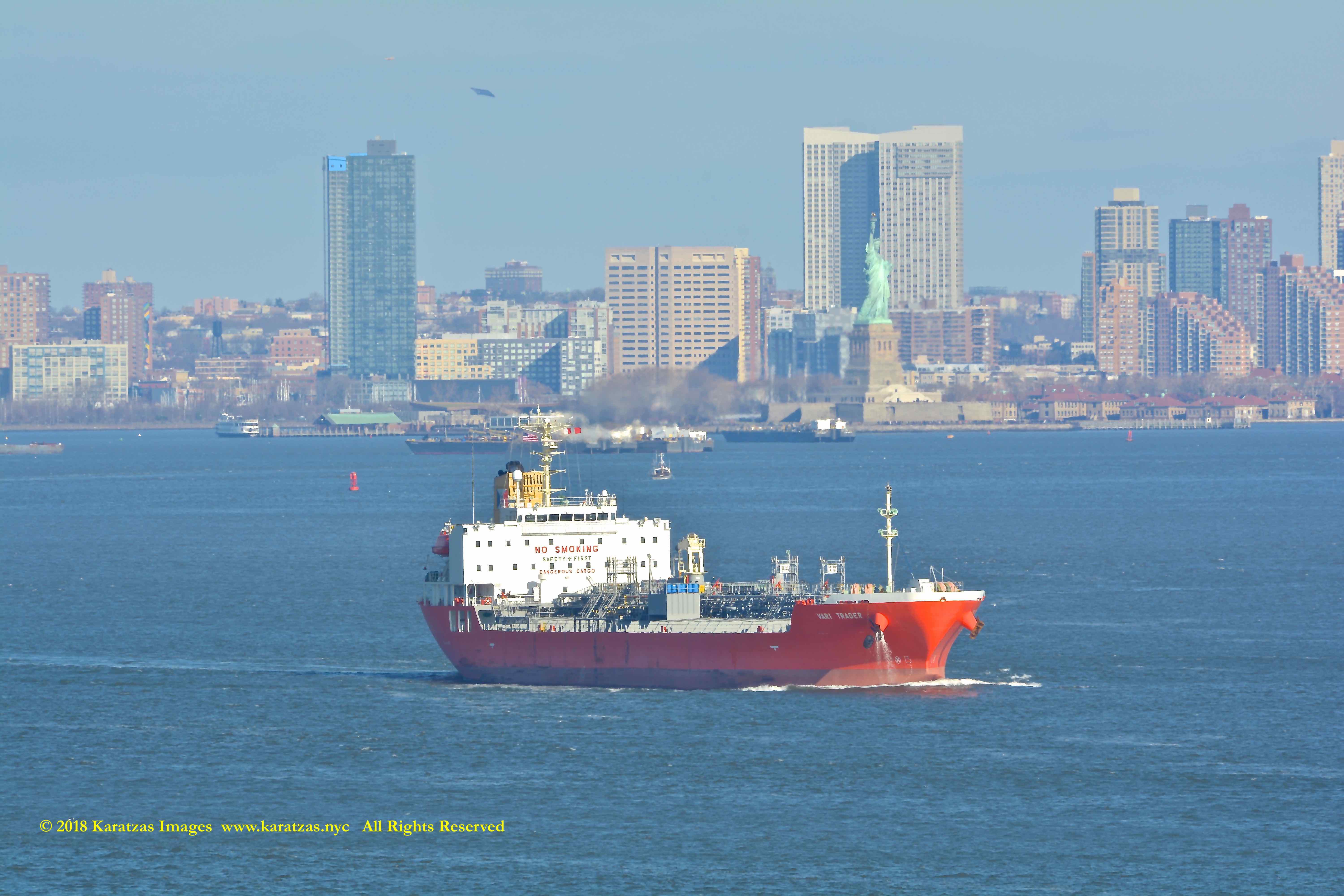

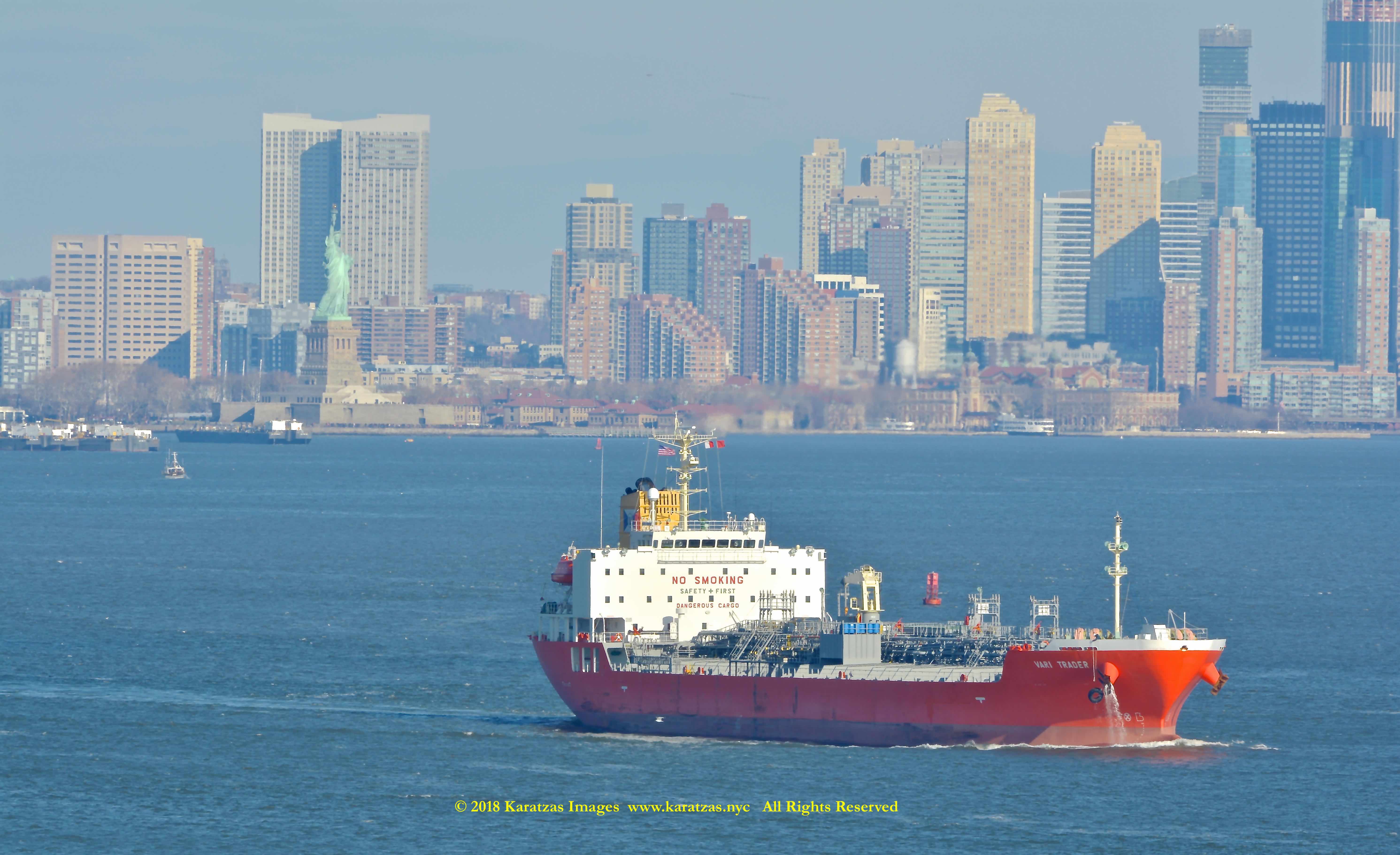

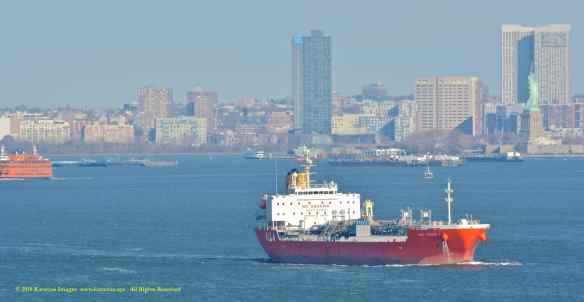

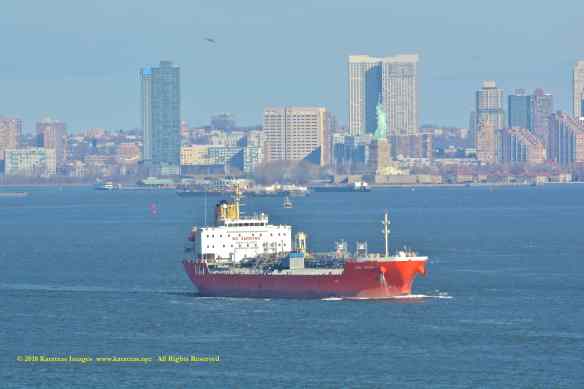

Stainless Steel Tanker MT ‘Vari Trader’ (19,900 DWT, built in 2018 at Usuki owned by Nisshin Shipping in Japan and on charter to Ultranav in Chile) departing the New York Harbor; photographed here against the Statue of Liberty. Image credit: Karatzas Images

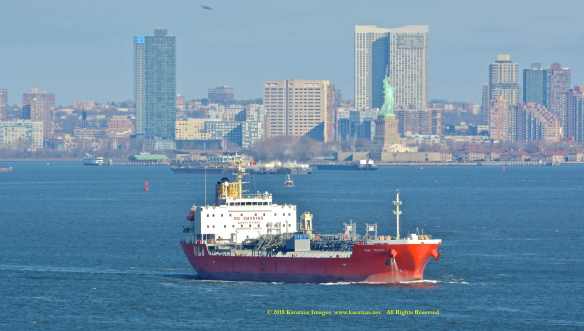

Stainless Steel Tanker MT ‘Vari Trader’ (19,900 DWT, built in 2018 at Usuki owned by Nisshin Shipping in Japan and on charter to Ultranav in Chile) departing the New York Harbor; photographed here against the Statue of Liberty. Image credit: Karatzas Images

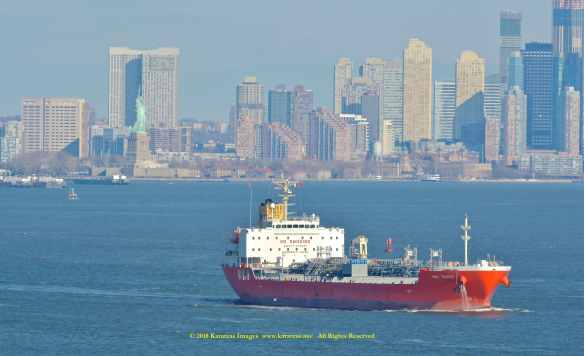

Stainless Steel Tanker MT ‘Vari Trader’ (19,900 DWT, built in 2018 at Usuki owned by Nisshin Shipping in Japan and on charter to Ultranav in Chile) departing the New York Harbor; photographed here against the Statue of Liberty. Image credit: Karatzas Images

Stainless Steel Tanker MT ‘Vari Trader’ (19,900 DWT, built in 2018 at Usuki owned by Nisshin Shipping in Japan and on charter to Ultranav in Chile) departing the New York Harbor; photographed here against the Statue of Liberty. Image credit: Karatzas Images

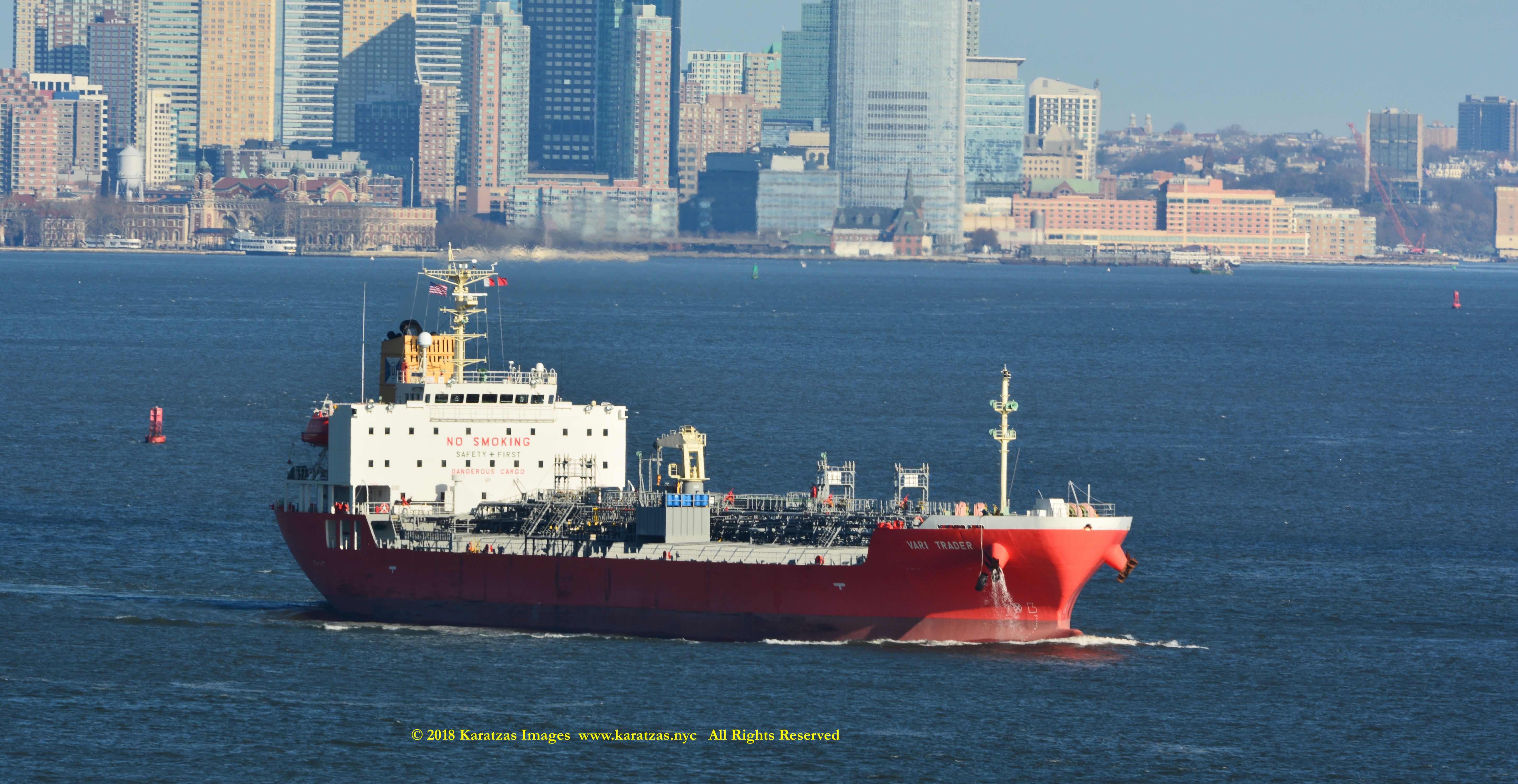

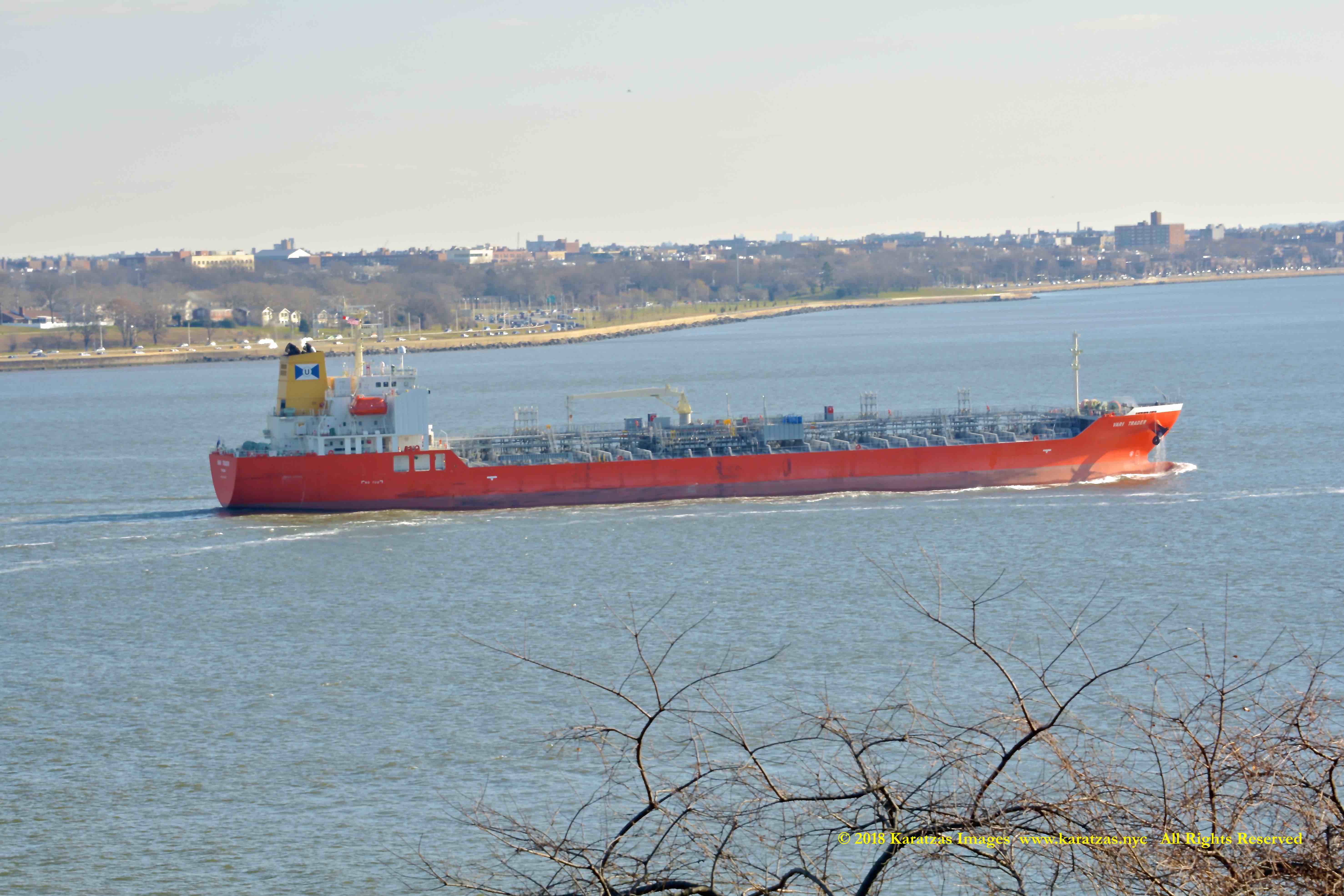

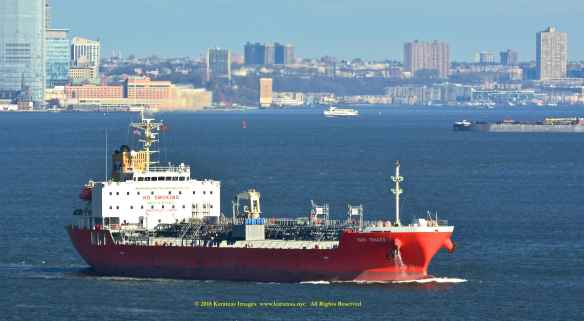

Stainless Steel Tanker MT ‘Vari Trader’ (19,900 DWT, built in 2018 at Usuki owned by Nisshin Shipping in Japan and on charter to Ultranav in Chile) departing the New York Harbor. Image credit: Karatzas Images

Stainless Steel Tanker MT ‘Vari Trader’ (19,900 DWT, built in 2018 at Usuki owned by Nisshin Shipping in Japan and on charter to Ultranav in Chile) departing the New York Harbor. Image credit: Karatzas Images

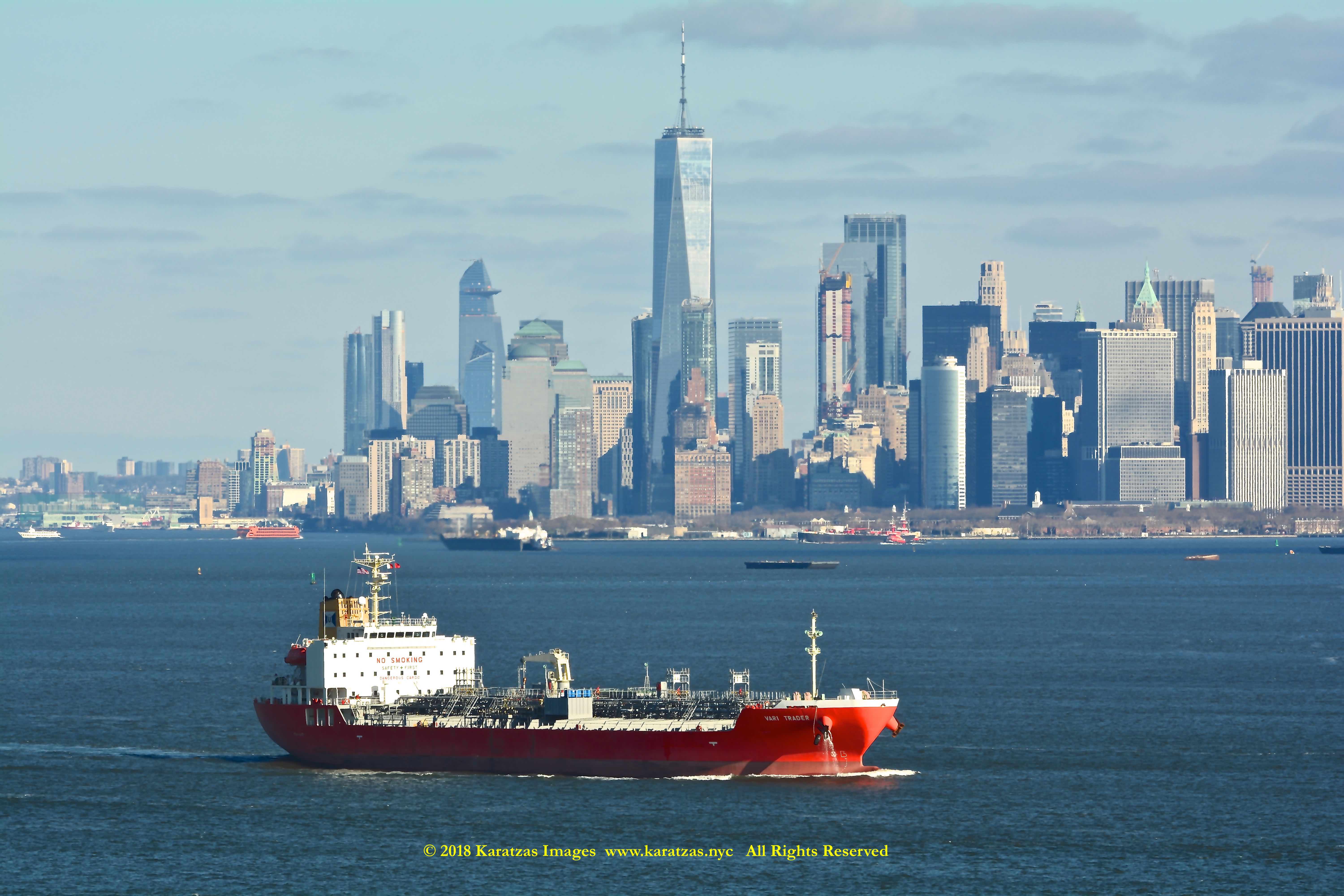

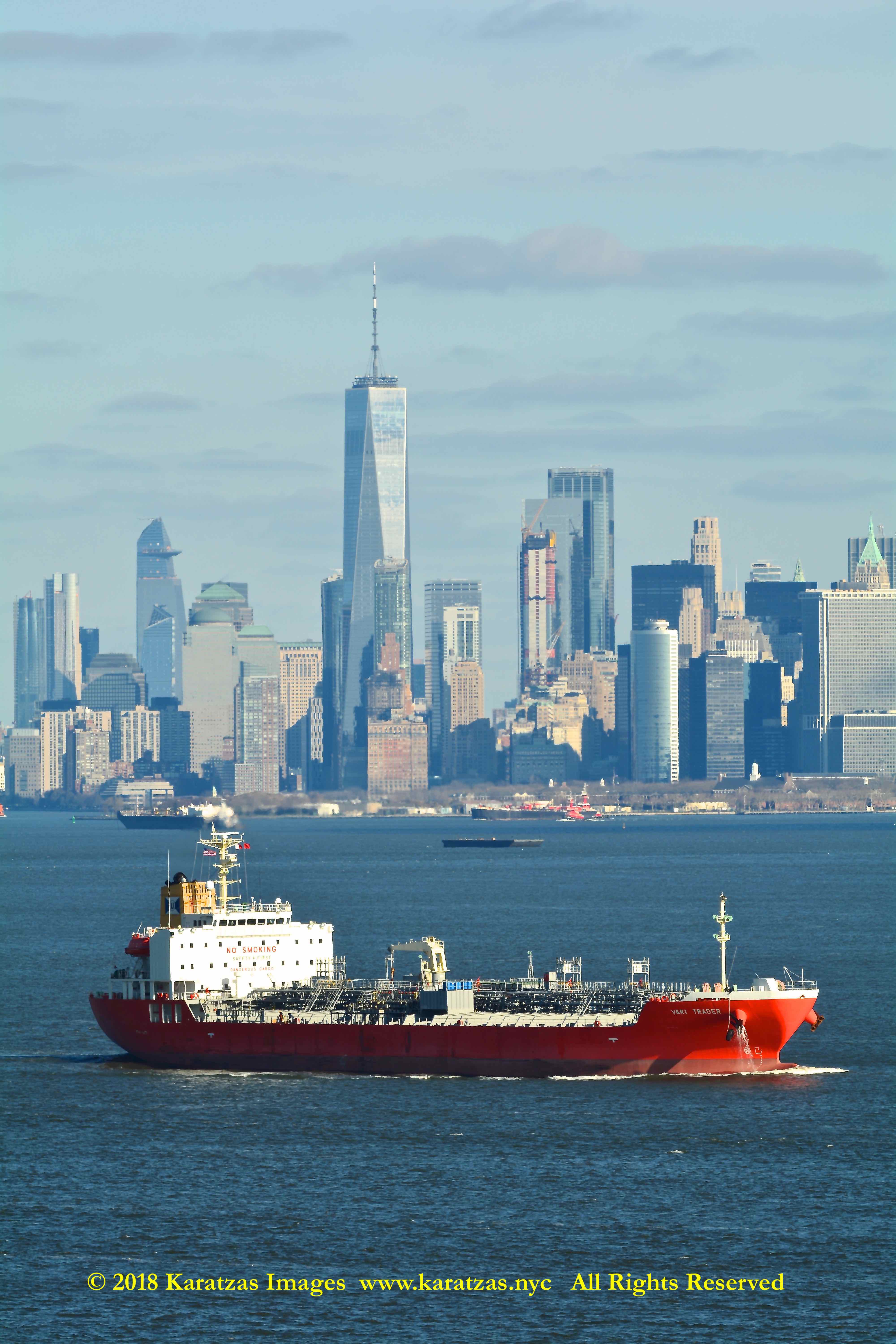

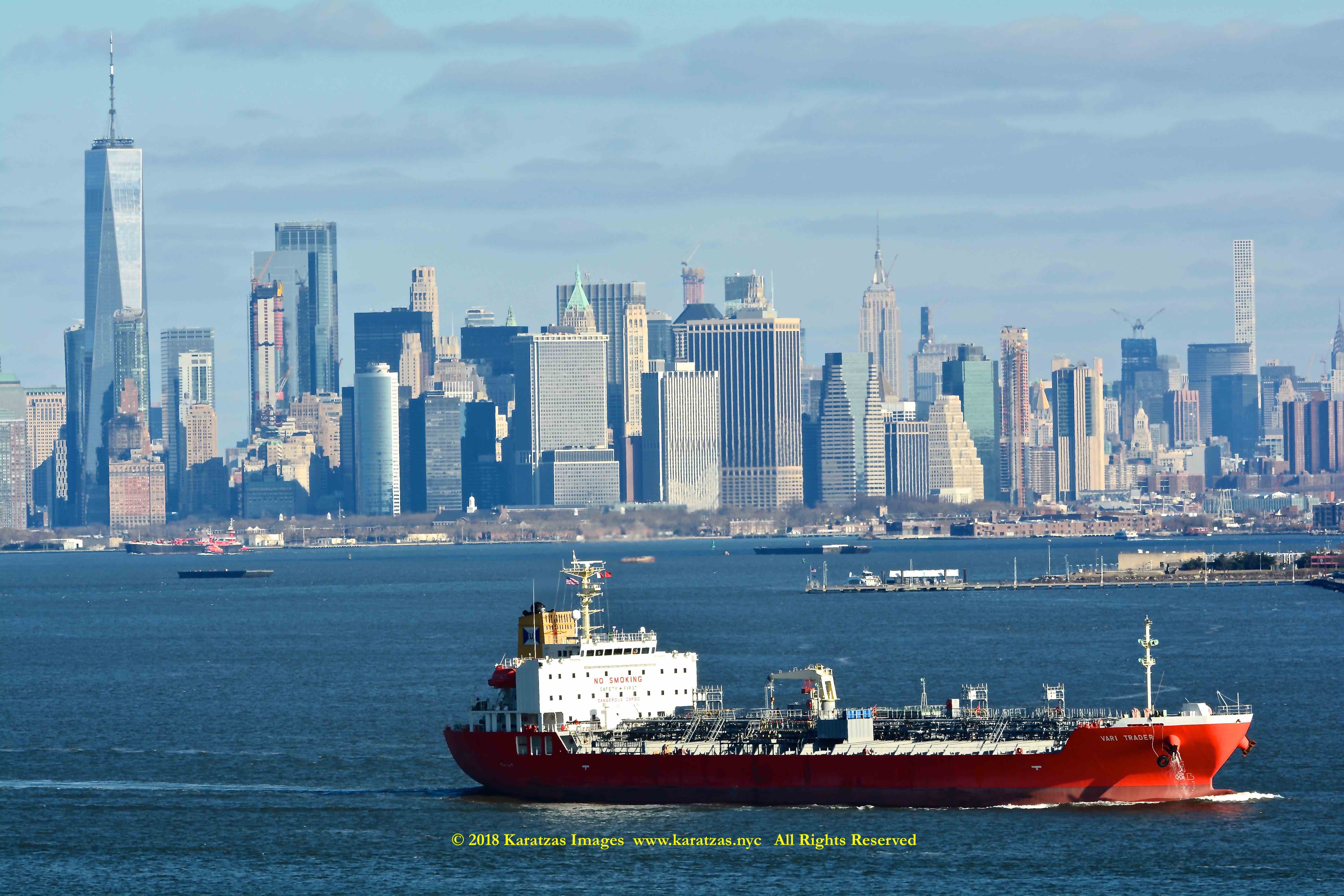

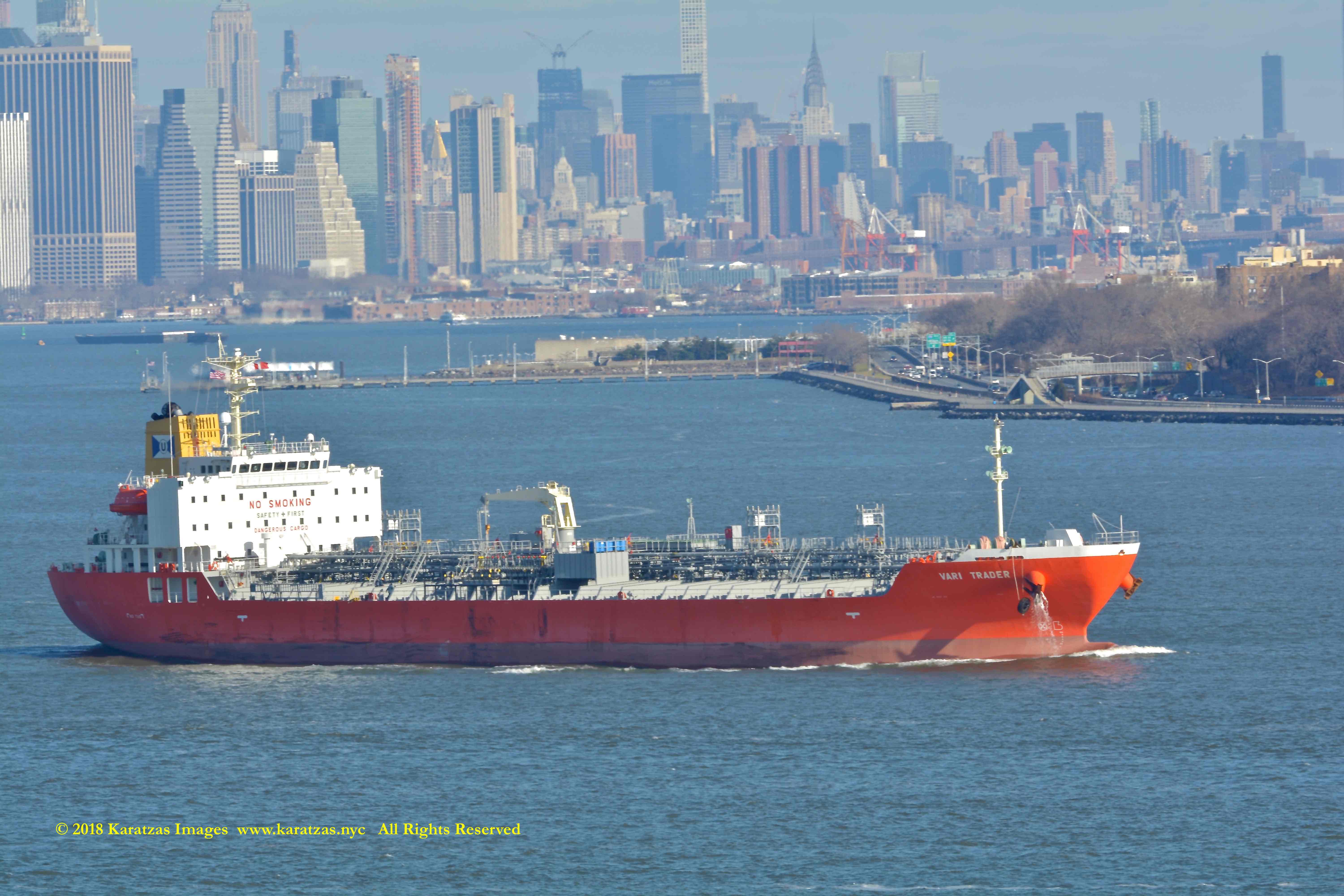

Stainless Steel Tanker MT ‘Vari Trader’ (19,900 DWT, built in 2018 at Usuki owned by Nisshin Shipping in Japan and on charter to Ultranav in Chile) departing the New York Harbor; photographed here against the Lower Manhattan skyline and One World Trade Center. Image credit: Karatzas Images

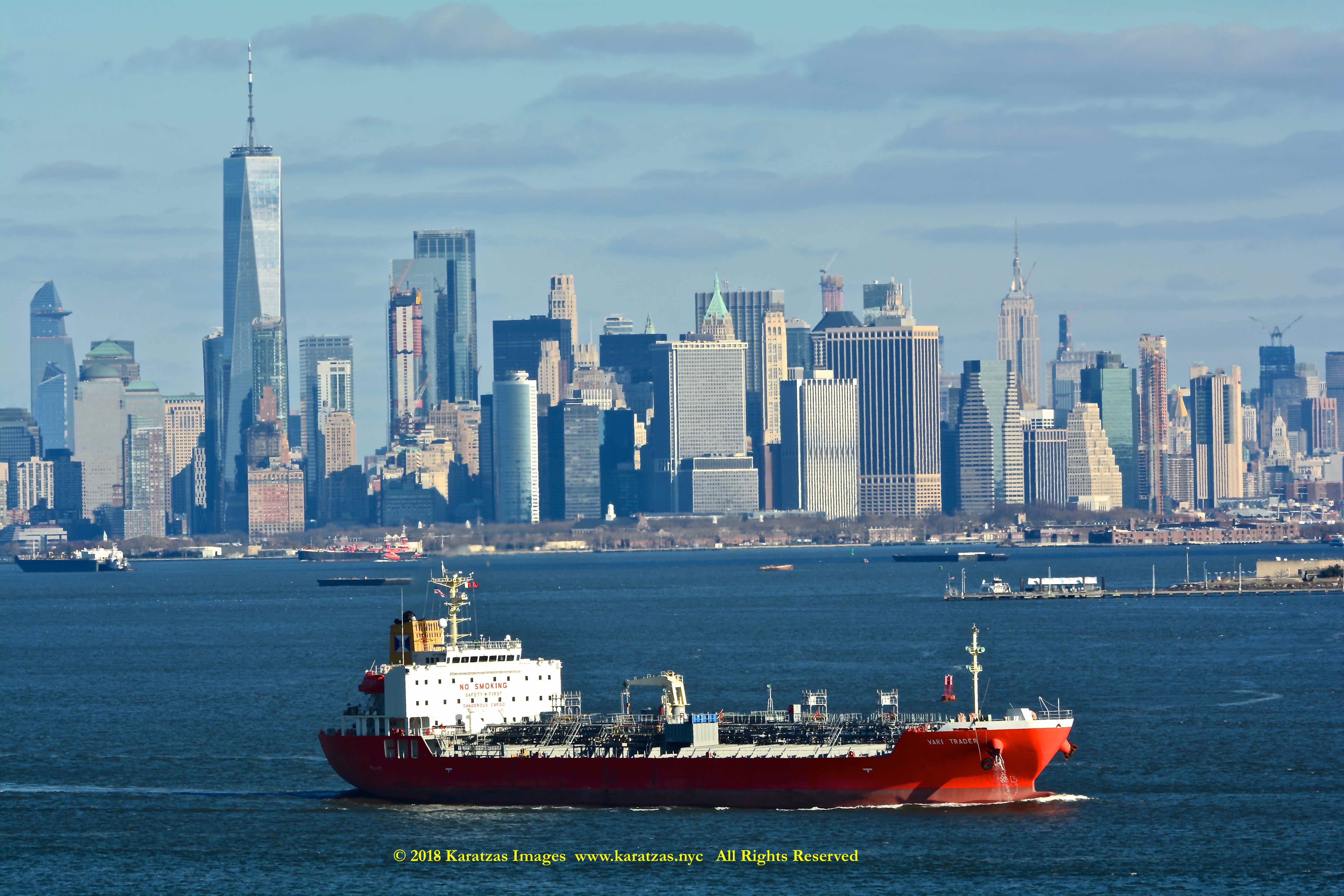

Stainless Steel Tanker MT ‘Vari Trader’ (19,900 DWT, built in 2018 at Usuki owned by Nisshin Shipping in Japan and on charter to Ultranav in Chile) departing the New York Harbor; photographed here against the Lower Manhattan skyline and One World Trade Center. Image credit: Karatzas Images

Stainless Steel Tanker MT ‘Vari Trader’ (19,900 DWT, built in 2018 at Usuki owned by Nisshin Shipping in Japan and on charter to Ultranav in Chile) departing the New York Harbor; photographed here against the Lower Manhattan skyline and One World Trade Center. Image credit: Karatzas Images

Stainless Steel Tanker MT ‘Vari Trader’ (19,900 DWT, built in 2018 at Usuki owned by Nisshin Shipping in Japan and on charter to Ultranav in Chile) departing the New York Harbor; photographed here against the Lower Manhattan skyline and One World Trade Center. Image credit: Karatzas Images

Stainless Steel Tanker MT ‘Vari Trader’ (19,900 DWT, built in 2018 at Usuki owned by Nisshin Shipping in Japan and on charter to Ultranav in Chile) departing the New York Harbor; photographed here against the Lower Manhattan skyline and One World Trade Center. Image credit: Karatzas Images

Stainless Steel Tanker MT ‘Vari Trader’ (19,900 DWT, built in 2018 at Usuki owned by Nisshin Shipping in Japan and on charter to Ultranav in Chile) departing the New York Harbor. Image credit: Karatzas Images

Stainless Steel Tanker MT ‘Vari Trader’ (19,900 DWT, built in 2018 at Usuki owned by Nisshin Shipping in Japan and on charter to Ultranav in Chile) departing the New York Harbor.Detail of Accommodation and Superstructure with Ultranav House Flag on the Chimney Stack Image credit: Karatzas Images

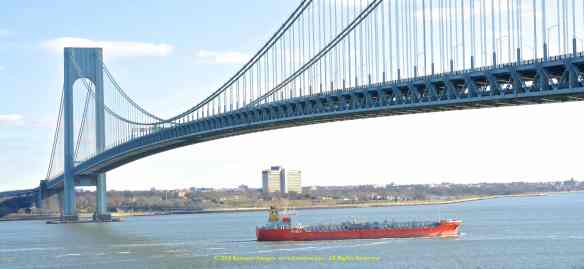

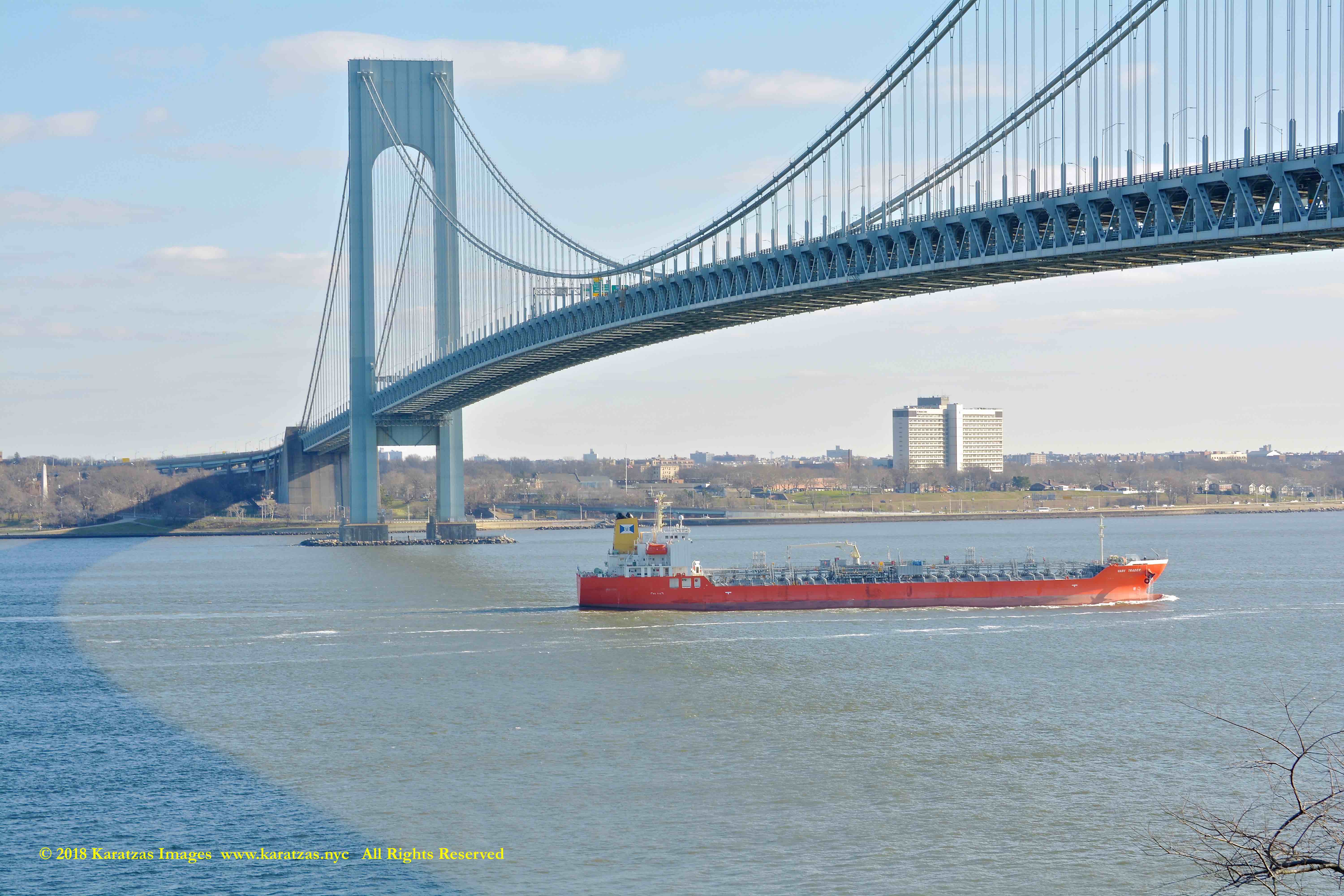

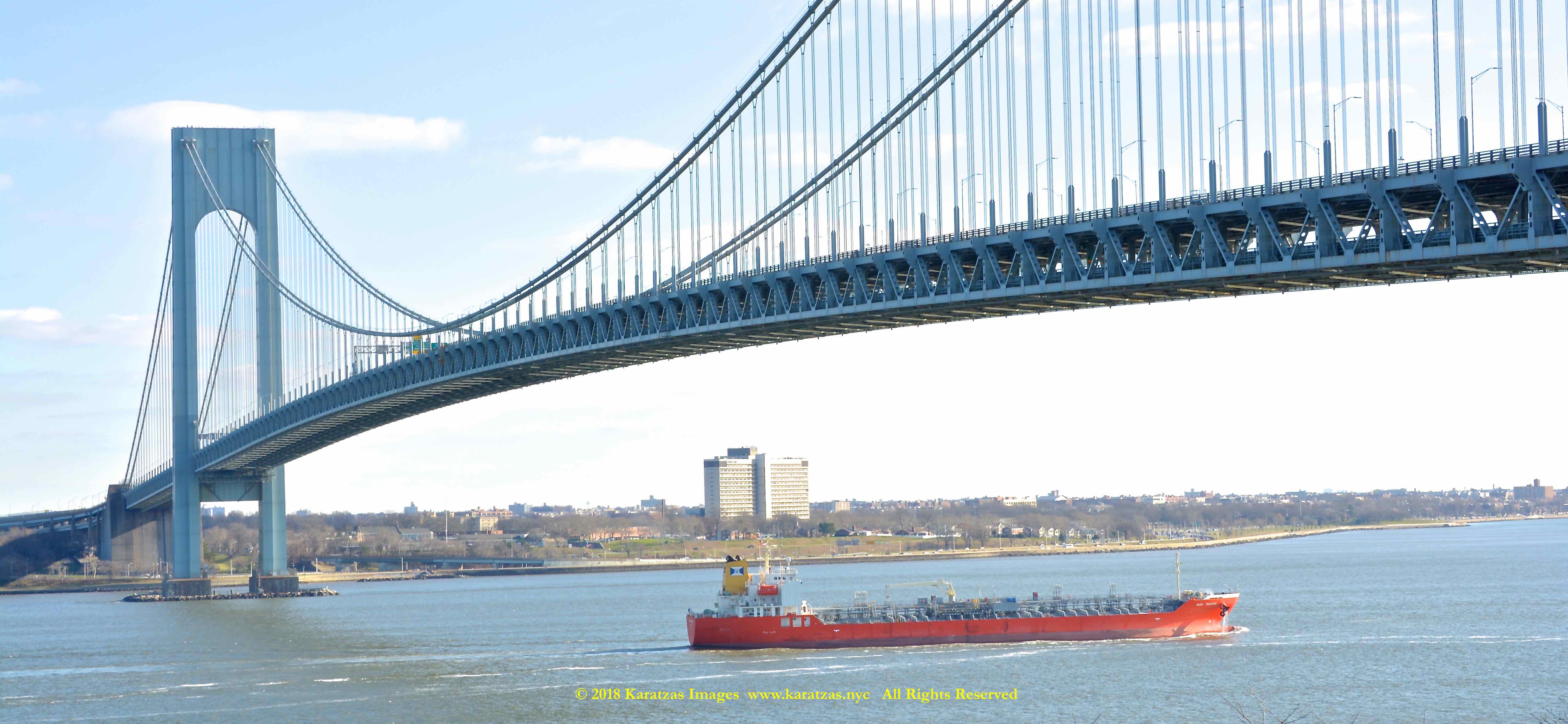

Stainless Steel Tanker MT ‘Vari Trader’ (19,900 DWT, built in 2018 at Usuki owned by Nisshin Shipping in Japan and on charter to Ultranav in Chile) departing the New York Harbor; photographed here under the Verrazzano-Narrows Bridge. Image credit: Karatzas Images

Stainless Steel Tanker MT ‘Vari Trader’ (19,900 DWT, built in 2018 at Usuki owned by Nisshin Shipping in Japan and on charter to Ultranav in Chile) departing the New York Harbor; photographed here under the Verrazzano-Narrows Bridge. Image credit: Karatzas Images

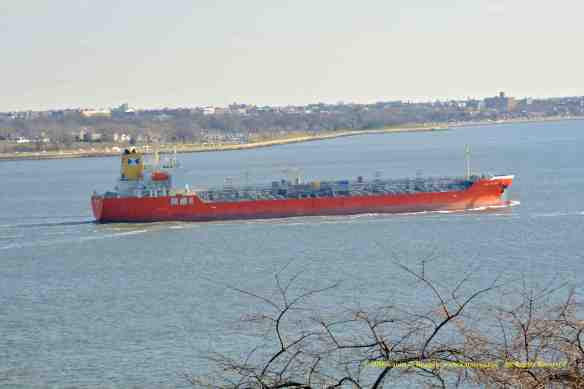

Stainless Steel Tanker MT ‘Vari Trader’ (19,900 DWT, built in 2018 at Usuki owned by Nisshin Shipping in Japan and on charter to Ultranav in Chile) departing the New York Harbor. Image credit: Karatzas Images

© 2013 – present Basil M Karatzas & Karatzas Images. All Rights Reserved.

IMPORTANT DISCLAIMERS: The purpose of this blog is for entertainment and information purposes. Vessel description(s), if any, is/are provided in good faith and believed to be correct and accurate but no assurances, warranties or representations are made herewith. Any vessel description(s) is/are provided for entertainment purposes only. We assume no responsibility whatsoever for any errors / omissions in vessel description.

Access to this blog signifies the reader’s irrevocable acceptance of this disclaimer. No part of this blog can be reproduced by any means and under any circumstances, whatsoever, in whole or in part, without proper attribution or the consent of the copyright and trademark holders of this website. To purchase rights or merchandise of high resolutions images and art presented here, please visit www.karatzas.nyc or email < info [at] BMKaratzas.com >. Thank you for the consideration.

Advertisement

Images of Neo-Panamax Containership MV ‘Antwerpen Express’ in New York Harbor

Posted on by
Reply

Images of Neo-Panamax Containership MV ‘Antwerpen Express’ in New York Harbor, Photographed by the Statue of Liberty
13,500 TEU Fully Cellular Containership, built in 2013 at Hyundai HI (Ulsan)

VESSEL IDENTIFICATION & DESCRIPTION: Launch Name was Antwerpen Express. Neo-Panamax Containership 12,000-14,999 TEU, Call Sign DJCE2, IMO Number 9612997, Hull Number 2497. Built at Hyundai HI (Ulsan) delivered in Jun 2013, Germany Flagged, DNV GL Classed, P&I insurance with Britannia P&I, Length Overall of 366.52 m., Length Between Perpendiculars of 350.00 m., Draught of 15.50 m., Beam of 48.20 m., Gross Tonnage of 142,295, Tonnage of 60,481 International Net and 139,777 Dwt (long).

VESSEL’S OWNERS / MANAGERS: Hapag-Lloyd Container Line GmbH, Hamburg, Germany.

CARGO HANDLING DETAILS: Teu Capacities of 13,500 Total, 9,100 Homogeneous and 1,600 Reefer. 800 x Sockets, Reefer – . 1 x Loading Instrument.

POWER PLANTS & PROPULSION
MAIN ENGINE: 1 x Diesel – MAN B. & W. 11K98ME7.2 – 2-stroke 11-cyl. 980mm x2660mm bore/stroke 58,274mkW total at 91rpm. Horsepower of 79,230. Speed of 23.60 kts at 235.00 tonnes per day
AUXILIARIES: 3 x Aux. Diesel Gen. – 4-stroke driving 3 x AC generator(s) at 11,680ekW total, (14,600kVA total) 6600V. 1 x Aux. Diesel Gen. – 4-stroke driving 1 x AC generator(s) at 2,934ekW total, (3,667kVA total) 6600V.
OTHER POWER EQUIPMENT: 1 x Shaft Generator (PTO) at 5,142ekW total, AC, 6600V.
PROPULSOR: 1 x FP Propeller (Aft Centre) (mechanical), 91rpm.
POS, PROPULSOR: 2 Bow Thruster(s) of 1,800, Shaft Generator 5142. 2 x Pos, Tunnel Thruster (Fwd.) (electric) at 1,800ekW total AC.
OTHER ENGINE EQUIPMENT: 1 x Screw Shaft.
2 x BWTS – Ballast Water Treatment System – Mahle OPS at 1500cu.m/hr.
BOILER EQUIPMENT: 1 x Boiler, Composite – Saacke – 1,051m2 at 9 bar.
EMERGENCY: 1 x Emergency Diesel Gen. – 4-stroke driving 1 x AC generator(s) at 500ekW total, (625kVA total) 690V.

Hapag-Lloyd’s Neo-panamax Containership MV ‘Antwerpen Express’ Entering the New York Harbor. Seen here by the Verrazzano-Narrows Bridge. Image credit: Karatzas Images

Hapag-Lloyd’s Neo-panamax Containership MV ‘Antwerpen Express’ Entering the New York Harbor. Seen here by the Verrazzano-Narrows Bridge. Image credit: Karatzas Images

Hapag-Lloyd’s Neo-panamax Containership MV ‘Antwerpen Express’ Entering the New York Harbor. Seen here Against the Lower Manhattan Skyline and One World Trade Center. Image credit: Karatzas Images

Hapag-Lloyd’s Neo-panamax Containership MV ‘Antwerpen Express’ Entering the New York Harbor. Seen here Against the Lower Manhattan Skyline and One World Trade Center. Image credit: Karatzas Images

Hapag-Lloyd’s Neo-panamax Containership MV ‘Antwerpen Express’ Entering the New York Harbor. Seen here Against the Lower Manhattan Skyline and One World Trade Center. Image credit: Karatzas Images

Hapag-Lloyd’s Neo-panamax Containership MV ‘Antwerpen Express’ Entering the New York Harbor. Image credit: Karatzas Images

Hapag-Lloyd’s Neo-panamax Containership MV ‘Antwerpen Express’ Entering the New York Harbor. Seen here by the Statue of Liberty. Image credit: Karatzas Images

Hapag-Lloyd’s Neo-panamax Containership MV ‘Antwerpen Express’ Entering the New York Harbor. Seen here by the Statue of Liberty. Image credit: Karatzas Images

Hapag-Lloyd’s Neo-panamax Containership MV ‘Antwerpen Express’ Entering the New York Harbor. Seen here by the Statue of Liberty. Image credit: Karatzas Images

Hapag-Lloyd’s Neo-panamax Containership MV ‘Antwerpen Express’ Entering the New York Harbor. Seen here by the Statue of Liberty. Image credit: Karatzas Images

Hapag-Lloyd’s Neo-panamax Containership MV ‘Antwerpen Express’ Entering the New York Harbor. Seen here by the Statue of Liberty. Image credit: Karatzas Images

Hapag-Lloyd’s Neo-panamax Containership MV ‘Antwerpen Express’ Entering the New York Harbor. Seen here by the Statue of Liberty. Image credit: Karatzas Images
