Images of Containership MV ‘CMA CGM La Traviata’ in the MIssissippi River

Posted on by
Reply

MV ‘CMA CGM La Traviata’ Sailing upstream in the Mississippi River                  Fully Cellular Neo-panamax Containership, 8,450-teu, built in 2006

VESSSEL DESCRIPTION / IDENTIFICATION: IMO Number 9299795, Launch Name was CMA CGM Traviata. Call Sign FMFT, IMO Number 9299795, Hull Number S254. Built at Hyundai Samho HI delivered in Mar 2006, Registered International Francais Flagged, BV Classed, Length Overall of 335.00 m., Length Between Perpendiculars of 314.71 m., Draught of 14.52 m., Moulded Depth of 24.60 m., Beam of 42.80 m., Gross Tonnage of 91,410, Tonnage of 48,921 International Net and 100,210 Dwt (long).

VESSEL’S OWNERS & MANAGERS: CMA CGM SA, France. Technical Manager: CMA Ships, France. Operator: CMA CGM SA, France. Registered Owner: Snc Fenice Bail 2, France.

CARGO HANDLING DETAILS: Teu Capacities of 8,448 Total, 6,310 Homogeneous and 1,400 Reefer, 9 Holds, Ship is able to transit the neo-Panamax locks of the Panama Canal based on current official dimension restrictions, but is not able to transit the old locks. Total Teu Capacity of 8,450.

POWER & PROPULSION:
MAIN ENGINE: 1 x Diesel – MAN B. & W. 12K98MC6.1 – 2-stroke 12-cyl. 980mm x2660mm bore/stroke 68,655mkW total at 94rpm.
AUXILIARY: 3 x Aux. Diesel Gen. – MAN Energy Solutions 7L27/38 – 4-stroke 7-cyl. 270mm x 380mm bore/stroke 6,930mkW total at 720rpm driving 3 x Hyundai Electric AC generator(s) at 6,654ekW total, (8,319kVA total) 450V at 60Hz. 2 x Aux. Diesel Gen. – MAN Energy Solutions 9L27/38 – 4-stroke 9-cyl. 270mm x 380mm bore/stroke 5,940mkW total at 720rpm driving 2 x Hyundai Electric AC generator(s) at 5,682ekW total, (7,102kVA total) 450V at 60Hz.
PROPULSOR: 1 x FP Propeller (Aft Centre) (mechanical), 94rpm.
OTHER ENGINE EQUIPMENT: 1 x Screw Shaft.
CARGO EQUIPMENT: 700 x Sockets, Reefer – .
ENVIRONMENTAL EQUIPMENT: 1 x BWTS – Ballast Water Treatment System – Bio-UV BIO-Sea® at 1000cu.m/hr – 2021 installation year.
BOILER EQUIPMENT: 1 x Boiler, Oil/Gas fired – Aalborg – Mission™ OS 40.14 m2 at 10 bar. 1 x Boiler, Exhaust Heated – Aalborg AQ-2 – 736m2 at 10 bar.
EMERGENCY: 1 x Emergency Diesel Gen. – Cummins Inc4-stroke 600mkW total at 1,800rpm driving 1 x Cummins Inc AC generator(s) at 500ekW total, (625kVA total) 450V at 60Hz.

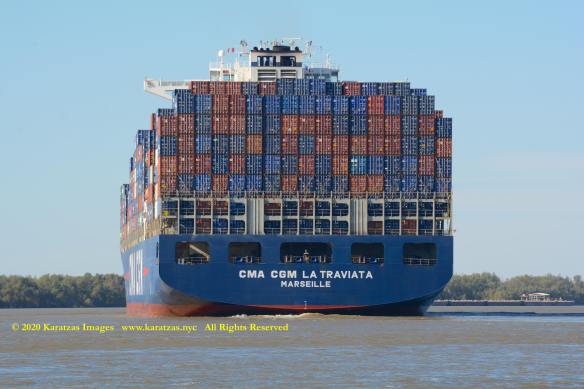

Homeported in Marseilles, France, neo-panamax containership MV ‘CMA CGM La Traviata’ sailing upstream in the Mississippi River in fall 2019, en route to New Orleans. Built in 2006 at Hyundai Heavy Industries (Samho). Image credit: Karatzas Images

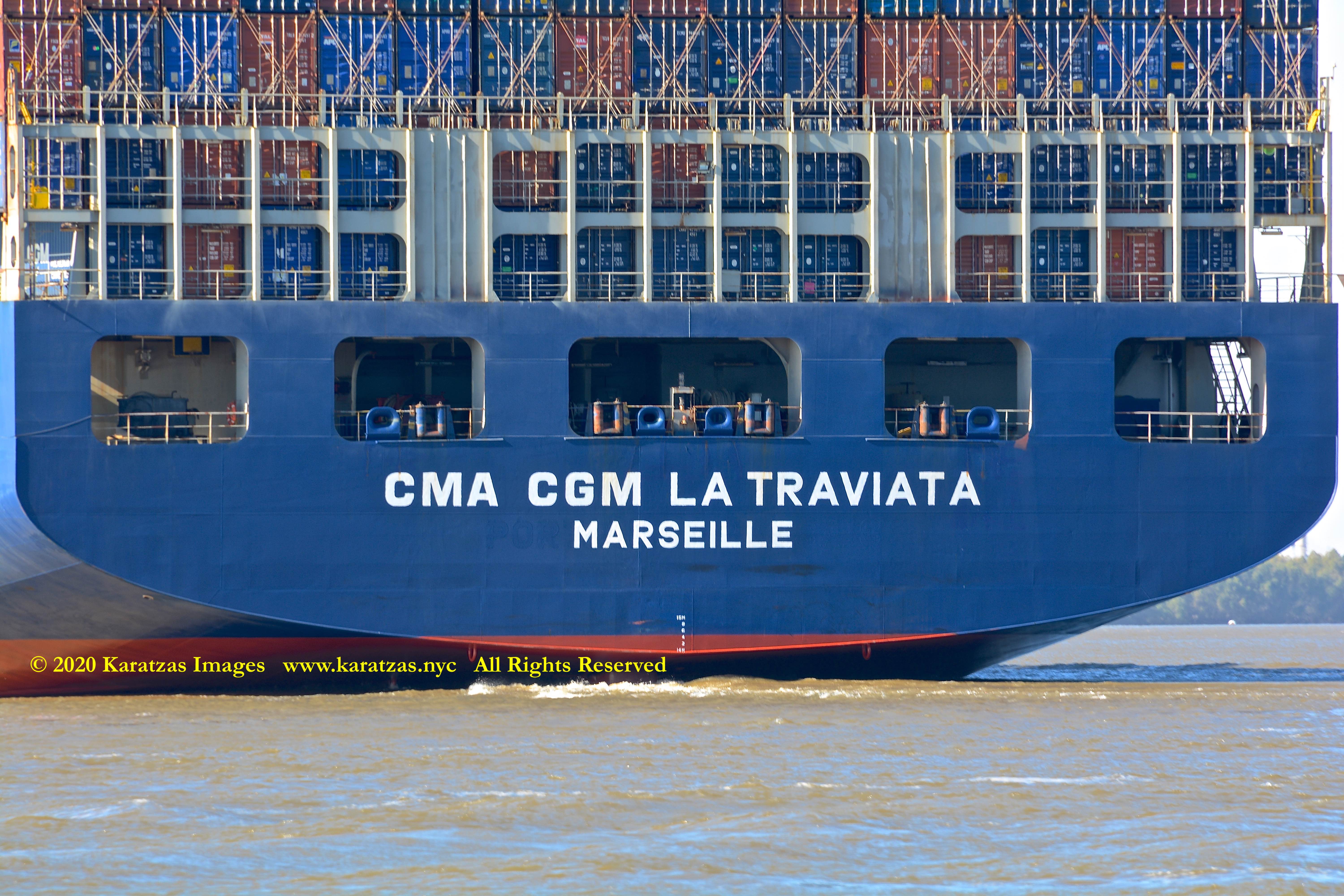

Homeported in Marseilles, France, neo-panamax containership MV ‘CMA CGM La Traviata’ sailing upstream in the Mississippi River in fall 2019, en route to New Orleans. Built in 2006 at Hyundai Heavy Industries (Samho). Image credit: Karatzas Images

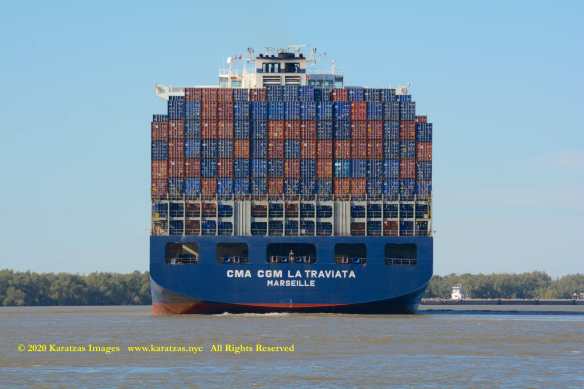

Homeported in Marseilles, France, neo-panamax containership MV ‘CMA CGM La Traviata’ sailing upstream in the Mississippi River in fall 2019, en route to New Orleans. Built in 2006 at Hyundai Heavy Industries (Samho). Image credit: Karatzas Images

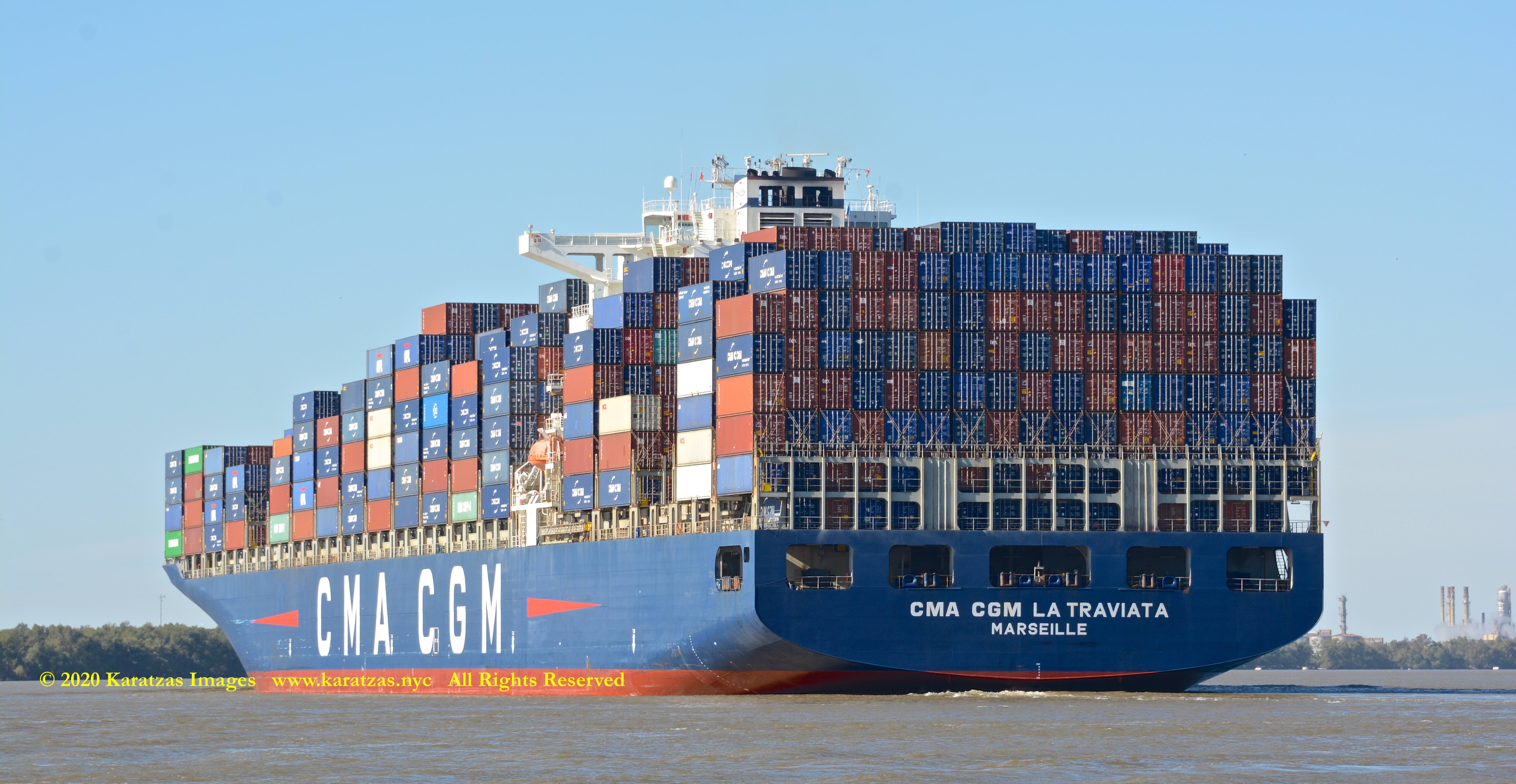

Homeported in Marseilles, France, neo-panamax containership MV ‘CMA CGM La Traviata’ sailing upstream in the Mississippi River in fall 2019, en route to New Orleans. Built in 2006 at Hyundai Heavy Industries (Samho). Image credit: Karatzas Images

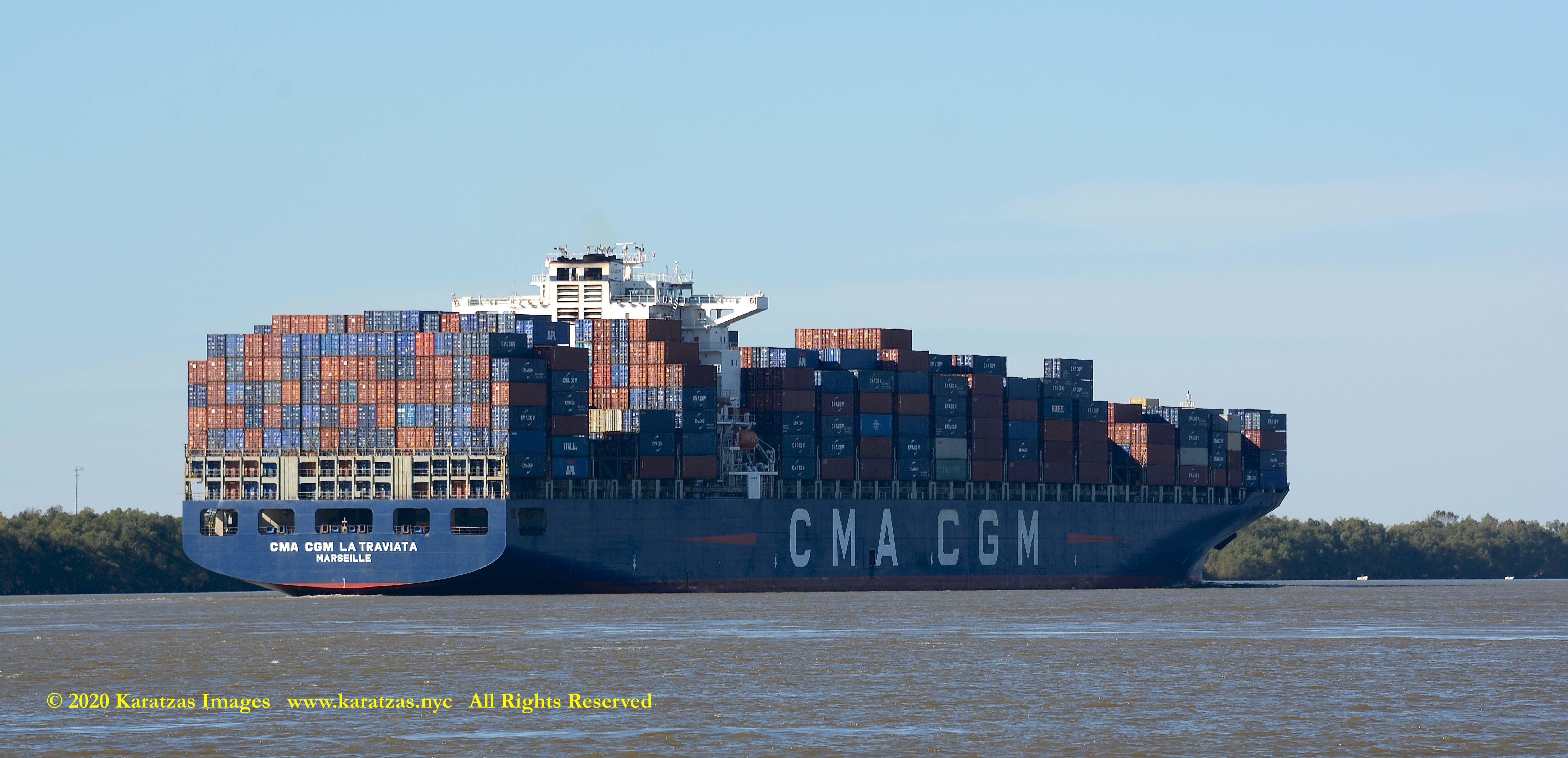

Homeported in Marseilles, France, neo-panamax containership MV ‘CMA CGM La Traviata’ sailing upstream in the Mississippi River in fall 2019, en route to New Orleans. Built in 2006 at Hyundai Heavy Industries (Samho). Image credit: Karatzas Images

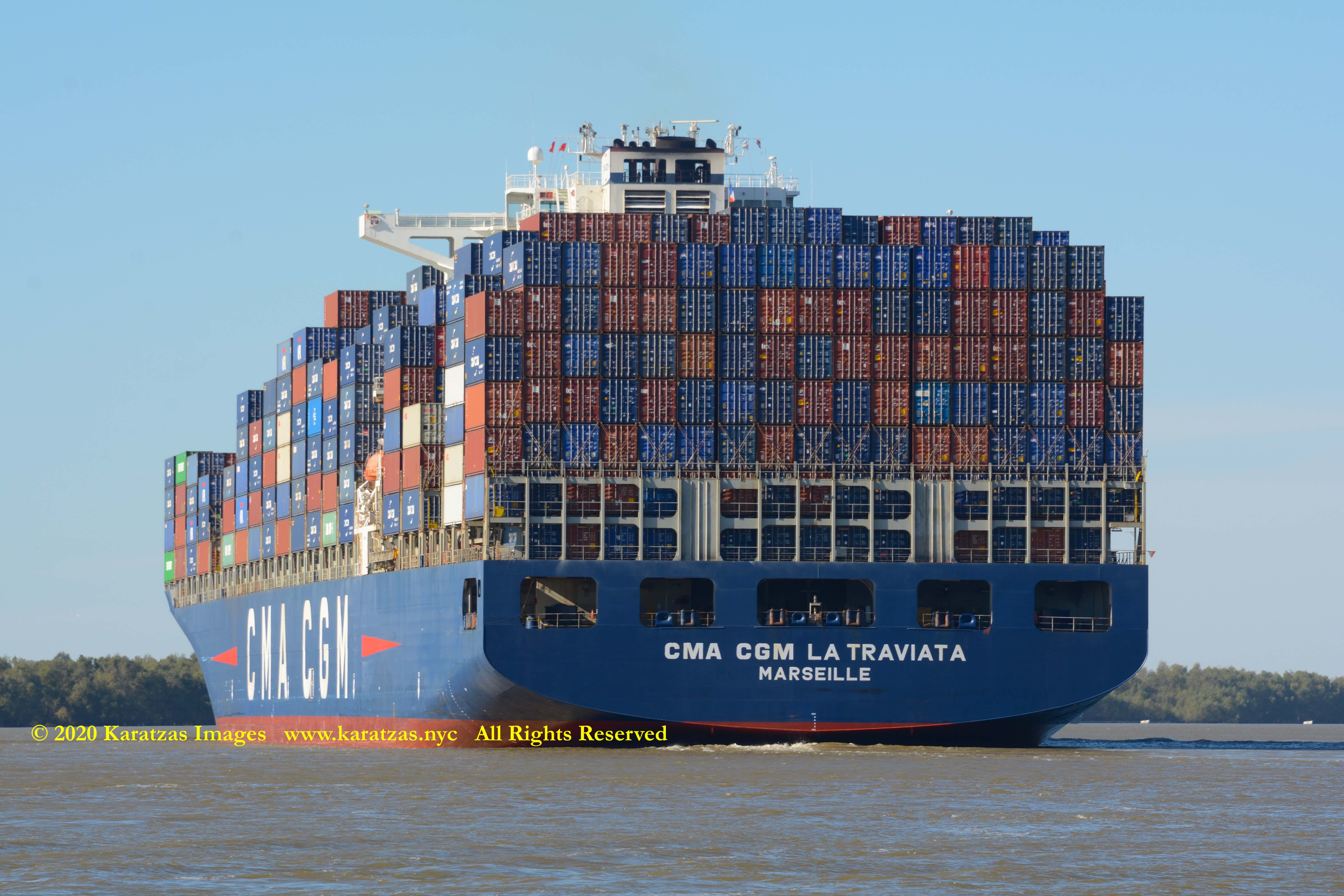

Homeported in Marseilles, France, neo-panamax containership MV ‘CMA CGM La Traviata’ sailing upstream in the Mississippi River in fall 2019, en route to New Orleans. Built in 2006 at Hyundai Heavy Industries (Samho). Image credit: Karatzas Images

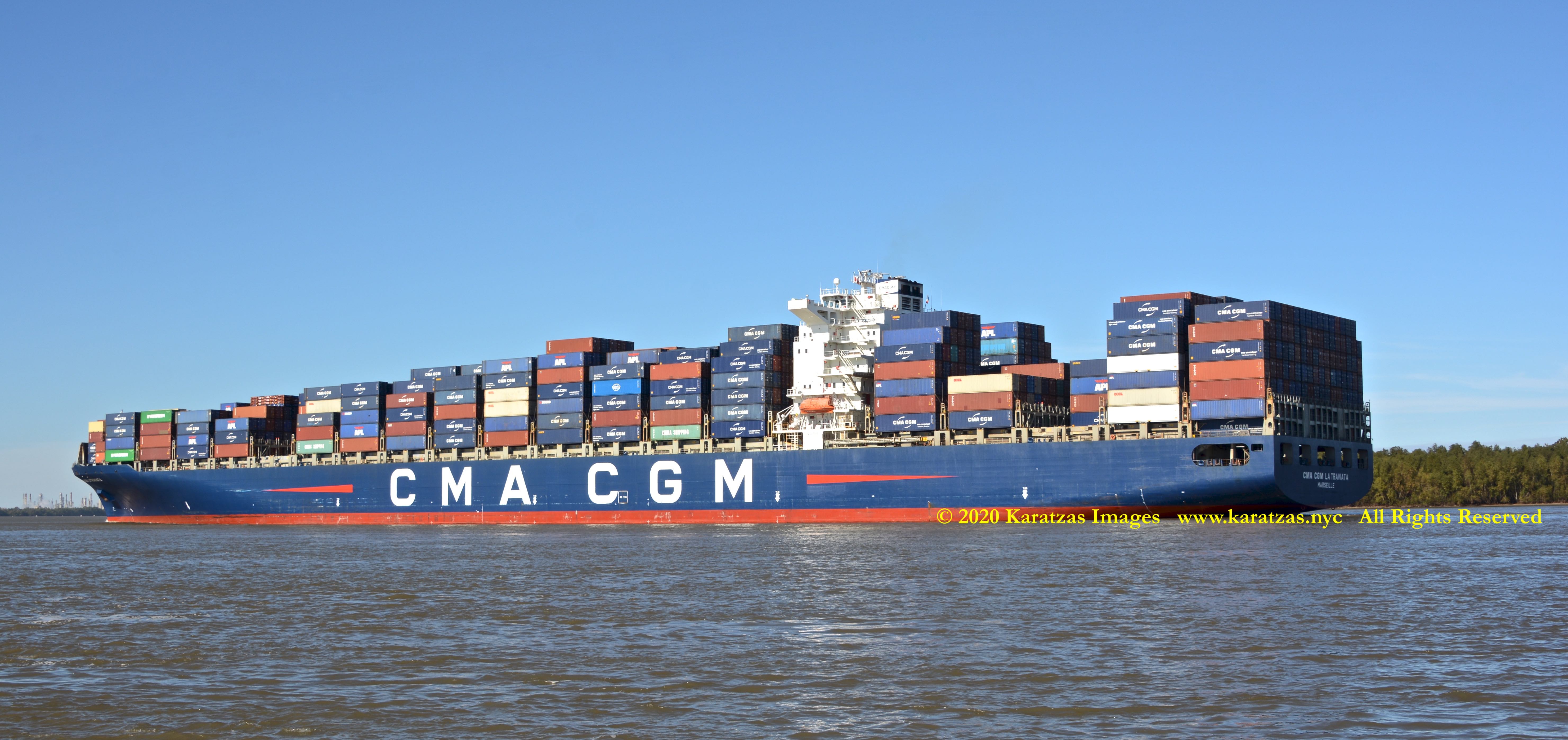

Homeported in Marseilles, France, neo-panamax containership MV ‘CMA CGM La Traviata’ sailing upstream in the Mississippi River in fall 2019, en route to New Orleans. Built in 2006 at Hyundai Heavy Industries (Samho). Image credit: Karatzas Images

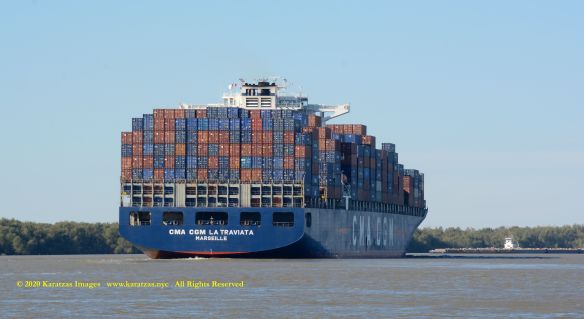

Homeported in Marseilles, France, neo-panamax containership MV ‘CMA CGM La Traviata’ sailing upstream in the Mississippi River in fall 2019, en route to New Orleans. Built in 2006 at Hyundai Heavy Industries (Samho). Image credit: Karatzas Images

Homeported in Marseilles, France, neo-panamax containership MV ‘CMA CGM La Traviata’ sailing upstream in the Mississippi River in fall 2019, en route to New Orleans. Built in 2006 at Hyundai Heavy Industries (Samho). Image credit: Karatzas Images

Homeported in Marseilles, France, neo-panamax containership MV ‘CMA CGM La Traviata’ sailing upstream in the Mississippi River in fall 2019, en route to New Orleans. Built in 2006 at Hyundai Heavy Industries (Samho). Image credit: Karatzas Images

Homeported in Marseilles, France, neo-panamax containership MV ‘CMA CGM La Traviata’ sailing upstream in the Mississippi River in fall 2019, en route to New Orleans. Built in 2006 at Hyundai Heavy Industries (Samho). Image credit: Karatzas Images

Homeported in Marseilles, France, neo-panamax containership MV ‘CMA CGM La Traviata’ sailing upstream in the Mississippi River in fall 2019, en route to New Orleans. Built in 2006 at Hyundai Heavy Industries (Samho). Image credit: Karatzas Images

© 2013 – present Basil M Karatzas & Karatzas Images. All Rights Reserved.

IMPORTANT DISCLAIMERS: The purpose of this blog is for entertainment and information purposes. Vessel description(s), if any, is/are provided in good faith and believed to be correct and accurate but no assurances, warranties or representations are made herewith. Any vessel description(s) is/are provided for entertainment purposes only. We assume no responsibility whatsoever for any errors / omissions in vessel description.

Access to this blog signifies the reader’s irrevocable acceptance of this disclaimer. No part of this blog can be reproduced by any means and under any circumstances, whatsoever, in whole or in part, without proper attribution or the consent of the copyright and trademark holders of this website. To purchase rights or merchandise of high resolutions images and art presented here, please visit www.karatzas.nyc or email < info [at] BMKaratzas.com >. Thank you for the consideration.

Advertisement

Images of Tanker MT ‘Seaways Reymar’ in New York Harbor

Posted on by
Reply

Images of LR1 Tanker MT ‘Seaways Reymar’ with World Trade Center
Panamax Products Tanker 69,600 DWT, built in 2004 at Daewoo

VESSEL IDENTIFICATION & DESCRIPTION: Ex-names are Overseas Reymar, Reymar. Launch Name was Reymar. Panamax Tanker, Call Sign V7HN9, IMO Number 9275749, Hull Number 5241. Built at Daewoo (DSME) delivered in Mar 2004, Double Hull, Marshall Islands Flagged, ABS Classed, P&I insurance with Gard P&I, Length Overall of 228.01 m., Length Between Perpendiculars of 219.00 m., Draught of 13.62 m., Moulded Depth of 19.80 m., Beam of 32.20 m., 67.50 Tonnes per Centimeter Immersion, Gross Tonnage of 40,038, tonnage of 33,097 Panama Canal Net, 37,270 Suez Canal Net, 20,190 International Net, 13,213 Light Displacement and 68,536 Dwt (long).

VESSEL’S OWNERS & MANAGERS: International Seaways Inc, New York, United States. Technical Manager: V. Ships (UK) Ltd, United Kingdom. Operator: Panamax International Pool, Fort Lauderdale, Florida, United States, Registered Owner: REYMAR LIMITED, United States.

CARGO HANDLING DETAILS: Cargo Capacities of 76,5000 cu.m. and 481,000 Barrels, Segregated Ballast Tanks, 12 Tanks, 12 Pumps with a total Capacity of 10,800 cu.m., Heat Exchangers, Maximum heating capacity of 66 degrees Celsius, 3 Cargo Separations, 12 Wing Tanks with a capacity of 76,492 cu.m., 3 Cargo Manifolds, Stern Discharge, Closed Loading System, Cargo connections have diameters of 16 inches, Manifold height above deck of 2.10 m., Distance from bow to center manifold is 111.53 m., Maximum operating capacity of cargo pumps is 10,800 t/hr, Steel STPG370 cargo lines, EXTERNAL heat exchangers, Crude Oil Washing.

POWER & PROPULSION:
MAIN ENGINE: 1 x Diesel – MAN B. & W. 5S60MC6.1 – 2-stroke 5-cyl. 600mm x2292mm bore/stroke 10,223mkW total at 105rpm.
AUXILIARIES: 3 x Aux. Diesel Gen. – Wartsila 4-stroke 6L20 – 4-stroke 6-cyl. 200mm x 280mm bore/stroke 2,931mkW total at 1,000rpm driving 3 x Hyundai Electric HFC6 564-84K – AC generator(s) at 2,700ekW total, (3,375kVA total) 450V at 50Hz.
PROPULSOR 1 x FP Propeller (Aft Centre) (mechanical), Nakashima, 105rpm.
OTHER ENGINE EQUIPMENT: 1 x Screw Shaft.

SALE & PURCHASE HISTORY: Reported newbuilding price of US$ 29 million April 2002.

LR1 Tanker MT ‘Seaways Reymar’ (appr. 70,000 dwt, 2004-built at Daewoo (DSME)) in S. Korea) in laden condition in New York Harbor. Seen here under the Verrazzano-Narrows Bridge. Image credit: Karatzas Images.

LR1 Tanker MT ‘Seaways Reymar’ (appr. 70,000 dwt, 2004-built at Daewoo (DSME)) in S. Korea) in laden condition in New York Harbor. Seen here under the Verrazzano-Narrows Bridge. Image credit: Karatzas Images.

LR1 Tanker MT ‘Seaways Reymar’ (appr. 70,000 dwt, 2004-built at Daewoo (DSME)) in S. Korea) in laden condition in New York Harbor. Seen here under the Verrazzano-Narrows Bridge. Image credit: Karatzas Images.

LR1 Tanker MT ‘Seaways Reymar’ (appr. 70,000 dwt, 2004-built at Daewoo (DSME)) in S. Korea) in laden condition in New York Harbor. Image credit: Karatzas Images.

LR1 Tanker MT ‘Seaways Reymar’ (appr. 70,000 dwt, 2004-built at Daewoo (DSME)) in S. Korea) in laden condition in New York Harbor. Seen here against the Lower Manhattan skyline and the World Trade Center. Image credit: Karatzas Images.

LR1 Tanker MT ‘Seaways Reymar’ (appr. 70,000 dwt, 2004-built at Daewoo (DSME)) in S. Korea) in laden condition in New York Harbor. Seen here against the Lower Manhattan skyline and the World Trade Center. Image credit: Karatzas Images.

LR1 Tanker MT ‘Seaways Reymar’ (appr. 70,000 dwt, 2004-built at Daewoo (DSME)) in S. Korea) in laden condition in New York Harbor. Seen here against the Lower Manhattan skyline and the World Trade Center. Image credit: Karatzas Images.

LR1 Tanker MT ‘Seaways Reymar’ (appr. 70,000 dwt, 2004-built at Daewoo (DSME)) in S. Korea) in laden condition in New York Harbor. Seen here against the Lower Manhattan skyline and the World Trade Center. Image credit: Karatzas Images.

LR1 Tanker MT ‘Seaways Reymar’ (appr. 70,000 dwt, 2004-built at Daewoo (DSME)) in S. Korea) in laden condition in New York Harbor. Seen here against the Lower Manhattan skyline and the World Trade Center. Image credit: Karatzas Images.

LR1 Tanker MT ‘Seaways Reymar’ (appr. 70,000 dwt, 2004-built at Daewoo (DSME)) in S. Korea) in laden condition in New York Harbor. Seen here against the Statue of Liberty. Image credit: Karatzas Images.

LR1 Tanker MT ‘Seaways Reymar’ (appr. 70,000 dwt, 2004-built at Daewoo (DSME)) in S. Korea) in laden condition in New York Harbor. Seen here against the Statue of Liberty. Image credit: Karatzas Images.

LR1 Tanker MT ‘Seaways Reymar’ (appr. 70,000 dwt, 2004-built at Daewoo (DSME)) in S. Korea) in laden condition in New York Harbor. Seen here against the Statue of Liberty. Image credit: Karatzas Images.
