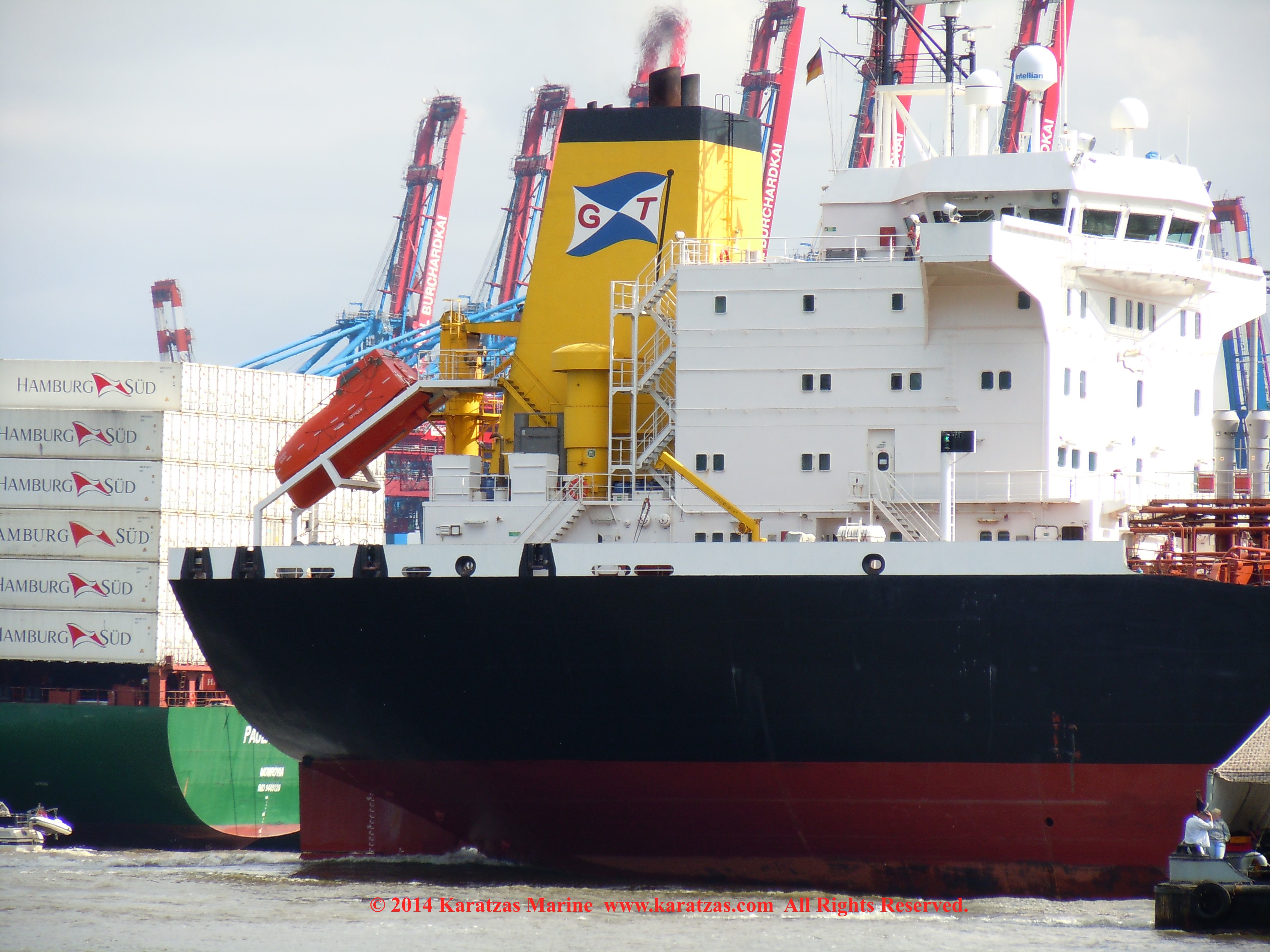

MT ‘SEAHAKE’ (32,450 DWT, Product Carrier, Built 2003)
IDENTIFICATION: Handy Tanker, Call Sign DEEI, IMO Number 9255488. Built at Lindenau, Double Hull, Germany Flagged, GL Classed, Ice Strengthened E2 Class, Length Overall of 177.75 m., Length Between Perpendiculars of 168.00 m., Draught of 11.00 m., Beam of 28.00 m., 42.00 Tonnes per Centimetre Immersion, Gross Tonnage of 21,329, Moulded Depth of 16.80 m., Lightship air draft of 38.00 m., Keel to mast air draft of 44.45 m., Tonnage of 17,789 Panama Canal Net, 8,387 International Net and 31,937 Dwt (long). 1 fixed pitch Propellor, Bow Thruster. ENGINE DETAILS: Engine Description 4 S.A. 6-cyl., Engine Model 6L58/64, MAN Engine, Speed of 16.00 kts, Horsepower of 11,338B at 428, Bunker Capacity of 863 tonnes.
CARGO HANDLING: Cargo Capacities of 36,671 cu.m. and 231,000 Barrels, Segregated Ballast Tanks, 10 Tanks, 10 Pumps with a total Capacity of 5,000 cu.m., Epoxy Tank Coating. 5 Cargo Separations, 10 Wing Tanks with a capacity of 36,671 cu.m., 3 Cargo Manifolds, Stern Discharge, Cargo connections have diameters of 16 inches, Manifold height above deck of 2.10 m., Distance from bow to centre manifold is 85.00 m., 10 Centrifugal Pump(s), Maximum operating capacity of cargo pumps is 5,000 t/hr, S/Steel cargo lines, Crude Oil Washing. Ballast Capacity of 16,718 tonnes, Marpol Certificate, Solas Certificate, High Level Alarms, Automatic Ullaging, Stripping System, Inert Gas System, Vapour Return Ashore, Centre Line Bulkhead.

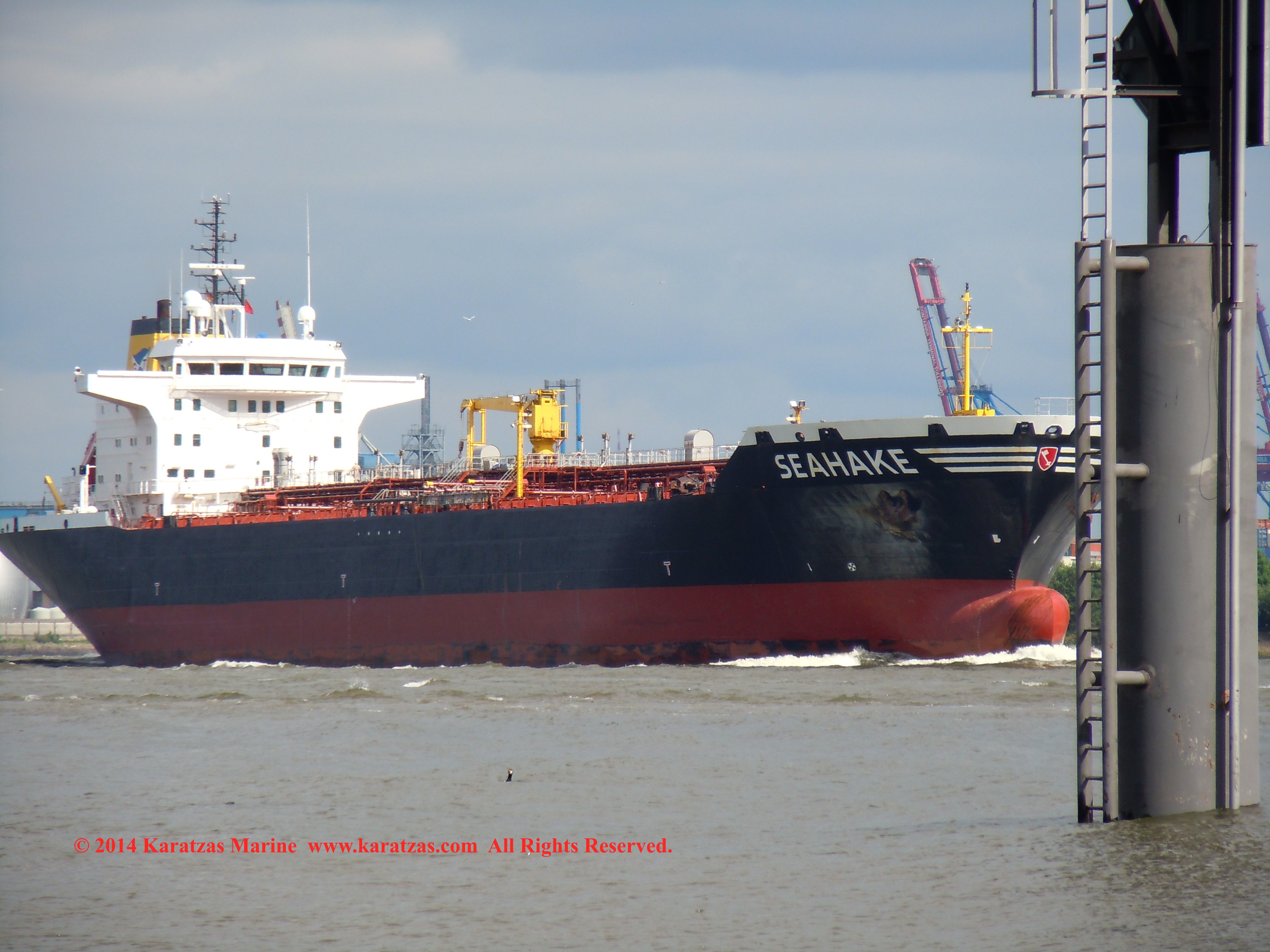

32,000 DWT Handysize Product Tanker built in 2003 at Lindenau

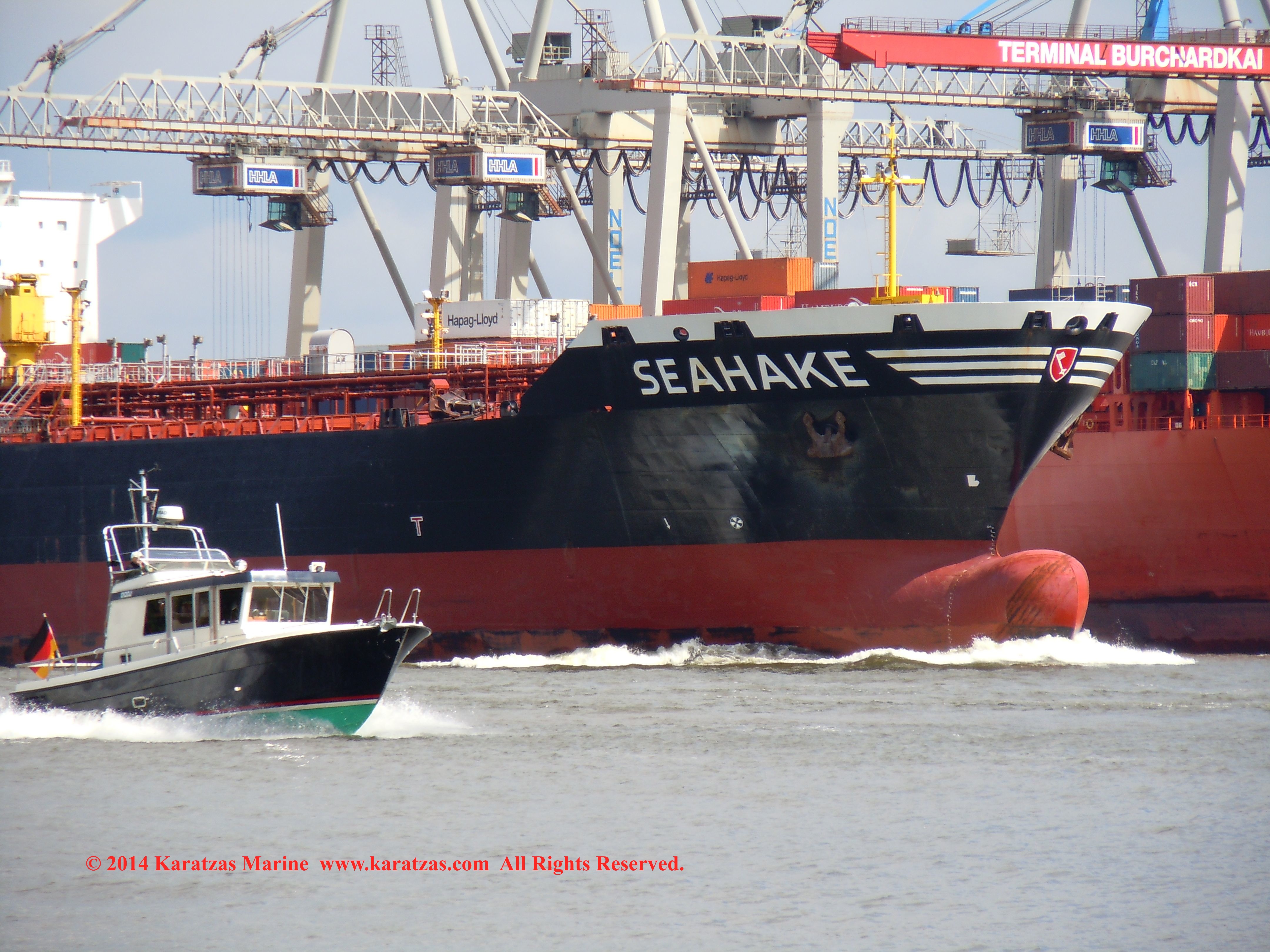

32,000 DWT Handysize Product Tanker built in 2003 at Lindenau

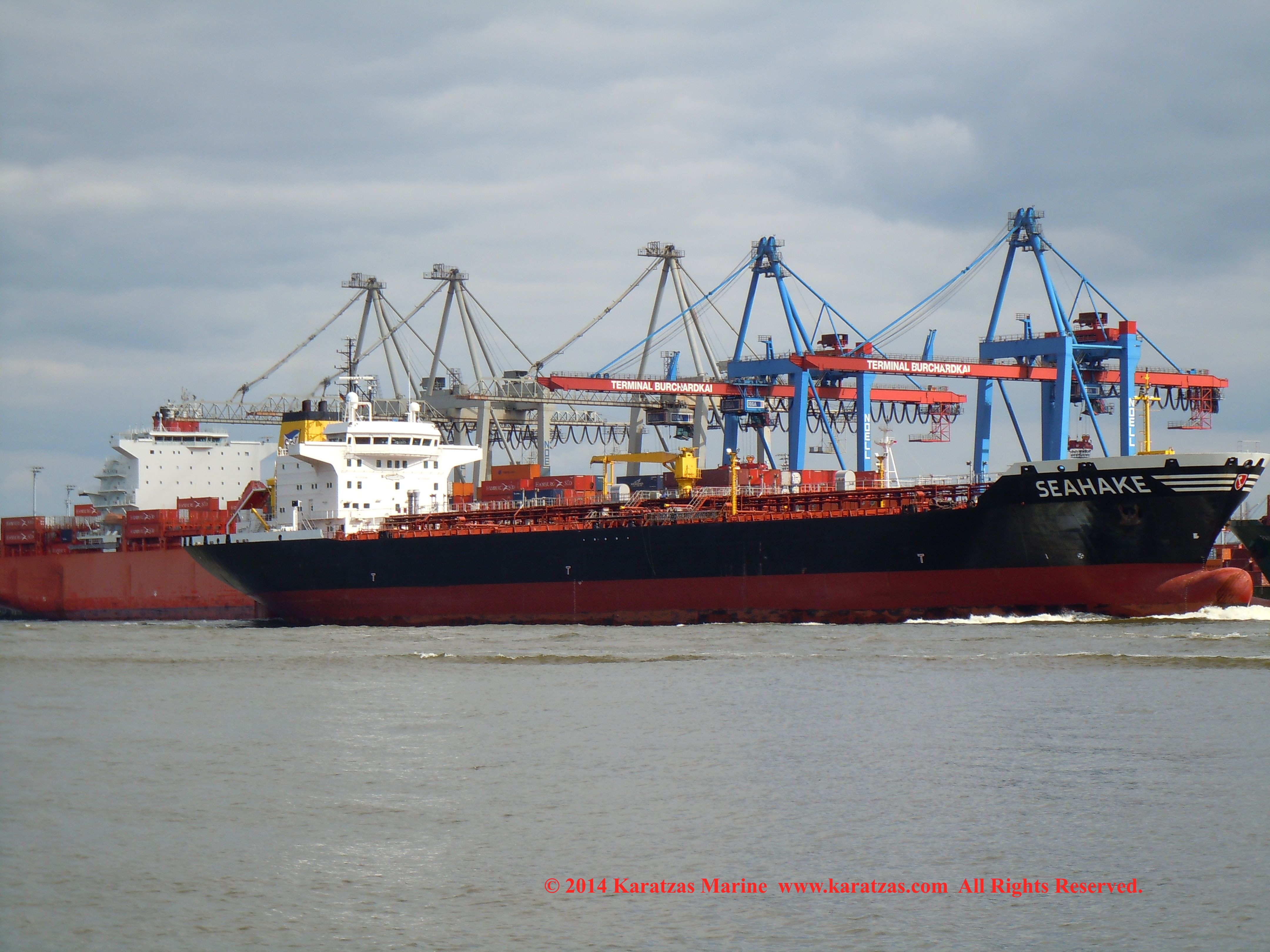

32,000 DWT Handysize Product Tanker built in 2003 at Lindenau

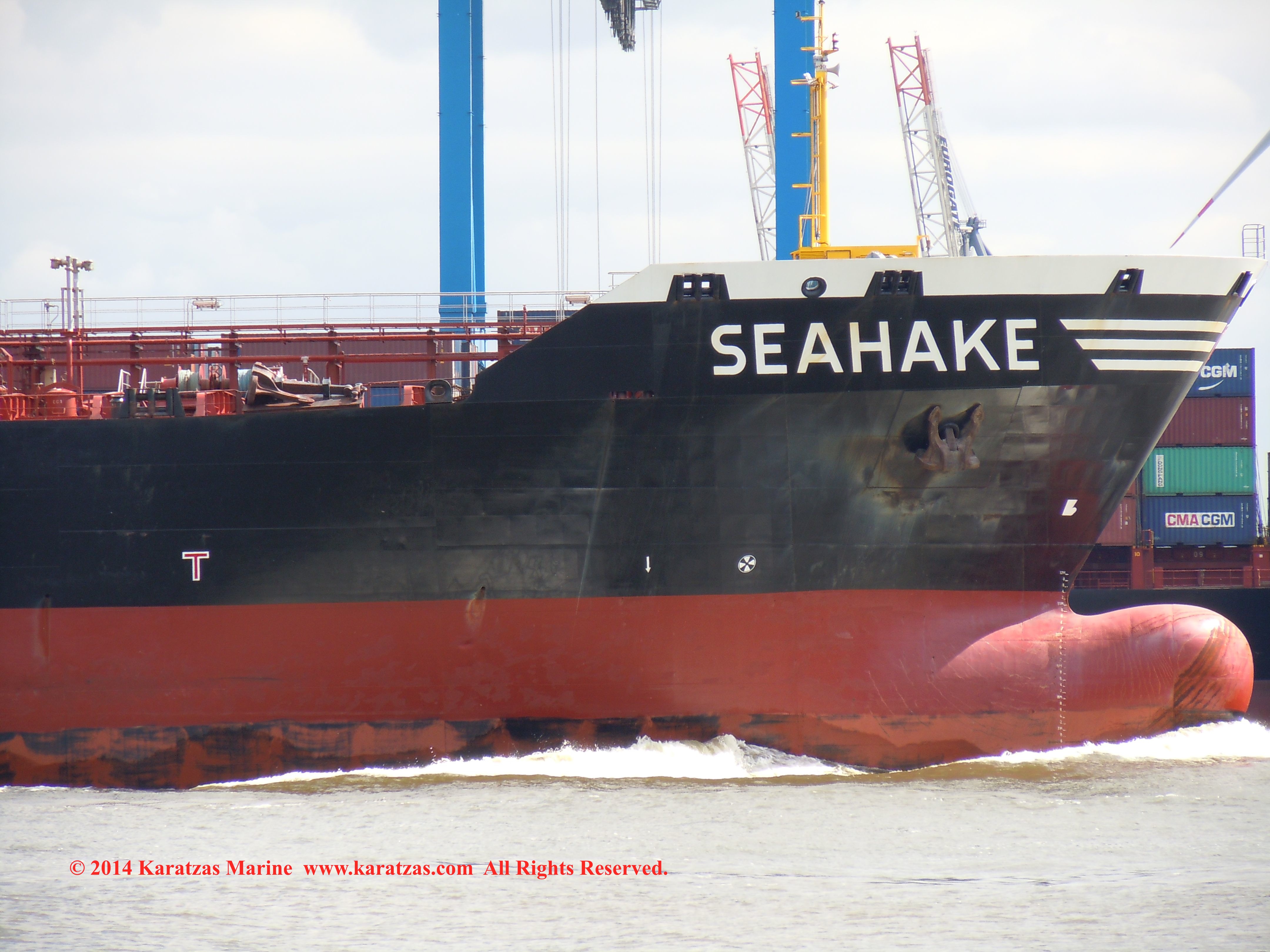

32,000 DWT Handysize Product Tanker built in 2003 at Lindenau
32,000 DWT Handysize Product Tanker built in 2003 at Lindenau
32,000 DWT Handysize Product Tanker built in 2003 at Lindenau
32,000 DWT Handysize Product Tanker built in 2003 at Lindenau
32,000 DWT Handysize Product Tanker built in 2003 at Lindenau
32,000 DWT Handysize Product Tanker built in 2003 at Lindenau

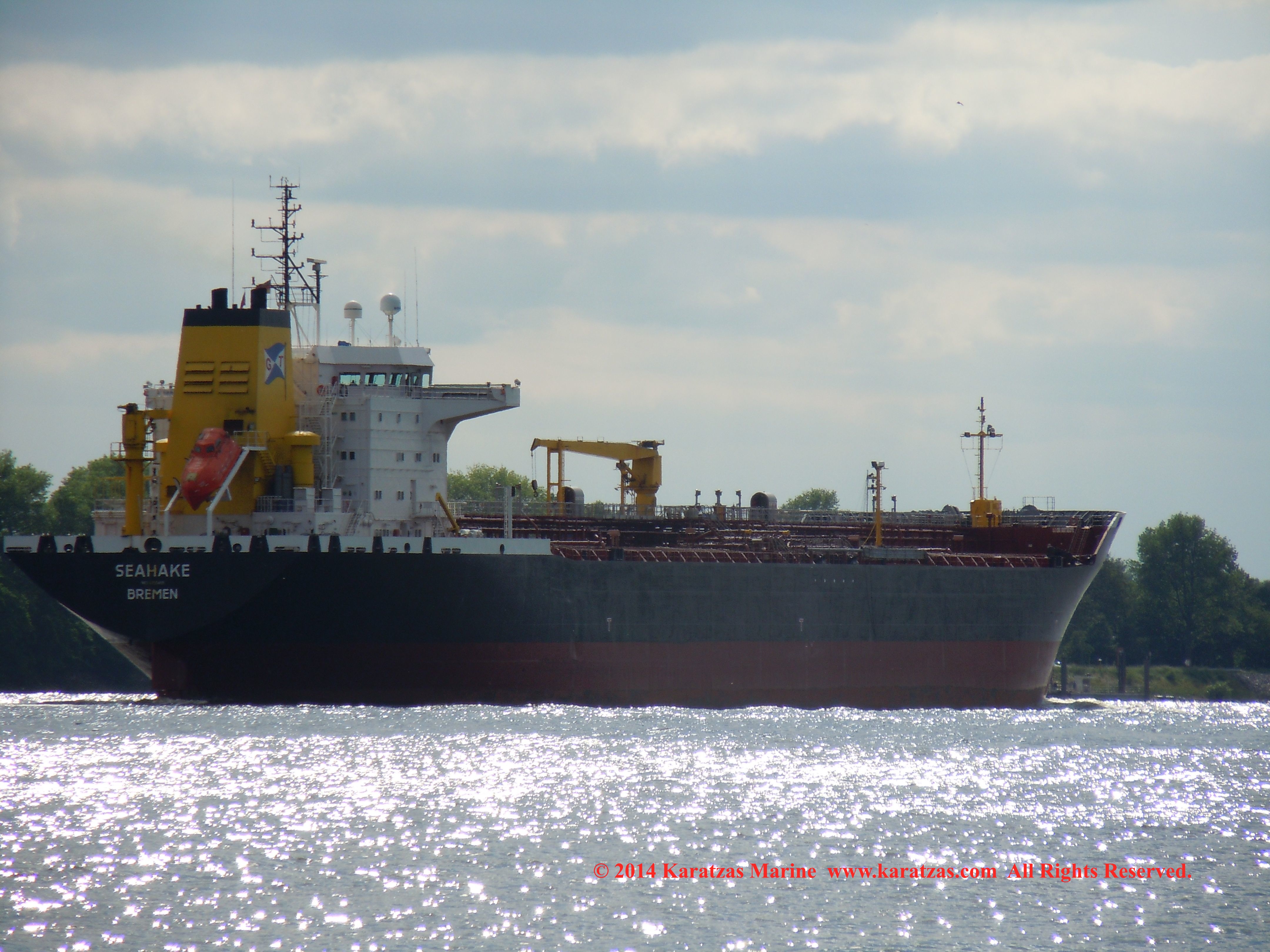

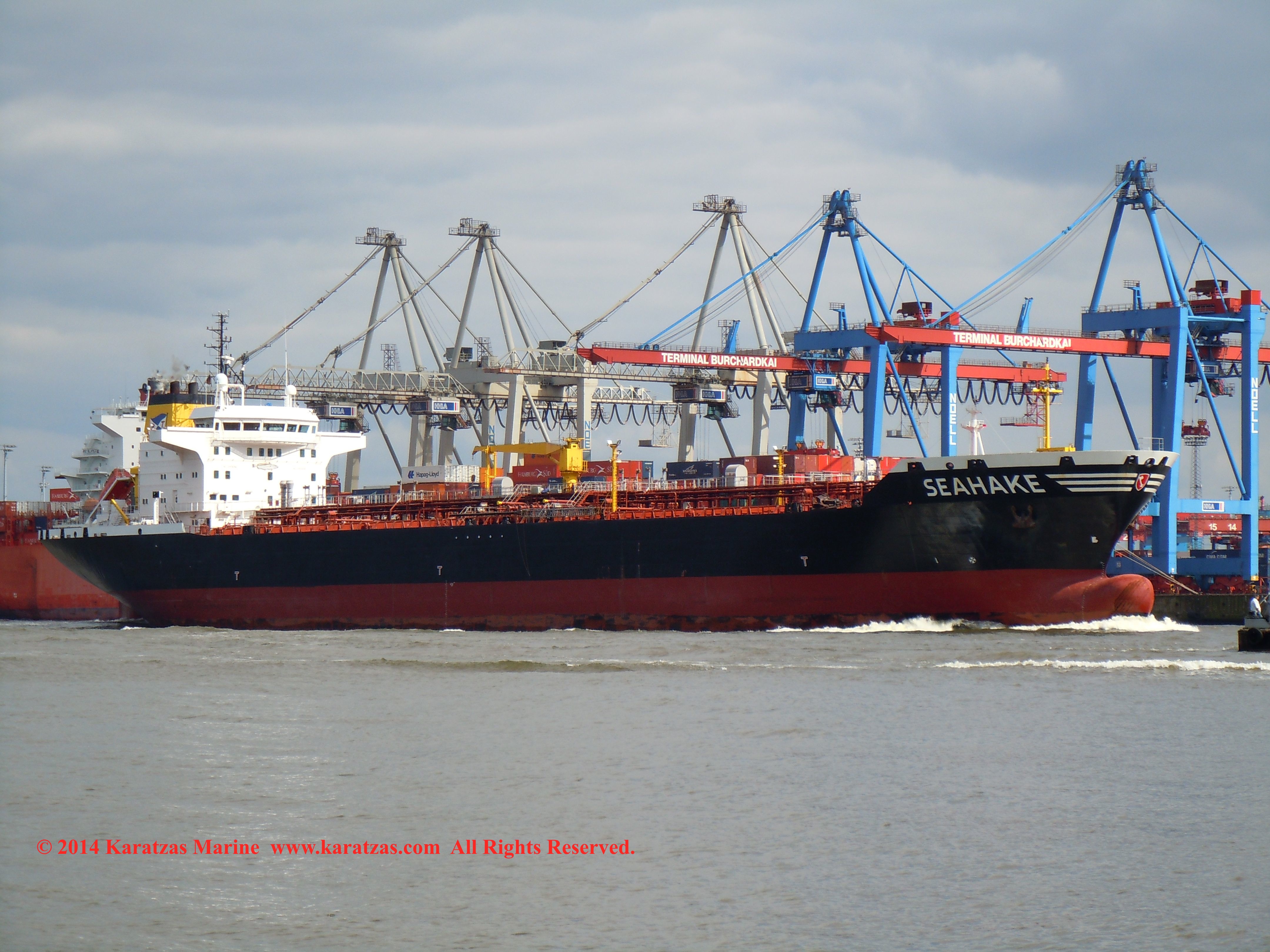

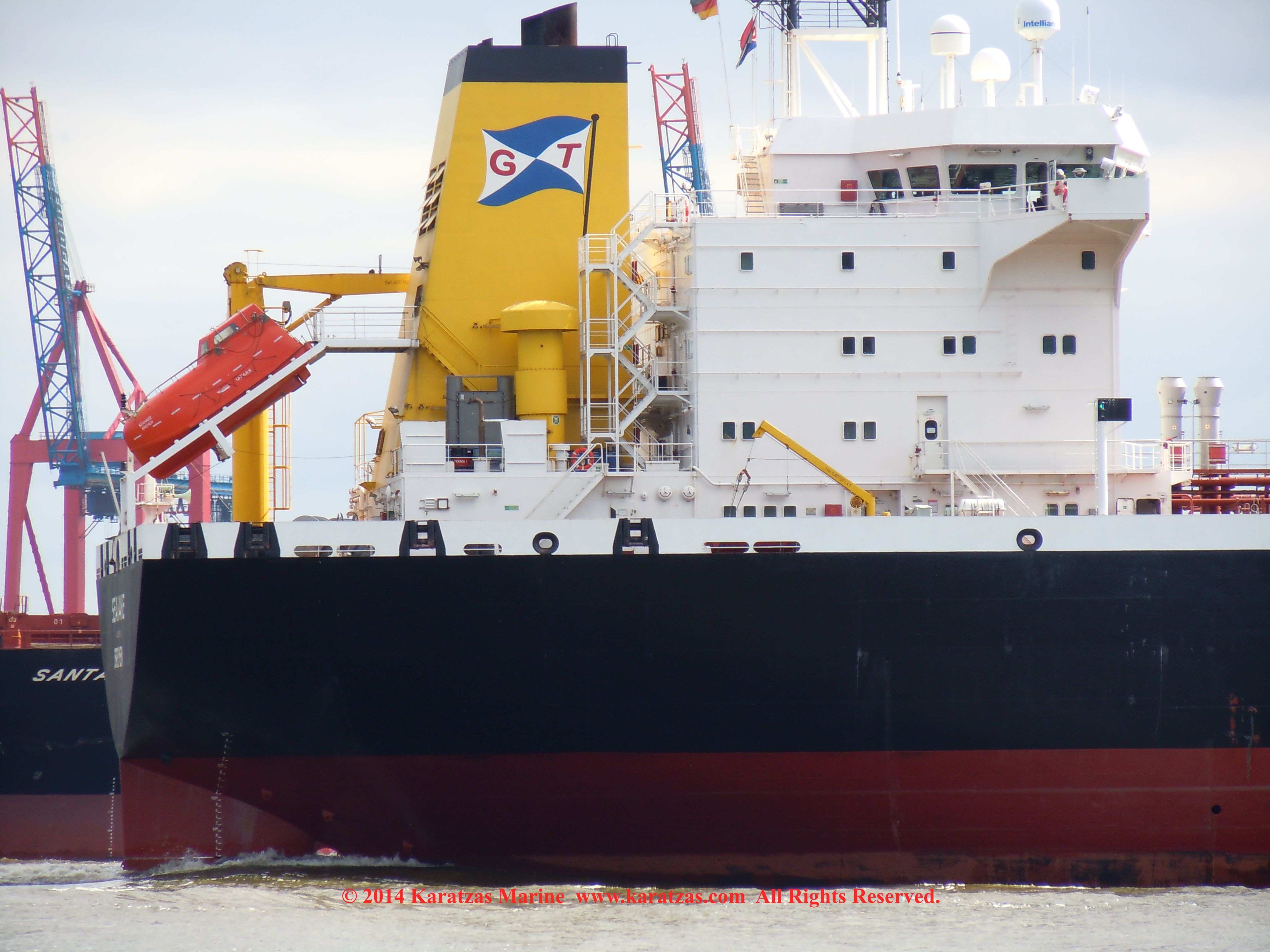

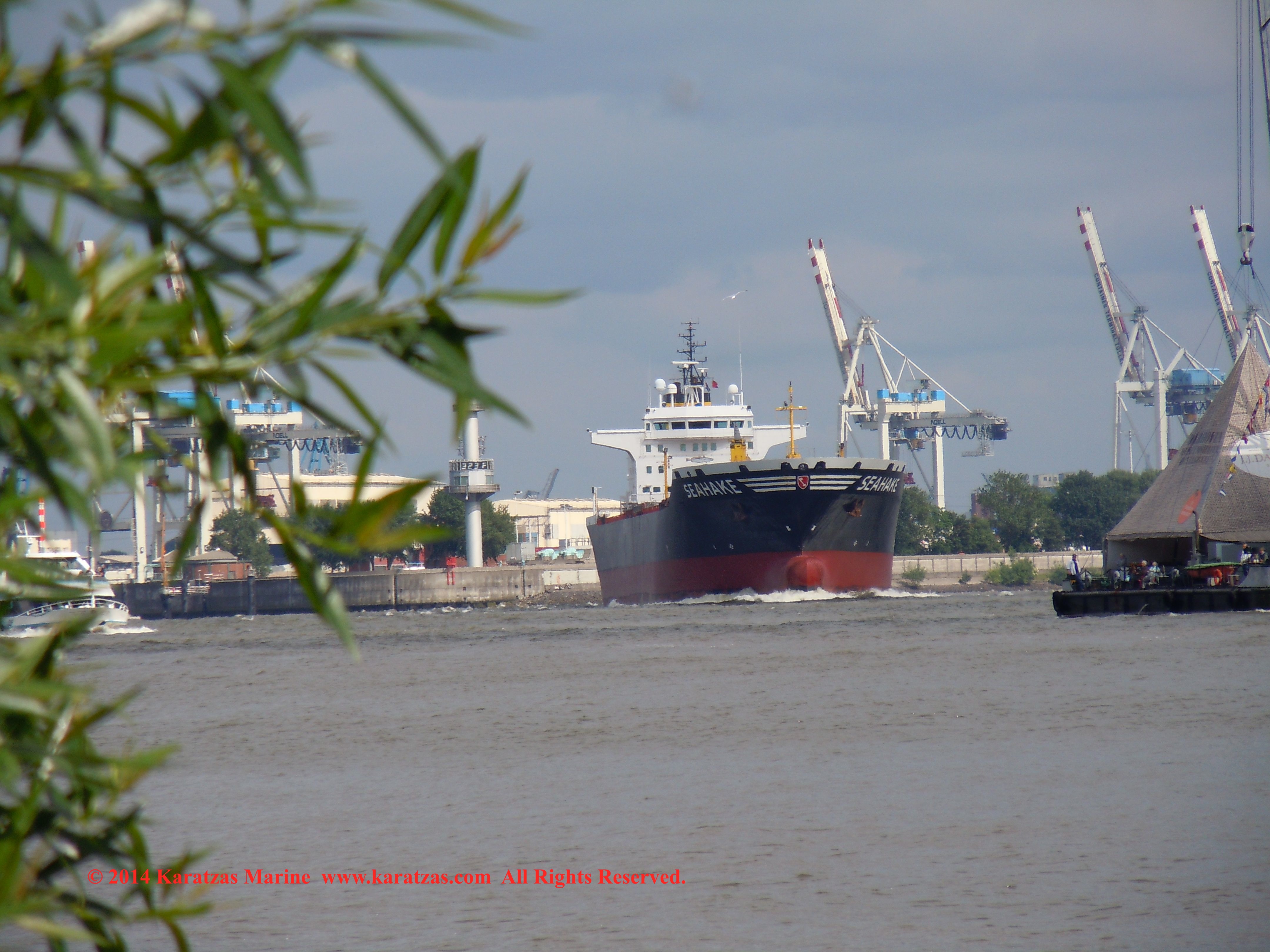

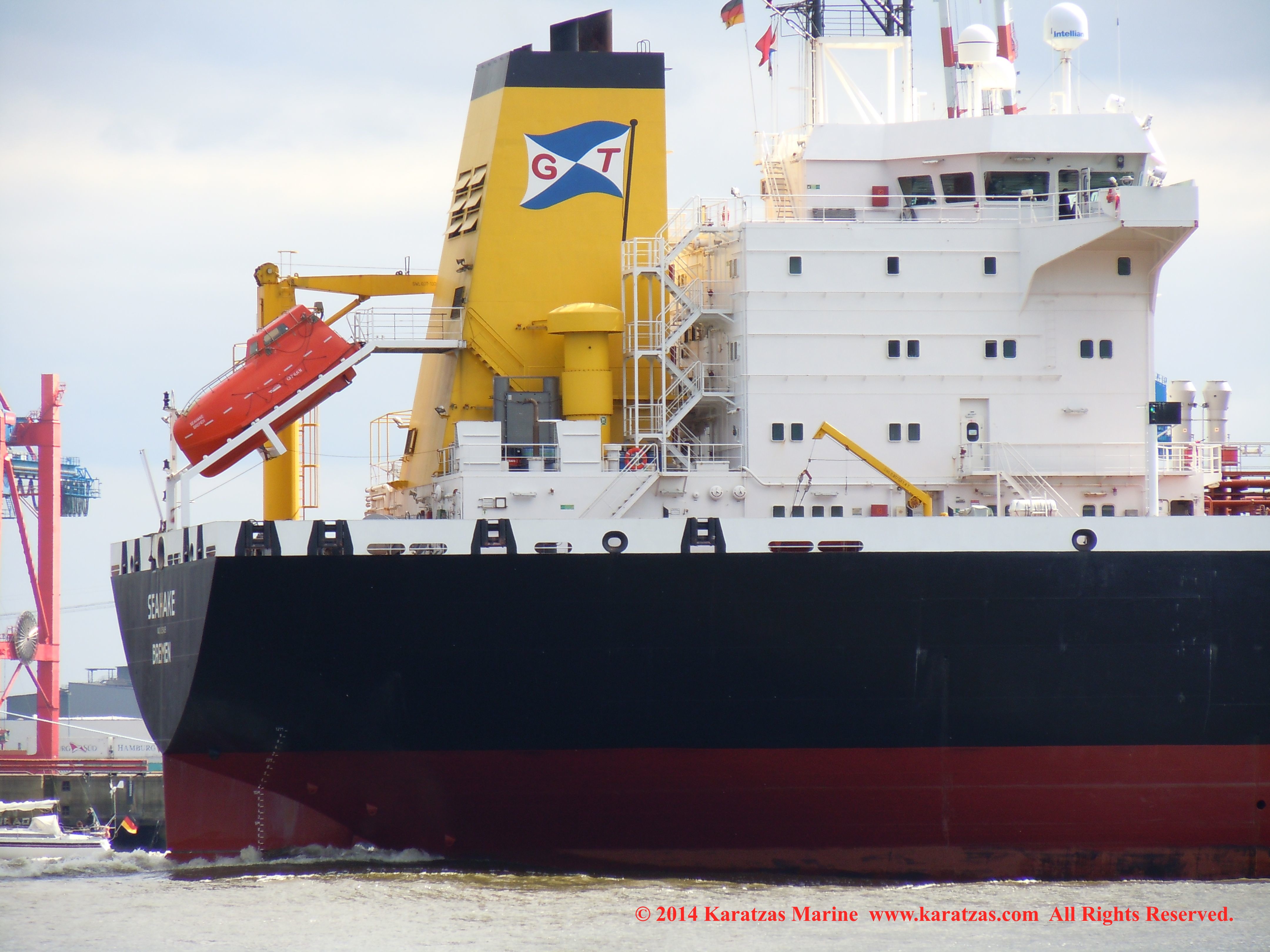

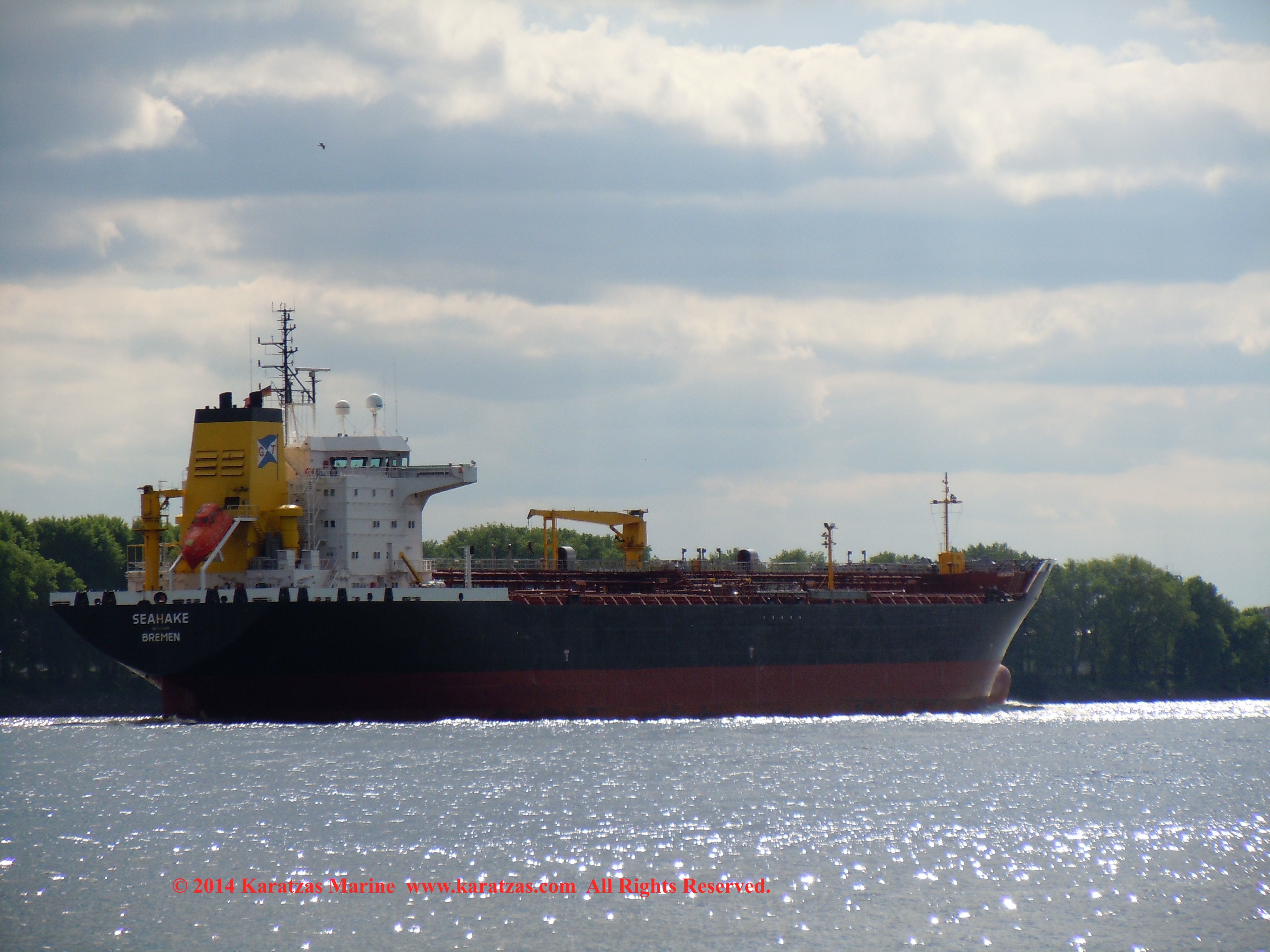

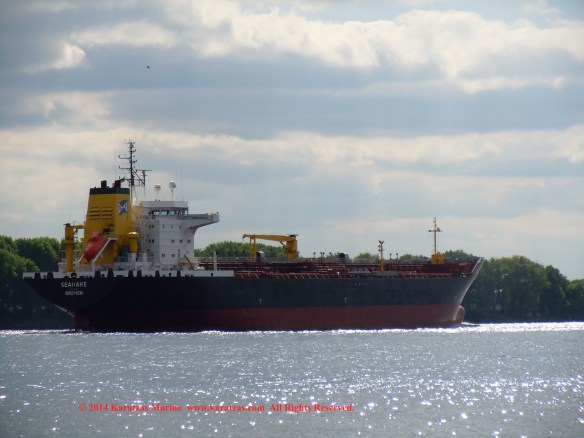

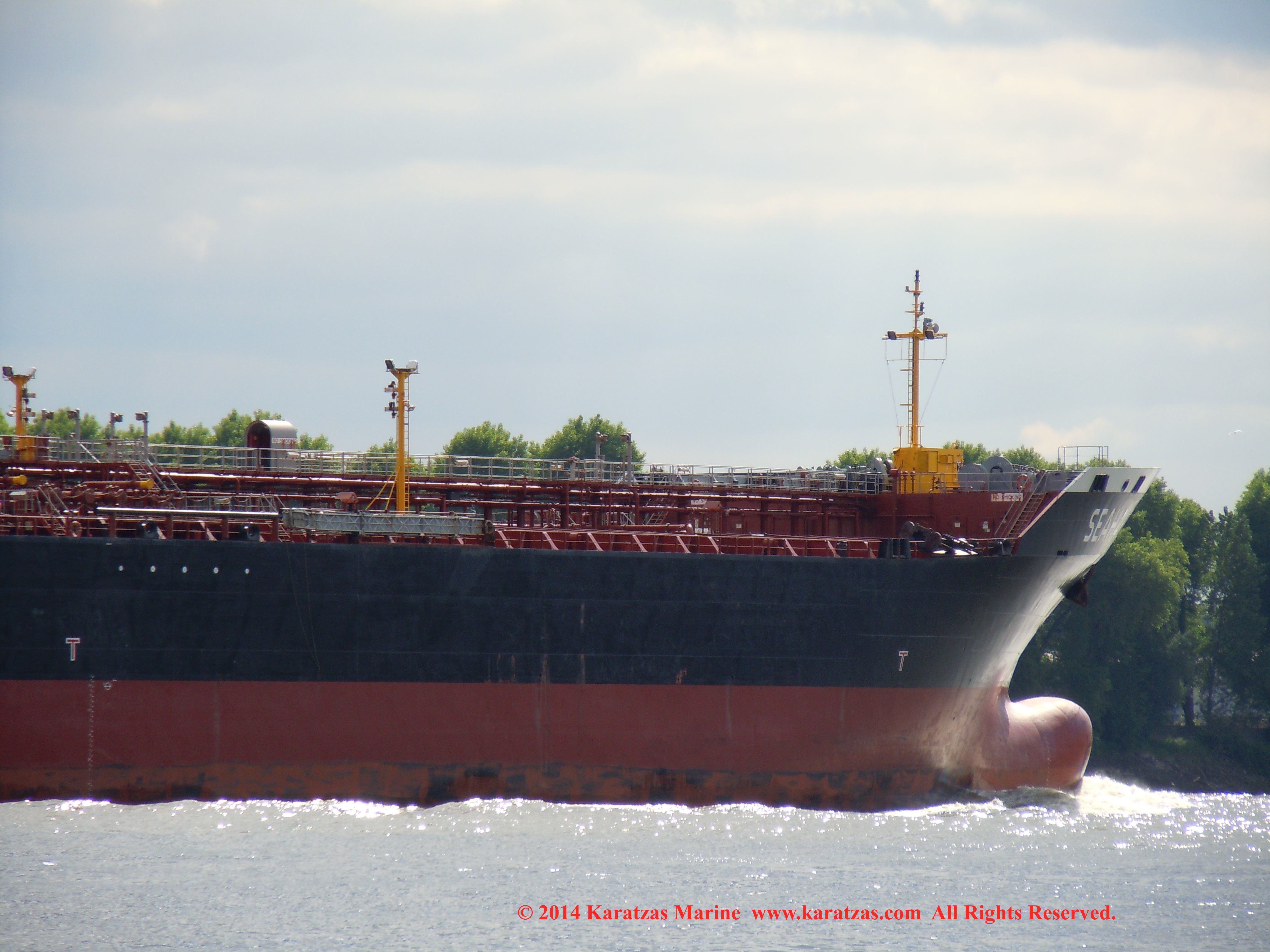

MT SEAHAKE 32,000 DWT Handysize Product Tanker built in 2003 at Lindenau
MT SEAHAKE 32,000 DWT Handysize Product Tanker built in 2003 at Lindenau
MT SEAHAKE 32,000 DWT Handysize Product Tanker built in 2003 at Lindenau
