MV ‘STATENGRACHT’ (21,250 DWT, Multi-Purpose/Heavy Lift Cargo, Built 2004)

IDENTIFICATION: Launch Name was Statengracht. Call Sign PHAQ, IMO Number 9288045. Built at Szczecin. Nowa, Netherlands Flagged, LR Classed, Ice Strengthened 1A Class, Length Overall of 172.60 m., Length Between Perpendiculars of 156.50 m., Draught of 10.74 m., Beam of 25.30 m., Gross Tonnage of 16,676, Moulded Depth of 14.60 m., Tonnage of 6,730 International Net and 20,914 Dwt (long).

ENGINE DETAILS: Engine Description 4 S.A. 6-cyl., Engine Model 6L64, Wartsila Engine, Speed of 17.00 kts at 40.00 tonnes per day, Horsepower of 16,400B at 333, Bunker Capacity of 1,635 tonnes. 1 Variable Pitch Propellor, 1 Bow Thruster(s) of 850.00000, Shaft Generator 1250 kVA.

OWNERS / MANAGERS: Spliethoffs Bevrachtingskantoor B.V., The Netherlands, URL: http://www.spliethoff.com/.

CARGO HANDLING: Grain Capacity of 23,780 cu.m., Bale Capacity of 23,780 cu.m., 3 Holds, 4 Hatches, Teu Capacities of 1,136 Teu and 120 Reefer, Maximum TEU of 478 in holds and 658 on deck, maximum hatch dimensions of 38.39 x 17.80 m., 2 deck(s), ratio of dwt per TEU is 18.70599. 3 Crane(s) with a safe working load of 120 tonnes, Heavy Lift.

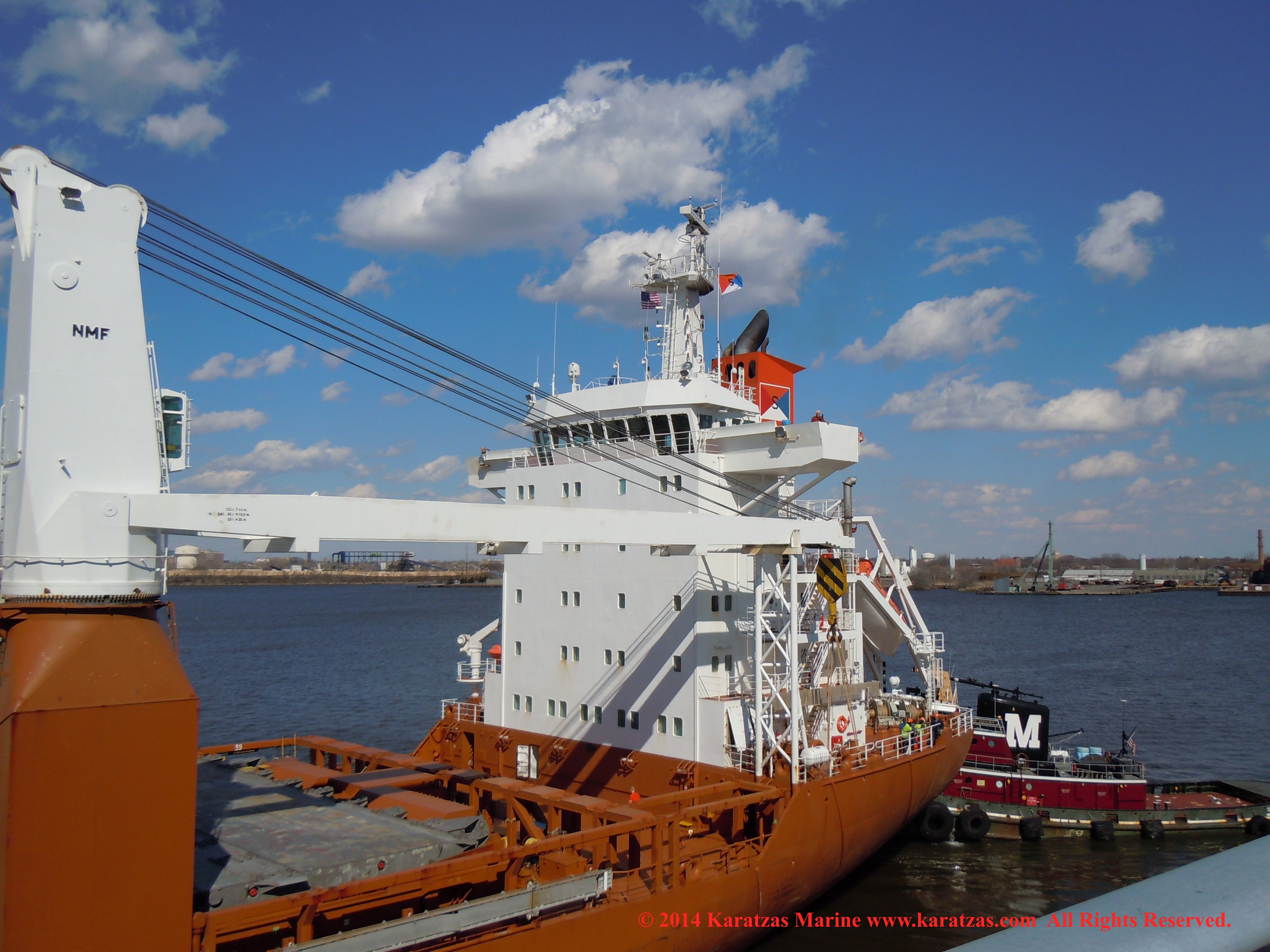

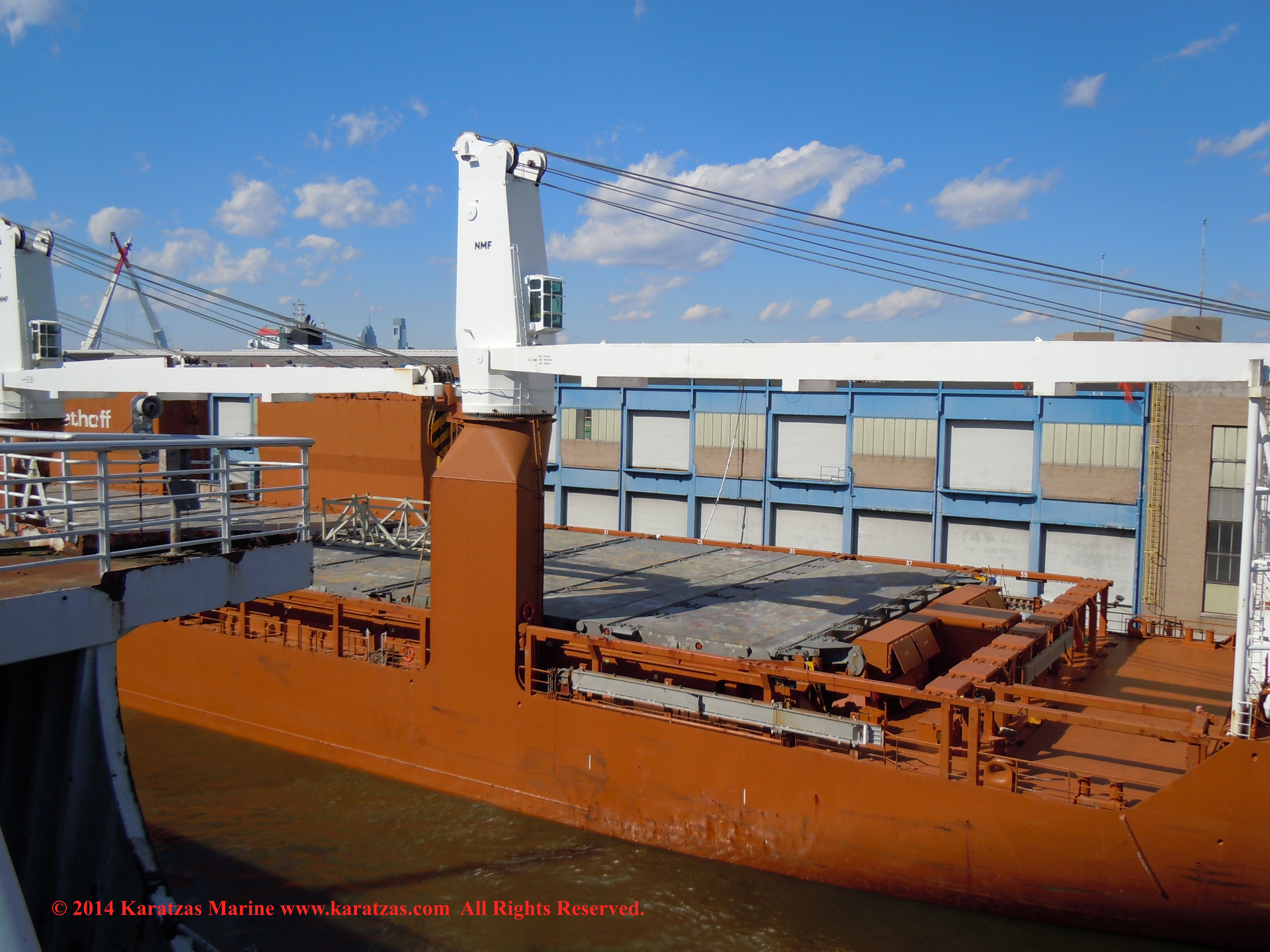

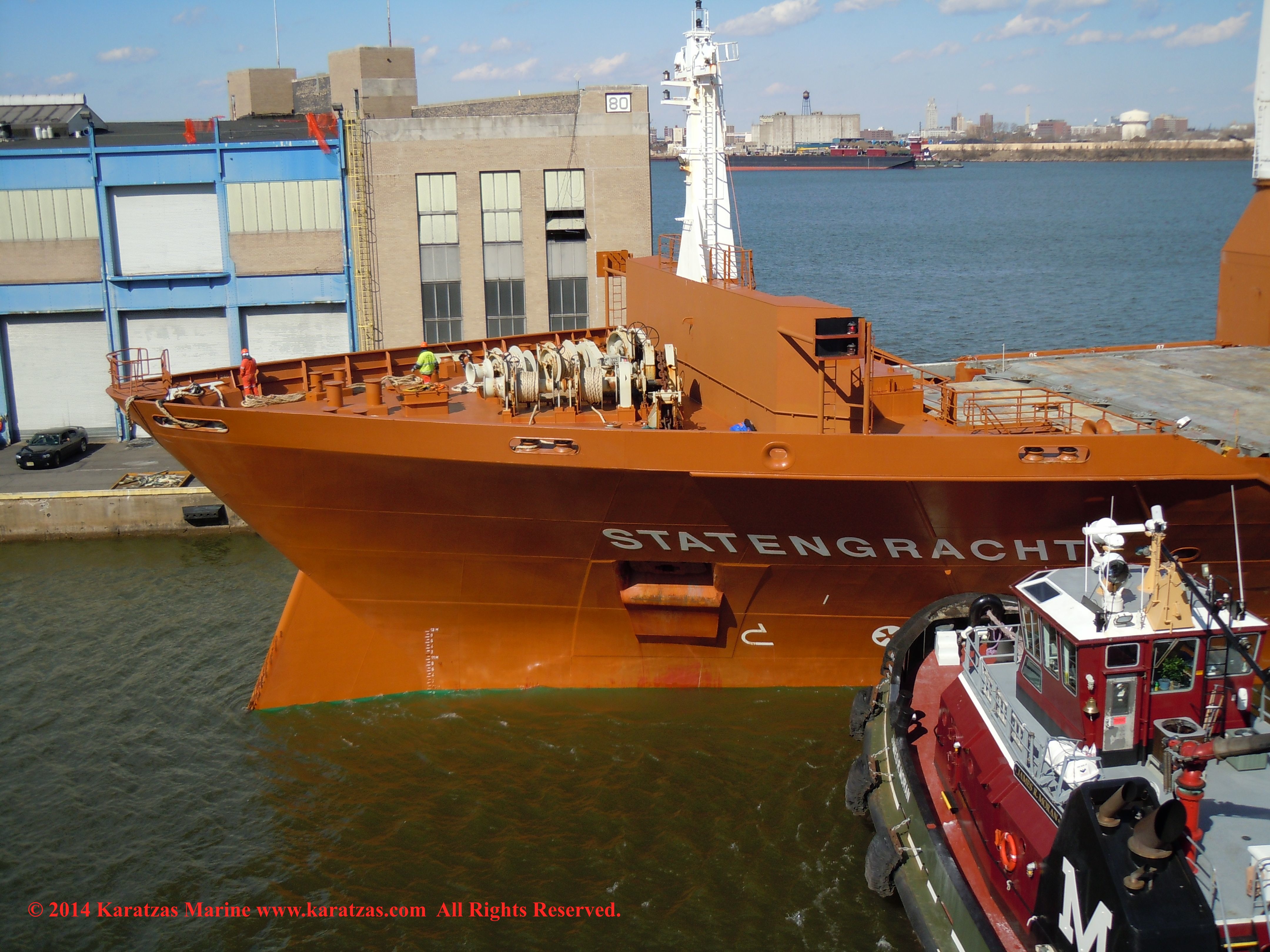

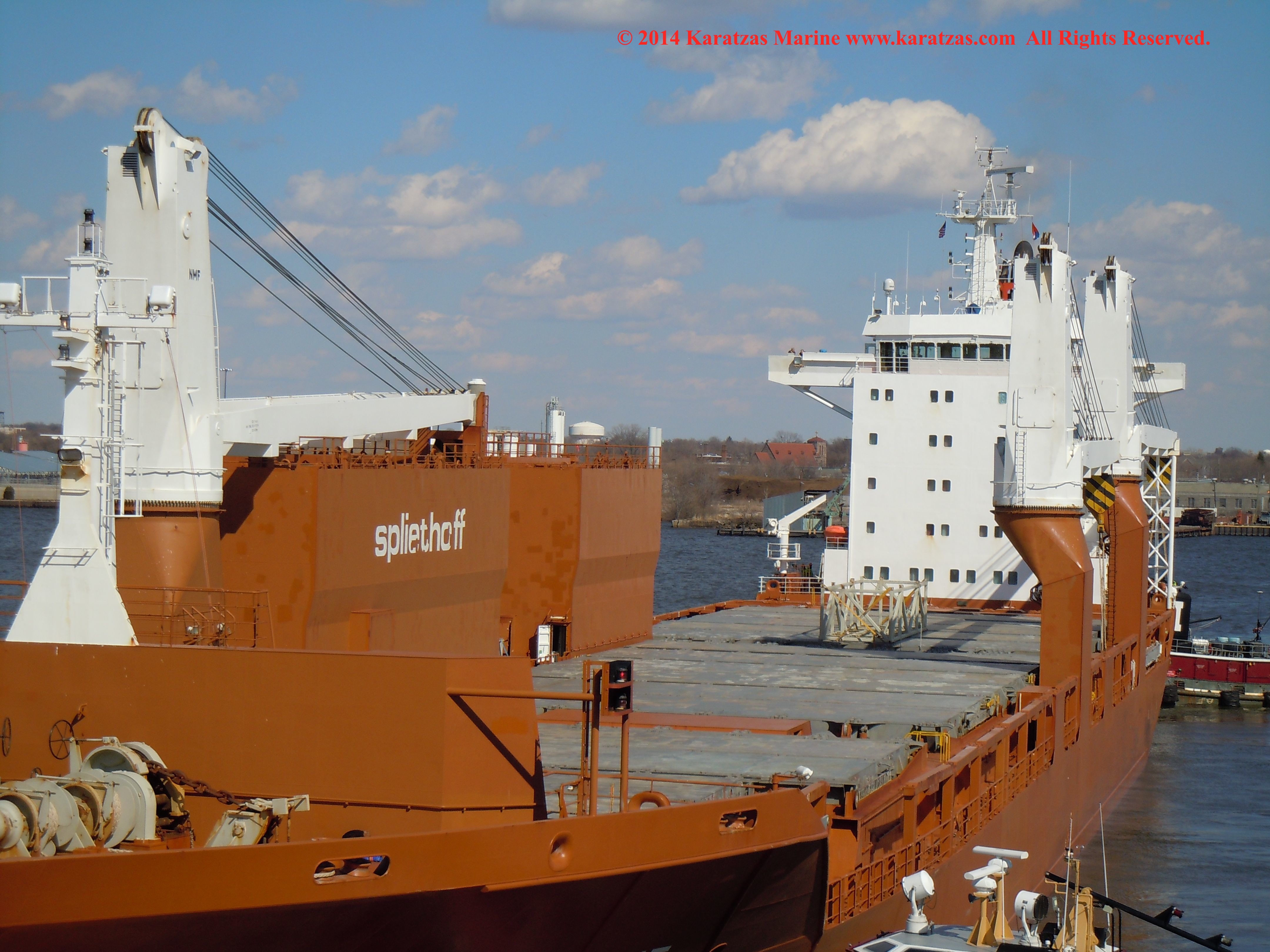

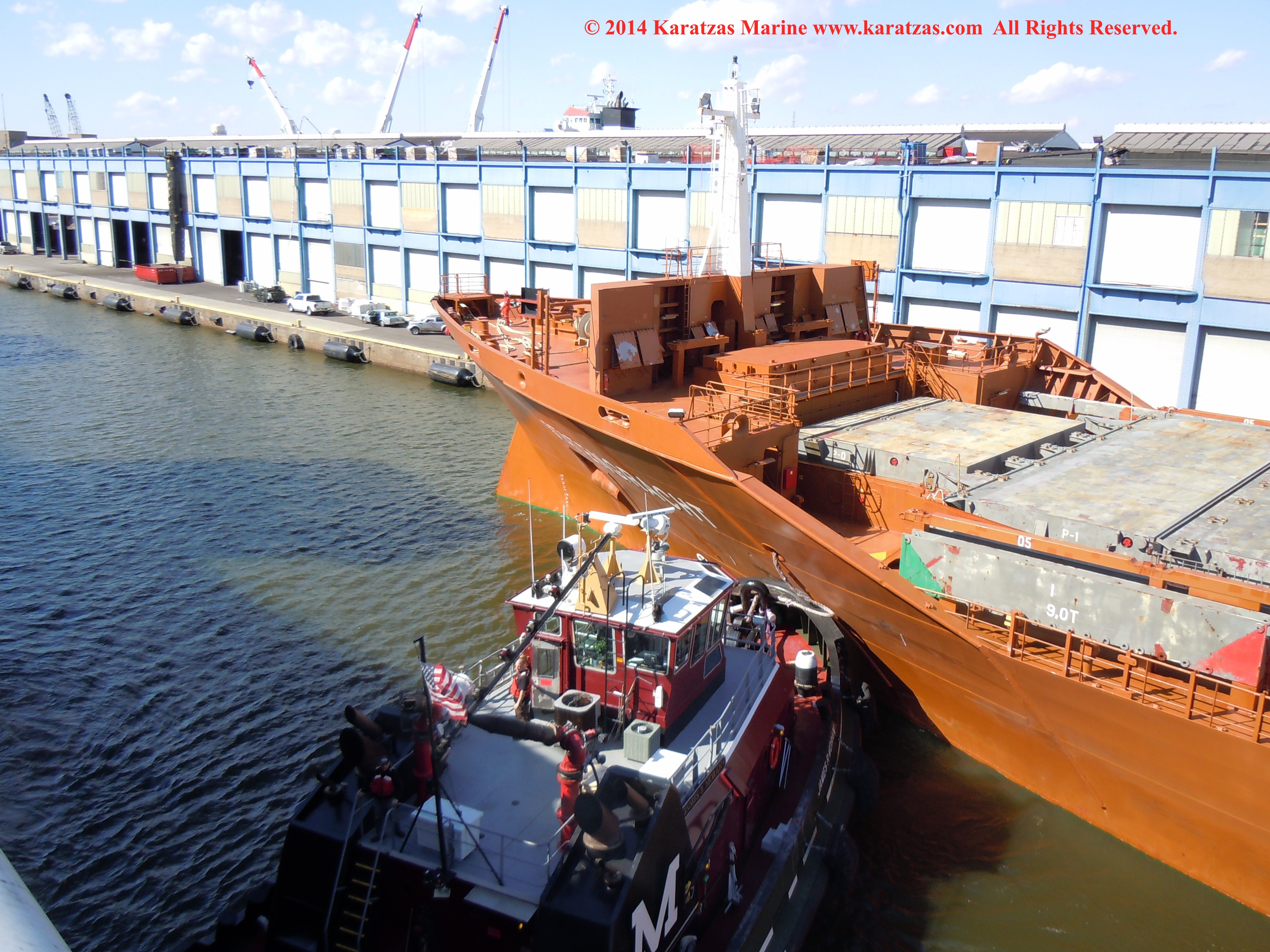

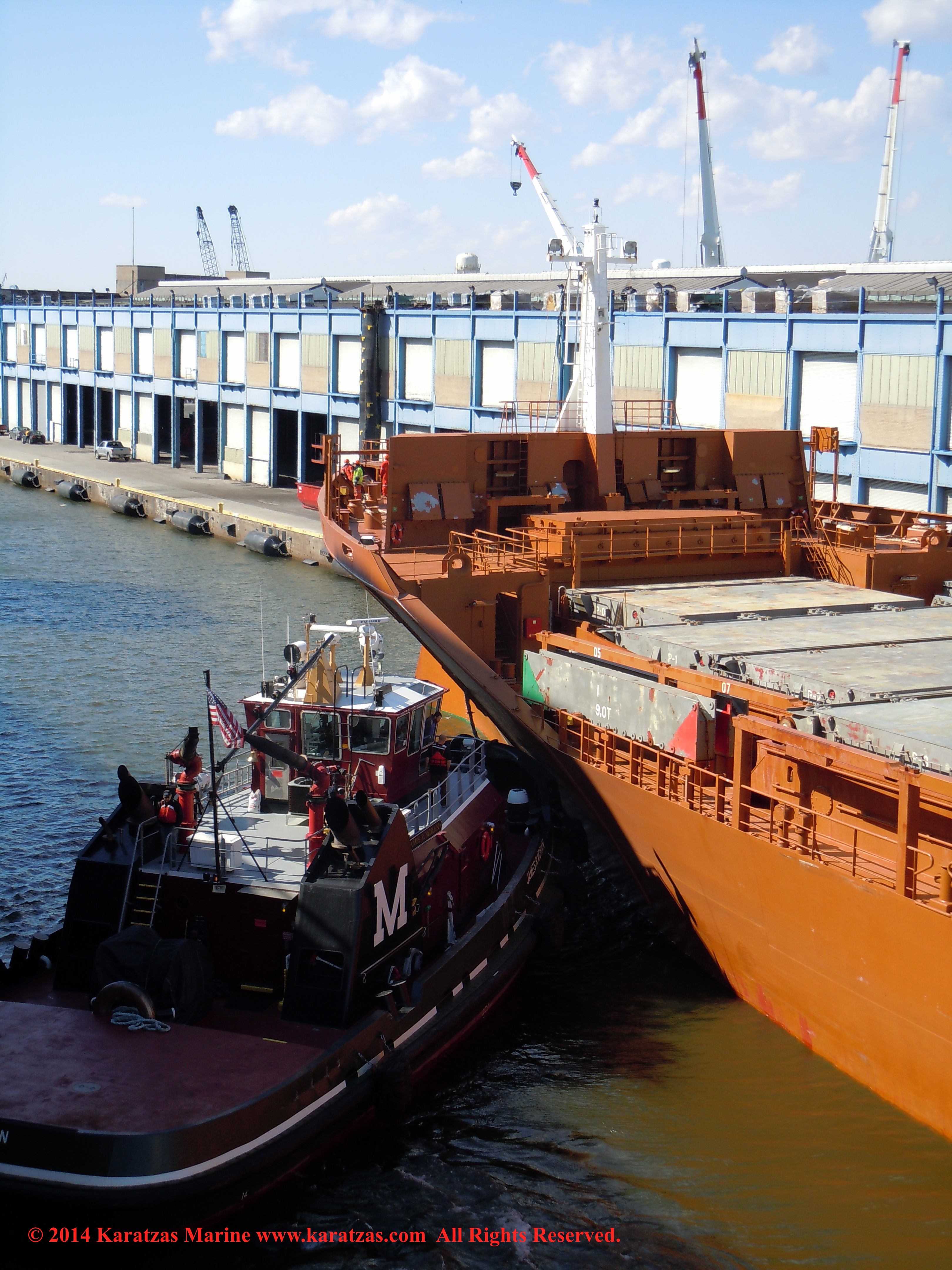

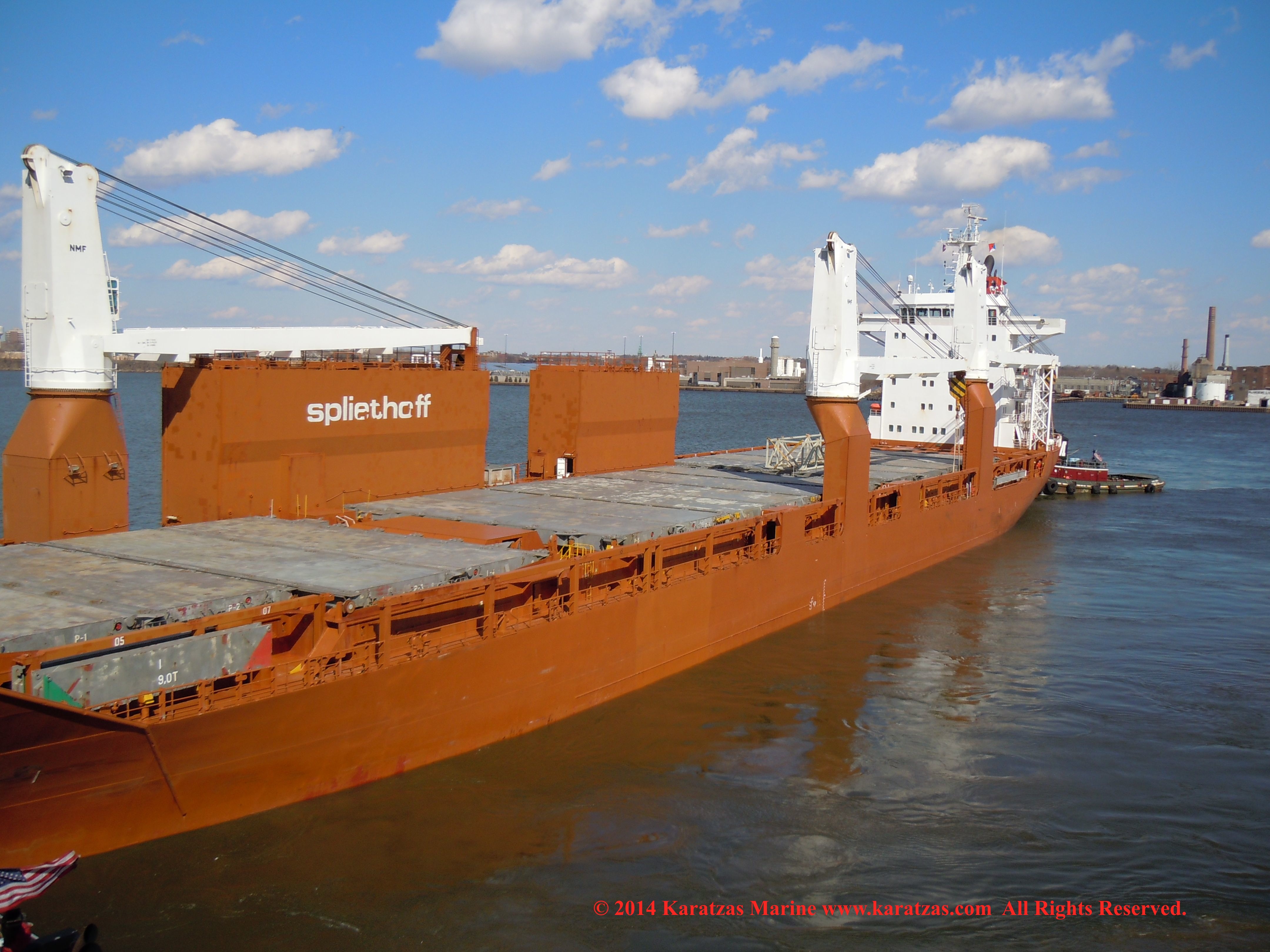

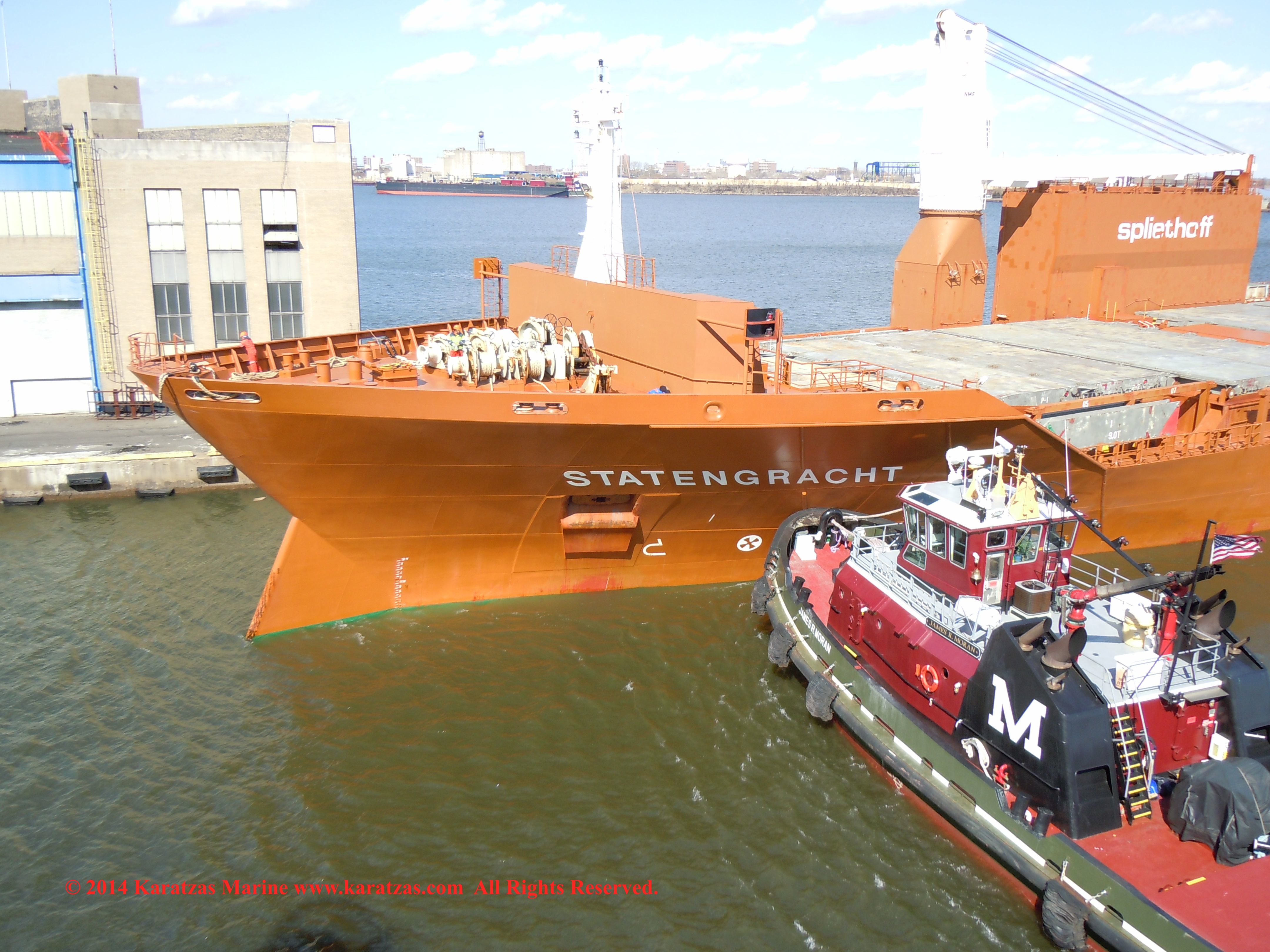

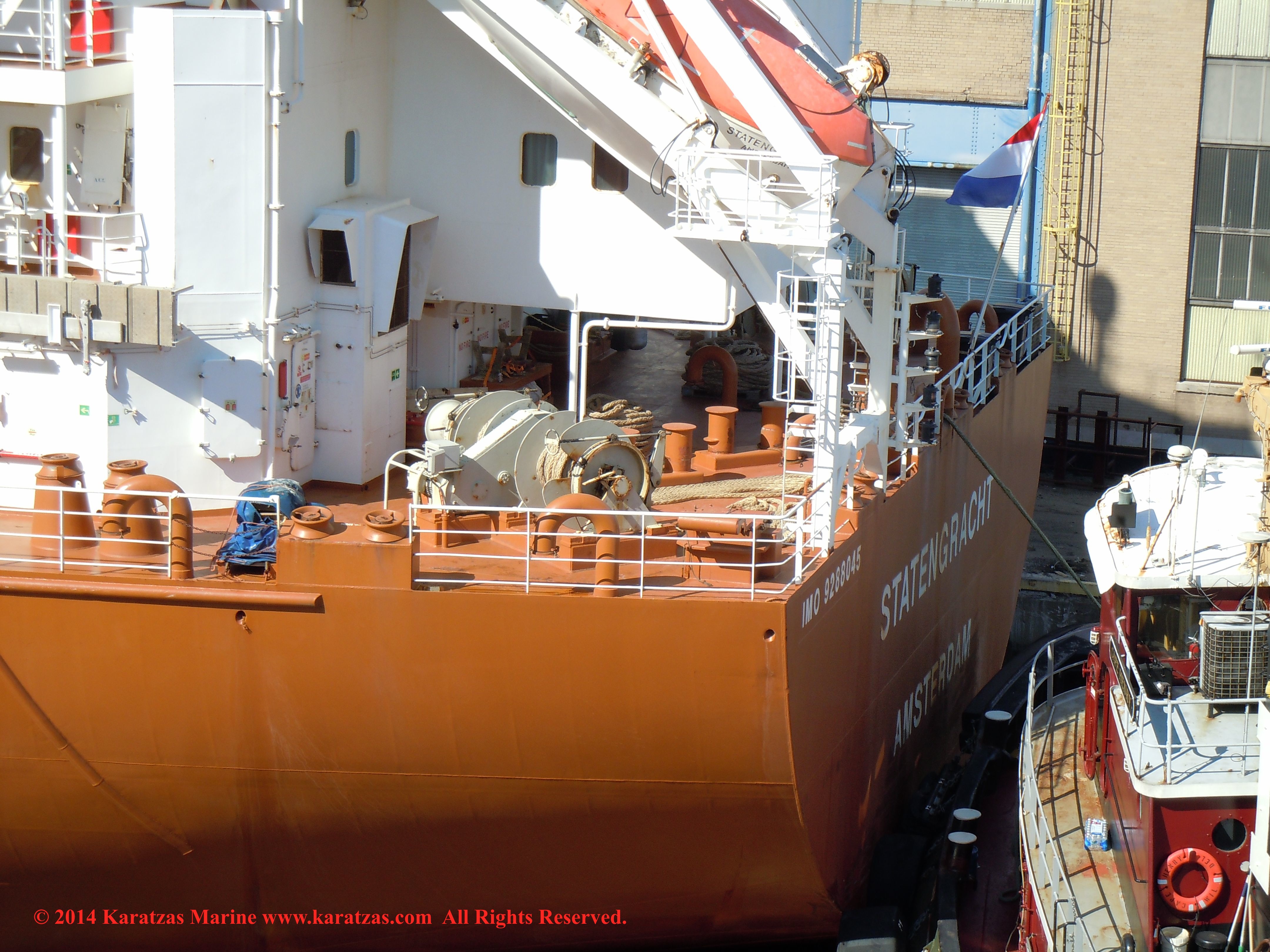

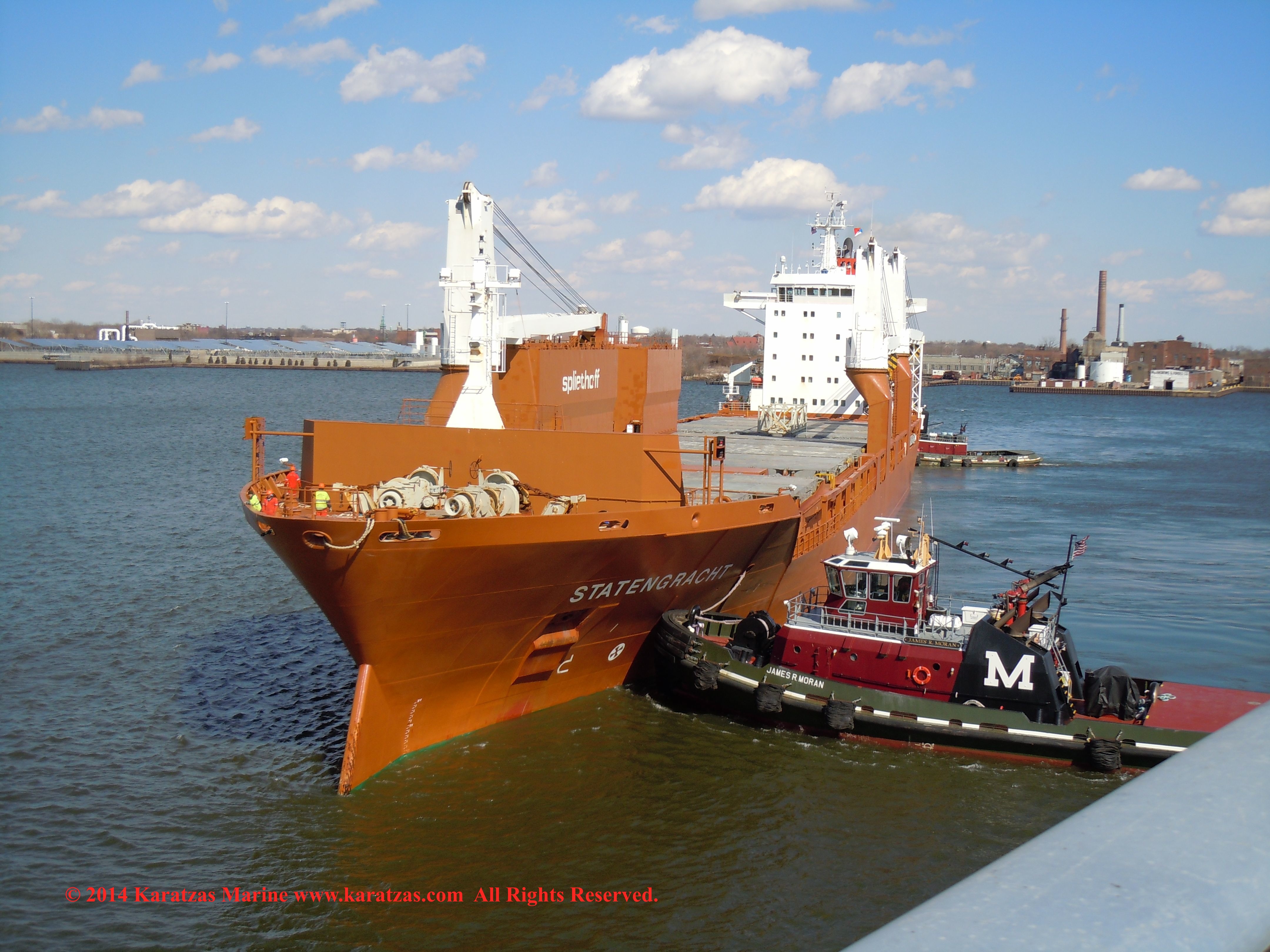

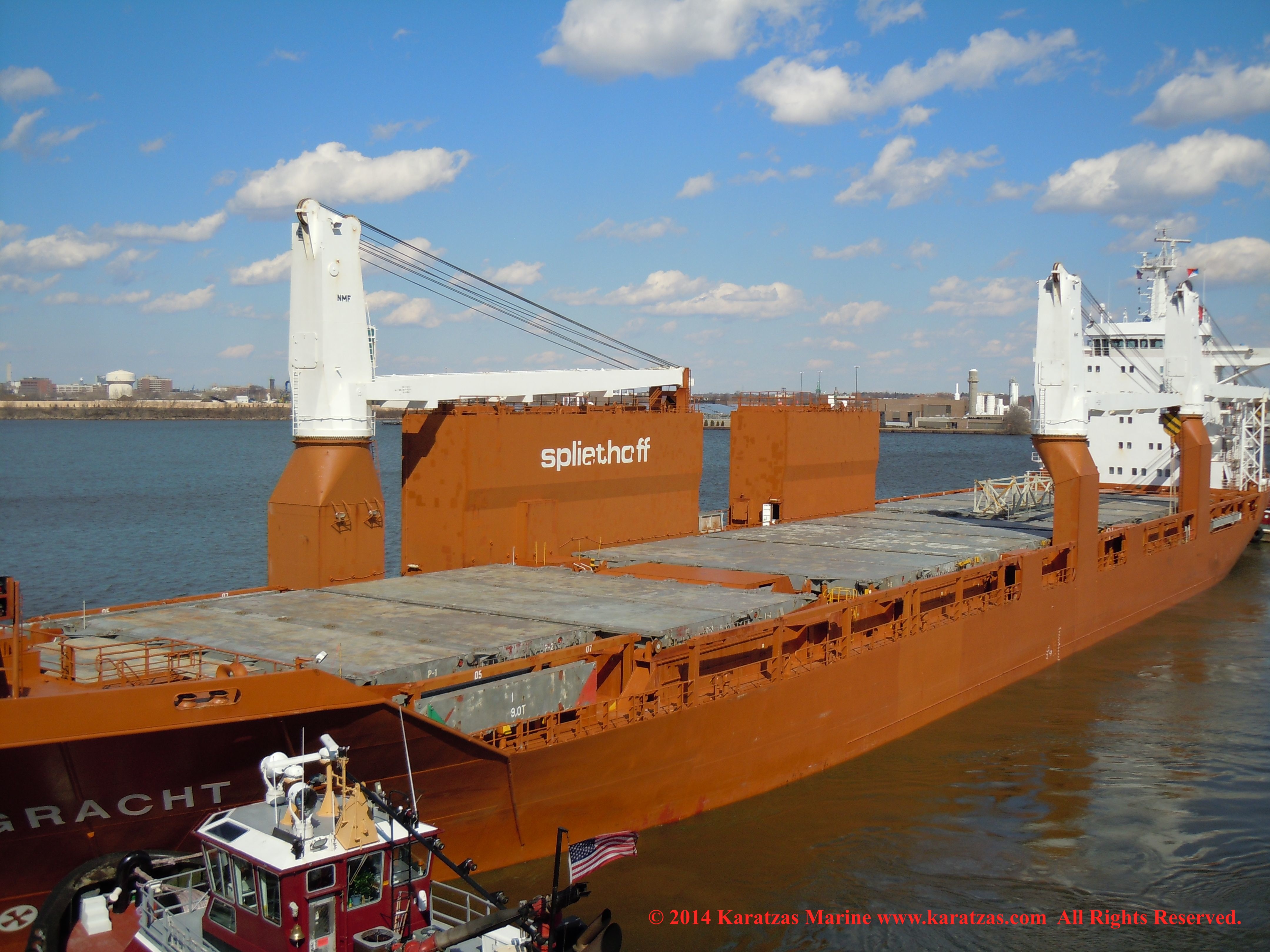

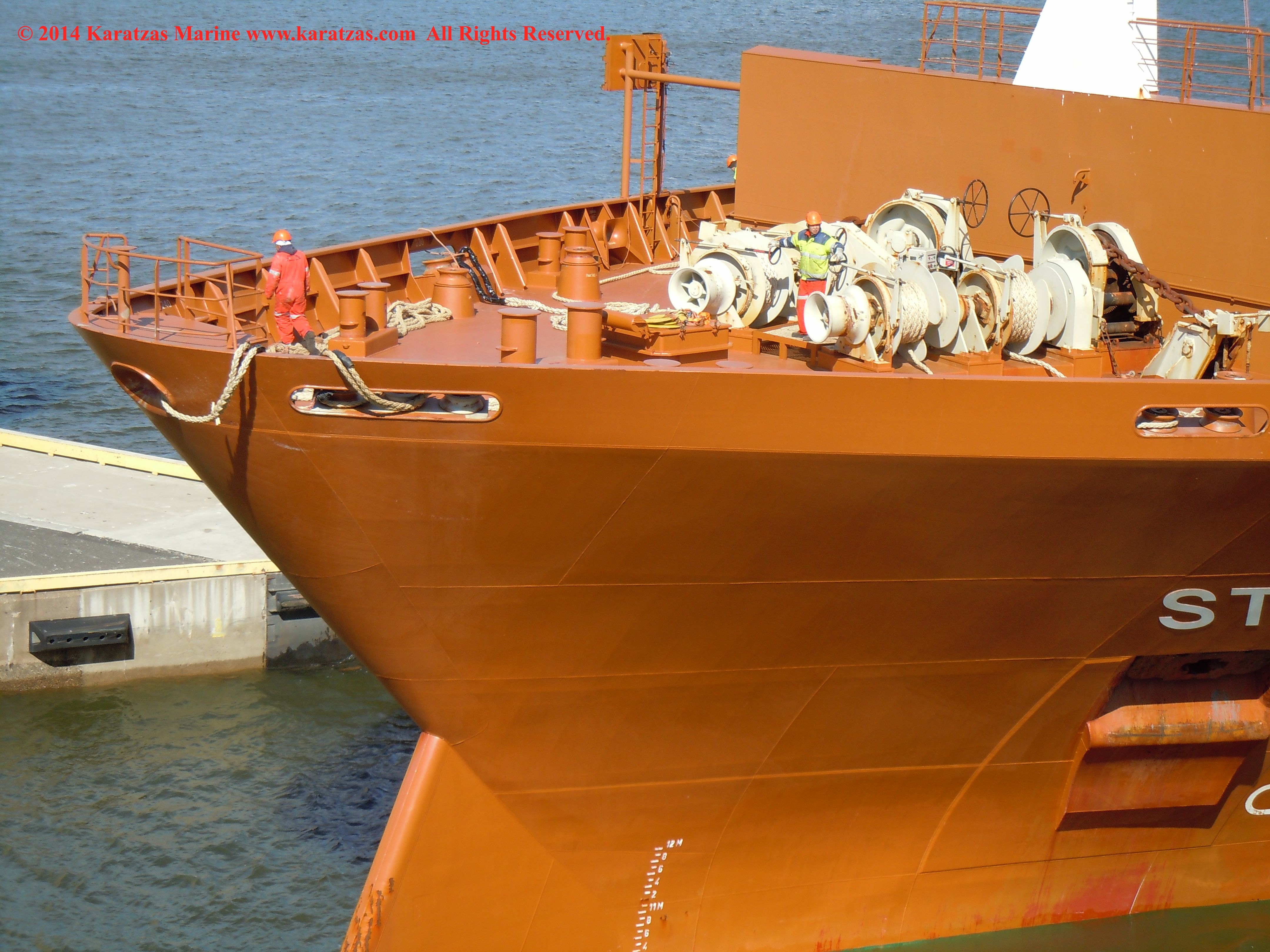

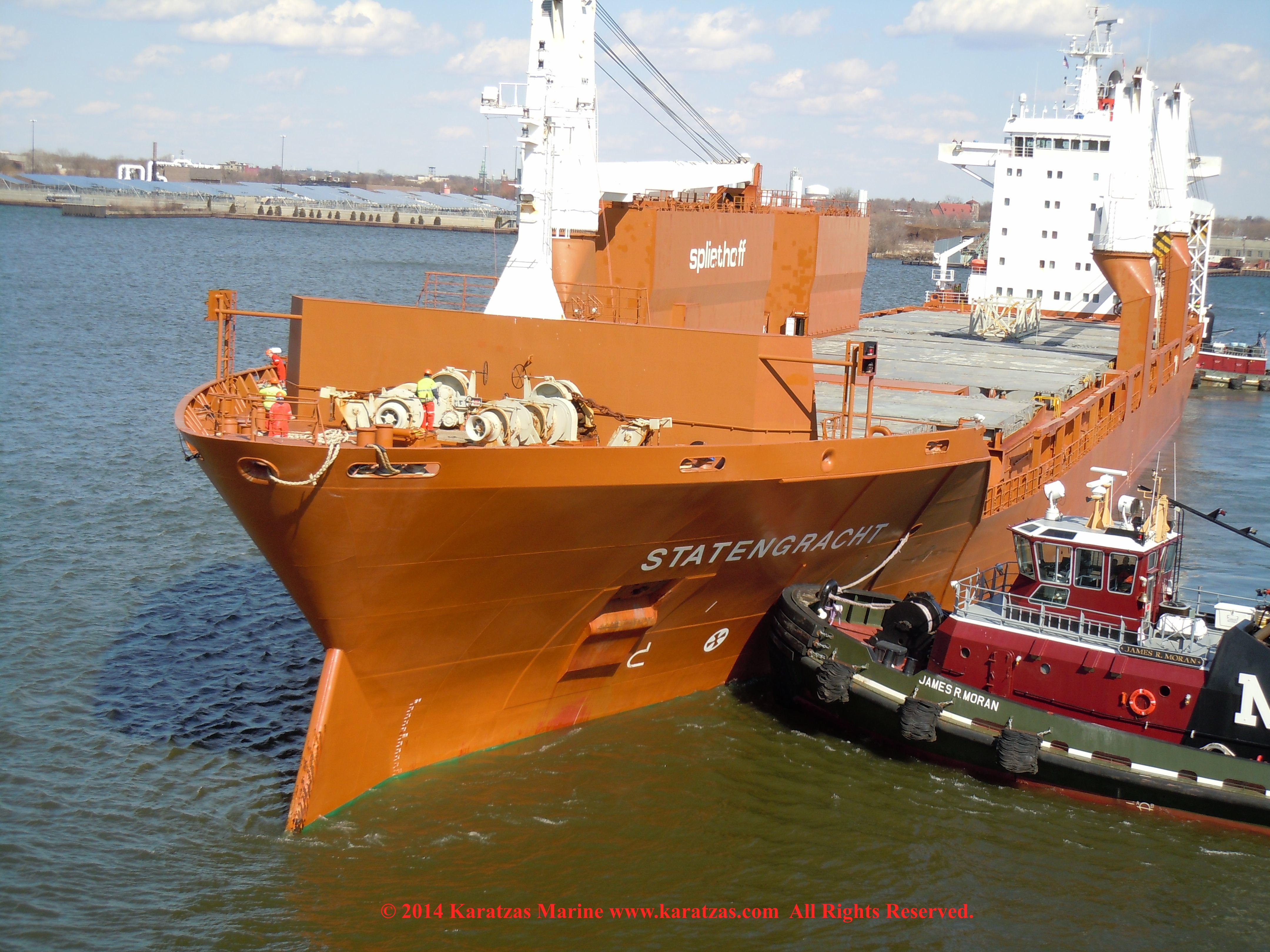

Heavy-lift vessel MV ‘STATENGRACHT’ (21,250 DWT, built in 2004 at Szczecin) March 2014 Port Call at Philadelphia, Delaware River, USA.

Heavy-lift vessel MV ‘STATENGRACHT’ (21,250 DWT, built in 2004 at Szczecin) March 2014 Port Call at Philadelphia, Delaware River, USA.

Heavy-lift vessel MV ‘STATENGRACHT’ (21,250 DWT, built in 2004 at Szczecin) March 2014 Port Call at Philadelphia, Delaware River, USA.

Heavy-lift vessel MV ‘STATENGRACHT’ (21,250 DWT, built in 2004 at Szczecin) March 2014 Port Call at Philadelphia, Delaware River, USA.

Heavy-lift vessel MV ‘STATENGRACHT’ (21,250 DWT, built in 2004 at Szczecin) March 2014 Port Call at Philadelphia, Delaware River, USA.

Heavy-lift vessel MV ‘STATENGRACHT’ (21,250 DWT, built in 2004 at Szczecin) March 2014 Port Call at Philadelphia, Delaware River, USA.

Heavy-lift vessel MV ‘STATENGRACHT’ (21,250 DWT, built in 2004 at Szczecin) March 2014 Port Call at Philadelphia, Delaware River, USA.

Heavy-lift vessel MV ‘STATENGRACHT’ (21,250 DWT, built in 2004 at Szczecin) March 2014 Port Call at Philadelphia, Delaware River, USA.

Heavy-lift vessel MV ‘STATENGRACHT’ (21,250 DWT, built in 2004 at Szczecin) March 2014 Port Call at Philadelphia, Delaware River, USA.

Heavy-lift vessel MV ‘STATENGRACHT’ (21,250 DWT, built in 2004 at Szczecin) March 2014 Port Call at Philadelphia, Delaware River, USA.

Heavy-lift vessel MV ‘STATENGRACHT’ (21,250 DWT, built in 2004 at Szczecin) March 2014 Port Call at Philadelphia, Delaware River, USA.

Heavy-lift vessel MV ‘STATENGRACHT’ (21,250 DWT, built in 2004 at Szczecin) March 2014 Port Call at Philadelphia, Delaware River, USA.

Heavy-lift vessel MV ‘STATENGRACHT’ (21,250 DWT, built in 2004 at Szczecin) March 2014 Port Call at Philadelphia, Delaware River, USA.
